- New

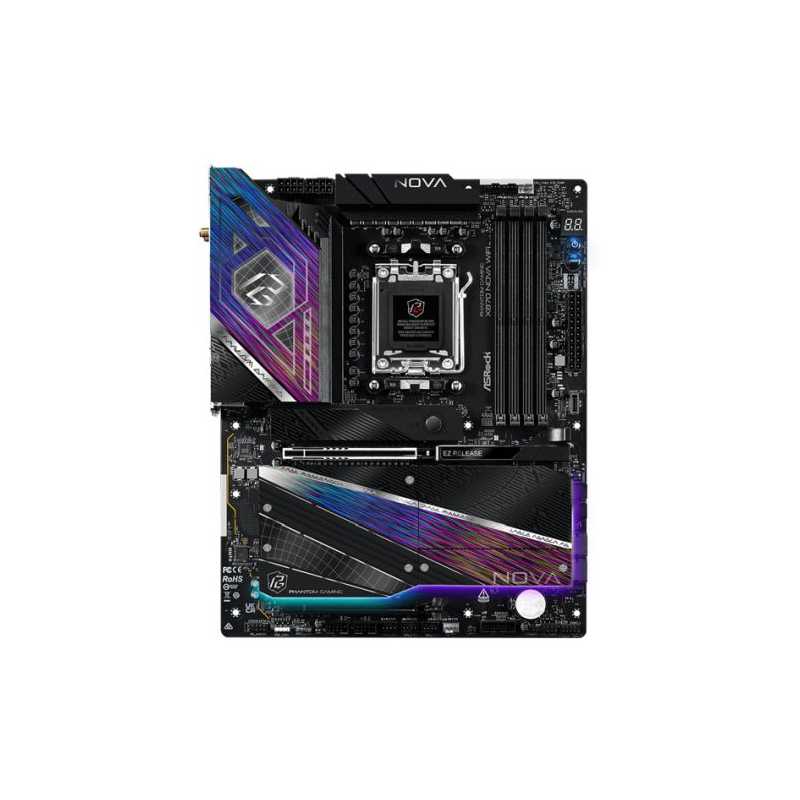

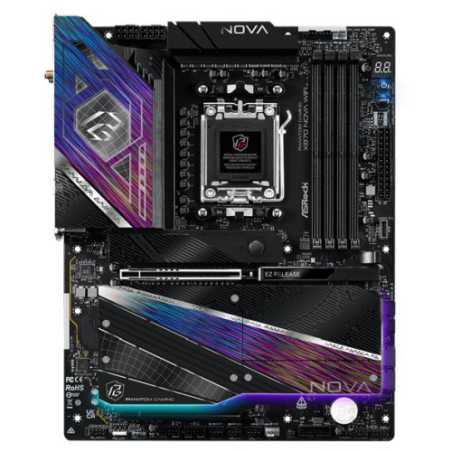

Asrock X870 NOVA WIFI, AMD X870, AM5, ATX, 4 DDR5, HDMI, 2 USB4, Wi-Fi 7, 5G LAN, RGB, 5x M.2
£301.61
VAT included
Delivered within 1-2 days.
Nova is the most significant energy discharge ever witnessed by mankind, it’s super-powerful which represents the performance our motherboard can deliver.
- Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
- 18+2+1 Phase Power Design, 80A SPS for VCore+SOC
- 4 x DDR5 DIMMs
- Supports Dual Channel, up to 8400+ (OC)
- 1 PCIe 5.0 x16, 1 PCIe 4.0 x16
- Graphics Output Options: 1 HDMI, 2 USB4 Type-C
- Realtek ALC4082 7.1 CH HD Audio Codec, Nahimic Audio
- 2 Blazing M.2 (PCIe Gen5x4)
- 2 Hyper M.2 (PCIe Gen4x4)
- 1 M.2 (PCIe Gen3x2 & SATA3)
- 2 SATA3
- 2 USB4 Type-C (Rear)
- 1 USB 3.2 Gen2x2 Type-C (Front)
- 2 USB 3.2 Gen2 (Rear)
- 7 USB 3.2 Gen1 (3 Rear, 4 Front)
- 8 USB 2.0 (4 Rear, 4 Front)
- Realtek 5GbE LAN
- 802.11be WiFi 7 + Bluetooth
- Supports EZ Release Design, Toolless Multi-Layer M.2 Heatsink, M.2 Bottom Heatsink
Optimized VRM Design
- Exclusive 20K Cap with 1000uF Capacitance - The upgraded 20K Black capacitor not only extends the lifespan to 20,000 hours but also increases the capacitance value from 560uF to 1000uF.
- 18+2+1 Power Phase Design - Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.
- SPS (Smart Power Stage) - Dr.MOS design features the latest SPS (Smart Power Stage) technology. It’s optimized for monitoring current and temperature of each phase, thus delivering smoother and neater power to the CPU with enhanced performance and OC capability.
- Hi-Density Power Connector - CPU overclocking requires higher current. ASRock Hi-Density Power Connectors are designed to withstand higher currents compared to traditional CPU and ATX power connectors, providing a more stable system and reducing the risk of fire during heavy overclocking.
DDR5 XMP & EXPO Support
Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details. This motherboards is built with high quality materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel XMP/AMD EXPO capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.
Premium PCB Solution
- Server Grade Low Loss PCB - The server grade low loss PCB improves signal integrity, allowing motherboard to support PCIe 5.0 for both graphics card and M.2 SSD, it also improves memory OC potential to deliver the most extreme memory performance.
- 2oz Copper PCB - 2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking.
- 8 Layer PCB - The 8 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency, ensures a reliable and long-lasting system while delivering ultimate performance without any compromise.
PCIe Gen5 Blazing M.2
The Blazing M.2 accommodates the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation, with a breathtaking 128GB/s transfer speed, it is ready to unleash the full potential of future ultrafast SSDs.
DIY Friendly Design
- Graphics Card EZ Release - ASRock redesigned the PCIe slot installation method to cater to user needs, allowing for hassle-free installation and removal of the graphics card effortlessly.
- M.2 Heatsink Toolless Design - Besides the M.2 SSD toolless design on the motherboard, ASRock up a notch by introducing this industry first M.2 heatsink quick release mechanism on the motherboard. The user friendly toolless design helps installing M.2 SSD super easy & simple.
Enlarged M.2 Heatsink
- XXL M.2 Heatsink - The extra-large aluminum alloy M.2 heatsink with toolless design is a user friendly quick release mechanism that helps installing M.2 SSD super easy & simple.
- Anti-Drop Screw - The enhanced M.2 heatsink with anti-drop screw design that make sure installation process more easily.
Intelligent Cooling Design
- Aluminum Heatsink - The first thing that catches the eye is the optimized Aluminum Heatsink Design. Heatsinks are crucial for efficient heat dissipation, especially during heavy workloads like gaming or productivity tasks. Motherboard that built with heatsinks can effectively manage thermal performance, hence ensure system stability and durability effortlessly.
- PWM/DC Fan Support - ASRock fan headers automatically detect whether fans are running in DC or PWM mode, allowing users to fine-tune the fan curve and achieve quieter operation.
- Thermistor Header - The thermistor cable and thermistor header provide an additional source for temperature monitoring, offering customized thermal management solutions based on workload. Thermal management settings can be easily configured via Fan-Tastic Tuning or UEFI.
- Fan-Tastic Tuning - ASRock Phantom Gaming Tuning Fan-Tastic Tuning function enables users to auto-detect the minimum duty of each fan with a single click. Users can also easily adjust the fan curve via the visualized UI interface, meeting their system's cooling performance and noise reduction requirements.
- M.2 Bottom Heatsink - The M.2 bottom heatsink is able to dissipate heat of the M.2 SSD efficiently through the motherboard PCB, maximize performance while maintaining system stability.
Nahimic Audio
- Audio That Matters - Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.
- Enhance Communication Quality - The Powerful algorithms to ensure the best noise-free conversation, giving a constant vocal level no matter the distance from your mic. The Nahimic audio engine dynamically clear the sound and remove interference noise and lower the voice variation. Result is a better comprehension and less fatigue.
- Sound Tracker - The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game.
- Works on any devices! - Enjoy the vibrant and high-quality Surround Sound on all your favorite audio devices: Jack, USB, Bluetooth, HDMI, S/PDIF. Nahimic is compatible with all of your favorite audio tools and ensures the best sound with any of them. Nahimic measure and improve to optimize our technology and offer you the best experience.
Wi-Fi 7
- Enhanced VR Experience - Wi-Fi 7 offers higher data throughput, lower latency, and Multi-link Operation. These features ensure a smooth and real-time interactive experience, making the VR/AR experience more immersive and connected.
- Wi-Fi 7 802.11be - Latest WiFi 7 technology delivers extreme wireless internet speeds and low latency, with higher throughput and Multi-RU as well as puncturing technology. The new WiFi 7(802.11be) technology is able to accelerate cloud-based gaming, 8K video streaming, and video conferencing.
- Multi-link Operation(MLO) - Multi-link Operation (MLO) enables the simultaneous use of multiple bands and channels, boosting speed and throughput while reducing latency for a smoother, faster internet experience.
Enhanced USB4 Type-C
USB4 technology brings speed and versatility to the most advanced USB Type-C, offering a fast and simple level of connection for work or home. It enables lightning-fast 40Gbps data transfer bitrate.
Optimized 5 Gb/s LAN
ASRock's 5Gb/s LAN Connector features an exclusive, patented design, boasting superior electromagnetic interference resistance, ensuring high-speed stable performance and providing users with a better networking experience.
Front Panel USB 3.2 Gen2x2 Type-C Header
The latest USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way.
More than USB Transfer Speed
- Lightning Gaming Ports - Aimed for die hard gamers and enthusiasts! Lightning Gaming Ports are sourced from two different controller interfaces that assist gamers in connecting the high speed mice/keyboard with the lower jitter and latency!
- Ultra USB Power - Provides stable power and better sound experience! Ultra USB Power provides 5V power transformed from +12V power rail, whose voltage drop will be much lower than the +5V from the PSU under heavy loading, and prevents noise from other devices or RGB LED.
Fast Charging Technology
Enjoy the superfast charging rate, up to 12V@3A 36W with PD 3.0! far more than any smartphone requires.
Polychrome RGB
This motherboard features onboard RGB headers and addressable RGB headers that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.
SignalRGB
SignalRGB unifies your RGB devices, offering seamless customization, game-reactive effects, macro automation, and system monitoring. The official partnership empowers ASRock motherboards with advanced lighting control, enhances compatibility with a diverse range of RGB devices, and provides greater customization flexibility.
Deluxe Accessories
- ARGB Splitter Cable - The ARGB Splitter Cable enables easy management of multiple ARGB devices through a single controller. With its splitting capability, it streamlines your lighting setup for a unified and dynamic aesthetic.
- Customized Thermal Management - The thermistor cable and thermistor header provide an additional source for temperature monitoring, offering customized thermal management solutions.
EZ Setting
- Auto Driver Installer - No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.
- BIOS Flashback - Get the most convenient BIOS flashing with just a simple click. Users can easily achieve the latest BIOS support with a USB and a power supply. No CPU, RAM or other components are required.
- Flexible Integrated I/O Shield - Unlike most so called pre-mounted I/O shield that is only decorated with fancy color schemes. We reserve more tolerance space and allow IO shield is adjustable when installing, thus fitting chassis perfectly without any mechanical issue.
X870 NOVA WIFI
10 Items
Data sheet
- .
- 2 x USB 3.2 Gen11 x Front Panel Type-C USB 3.2 Gen2x21 x Dr. Debug with LED1 x Power Button with LED1 x Reset Button with LED
- RAM Speeds
- Up to 8400+(OC)
- Accessories
- 2 x SATA Data Cables2 x ASRock WiFi 2.4/5/6 GHz Antennas1 x ARGB Splitter Cable1 x Thermistor Cable
- USB Ports Supported
- Rear:2 x USB4 (40Gbps) Type-C (up to 15W PD 3.0)2 x USB 10Gbps Type-A3 x USB 5Gbps Type-A4 x USB 2.0Front:1 x USB 20Gbps Type-C4 x USB 5Gbps Type-A4 x USB 2.0
- Storage
- 2 x SATA III5 x M.2M.2_1 (2280) - PCIe 5.0 x4M.2_2 (2280) - PCIe 4.0 x4M.2_3 (2280) - SATA & PCIe 3.0 x2M.2_4 (2280) - PCIe 4.0 x4M.2_5 (2280) - PCIe 4.0 x4
- RAID
- Supports RAID 0 and RAID 1 for SATA storage devicesSupports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
- Warranty
- 3 Year Replacement Warranty
- Motherboard Type
- Desktop
- Form Factor
- ATX
- Socket
- AMD AM5
- Chipset
- AMD X870
- DDR Type
- DDR5
- RAM Technology
- DDR5 (Dual Channel)ECC and Non-ECC, Un-buffered MemorySupports XMP and EXPO memory modules
- RAM Slots
- 4 x DIMM
- Maximum Memory
- 256GB
- LAN
- 5GB LAN
- Audio
- 7.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec)
- Back Panel I/O Ports
- 2 x Antenna1 x HDMI1 x Optical SPDIF Out2 x USB4 Type-C2 x USB 3.2 Gen2 Type-A3 x USB 3.2 Gen1 Type-A4 x USB 2.01 x RJ-45 LAN1 x Clear CMOS Button1 x BIOS Flashback Button1 x Line Out Jack1 x Microphone Input Jack
- Internal I/O Connectors
- 1 x Thermistor Cable1 x Power LED and Speaker1 x RGB LED3 x Addressable LED2 x CPU Fan3 x Chassis Fan1 x AIO Pump Fan1 x Water Pump Fan1 x 24 pin ATX2 x 8 pin 12V1 x Front Panel Audio2 x USB 2.0
- CPU Support
- Click here for CPU support
- Package Type
- Retail
- Graphics Ports
- 1 x HDMI2 x USB4 (40Gbps) support USB Type-C display outputs
- Additional Features
- See Overview
- Graphics
- Integrated GraphicsGraphics specifications may vary between CPU types
- M.2 Slot(s)
- Yes (M.2)
- No. LAN Ports
- 1 x LAN
- Max LAN Speed
- 5GB LAN
- RGB Lighting
- Out of the box RGB lighting
- Wi-Fi
- Yes (Wi-Fi)
