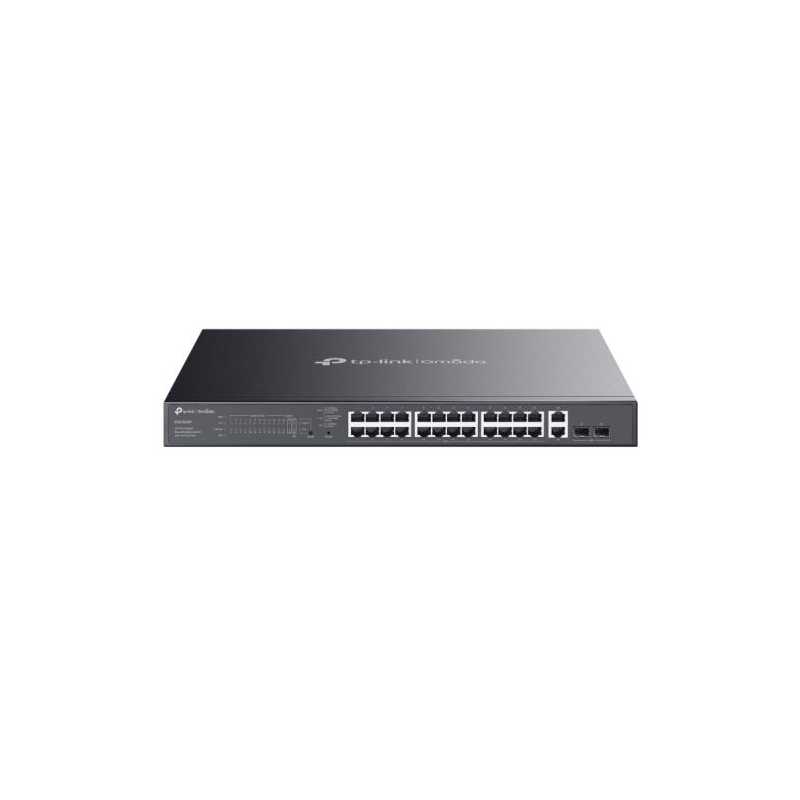

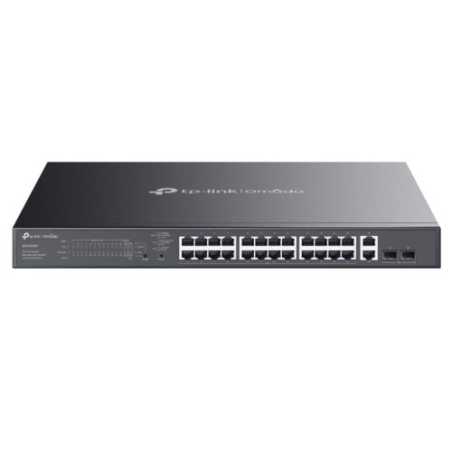

TP-LINK (ES228GMP) Omada 28-Port Gigabit Easy Managed Switch with 24-Port PoE+, 2x GB SFP Ports, 384W Power Budget, Rackmountabl
£283.30
VAT included
Delivered within 1-2 days.
Omada 28-Port Gigabit Easy Managed Switch with 24-Port PoE+
- 26x 10/100/1000Mbps RJ45 ports (24x 802.3af/at-compliant PoE+)
- 2x Gigabit SFP slots
- 384W Power Budget, with up to 30W for each PoE port
- Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
- Centralized Cloud Management via the web or the Omada app
- Up to 250m PoE, QoS, PoE Auto Recovery, and Port Isolation for reliable surveillance networking
- Automatic Loop Prevention, VLAN, and IGMP Snooping
- Durable metal casing and rack-mountable design
Omada Cloud Essentials — A Free and Easy Cloud-Based Network Management
Omada Cloud Essentials is a free, easy-to-use version of the Omada Cloud-based Controller. It provides cloud-based centralized management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.
- Lifetime Free Cloud without Any Additional Fees
- Exists Entirely in the Cloud. No Hardware or Software Controller Needed
- Cloud Centralized Management for Multiple Sites
- Access Anytime via Omada App or Web
- Easy Setup, Use, and Maintenance
- Unlimited Management Scale
- Zero-Touch Provisioning (ZTP) without Unboxing
- Seamlessly Upgrade to Omada Cloud Standard with a Subscription
Abundant Functions for Reliable Surveillance Networking
- Transmission Distance: up to 250 m
- Priority Video Quality Guaranteed
- Secure Traffic Separation via Port Isolation
- PoE Auto Recovery
Multiple Application Scenarios
- Surveillance - Works with IP Cameras
- Wi-Fi Coverage - Works with Access Points
- Wired Connections - Works with Non-PoE Devices such as PCs and Printers
ES228GMP
6 Items
Data sheet
- .
- Management Features:Web-based GUIDHCP ClientCable DiagnosticsAutomatic Device DiscoveryBatch ConfigurationBatch Firmware UpgradingUnified Configuration
- Warranty
- Limited Lifetime
- Package Type
- Retail
- Additional Features
- Durable Metal CasingFan Quantity: 2Physical Security LockSurge Protection: 6kVSupports plug-and-play
- Dimensions
- 440 x 330 x 44 mm
- Power Supply
- 100–240V AC, 50/60Hz
- Interface(s)
- 24 x10/100/1000 Mbps PoE+ RJ45 (802.3af PoE and 802.3at PoE+)2 x10/100/1000 Mbps RJ452 x Gigabit SFPAuto-Negotiation/Auto MDI/MDIX
- Package Contents
- ES228GMPPower CordMounting BracketsRubber FeetScrewsInstallation Guide
- Rackmountable
- Yes
- Number of Ports
- 28
- PoE Ports (RJ45)
- Standard: 802.3af PoE and 802.3at PoE+ compliantPoE Ports: 24 portsPoE Budget: 384W available for all PoE+ ports, 30W max per portFast PoE & Perpetual PoEPoE Auto RecoveryUp to 250m PoE transmission distance
- Switching Capacity
- 56 Gbps
- Environment
- Operating Temperature: -5°C ~ 45°CStorage Temperature: -40°C ~70°COperating Humidity: 10%~90% non-condensingStorage Humidity: 5%~90% non-condensing
- Quality of Service
- Port-based/802.1p/DSCP QoS8 Priority QueuesPriority Schedule ModeQueue Weight ConfigBandwidth ControlStorm Control
- Transfer Method
- Store-And-Forward
- Mac Address Table
- 8k
- Packet Forwarding Rate
- 41.67 MppsPacket Buffer Memory: 4 Mbit
- Jumbo Frame
- 15 KB
- Layer Features
- L2 Features:Static Link AggregationLoop Prevention / Loopback Detection802.3x Flow ControlMirroringPort Statistics802.1ab LLDPL2 Multicast:IGMP Snooping
- VLAN
- MTU VLANPort-Based VLAN802.1Q Tag VLAN
- POE
- Yes
- Managed
- Yes
- Max RJ45 Transfer Rate
- 10/100/1000 Mbps
- Max SFP Transfer Rate
- GB SFP
