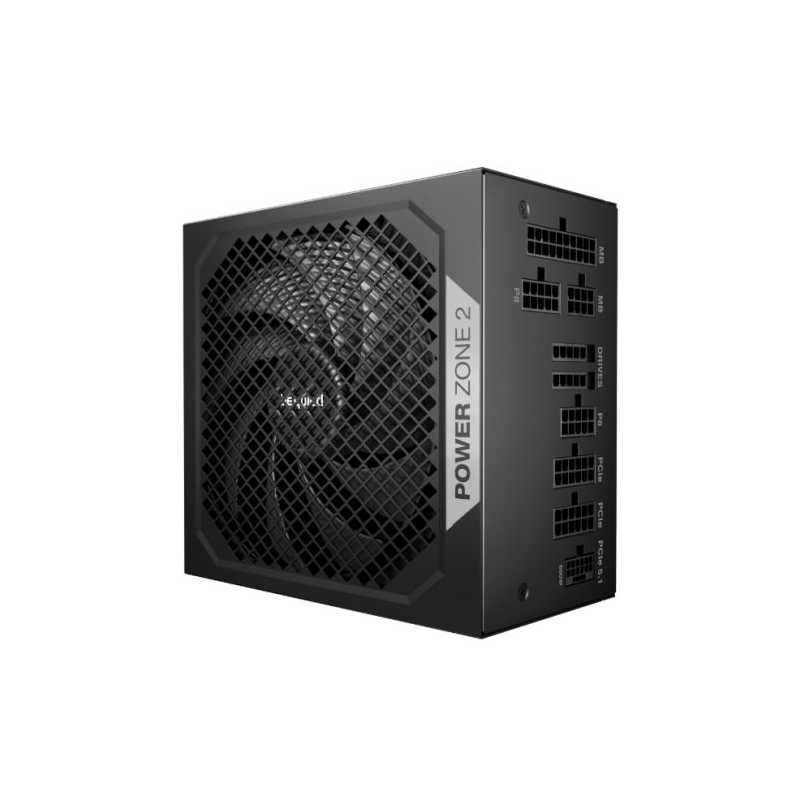

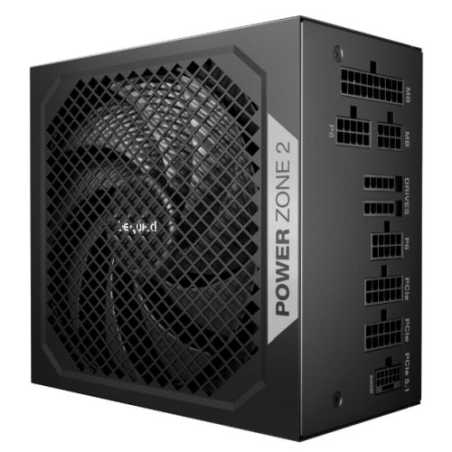

be quiet! Power Zone 2 750W PSU - 80 PLUS Platinum, Semi-Passive Cooling, Pure Wings 3 Fan, PCIe 5.1/ATX 3.1 Compatibility, 10-Y
£128.48
VAT included
The be quiet! Power Zone 2 750W Power Supply Unit (PSU) is crafted for gamers who prioritize efficiency and quiet operation. Featuring cutting-edge technology and a sleek design, this PSU ensures your system runs smoothly and efficiently, making it perfect for high-end gaming systems, overclocking rigs, and quiet HTPCs.
Key Features:
80 PLUS® Platinum and Cybernetics Platinum Efficiency Rating: Up to 94.2% efficiency, ensuring lower power consumption, cooler operation, and reduced noise.
Semi-Passive Zero-RPM Cooling: The fan turns off completely under low load, ensuring silent operation. Post-ventilation cool-down period of 2-5 minutes prevents frequent starts and stops.
Pure Wings 3 140mm Fan: Specially designed for the Power Zone 2, providing reliable, efficient, and quiet cooling.
90° Angled 12V-2x6 Connector and PCIe 5.1/ATX 3.1 Compatibility: Ensures compatibility with next-generation graphics cards and current-gen GPUs, making it a future-proof investment.
Advanced Voltage Regulation and Stability: Thanks to LLC technology, it offers superior voltage regulation and efficiency.
Unique Mesh Design: Distinctive look with a newly designed mesh front and cable designations printed on the PSU's case.
One Massive High-Performance 12V Rail: Ensures reliable operation with high power excursions, up to double its rated power.
10-Year Manufacturer’s Warranty: Providing peace of mind and long-term reliability.
Technical Data:
Model:
Power Zone 2 750W
Continuous Power (W):
750
Peak Power (W):
820
Form Factor:
Version 3.1
Form Factor EPS 12V:
Version 2.92
Voltage (Vac):
100 - 240
Frequency (Hz):
50 - 60
Input Current (A):
10 / 5
Power Factor at 100% Load:
>0.98
Modern Standby:
Yes
Power Consumption in Standby (W):
<0.18
Average Life Time (h / 25°C):
>100,000
Operating Temperature up to (°C):
40
Efficiency:
80 PLUS Certification:
Platinum
Efficiency (%) at 230V, 100% Load:
92.5
Fan and Cooling Technology:
Cybenetics Noise Rating:
A++
Fan:
Pure Wings 3
Fan Size (mm):
140
Bearing Technology:
Rifle
Motor Technology:
4-pole fan motor
Max. Fan Speed (rpm):
1800
dB(A) at 100% Load:
15.8
Max. Combined Power 12V (W):
750
Max. Combined Power 12VHPWR (W):
600
Max. Combined Power 3.3V + 5V (W):
120
Hold-up Time at 100% Load (ms):
24.5
Hold-up Time at 80% Load (ms):
32.9
Cables and Connectors:
Maximum Cable Length (cm): 100
Cable Length to Motherboard (cm): 60
ATX-Motherboard (20+4-pin): 1
P4+4 (CPU): 1
P8 (CPU): 1
P4 (CPU): 1
12VHPWR Cables: 1
PCI-e 6+2-pin (GPU): 3
PCI-e 6-pin (GPU): None
SATA: 6
PATA: 1
FDD (Floppy): None
Dimensions:
Dimensions without Cable (L x W x H), (mm): 160 x 150 x 86
Key Features:
80 PLUS® Platinum and Cybernetics Platinum Efficiency Rating: Up to 94.2% efficiency, ensuring lower power consumption, cooler operation, and reduced noise.
Semi-Passive Zero-RPM Cooling: The fan turns off completely under low load, ensuring silent operation. Post-ventilation cool-down period of 2-5 minutes prevents frequent starts and stops.
Pure Wings 3 140mm Fan: Specially designed for the Power Zone 2, providing reliable, efficient, and quiet cooling.
90° Angled 12V-2x6 Connector and PCIe 5.1/ATX 3.1 Compatibility: Ensures compatibility with next-generation graphics cards and current-gen GPUs, making it a future-proof investment.
Advanced Voltage Regulation and Stability: Thanks to LLC technology, it offers superior voltage regulation and efficiency.
Unique Mesh Design: Distinctive look with a newly designed mesh front and cable designations printed on the PSU's case.
One Massive High-Performance 12V Rail: Ensures reliable operation with high power excursions, up to double its rated power.
10-Year Manufacturer’s Warranty: Providing peace of mind and long-term reliability.
Technical Data:
Model:
Power Zone 2 750W
Continuous Power (W):
750
Peak Power (W):
820
Form Factor:
Version 3.1
Form Factor EPS 12V:
Version 2.92
Voltage (Vac):
100 - 240
Frequency (Hz):
50 - 60
Input Current (A):
10 / 5
Power Factor at 100% Load:
>0.98
Modern Standby:
Yes
Power Consumption in Standby (W):
<0.18
Average Life Time (h / 25°C):
>100,000
Operating Temperature up to (°C):
40
Efficiency:
80 PLUS Certification:
Platinum
Efficiency (%) at 230V, 100% Load:
92.5
Fan and Cooling Technology:
Cybenetics Noise Rating:
A++
Fan:
Pure Wings 3
Fan Size (mm):
140
Bearing Technology:
Rifle
Motor Technology:
4-pole fan motor
Max. Fan Speed (rpm):
1800
dB(A) at 100% Load:
15.8
Max. Combined Power 12V (W):
750
Max. Combined Power 12VHPWR (W):
600
Max. Combined Power 3.3V + 5V (W):
120
Hold-up Time at 100% Load (ms):
24.5
Hold-up Time at 80% Load (ms):
32.9
Cables and Connectors:
Maximum Cable Length (cm): 100
Cable Length to Motherboard (cm): 60
ATX-Motherboard (20+4-pin): 1
P4+4 (CPU): 1
P8 (CPU): 1
P4 (CPU): 1
12VHPWR Cables: 1
PCI-e 6+2-pin (GPU): 3
PCI-e 6-pin (GPU): None
SATA: 6
PATA: 1
FDD (Floppy): None
Dimensions:
Dimensions without Cable (L x W x H), (mm): 160 x 150 x 86
BP006EU
Data sheet
- Warranty
- 10 Years
- Form Factor
- ATX
- Package Weight
- 2.6000 kg
- Additional Features
- Semi-passive zero-RPM coolingFan runs on for 2-5 minutes to avoid frequent starting noise90° angled 12V-2x6 connectorLLC technology
- Series
- Be Quiet! Power Zone 2
- Colour
- Black
- Weight/Dimensions
- (LxWxH) 160 x 150 x 86 mm
- Package Contents
- PSUScrewsCable tiesUser manual languages
- Compatibility
- ATX 3.1EPS 12V v2.92PCIe 5.1
- Connectors
- 1 x ATX-Motherboard (20+4-pin)1 x P4+4 (CPU)1 x P8 (CPU)1 x P4 (CPU)1 x 12VHPWR cables3 x PCI-e 6+2-pin (GPU)6 x SATA1 x PATA
- Wattage
- 750W
- Efficiency
- 80+ PlatinumCybenetics Platinum230V, 2% load: 65.5%230V, 10% load: 89.4%230V, 20% load: 93%230V, 50% load: 94.2%230V, 100% load: 92.5%
- Modular
- Fully
- Rail Design
- One massive high-performance 12V-rail
- AC Input
- 100-240 VAC
- Fan Type
- 140mm Pure Wings 3 Fan
- Noise
- dB(A) at 10% load: 6.5dB(A) at 20% load: 6.5dB(A) at 50% load: 6.5dB(A) at 100% load: 15.8
- Fan Bearing
- Rifle Bearing
- Certification
- Platinum
- Protection
- OTP (over temperature protection)OCP (over current protection)OPP (over power protection)SCP (short circuit protection)OVP (over Voltage protection)UVP (under Voltage protection)SIP (Surge & Inrush Protection)
- SATA Connections
- 6
- Wattage Range
- 700 - 760W
- Size/Version
- ATX 3.1
- ATX 3.1/3.0
- ATX 3.1
- Max Certification
- Platinum
