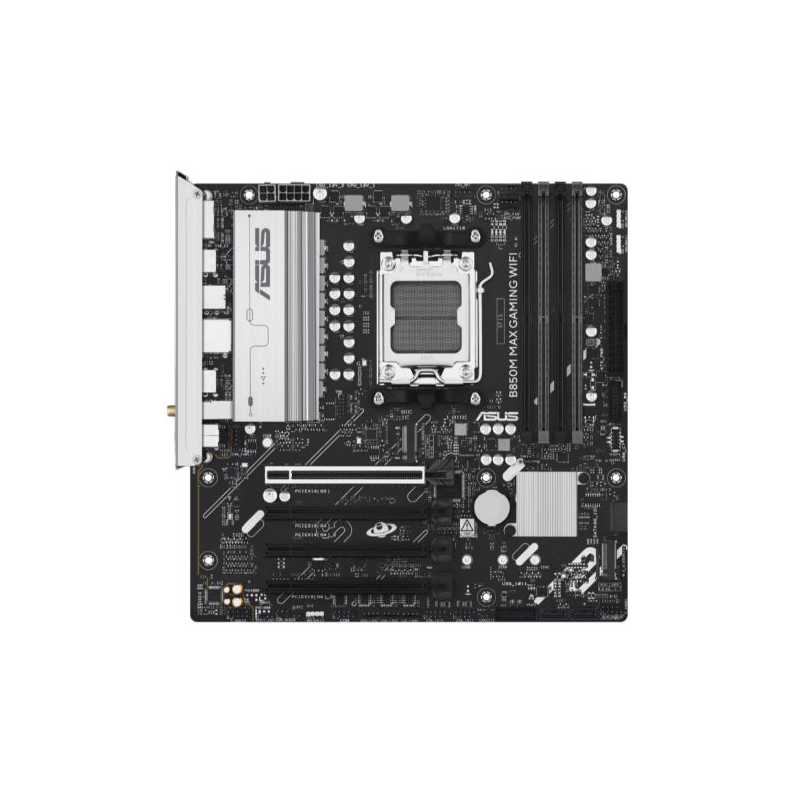

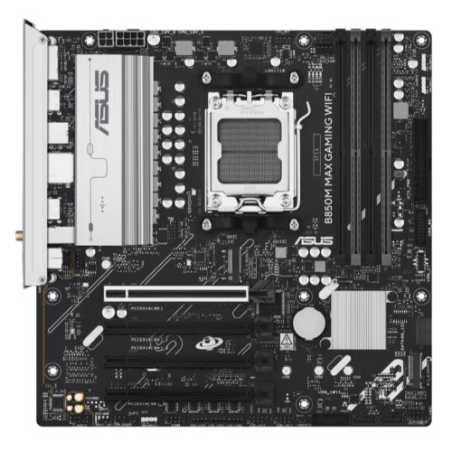

B850M MAX GAMING WIFI motherboards are expertly engineered to unleash the full potential of AMD Ryzen™ 9000 series processors.
The B850M MAX GAMING WIFI motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
AMD B850 mATX motherboard
DDR5
PCIe 5.0 Ready
Three M.2 slots
Wi-Fi 6
Realtek 1Gb Ethernet
DisplayPort
HDMI
Rear USB 10Gbps Type-C
Front USB 5Gbps Type-C
BIOS FlashBack
Aura Sync
AI Solutions
ASUS AI Solutions include AI Advisor as your technical expert with expertise in PC performance.
ASUS AI Advisor - ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple and straightforward way.
Digital Power Design
B850M MAX GAMING WIFI features an 8+2+1 phase power design with discrete MOSFETs, ensuring efficient and stable power delivery for AMD processors plus steady performance for day-to-day use.
Six-layer PCB design- The multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability and provide the CPU with more overclocking headroom.
Digi+ VRM control- The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings.
Enhanced DDR5 performance
Comprehensive memory tuning options are the cornerstone of B850 motherboards. The B850M MAX GAMING WIFI maximizes the potential of your DDR5 modules, from entry-level to extreme-speed kits.
For entry-level modules without EXPO™ support, ASUS Enhanced Memory Profile (AEMP) automatically detects memory chips and provides optimized profiles for enhanced performance.
For those looking to surpass stock DDR5 speeds, the B850M MAX GAMING WIFI offers extensive AMD Extended Profiles for Overclocking (EXPO™) support and a wide array of UEFI settings for further performance tweaks.
Three M.2 slots (up to 128 Gbps)
B850M MAX GAMING WIFI offers a total of three M.2 slots, including one that supports data-transfer speeds of up to 128 Gbps via PCIe 5.0, and two that support PCIe 4.0. This enables quicker boot-up and app load times with OS or application drives.5
Cooler by design
The B850M MAX GAMING WIFI motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to help ensure your rig stays cool and stable under intense workloads.
WiFi 6E
The WiFi 6 module is compatible with the 802.11ax standard and pushes theoretical peak bandwidth up to an incredible 1.2Gbps. Perhaps more importantly for power users, it's optimized for more efficient operation on crowded networks with a lot of competing traffic. Pair your motherboard with ASUS WiFi 6 routers to fully experience the networking potential of WiFi 6.6
High Speed Transferring
Numerous USB ports support high-end rigs loaded with peripherals, including two rear USB Type-A ports with transmission speeds of up to 10Gbps and a front USB Type-C® connector with ultrafast USB 5Gbps for transmission speeds of up to 5Gbps.
PCIe 5.0 slot
The latest processors introduce PCIe 5.0 support, doubling data transfer speeds compared to PCIe 4.0, enhancing signal integrity, and providing backward-compatible CEM connectors and support for previous PCIe versions.
Personalization
The B850M MAX GAMING WIFI enhances the user experience across the board, from simplifying BIOS setting adjustments to offering customizable RGB lighting controls for a uniquely personal system aesthetic.
UEFI BIOS- The UEFI interface delivers easy-to-use configuration options for PC beginners, and advanced features for veterans.
ASUS GlideX- Enable seamless screen sharing and control across PCs, tablets, and smartphones via wired or wireless connections, supporting multiple platforms.
ASUS DriverHub- Simplify driver management with automatic detection, one-click installation and update for smooth, efficient system performance.
Armoury Crate- Customize Aura Sync RGB and control ASUS devices. Includes product registration and updates.
Aura Sync- Complete RGB lighting control for enthusiast systems, ensuring seamless synchronization with compatible hardware.
Addressable Gen 2 RGB headers - Three addressable Gen 2 headers detect LED counts on compatible RGB devices, automatically adjusting lighting effects accordingly.
DIY friendly
The B850M MAX GAMING WIFI motherboard features EZ PC DIY innovations that simplify and speed up the PC building process, making DIY easy and convenient.
Q-LED Core- The Q-LED Core display produces color-coded lights during the Power-On Self-Test (POST) that can help you troubleshoot potential issues.
Pre-Mounted I/O Shield- Our pre-installed I/O shield safeguards ports, simplifies the build process, increases functionality and enhances aesthetics for PC DIY enthusiasts.
BIOS FlashBack™- BIOS FlashBack™ simplifies BIOS updates. Just load the BIOS file onto a FAT32 USB stick, insert it into the BIOS FlashBack™ port, and press a button - no CPU or memory needed.
SafeSlot- PCIe 5.0 is twice as fast as PCIe 4.0. ASUS has adapted our SMT manufacturing for the faster SafeSlot, a reinforced metal sheath that ensures secure card installation and faster data speeds.
Build for the most advanced pc for gaming and creating
When only the fastest will do, ASUS motherboards deliver. With faster dual-channel DDR5 memory support, AMD EXPO™ technology and PCIe® 5.0 support for both graphics and NVMe, you can play the most demanding games and deliver your biggest projects with the revolutionary performance of an ASUS motherboard and AMD Ryzen™ 9000, 8000, and 7000 Series processors.
2 x USB 2.03 x Addressable RGB Gen21 x Clear CMOS1 x Chassis Intrusion1 x COM Port1 x Front Panel Audio1 x S/PDIF Out1 x SPI TPM (14-1 pin)1 x 10-1 pin System Panel
Wireless
Wi-Fi 61x1 Wi-Fi 6 (802.11ax)Supports 2.4/5GHz frequency bandBluetooth v5.4
RAM Speeds
Up to 8000+MT/s(OC)
Accessories
2 x SATA 6Gb/s cables1 x ASUS Wi-Fi moving antenna2 x Screw packages for M.2 SSD1 x Quick start guide
USB Ports Supported
Rear:1 x USB 10Gbps Type-C1 x USB 10Gbps Type-A2 x USB 5Gbps Type-A5 x USB 2.0Front:1 x USB 5Gbps Type-C4 x USB 5Gbps4 x USB 2.0
Realtek 7.1 Surround Sound High Definition Audio CODEC
Back Panel I/O Ports
1 x USB 10Gbps Type-C1 x USB 10Gbps Type-A2 x USB 5Gbps Type-A5 x USB 2.01 x DisplayPort1 x HDMI1 x Wi-Fi module1 x Realtek 1Gb Ethernet3 x Audio jacks1 x BIOS FlashBack button
Internal I/O Connectors
1 x 4-pin CPU Fan1 x 4-pin CPU OPT Fan1 x 4-pin AIO Pump4 x 4-pin Chassis Fan1 x 24-pin Main1 x 8-pin +12V CPU1 x 4-pin +12V CPU3 x M.2 (Key M)4 x SATA 6Gb/s1 x USB 5Gbps Type-C2 x USB 5Gbps
CPU Support
Click here for CPU support
Package Type
Retail
Graphics Ports
1 x HDMI1 x DisplayPort
Additional Features
See Overview
Graphics
Integrated GraphicsGraphics specifications may vary between CPU types
M.2 Slot(s)
Yes (M.2)
No. LAN Ports
1 x LAN
Max LAN Speed
GB LAN
PCI/PCI Express
Ryzen 9000 & 7000 CPUs:1 x PCIe 5.0 x16 (supports x16 mode)3 x PCIe 4.0 x16 (support x1 mode)Ryzen 8000 CPUs:1 x PCIe 4.0 x16 (supports x8/x4 mode)3 x PCIe 4.0 x16 (support x1 mode)
Wi-Fi
Yes (Wi-Fi)
