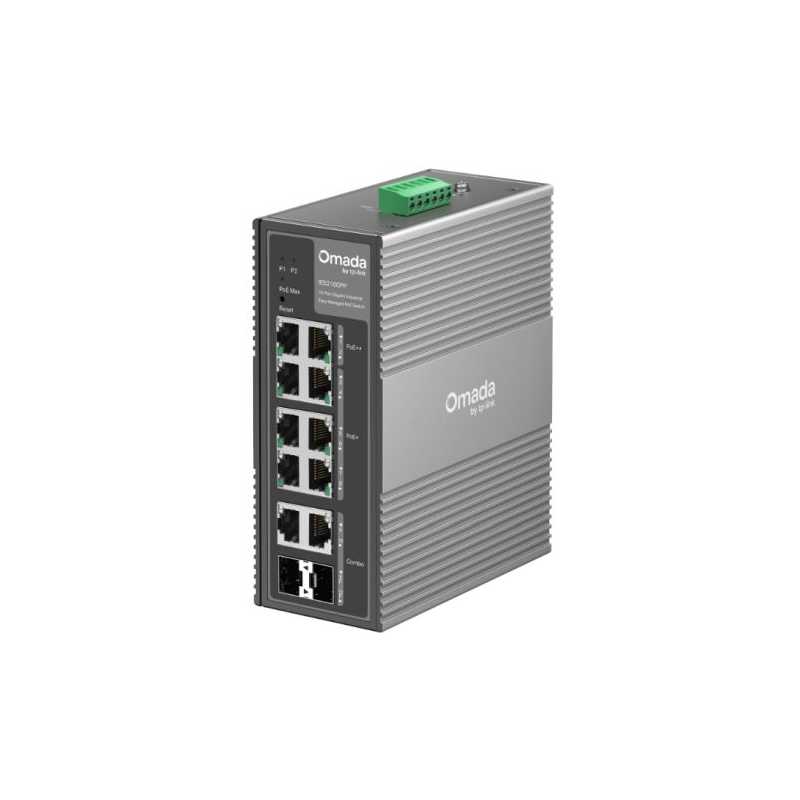

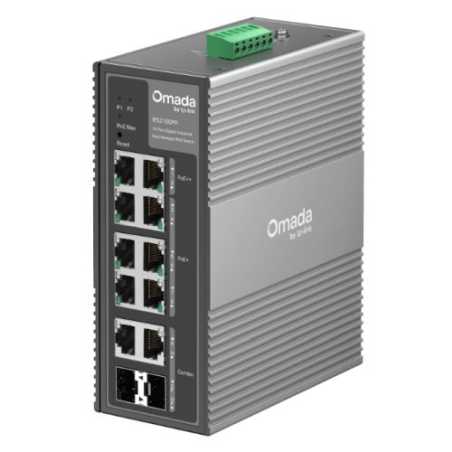

Omada 10-Port Gigabit Industrial Easy Managed Switch with 6-Port PoE+ and 2-Port PoE++

  • 8x Gigabit RJ45 Ports (2x PoE++, 6x PoE+)
  • 2x Gigabit Combo RJ45/SFP Slots
  • 240W Power Budget with up to 60W for Each PoE++ Port
  • Professional Industrial-Grade Design: -40~75°C Operating Temperature, 6kV Lighting Protection, and 1+1 Redundant Power Input
  • 1+1 Redundant Power Input - Equipped with dual power input ports and a wide 12-57V DC voltage range, ensuring continuous operation even if one power supply fails.
  • Abundant Features: Up to 820ft (250m) PoE, VLAN, QoS, and STP/RSTP
  • Centralized Cloud Management via the Web or Omada App
  • Durable IP40 Aluminum Casing and DIN-rail / Wall-mount Design








IES210GPP
8 Items

Data sheet

.
Management Features:Web-based GUIDHCP ClientCable DiagnosticsAutomatic Device DiscoveryBatch ConfigurationBatch Firmware UpgradingUnified Configuration
Warranty
Limited Lifetime
Package Type
Retail
Additional Features
Professional Industrial-Grade DesignDurable IP40 Aluminium CasingFanlessDIN-rail mountingWall mountingPhysical Security Lock6kV Lighting Protection
Dimensions
155 x 120 x 60 mm
Power Supply
12-57V 1+1 Redundant DC Power Input
Interface(s)
2 x 10/100/1000 Mbps PoE++ RJ45 Ports6 x 10/100/1000 Mbps PoE+ RJ45 Ports2 x Gigabit SFP/RJ45 Combo SlotsAuto-Negotiation/Auto MDI/MDIX
Package Contents
IES210GPPDIN-Rail Mounting BracketWall-Mounting PlatesInstallation Guide
Rackmountable
No
Number of Ports
10
Switching Capacity
20 Gbps
Environment
Operating Temperature: 0°C ~ 75°CStorage Temperature: -40°C ~ 85°COperating Humidity: 5%~95% non-condensingStorage Humidity: 5%~95% non-condensing
Quality of Service
802.1p DSCP Priority8 Priority QueuesPriority Schedule ModeQueue Weight ConfigBandwidth ControlStorm Control
Transfer Method
Store-And-Forward
Mac Address Table
8k
Packet Forwarding Rate
14.88 Mpps
Jumbo Frame
15 KB
Layer Features
L2 Features:Link AggregationLoopback DetectionFlow ControlMirroringPort Statistics802.1ab LLDPSpanning TreeL2 Multicast:IGMP Snooping
VLAN
MTU VLANPort-Based VLAN802.1Q Tag VLAN
POE
Yes
Managed
Yes
Max RJ45 Transfer Rate
10/100/1000 Mbps
Max SFP Transfer Rate
GB SFP
