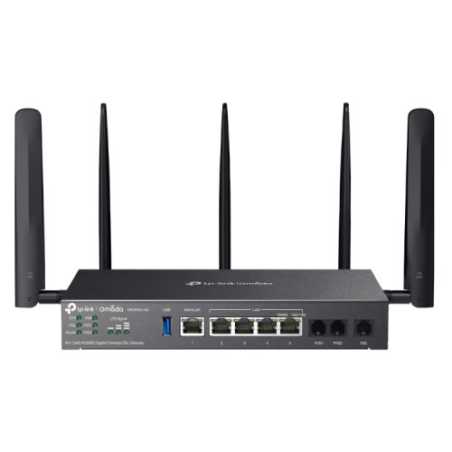

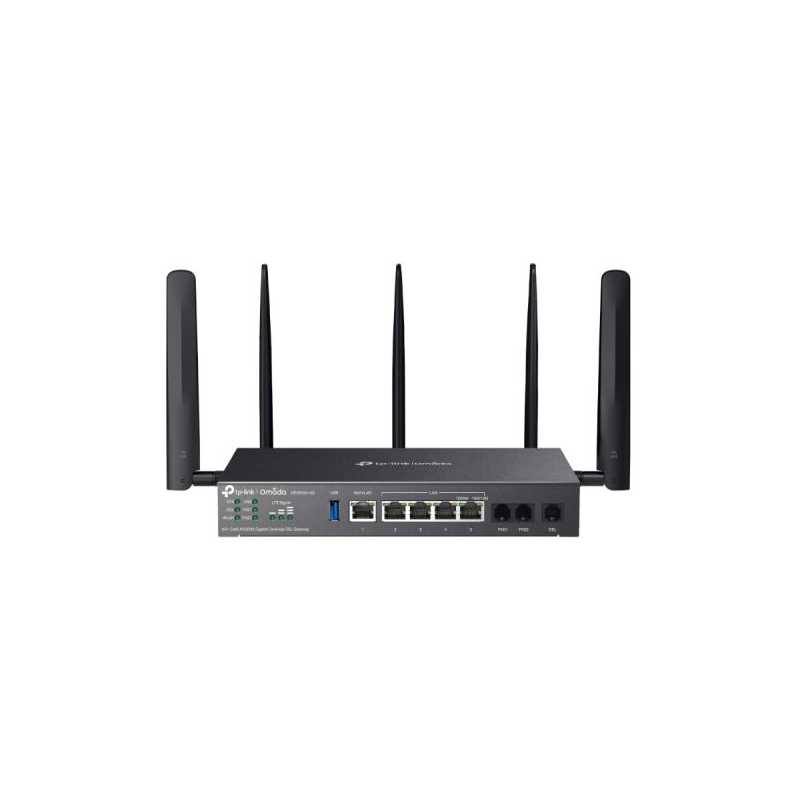

TP-LINK (DR3650v-4G) Omada 4G+ Cat6 AX3000 Wi-Fi 6 Gigabit Desktop DSL Gateway, 4G+ Cat6 up to 300Mbps, VDSL2 35b, USB, VoIP Sup
search
  • TP-LINK (DR3650v-4G) Omada 4G+ Cat6 AX3000 Wi-Fi 6 Gigabit Desktop DSL Gateway, 4G+ Cat6 up to 300Mbps, VDSL2 35b, USB, VoIP Sup

TP-LINK (DR3650v-4G) Omada 4G+ Cat6 AX3000 Wi-Fi 6 Gigabit Desktop DSL Gateway, 4G+ Cat6 up to 300Mbps, VDSL2 35b, USB, VoIP Sup

£402.85
VAT included
Stock status: Very low
Last 24 items
Delivered within 1-2 days.
Quantity

Delivery from %MINIMAL_DATE%



Omada 4G+ Cat6 AX3000 Wi-Fi 6 Gigabit Desktop DSL Gateway

  • AX3000 WiFi 6 with 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz
  • 4G+ Cat6 up to 300Mbps
  • 3x RJ11 Ports (2x FXS, 1x DSL) & 5x RJ45 Gigabit Ports & 1x USB 3.0 Port
  • 2x Nano SIM for 4G/LTE Failover
  • VDSL2 35b: Supports 350Mbps DSL Access
  • VDSL2/ADSL2+/ADSL2/ADSL Compatibility
  • IPSec/PPTP/L2TP/OpenVPN/WireGuard/GRE/SSL VPN
  • Load Balancing Across DSL, 4G, and Ethernet WAN for Optimized Connectivity
  • Centralized Cloud Management
  • Desktop/Wall/Rack Mounting (Purchase Rackmount Kit-D226 Separately)





Get the Higher DSL Speeds Cost-Effectively

The integrated DSL port supports VDSL2/ADSL2+/ADSL2/ADSL connections. Compatibility with the leading ISPs provides ideal IP-based connections for any small business.





Versatile Connectivity

DR3650v-4G’s compatible with Super VDSL (VDSL2 Profile 35b), Ethernet access, and 4G/3G USB modems. Its Gigabit LAN/WAN port accepts connections from cable or fiber modems, and the FXS ports supports VoIP for reliable voice communication. The USB 3.0 port supports 4G/3G dongles for a solid main or backup internet connection.





Up to 3.0 Gbps Business-Level WiFi 6 Empowers Small and Medium Business
  • HE 160 - Double the data at peak transmission times on a single stream.
  • OFDMA - Enables different devices to share one transmission stream, increasing efficiency.
  • 1024 QAM - 25% more data encoded at one time.




Software Defined Networking (SDN) with Cloud Access

Centralized cloud management for Omada gateways, switches, and access points across multiple sites, with the Omada cloud-based controller offering the Essentials version of cloud services for free, reducing maintaince costs.





High-Security and High-Performance VPN

SSL/ IPSec / GRE / WireGuard / PPTP / L2TP VPN & OpenVPN easily build secure VPN tunnels for secure Internet browsing, communication between different branches, or enabling remote work or study from home.








DR3650V-4G
24 Items

Data sheet

.
Management Features:Automatic Device DiscoveryIntelligent Network MonitoringAbnormal Event WarningsUnified ConfigurationReboot ScheduleCaptive Portal Configuration
Warranty
Limited Lifetime
Package Type
Retail
Additional Features
Flash: 256 MB NANDDRAM: 512 MB DDR4Desktop/Wall-mounting (Purchase Rackmount Kit Separately)
Dimensions
(WxDxH) 226 x 131 x 35 mm) (Antenna dimensions are notincluded)
Type
VDSL2/ADSL2 Router
Power Supply
12V DC / 3.3A Power AdapterMax Power Consumption:Power adapter not included: 28.482 W (Full load + USB)Power adapter included: 31.42 W (Full load + USB)
Interface(s)
1 x Gigabit WAN/LAN Port4 x Gigabit LAN Ports1 x DSL Port2 x FXS Ports1 x USB 3.0 (supports USB LTE dongle and USB Storage)Dual Nano SIM Slot (4G+ Cat6)
Package Contents
DR3650v-4GPower AdapterEthernet CablePhone CableRubber Feet,SIM Card Eject PinQuick Installation Guide
Button(s)
Reset Button
Connectivity
Wireless
Max Wired Transfer Rate
10/100/1000 Mbps
Signal Rate
5 GHz: 2402 Mbps2.4 GHz: 574 Mbps4G+ Cat6 up to 300Mbps
Bands
Dual Band
Frequency
2.4 GHz & 5 GHz
Environment
Operating Temperature: 0C°~40°C (32°F ~104°F)Storage Temperature: -40°C to 70°C (-40 °F to 158 °F)Operating Humidity: 10% to 90% non-condensingStorage Humidity: 5% to 90% non-condensing
DHCP
DHCP ServerDHCPv6 PD Server (only in Standalone Mode)DHCP Options CustomizationDHCP Address ReservationMulti-IP InterfacesMulti-Net DHCP
Antenna(s)
Wi-Fi: 3x 5GHz 5dBi & 2.4GHz 3.5dBi dual-band detachable antennasLTE: 2x 4.0dBi omnidirectional detachable antennas
Dynamic DNS
Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization
Wireless Standard
Wi-Fi 6/6E (802.11ax)
USB Application
Supports USB LTE dongle and USB Storage
Port/NAT Forwarding
66 Byte Packet forwarding rate:1,453,489 pps / 1,453,488 pps1,518 Byte Packet forwarding rate:81,274 pps / 91,275 pps
Mesh Wi-Fi Support
Yes (Mesh Wi-Fi)
Max Single Band Wi-Fi Rate
2402 Mbps
Wi-Fi Rating
AX3000
