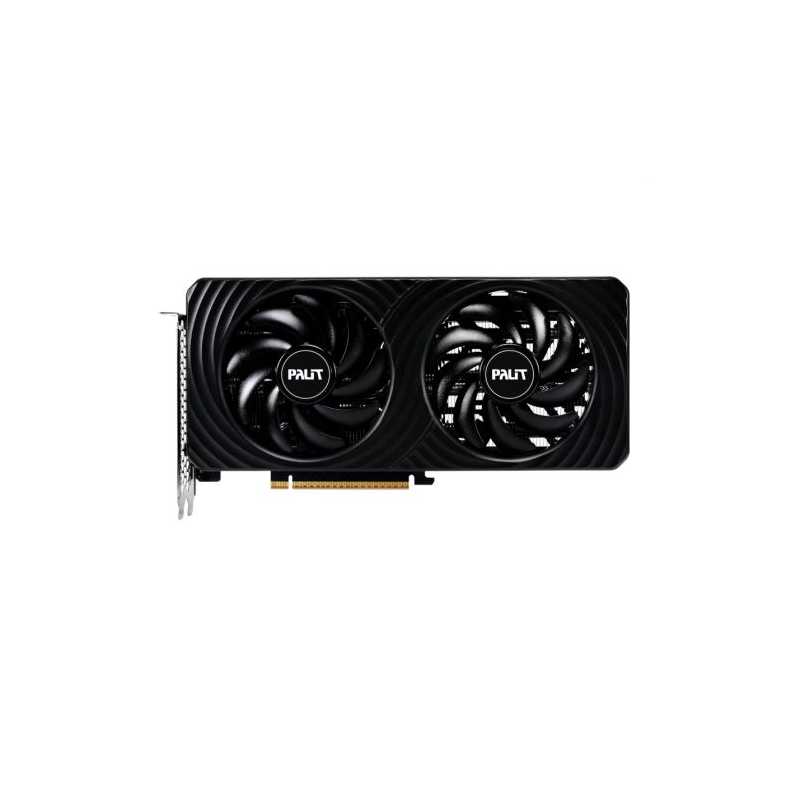

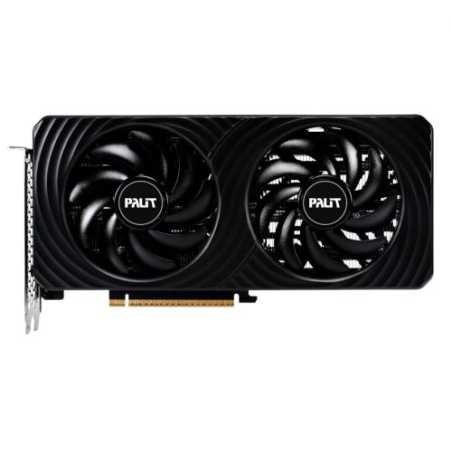

Palit RTX5060 Ti DUAL OC, PCIe5, 8GB DDR7, HDMI, 3 DP, 2632MHz Clock, RGB Lighting, Overclocked

Data sheet

Warranty

2 Years

Package Type

Retail

Additional Features

Dedicated Ray Tracing CoresDedicated Tensor CoresNVIDIA DLSSGame Ready and NVIDIA Studio DriverNVIDIA APPNVIDIA BroadcastNVIDIA G-SYNCVulkan 1.4, OpenGL 4.6HDCP 2.3

Dimensions

262.1 x 126.3 x 40.1 mm

Resolution

DisplayPort 2.1b with UHBR20: up to 4K 480Hz or 8K 165Hz with DSCHDMI 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR

Software

ThunderMaster

Interface

PCI Express 5.0

Chipset Manufacturer

Nvidia

Graphics Chipset

Nvidia RTX 5060 Ti

Memory Size

8GB

Memory Type

DDR7

Memory Interface

128-bit

Core Clock

Core Clock: 2407 MHzBoost Clock: 2632 MHz

CUDA Cores / Stream Processors

4608 CUDA Cores

Outputs

1 x HDMI 2.1b3 x DisplayPort 2.1b

HDCP Support

Yes

DirectX Support

DirectX 12 Ultimate

PSU Requirements

600W or greater recommended

Slot Size

2 Slot

Connectors Required

1 x 8-pin power

Memory Clock

28 Gbps

Max Display Support

4

DisplayPort

Yes (DisplayPort)

HDMI

Yes (HDMI)

Lighting Effects

Yes
