- Out of stock

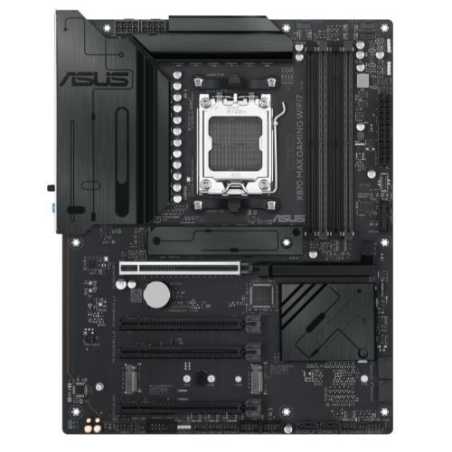

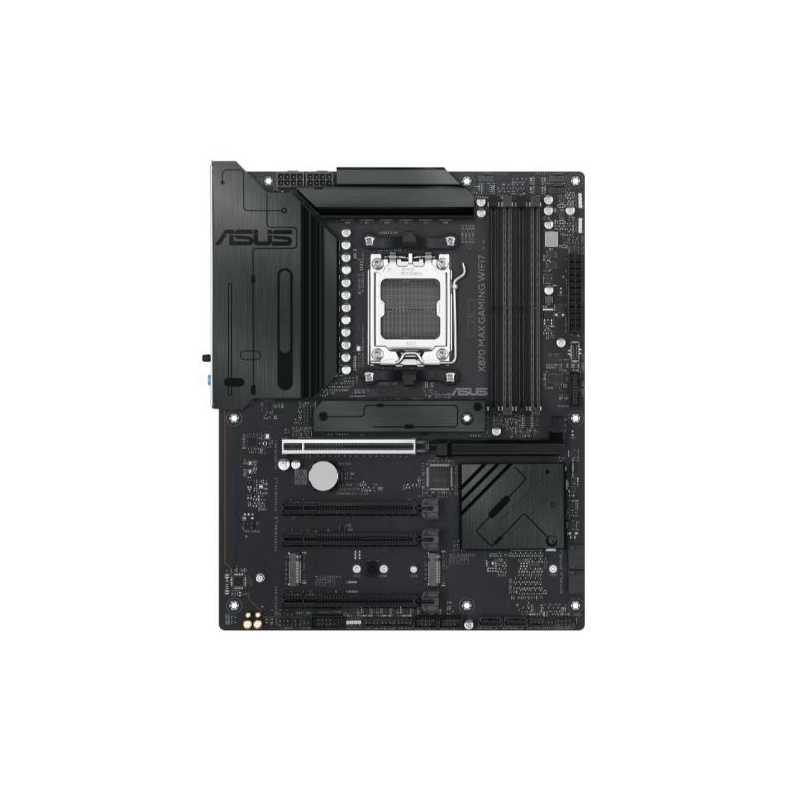

Asus X870 MAX GAMING WIFI7, AMD X870, AM5, ATX, 4 DDR5, HDMI, 2 USB4, Wi-Fi 7, 2.5G LAN, 3x M.2
£309.96
VAT included
ASUS X870 series motherboards are expertly engineered to unleash the full potential of AMD Ryzen™ 9000 series processors.
Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the X870 MAX GAMING WIFI7 motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
- Advanced AI PC-ready
- 12+2+1 DrMOS
- PCle 5.0 x16 slot
- Full support for next-gen graphics cards
- DDR5 slots
- Three M.2 slots
- Wi-Fi 7
- Realtek 2.5Gb Ethernet
- USB 40Gbps
- HDMI
- Front USB 20Gbps Type-C connector
- SATA 6Gbps ports
- PCIe Slot Q-Release and Aura Sync
AI Solutions
ASUS AI Solutions include ASUS AI Advisor as your technical expert with expertise in PC performance, AI Cooling II for automated temperature control.
- ASUS AI Advisor - ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple and straightforward way.
- AI Cooling II - Optimized thermals and reduced noise via dynamic adjustment of fan speeds, based on CPU temperatures.
Robust power design
Stable power is crucial for maximizing the performance of AMD processors. The X870 series is designed to meet the needs of high-core-count CPUs. It features 12(80A) + 2(80A) + 1(80A) power stages that integrate high-side and low-side MOSFETs and drivers into packages rated for up to 80 amperes each. This configuration ensures optimal power delivery, efficiency, stability and performance for both current and future AMD processors.
- Eight-layer PCB design - The multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability and provide the CPU with more overclocking headroom.
- ProCool connectors - Proprietary 8 + 8 pin connectors improve PSU connection.
- Digi+ VRM control - The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings.
Enhanced DDR5 performance
Comprehensive memory tuning options are the cornerstone of X870 series motherboards. The X870 MAX GAMING WIFI7 maximizes the potential of your DDR5 modules, from entry-level to extreme-speed kits.2
For entry-level modules without EXPO™ support, ASUS Enhanced Memory Profile (AEMP) automatically detects memory chips and provides optimized profiles for enhanced performance.
For those looking to surpass stock DDR5 speeds, the X870 MAX GAMING WIFI7 offers extensive AMD Extended Profiles for Overclocking (EXPO™) support and a wide array of UEFI settings for further performance tweaks3.
Three M.2 slots (up to 128 Gbps)
X870 MAX GAMING WIFI7 offers a total of three M.2 slots, including one that supports data-transfer speeds of up to 128Gbps via PCIe 5.0, two that support 64Gbps via PCIe 4.0. This enables quicker boot-up and app load times with OS or application drives4.
Cooler by design
The X870 MAX GAMING WIFI7 motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to help ensure your rig stays cool and stable under intense workloads.
WiFi 7
The next-gen WiFi 76 supports 160 MHz bandwidth in the 6 GHz band and 4096 QAM. Multi-Link Operation (MLO) ensures stable connections and low latency, supporting 2.4, 5, and 6 GHz bands for enhanced coverage and throughput.
USB 40Gbps Type-C® ports
Each port delivers up to 40Gbps of bi-directional bandwidth for the latest super-speed devices and drives. Both ports can be employed for up to two external 4K displays.
PCIe 5.0 slot
The latest processors introduce PCIe 5.0 support, doubling data transfer speeds compared to PCIe 4.0, enhancing signal integrity, and providing backward-compatible CEM connectors and support for previous PCIe versions.
Personalization
The X870 series enhances the user experience across the board, from simplifying BIOS setting adjustments to offering customizable RGB lighting controls for a uniquely personal system aesthetic.
- UEFI BIOS - The UEFI interface delivers easy-to-use configuration options for PC beginners, and advanced features for veterans.
- ASUS GlideX - Enable seamless screen sharing and control across PCs, tablets, and smartphones via wired or wireless connections, supporting multiple platforms.
- ASUS DriverHub - Simplify driver management with automatic detection, one-click installation and update for smooth, efficient system performance.
- Armoury Crate - Customize Aura Sync RGB and control ASUS devices. Includes product registration and updates.
- Aura Sync - Complete RGB lighting control for enthusiast systems, ensuring seamless synchronization with compatible hardware.
- Addressable RGB Gen 2 headers - Three Addressable RGB Gen 2 headers detect LED counts on compatible RGB devices, automatically adjusting lighting effects accordingly.
DIY friendly
The X870 series motherboard features EZ PC DIY innovations that simplify and speed up the PC building process, making DIY easy and convenient.
- Q-Antenna - With Q-Antenna, attaching a WiFi antenna to your PC is now easy and fast. Instead of slowly rotating two fasteners until they finally lock in, they just snap into place. Less hassle, and more consistent performance.5
- PCIe Slot Q-Release - A physical lever unlocks the first PCIe slot’s security latch with one tap, greatly simplifying the process of detaching a PCIe card from the motherboard when it’s time to upgrade to a new graphics card or other compatible device.
- Q-LED Core - The Q-LED Core display produces color-coded lights during the Power-On Self-Test (POST) that can help you troubleshoot potential issues.
- Pre-Mounted I/O Shield - Our pre-installed I/O shield safeguards ports, simplifies the build process, increases functionality and enhances aesthetics for PC DIY enthusiasts.
- BIOS FlashBack™ - BIOS FlashBack™ simplifies BIOS updates. Just load the BIOS file onto a FAT32 USB stick, insert it into the BIOS FlashBack™ port, and press a button - no CPU or memory needed.
- SafeSlot - PCIe 5.0 is twice as fast as PCIe 4.0. ASUS has adapted our SMT manufacturing for the faster SafeSlot, a reinforced metal sheath that ensures secure card installation and faster data speeds.
Build for the most advanced pc for gaming and creating
When only the fastest will do, ASUS X870E/X870 motherboards deliver. With USB 4.0 onboard along with robust overclocking7 capabilities, featuring faster dual-channel DDR5 memory support, AMD EXPO™ technology and PCIe® 5.0 support for both graphics and NVMe, you can play the most demanding games and deliver your biggest projects with the revolutionary performance of an ASUS X870E/X870 motherboard and AMD Ryzen™ 9000, 8000, and 7000 Series processors.
90MB1LY0-M0EAY0
Data sheet
- .
- 1 x Clear CMOS1 x Chassis Intrusion1 x COM Port1 x Front Panel Audio1 x S/PDIF Out1 x SPI TPM (14-1 pin)1 x 10-1 pin System Panel
- Wireless
- Wi-Fi 72x2 Wi-Fi 7 (802.11be)Supports 2.4/5/6GHz frequency bandSupports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.Bluetooth v5.4
- RAM Speeds
- Up to 8000+MT/s(OC) with Ryzen 9000 & 8000 & 7000 CPUs
- Accessories
- 2 x SATA 6Gb/s cables1 x ASUS WiFi Q-Antenna1 x M.2 rubber package1 x Screw package for M.2 SSD1 x Quick start guide
- USB Ports Supported
- Rear:2 x USB4 (40Gbps) Type-C1 x USB 10Gbps Type-A3 x USB 5Gbps Type-A4 x USB 2.0Front:1 x USB 20Gbps Type-C2 x USB 5Gbps4 x USB 2.0
- Storage
- 4 x SATA III3 x M.2Ryzen 9000 & 7000 CPUs:M.2_1 (2280) - PCIe 5.0 x4M.2_2 (2242/2260/2280) - PCIe 4.0 x4Ryzen 8000 CPUs:M.2_1 (2280) - PCIe 4.0 x4M.2_2 (2242/2260/2280) - PCIe 4.0 x4/x2X870E Chipset:M.2_3 (2280) - PCIe 4.0 x4
- RAID
- Ryzen 9000 Series Processors: RAID 0/1/5/10Ryzen 8000 Series Processors: RAID 0/1Ryzen 7000 Series Processors: RAID 0/1/10
- Warranty
- 3 Years
- Motherboard Type
- Desktop
- Form Factor
- ATX
- Socket
- AMD AM5
- Chipset
- AMD X870
- DDR Type
- DDR5
- RAM Technology
- DDR5 (Dual Channel)ECC and Non-ECC, Un-buffered Memory*Supports AMD EXPOASUS Enhanced Memory Profile*Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
- RAM Slots
- 4 x DIMM
- Maximum Memory
- 256GB
- LAN
- 2.5GB LAN
- Audio
- Realtek 7.1 Surround Sound High Definition Audio CODEC
- Back Panel I/O Ports
- 2 x USB4 (40Gbps) Type-C1 x USB 10Gbps Type-A3 x USB 5Gbps Type-A4 x USB 2.01 x HDMI1 x Wi-Fi module1 x Realtek 2.5Gb Ethernet port3 x Audio jacks1 x BIOS FlashBack button
- Internal I/O Connectors
- 1 x 4-pin CPU Fan1 x 4-pin CPU OPT Fan1 x 4-pin AIO Pump4 x 4-pin Chassis Fan1 x 24-pin Main2 x 8-pin +12V CPU3 x M.2 (Key M)4 x SATA 6Gb/s1 x USB 20Gbps Type-C1 x USB 5Gbps2 x USB 2.03 x Addressable RGB Gen2
- CPU Support
- Click here for CPU support
- Package Type
- Retail
- Graphics Ports
- 1 x HDMI2 x USB4 (40Gbps) support USB Type-C display outputs
- Additional Features
- See Overview
- Graphics
- Integrated GraphicsGraphics specifications may vary between CPU types
- M.2 Slot(s)
- Yes (M.2)
- No. LAN Ports
- 1 x LAN
- Max LAN Speed
- 2.5GB LAN
- PCI/PCI Express
- Ryzen 9000 & 7000 CPUs:1 x PCIe 5.0 x16 (supports x16 mode)Ryzen 8000 CPUs:1 x PCIe 4.0 x16 (supports x8/x4 mode)AMD X870 Chipset:2 x PCIe 4.0 x16 (support x1 mode)1 x PCIe 3.0 x16 (supports x1 mode)
- Wi-Fi
- Yes (Wi-Fi)
