Arctic P9 Max High-Speed 9.2cm PWM Case Fan, Pressure Optimised, Black, Fluid Dynamic, 450-4300 RPM, 0dB Mode
£7.06
VAT included
Delivered within 1-2 days.

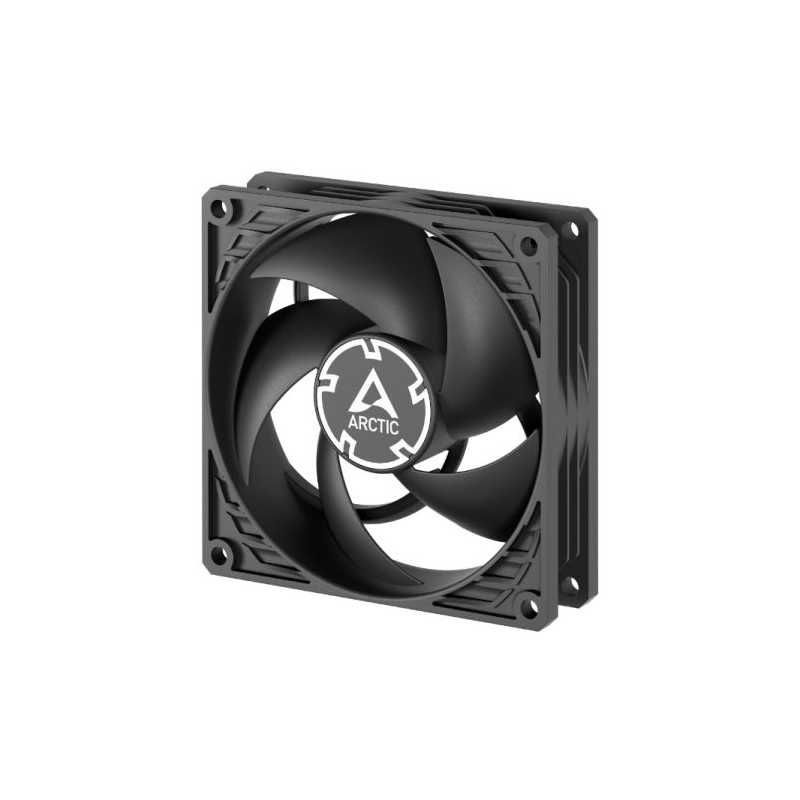

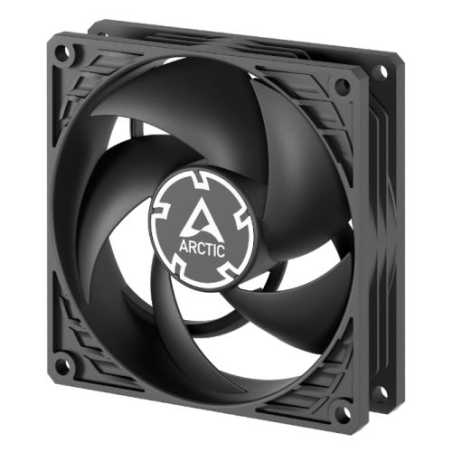

P9 Max (Black) - 92 mm High-Speed PWM Fan
- Fan Speed: 450–4300 RPM (PWM controlled), 0 RPM below 5% PWM
- Airflow: 58.25 CFM
- Static Pressure: 6.17 mmH2O
- Fan Bearing: Fluid Dynamic Bearing
- Typical Voltage: 12 V DC
- Start Up Voltage: 5 V DC
- Current: 0.34 A
- Cable Length: 400 mm
- Connector: 4-Pin Fan Plug
- Operating Ambient Temperature: 0–40 °C
Powerful Cooling
The P9 Max is a powerful 92 mm fan with 450 to 4300 rpm.The fan delivers a static pressure of 6.17 mmH2O and generates an airflow of up to 58.25 cfm. It offers precise control of the fan speed via pulse width modulation (PWM) and is highly efficient at 0.34 A. In addition, it has a 0 dB mode for silent operation in IDLE.
Extremely Wide Speed Range
The P9 Max enables precise fan speed via pulse width modulation control, which can be adapted to the individual cooling requirements. The P9 Max enables silent operation when only a low airflow is required and provides a high performance level if needed.
Optimised for High Static Pressure
The P9 Max delivers a focused airflow and guarantees a good airflow even with particularly high static pressure. Therefore, the P9 Max is also specially suitable for use on heat sinks, radiators, pinholes and filters.
0 dB Mode - Zero rpm
The speed of the fan can be throttled down to a standstill via PWM. This allows silent operation in IDLE and at the same time guarantees maximum performance when required. This enables the P9 Max to be extremely flexible in adjusting the speed to optimally regulate the airflow for every case.
Virtually Silent due Fluid Dynamic Bearing
As a special feature, the P9 Max is equipped with ARCTIC's proven Hydrodynamic Bearing. This enables the virtually silent operation at low speeds. At maximum speed, brute performance is still guaranteed. Although these bearings tend to wear out, ARCTIC does not compromise on durability and still offers the 6-year warranty.
Quality You Can Rely On
To ensure the longevity of our products, we carry out long-term tests under different, sometimes very adverse conditions. In this way, we learn how we can permanently improve our products for our customers. In addition, the excellent results of long-term testing give us the assurance that our products are not only outstanding in terms of quality, but also in terms of durability. This is a certainty that we are happy to pass on to our customers, which is why we give a 6-year manufacturer's guarantee.
ACFAN00300A
161 Items
Data sheet
- Power
- Typical Voltage: 12 V DCStart Up Voltage: 5 V DCCurrent: 0.34 A
- Warranty
- 6 Years
- Package Type
- Retail
- Additional Features
- See Overview
- Type
- 9.2cm Case Fan
- Colour
- Black
- Package Contents
- 1 x P9 Max4 x Mounting Screws
- Fan Connector(s)
- 4-pin
- Installation
- Screws
- Weight
- 105 g
- Fan Dimensions
- 92 x 92 x 25 mmCable Length: 400 mm
- LED Lighting
- -
- Fan Controller
- PWM
- Rotation Speed
- 450 - 4300 RPMZero RPM below 5% PWM
- Fan Bearing
- Fluid Dynamic
- Air Flow
- 58.25 CFM
- Noise level
- Virtually Silent0dB Mode - Zero RPM (below 5% PWM)
