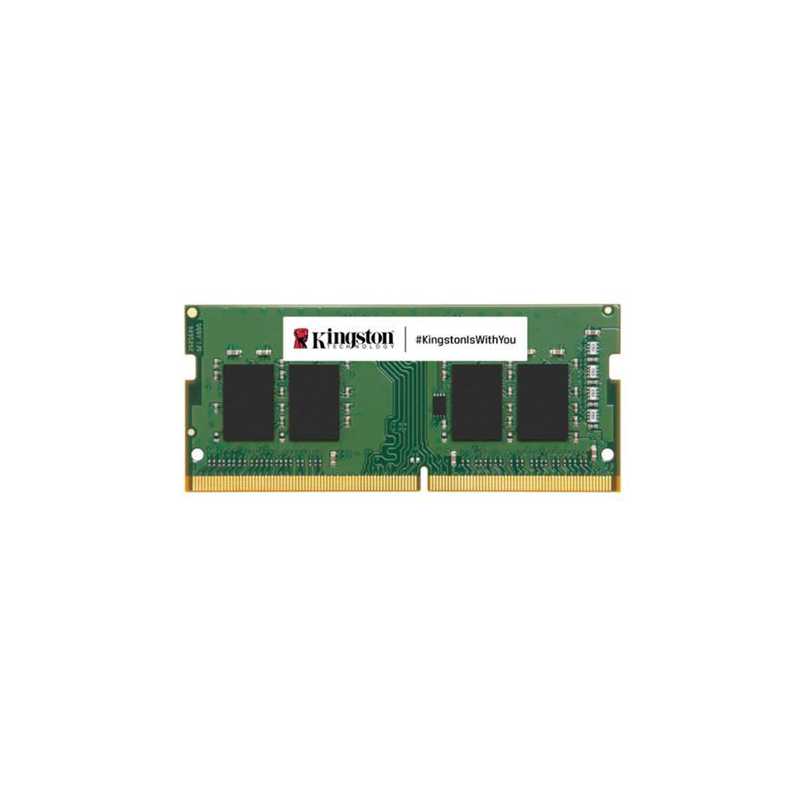

Kingston ValueRAM 4GB, DDR4, 3200MHz (PC4-25600), CL22, SODIMM Memory
£17.84
VAT included
Delivered within 1-2 days.
4GB 1Rx16 512M x 64-Bit PC4-3200 CL22 260-Pin SODIMM
ValueRAM's KVR32S22S6/4 as a 512M x 64-bit (4GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM), 1Rx16, memory module, based on four 512M x 16-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. This 260-pin SODIMM uses gold contact fingers.
- Power Supply: VDD = 1.2V Typical
- VDDQ = 1.2V Typical
- VPP = 2.5V Typical
- VDDSPD = 2.2V to 3.6V
- Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
- Low-power auto self refresh (LPASR)
- Data bus inversion (DBI) for data bus
- On-die VREFDQ generation and calibration
- Single-rank
- On-board I2 serial presence-detect (SPD) EEPROM
- 8 internal banks; 2 groups of 4 banks each
- Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
- Selectable BC4 or BL8 on-the-fly (OTF)
- Fly-by topology
- Terminated control command and address bus
- PCB: Height 1.18” (30.00mm)
- RoHS Compliant and Halogen-Free
KVR32S22S6/4
8 Items
Data sheet
- Warranty
- Lifetime
- DDR Type
- DDR4 SODIMM
- Package Type
- Retail
- Series
- Kingston ValueRAM
- Size
- 1 x 4GB
- Speed
- 3200 MHz
- Compliance
- PC4-25600
- Pins
- 260-pin
- CAS Latency
- CL22
- Data Integrity Check
- Non-ECC
- Additional Information
- See Overview
- Individual Module Size
- 4GB
