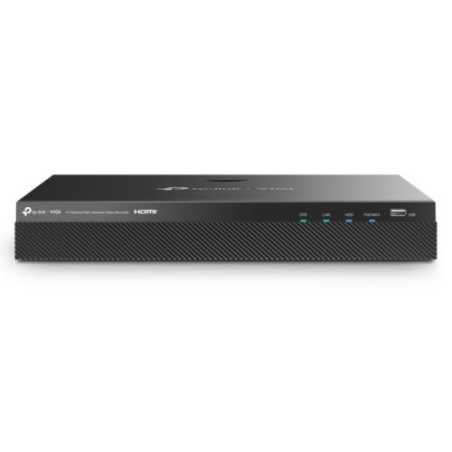

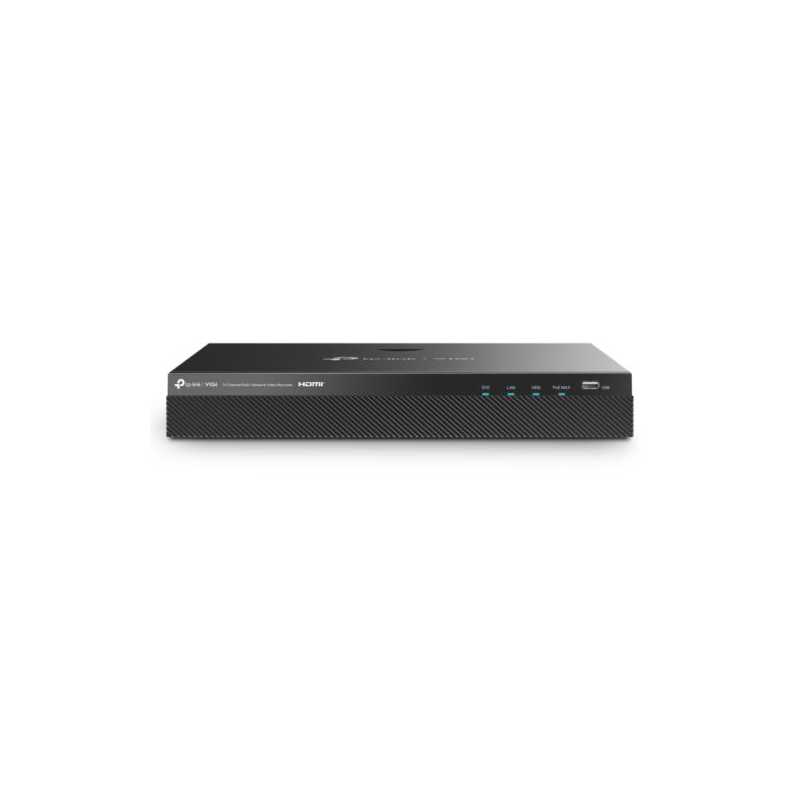

TP-LINK (VIGI NVR2016H-16MP) 16 Channel PoE+ Network Video Recorder, 16-Channel Live View, 4K HDMI Output, 140W PoE Budget, 2x S

Data sheet

Warranty

5 Years

Additional Features

See Overview

Power Supply

53.5V DC/3.37A

Interface(s)

Network: 1 x RJ-45 10/100/1000 Mbps Self-Adaptive EthernetUSB: 1 x Front USB 2.0 Port, 1 x Rear USB 3.0 PortAudio: 1-ch RCA Input; 1-ch RCA OutputAlarm In/Out: 6/4Power: 1 x DC Jack1 x eSATA1 x HDMI1 x VGA

Weight/Dimensions

2.2 kg330 x 285 x 45 mm

Package Contents

VIGI Network Video RecorderPower AdapterPower CableHDD Power CablesHDD Data CablesMounting AccessoriesMouseQuick Installation Guide

Power Consumption

6.2 W (Without Disk)40 W (With Disk)

Environment

Storage Temperature: -40–70 °CStorage Humidity: 10%~90% RH Non-CondensingWorking Temperature: NVR: -10–55 °C / Power Adapter: 0–40 °CWorking Humidity: 10%~90% RH Non-Condensing

POE

Standard: 802.3at/af CompliantInterface: 1-16, RJ-45 10/100 Mbps Self-Adaptive Ethernet InterfaceBudget: 140 W Available for All PoE+ Ports, 30 W Max per Port

Access Camera Number

16

Wired Access Bandwidth

Incoming Bandwidth: 320 MbpsOutgoing Bandwidth: 320 Mbps

HDD

2 SATA InterfacesCapacity Up to 16 TB Capacity for Each HDD*Hard drives (not included) must be installed for operation.
