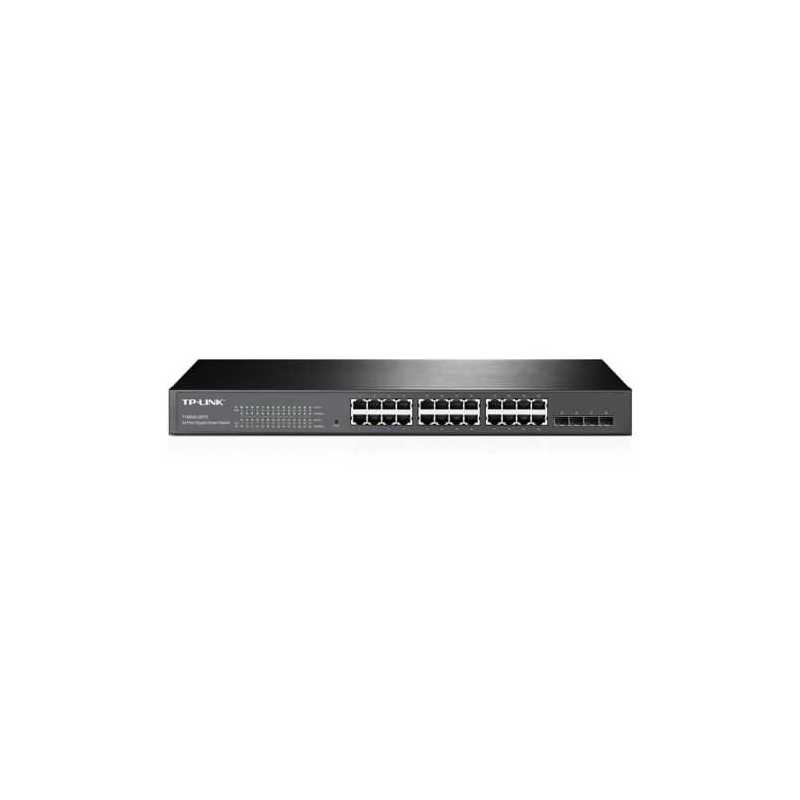

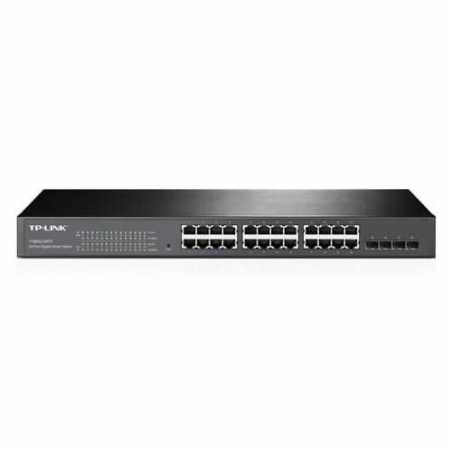

TP-LINK (T1600G-28TS) 24-Port Gigabit Smart Switch with 4 SFP Slots, L2+ Features
T1600G-28TS (TL-SG2424)
- Gigabit Ethernet connections on all ports provide full speed of data transferring
- L2+ Feature—Static Routing, helps route internal traffic for more efficient use of network resources
- Integrated security strategy including 802.1Q VLAN, Port Security and Storm control help protect LAN area investment
- L2/L3/L4 QoS and IGMP snooping optimize voice and video applications
- IPv6 support with dual IPv4/IPv6 stack, MLD snooping, IPv6 neighbor discovery
- WEB/CLI managed modes, SNMP, RMON and Dual Image bring abundant management features
TP-LINK JetStream Gigabit Smart Switch T1600G-28TS is a cost-effective product solution for small and medium-sized business which provides high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS and useful security strategies. Equipped with 24 gigabit RJ45 ports and 4 SFP slots, T1600G-28TS supports multiple useful features. Static Routing helps route internal traffic for more efficient use of network resources. The Storm Control feature protects against Broadcast, Multicast and Unknown unicast Storm. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. Moreover, the easy-to-use web management interfaces, along with SNMP, RMON and Dual Image, mean faster setup and configuration with less downtime. For workgroup and departments requiring cost-sensitive L2/L2+ switch and gigabit capability, TP-LINK JetStream Gigabit Smart Switch T1600G-28TS provides you the ideal access-edge solution.
Advanced QoS Features
To integrate voice, data and video service on one network, the switch applies rich QoS policies. Administrator can designate the priority of the traffic based on a variety of means including Port Priority, 802.1P Priority and DSCP Priority, to ensure that voice and video are always clear, smooth and jitter free. In conjunction with the Voice VLAN the switch supports, the voice applications will operate with much smoother performance.
For more application of L2 switches, T1600G-28TS supports a complete lineup of L2 features, including 802.1Q tag VLAN, Port Isolation, IP-MAC-Port Binding, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Group and 802.3x Flow Control function. Besides, the switch provides advanced features for network maintenance such as Loop Back Detection, Cable Diagnostics and IGMP Snooping. IGMP snooping ensures the switch intelligently forward the multicast stream only to the appropriate subscribers while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Moreover, T1600G-28TS supports L2+ feature—static routing, which is a simple way to provide segmentation of the network with internal routing through the switch and helps network traffic for more efficient use.
T1600G-28TS supports various IPv6 functions such as Dual IPv4/IPv6 Stack, MLD Snooping, Path Maximum Transmission Unit (PMTU) Discovery and IPv6 Neighbor Discovery.
T1600G-28TS is easy to use and manage. It supports various user-friendly standard management features, such as intuitive web-based Graphical User Interface(GUI) or industry-standard Command Line Interface(CLI), SNMP (v1/2/3) and RMON support enables the switch to be polled for valuable status information and send traps on abnormal events. And it also supports Dual Image, which provides reduced down-time for the switches, when the image is being upgraded / downgraded.
T1600G-28TS (TL-SG2424)
- Gigabit Ethernet connections on all ports provide full speed of data transferring
- L2+ Feature—Static Routing, helps route internal traffic for more efficient use of network resources
- Integrated security strategy including 802.1Q VLAN, Port Security and Storm control help protect LAN area investment
- L2/L3/L4 QoS and IGMP snooping optimize voice and video applications
- IPv6 support with dual IPv4/IPv6 stack, MLD snooping, IPv6 neighbor discovery
- WEB/CLI managed modes, SNMP, RMON and Dual Image bring abundant management features
TP-LINK JetStream Gigabit Smart Switch T1600G-28TS is a cost-effective product solution for small and medium-sized business which provides high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS and useful security strategies. Equipped with 24 gigabit RJ45 ports and 4 SFP slots, T1600G-28TS supports multiple useful features. Static Routing helps route internal traffic for more efficient use of network resources. The Storm Control feature protects against Broadcast, Multicast and Unknown unicast Storm. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. Moreover, the easy-to-use web management interfaces, along with SNMP, RMON and Dual Image, mean faster setup and configuration with less downtime. For workgroup and departments requiring cost-sensitive L2/L2+ switch and gigabit capability, TP-LINK JetStream Gigabit Smart Switch T1600G-28TS provides you the ideal access-edge solution.
Advanced QoS Features
To integrate voice, data and video service on one network, the switch applies rich QoS policies. Administrator can designate the priority of the traffic based on a variety of means including Port Priority, 802.1P Priority and DSCP Priority, to ensure that voice and video are always clear, smooth and jitter free. In conjunction with the Voice VLAN the switch supports, the voice applications will operate with much smoother performance.
For more application of L2 switches, T1600G-28TS supports a complete lineup of L2 features, including 802.1Q tag VLAN, Port Isolation, IP-MAC-Port Binding, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Group and 802.3x Flow Control function. Besides, the switch provides advanced features for network maintenance such as Loop Back Detection, Cable Diagnostics and IGMP Snooping. IGMP snooping ensures the switch intelligently forward the multicast stream only to the appropriate subscribers while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Moreover, T1600G-28TS supports L2+ feature—static routing, which is a simple way to provide segmentation of the network with internal routing through the switch and helps network traffic for more efficient use.
T1600G-28TS supports various IPv6 functions such as Dual IPv4/IPv6 Stack, MLD Snooping, Path Maximum Transmission Unit (PMTU) Discovery and IPv6 Neighbor Discovery.
T1600G-28TS is easy to use and manage. It supports various user-friendly standard management features, such as intuitive web-based Graphical User Interface(GUI) or industry-standard Command Line Interface(CLI), SNMP (v1/2/3) and RMON support enables the switch to be polled for valuable status information and send traps on abnormal events. And it also supports Dual Image, which provides reduced down-time for the switches, when the image is being upgraded / downgraded.
Data sheet
- Data Transfer Rate
- 10/100/1000 Mbps
- Warranty
- Limited Lifetime
- Package Type
- Retail
- Package Weight
- 2.9300 kg
- Dimensions
- 440 x 180 x 44 mm
- Power Supply
- 100~240VAC, 50/60HzMax Consumption: 23.2W (220V/50Hz)
- Interface(s)
- 24 x 10/100/1000Mbps RJ45 Ports(Auto Negotiation/Auto MDI/MDIX)4 x Gigabit SFP Slots
- Package Contents
- T1600G-28TSPower CordInstallation GuideResource CDRackmount KitRubber Feet
- Standards and Protocols
- IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z,IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s,IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x
- Environment (℃)
- Operating Temperature: 0C~40C (32F~104F);Storage Temperature: -40C~70C (-40F~158F)Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~90% non-condensing
- Rackmountable
- Yes
- Management
- Smart
Web-based GUI and CLI managementRMON (1, 2, 3, 9 groups)CPU MonitoringPort MirroringFirmware Upgrade: TFTP & WebSystem Diagnose: VCTSYSLOG & Public MIBSDual ImageSNMP v1/v2c/v3,compatible with public MIBs andTP-LINK private MIBs - Number of Ports
- 24
- PoE Ports (RJ45)
- -
- Bandwidth
- 56Gbps
- Security
- SSH v1/v2SSL v3/TLSv1Port SecurityBroadcast/Multicast/Unknown-unicast Storm Control802.1x and Radius AuthenticationIP-MAC-Port BindingARP InspectionDos Defend
- Advanced Functions
- See Overview
- Quality of Service
- Support 802.1p CoS/DSCP prioritySupport 8 priority queuesQueue scheduling: SP, WRR, SP+WRRPort/Flow-based Rate LimitingVoice VLAN
- Mac Address Table
- 16K
- Packet Forwarding Rate
- 41.7Mpps
- Jumbo Frame
- 9216 Bytes
- Layer Features
- Static RoutingIGMP Snooping V1/V2/V3802.3ad LACPSpanning Tree STP/RSTP/MSTPBPDU Filtering/GuardTC/Root ProtectLoop back detection802.3x Flow Control
- VLAN
- Supports IEEE 802.1Q up with 4k VLANs simultaneouslyMac based VLANProtocol Based VLAN
- Access Control
- L2~L4 package filtering based on source and destination MAC address, IP address, TCP/UDP ports
- POE
- No
Specific References
- EAN13
- 6935364091989
