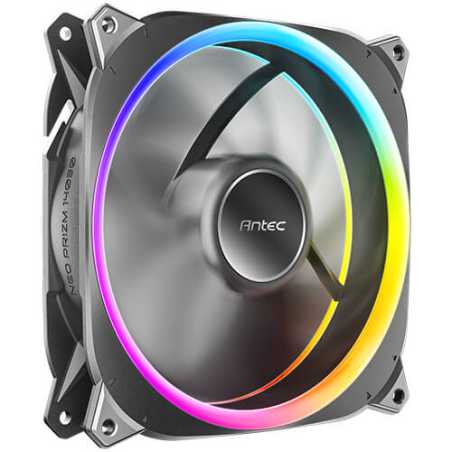

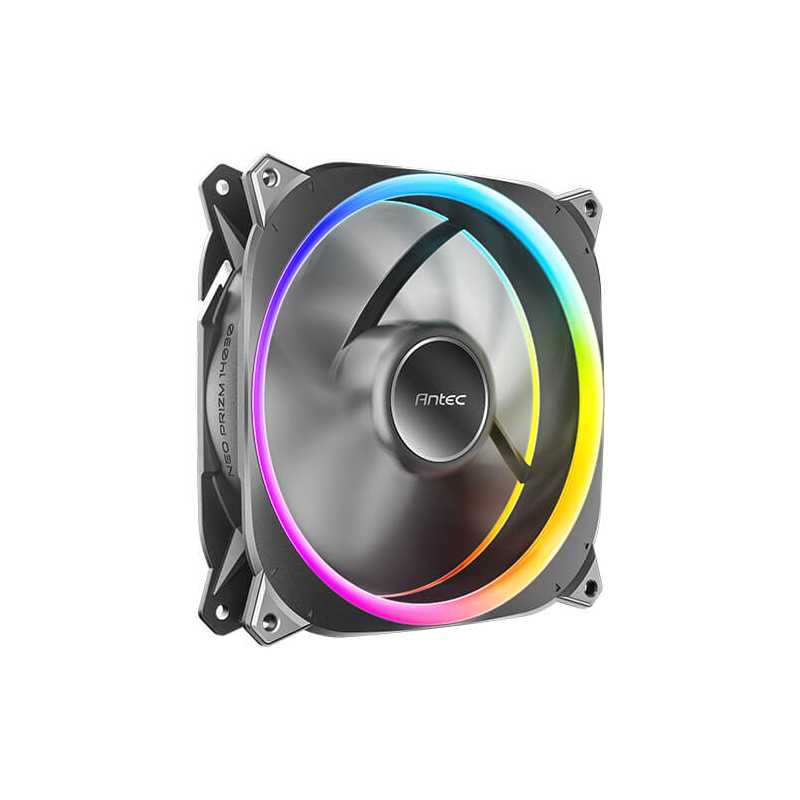

Antec Neo Prizm T3 140 ARGB PWM Case Fan - Hydro Bearing, 600-1500 RPM, Black
£8.98
VAT included
Neo Prizm T3 140 ARGB PWM FAN Black/White
Dual Lighting Rings
The dual lighting rings contain multiple individual LEDs, presenting lighting effects on both the front and back sides.
30MM THICKNESS FOR SUPREME PERFORMANCE
Increasing the thickness to 30mm makes the contact surface wider and air inlet area bigger between the fan and the chassis, delivering more airflow.
9 LONG FAN BLADES
Enhance the air pressure while providing a stable airflow.
VIBRATION-ABSORBING & ANTI-NOISE PADS
8 anti-vibration rubber pads effectively reduce vibration and noise.
Specifications
Model Name
Neo Prizm T3 140 ARGB
Fan Type
ARGB PWM Fan
Dimensions
140 x 140 x 30 mm
Bearing Type
Hydro Bearing
Fan Speed
600±200-1500±10%RPM
Airflow
min 31.19 CFM ~max 80.52 CFM
Air Pressure
min 0.29 mmH2O~max 1.59 mmH2O
Fan Noise Level
10.52~30.4 dB(A)
Lifespan
40,000 hours / 25?
Connector
FAN: 4-pin PWM | LED: 3-pin
Rated Voltage
FAN: DC 12 V | LED: DC 5 V
Operation Voltage
FAN: DC 6.0-13.8 V | LED: DC 4.5-5.3 V
Rated Current
FAN : = 0.28 A | LED : = 0.72 A
Warranty
2 Years
Dual Lighting Rings
The dual lighting rings contain multiple individual LEDs, presenting lighting effects on both the front and back sides.
30MM THICKNESS FOR SUPREME PERFORMANCE
Increasing the thickness to 30mm makes the contact surface wider and air inlet area bigger between the fan and the chassis, delivering more airflow.
9 LONG FAN BLADES
Enhance the air pressure while providing a stable airflow.
VIBRATION-ABSORBING & ANTI-NOISE PADS
8 anti-vibration rubber pads effectively reduce vibration and noise.
Specifications
Model Name
Neo Prizm T3 140 ARGB
Fan Type
ARGB PWM Fan
Dimensions
140 x 140 x 30 mm
Bearing Type
Hydro Bearing
Fan Speed
600±200-1500±10%RPM
Airflow
min 31.19 CFM ~max 80.52 CFM
Air Pressure
min 0.29 mmH2O~max 1.59 mmH2O
Fan Noise Level
10.52~30.4 dB(A)
Lifespan
40,000 hours / 25?
Connector
FAN: 4-pin PWM | LED: 3-pin
Rated Voltage
FAN: DC 12 V | LED: DC 5 V
Operation Voltage
FAN: DC 6.0-13.8 V | LED: DC 4.5-5.3 V
Rated Current
FAN : = 0.28 A | LED : = 0.72 A
Warranty
2 Years
0-761345-77774-2
Data sheet
- Power
- Rated Voltage: FAN: DC 12 V | LED: DC 5 VOperation Voltage: FAN: DC 6.0-13.8 V | LED: DC 4.5-5.3 VRated Current: FAN: 0.28 A | LED: 0.72 A
- Warranty
- 2 Years
- Package Type
- Retail
- Package Weight
- To be confirmed
- Additional Features
- See Overview
- Type
- 14cm Case Fan
- Colour
- Black
- Fan Connector(s)
- 4-pin
- Fan Dimensions
- 140 x 140 x 30 mm
- LED Lighting
- Dual Lighting RingsLighting effects on both the front and back sides3-pin ARGB connector
- Fan Controller
- PWM
- Rotation Speed
- 600 - 1500 RPM
- Fan Bearing
- Hydro Bearing
- Air Flow
- 31.19 ~ 80.52 CFM
- Noise level
- 10.52 ~ 30.4 dB(A)
- MTBF
- 40,000 hours
- Connections
- 4-Pin Fan & 3-Pin ARGB
- Product Type
- Case Fan
- LED Colour
- Addressable RGB
- Fan Size
- 140mm
- Max Fan Speed
- 1500RPM
- Type 2
- Case Fans
- Fan Shroud Colour
- Black
