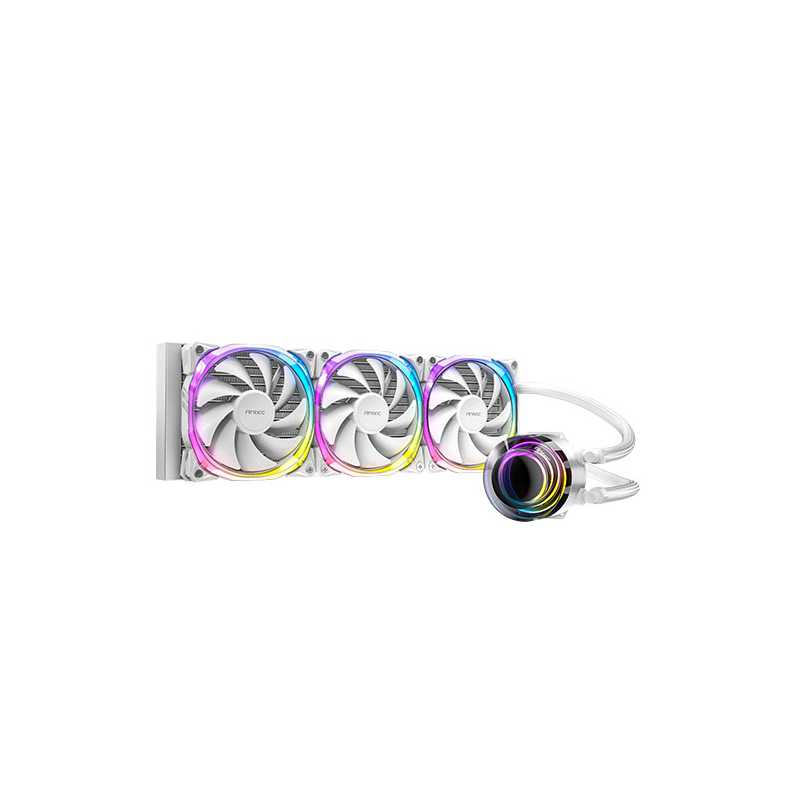

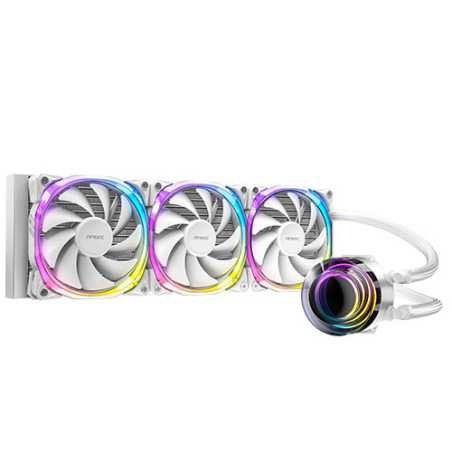

ANTEC Vortex 360 ARGB AiO Liquid CPU Cooler, White, Universal Socket, 360mm Radiator, PWM 2000RPM Fusion ARGB Cooling Fans, Addr
£65.60
VAT included
Delivered within 1-2 days.
VORTEX 360 ARGB White The Epoch-Making All-in-One ARGB CPU Liquid Cooler
Suspended Spiral Pump Head Design The suspended spiral pump head, inspired by the image of a vortex, provides outstanding cooling performance and various lighting effects from different angles.
Highly Efficient Cooling Pump High Performance Cooling. Performance data tested with Vortex 360 on AMD Ryzen 5600x.
Massive Copper Base Plate Provides highly efficient cooling at all loads.
EPDM High-Density Tubing The EPDM high-density tubing is very durable, making for less loss of liquid.
Superior Fin Density 13 fins dissipate heat rapidly.
Antec Fusion PWM ARGB Fan The Vortex 360 ARGB White uses the Antec Fusion PWM ARGB Fan with a unique multilateral-shaped lighting frame and 16 LEDs for harmonious lighting effects and powerful CPU cooling.
Speed:
600+/-200 - 2000+/-10% RPM
Airflow:
57.93 CFM (max)
Noise Level:
31.24 dB(A) (max)
Air Pressure:
2.11 mmH2O (max)
Included ARGB Controller Working in Sync with the Motherboard
The included ARGB controller works with the motherboard, customizing each individual LED in color and effect.
Lighting Effect Switch Connector:
Connect to the rest hub for LED control (as the Mode button)
Mode Control:
Long press for 3 seconds to switch to motherboard control, single press to switch back
ARGB Connector:
Connect to the motherboard for sync lighting effects
ARGB Hub:
Connect the ARGB fan to this connector. Each hub supports up to 48 LEDs and 4 hubs support up to 120 LEDs
SATA Connector:
Connect to the SATA connector of the power supply
CPU Socket Compatibility
AM3 / AM4 / TR4
LGA 115X / 1200 / 1700 / 20XX / 1851
Radiator Specifications
Dimensions:
394 x 120 x 27 mm
Material:
Aluminum
Pump Specifications
Dimensions:
67 x 48.5 mm
Rating Voltage:
DC 12 V
Minimum Startup Voltage:
5.0 V
Fan Speed:
2800+/-10% RPM
Rated Current:
0.25+/-20% A
Consumed Power:
3.0 W
Flow Rate:
1300 mL/min
Water Pressure:
1.4M
Operating Temperature:
-10°C ~ +60°C
Noise Level:
28 dB(A) max
Lifespan:
40,000 hours
Connector:
PUMP: 3-pin / LED: 3-pin
Suspended Spiral Pump Head Design The suspended spiral pump head, inspired by the image of a vortex, provides outstanding cooling performance and various lighting effects from different angles.
Highly Efficient Cooling Pump High Performance Cooling. Performance data tested with Vortex 360 on AMD Ryzen 5600x.
Massive Copper Base Plate Provides highly efficient cooling at all loads.
EPDM High-Density Tubing The EPDM high-density tubing is very durable, making for less loss of liquid.
Superior Fin Density 13 fins dissipate heat rapidly.
Antec Fusion PWM ARGB Fan The Vortex 360 ARGB White uses the Antec Fusion PWM ARGB Fan with a unique multilateral-shaped lighting frame and 16 LEDs for harmonious lighting effects and powerful CPU cooling.
Speed:
600+/-200 - 2000+/-10% RPM
Airflow:
57.93 CFM (max)
Noise Level:
31.24 dB(A) (max)
Air Pressure:
2.11 mmH2O (max)
Included ARGB Controller Working in Sync with the Motherboard
The included ARGB controller works with the motherboard, customizing each individual LED in color and effect.
Lighting Effect Switch Connector:
Connect to the rest hub for LED control (as the Mode button)
Mode Control:
Long press for 3 seconds to switch to motherboard control, single press to switch back
ARGB Connector:
Connect to the motherboard for sync lighting effects
ARGB Hub:
Connect the ARGB fan to this connector. Each hub supports up to 48 LEDs and 4 hubs support up to 120 LEDs
SATA Connector:
Connect to the SATA connector of the power supply
CPU Socket Compatibility
AM3 / AM4 / TR4
LGA 115X / 1200 / 1700 / 20XX / 1851
Radiator Specifications
Dimensions:
394 x 120 x 27 mm
Material:
Aluminum
Pump Specifications
Dimensions:
67 x 48.5 mm
Rating Voltage:
DC 12 V
Minimum Startup Voltage:
5.0 V
Fan Speed:
2800+/-10% RPM
Rated Current:
0.25+/-20% A
Consumed Power:
3.0 W
Flow Rate:
1300 mL/min
Water Pressure:
1.4M
Operating Temperature:
-10°C ~ +60°C
Noise Level:
28 dB(A) max
Lifespan:
40,000 hours
Connector:
PUMP: 3-pin / LED: 3-pin
0-761345-74049-4
67 Items
Data sheet
- Power
- Rated VoltageFAN: DC 12 VLED: DC 5 VOperation VoltageFAN: DC 6.0-13.8 VLED: DC 4.5-5.5 VRated Current: FAN:
- Warranty
- 3 Years
- Package Type
- Retail
- Package Weight
- 2.3660 kg
- Additional Features
- See Overview
- Dimensions
- Radiator: 397 x 120 x 27 mmPump: 67 x 48.5 mm
- Type
- CPU Liquid Cooler
- Colour
- White
- Material
- Radiator: AluminiumEPDM high-density tubing
- Compatibility
- Intel:LGA 115X / 1200 / 1700 / 20XXAMD:AM3 / AM4 / AM5 / TR4
- Fan Connector(s)
- 4-pin
- Installation
- Pump:Pump: 3-pinLED: 3-pin Fans:Fan: 4-pin PWMARGB: 3-pin
- AMD/Intel
- Combo
- TDP
- 280W
- Fan Dimensions
- 120 x 120 x 25 mm
- LED Lighting
- 3 x 120mm Antec Fusion ARGB PWM Fans - unique multilateral-shaped lighting frame with 16 LEDsARGB Pump Head - suspended spiral pump head with various lighting effects from different anglesARGB controller included
- Fan Controller
- PWM
- Rotation Speed
- Pump: 2800 +/-10% RPMFan: 600+/-200 ~ 2000+/-10% RPM
- Fan Bearing
- Hydraulic bearing
- Air Flow
- 57.93 CFM (max.)
- Noise level
- 31.24 dB(A)
- MTBF
- 40,000 hours
- 115x Sockets
- Supports Sockets 115x
- 2066 Socket
- Supports Socket 2066
- 2011(-3) Socket
- Supports Socket 2011(-3)
- AM4 Socket
- Supports Socket AM4
- AM3(+) Socket
- Supports Socket AM3(+)
- sTR4 Socket
- Supports Socket sTR4
- 1200 Socket
- Supports Socket 1200
- Product Type
- Liquid CPU Cooler
- LED Colour
- ARGB
- Max Fan Speed
- 2000RPM
- Radiator Size
- 360mm
- 1700 Socket
- Supports Socket 1700
- AM5 Socket
- Supports Socket AM5
- Radiator Colour
- White
