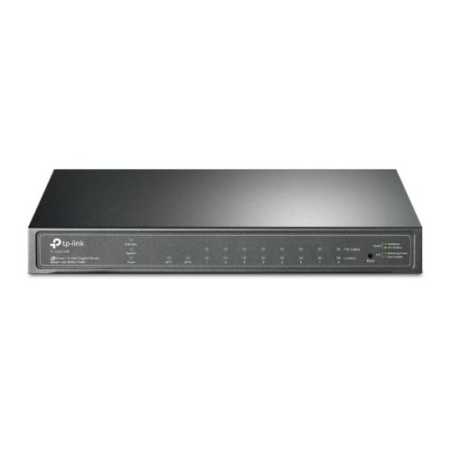

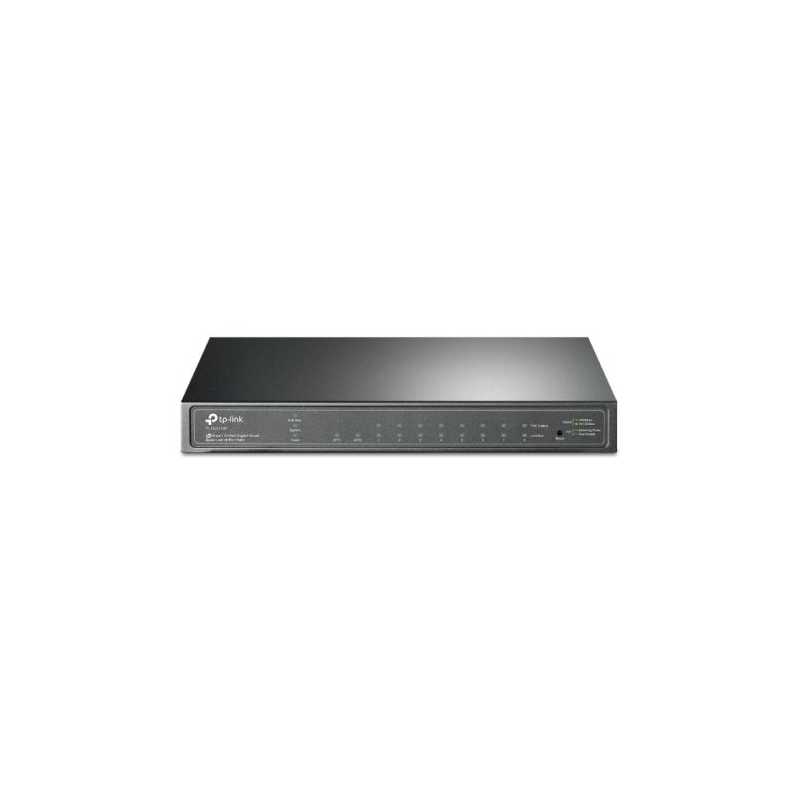

TP-LINK (TL-SG2210P V5) JetStream 10-Port Gigabit Smart Switch with 8-Port PoE+, 2 SFP Ports, Rackmount/Desktop

£137.15
VAT included
Stock status: Low
30 items
Delivered within 1-2 days.
Quantity

Delivery from %MINIMAL_DATE%



JetStream 10-Port Gigabit Smart Switch with 8-Port PoE+


  • 61 W PoE Budget: 8x 802.3af/at-compliant PoE+ ports with a total power supply of 61 W*.
  • Full Gigabit Ports: 8x gigabit PoE+ ports and 2x gigabit SFP Slots provide high-speed connections.
  • Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring.
  • Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
  • Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X, Radius Authentication, and more.
  • Optimized Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
  • Versatile Management: WEB/CLI managed modes, SNMP, and RMON bring abundant management features.




Software Defined Networking (SDN) with Cloud Access
Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.






SG2210P
30 Items

Data sheet

.
CPU MonitoringCable DiagnosticsEEESNTPSystem Log
Warranty
Limited Lifetime
Package Type
Retail
Package Weight
1.3100 kg
Dimensions
(WxDxH) 209 x 126 x 26 mm
Power Supply
12 VDC/1 A External AdapterorPower from PoE Source
Interface(s)
8 x 10/100/1000Mbps RJ452 x Gigabit SFP
Package Contents
TL-SG2210PPower AdapterInstallation GuideRubber Feet
Standards and Protocols
IEEE 802.3i, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab,IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x
Rackmountable
No
Number of Ports
10
PoE Ports (RJ45)
8, up to 30 W
Bandwidth
20 Gbps
Switching Capacity
16 Gbps
Environment
Operating Temperature: 0C~40C (32F~104F);Storage Temperature: -40C~70C (-40F~158F)Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~90% non-condensing
Advanced Functions
Automatic Device DiscoveryBatch ConfigurationBatch Firmware UpgradingIntelligent Network MonitoringAbnormal Event WarningsUnified ConfigurationReboot Schedule
Quality of Service
802.1p CoS/DSCP priority8 priority queuesQueue Weight ConfigPriority Schedule Mode - SP (Strict Priority) - WRR (Weighted Round Robin)
Transfer Method
Store and Forward
Mac Address Table
8k
Packet Forwarding Rate
14.88 Mpps
Jumbo Frame
9 KB
VLAN
VLAN Group802.1Q tag VLANMAC VLAN: 12 EntriesProtocol VLANGVRPVoice VLAN
Access Control
Support up to 230 entriesTime-RangeTime-based ACLMAC ACLIP ACLIPv6 ACLCombined ACLRule OperationPolicy ActionACL Rules BindingActions for flows
POE
Yes
Managed
Smart
Max RJ45 Transfer Rate
10/100/1000 Mbps
Max SFP Transfer Rate
GB SFP
