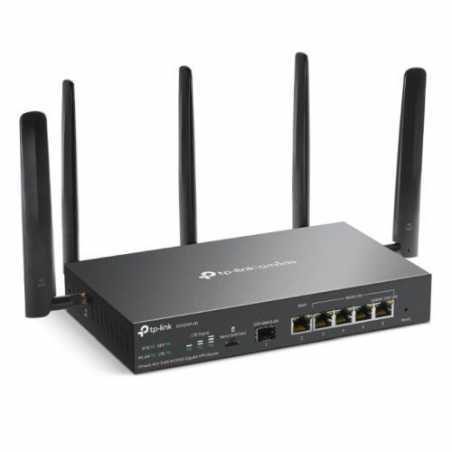

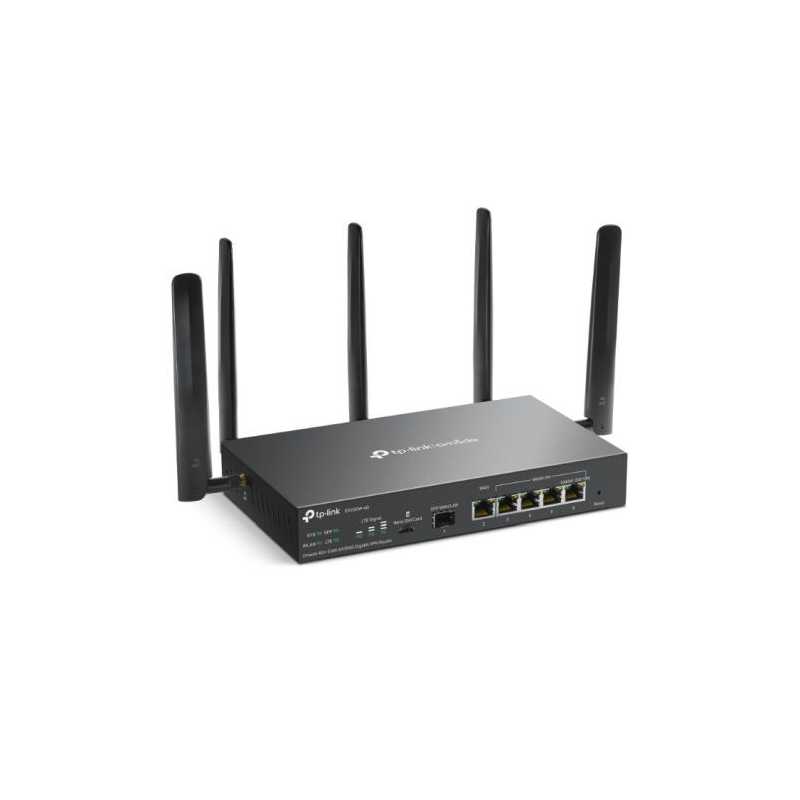

TP-Link Omada ER706W-4G 4G+ Cat6 AX3000 Gigabit VPN Router
£231.26
VAT included
TP-Link Omada 4G+ Cat6 AX3000 Gigabit VPN Router
features
Support 4G+ Cat6: Insert a Nano SIM card to enjoy up to 300 Mbps.
AX3000 Dual-Band WiFi 6: Supports 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz
6 Gigabit Ethernet Ports: Provide high-speed wired connectivity.
5 High-Gain Detachable Antennas: Extend and concentrate the Wi-Fi signals.
Centralized Management: Cloud access and the Omada app for easy management.
Omada Mesh: Seamlessly connects to EAPs that support mesh technology.
High-Security VPN: Supports IPSec / SSL / WireGuard / OpenVPN / PPTP / L2TP VPN.
4G
Network Type
LTE Band of EU:
4G LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32 (2100/1800/850/2600/900/800/700/1450 MHz)
4G LTE-TDD: B38/B40/B41 (2600/2300/2500 MHz)
3G DC-HSDPA/HSPA+/HSDPA/HSUPA/WCDMA: B1/B3/B5/B8
(2100/1800/850/900 MHz)
Carrier Aggregation
B1+B1/B3/B5/B7/B8/B20/B28/B38/B40/B41
B3+B3/B5/B7/B8/B20/B28/B38/B40/B41
B5+B5/B7/B38/B40/B41
B7+B7/B8/B20/B28/B32
B8+B32/B38/B40/B41
B20+B32/B38/B40
B28+B32/B38/B40/B41
B38+B38
B40+B40
B41+B41
SIM Type
1x Nano SIM Card
Frequency
Downlink: 300 Mbps
Uplink: 50 Mbps
SECURITY
DPI
Application control via DPI / Updated app library
IDS/IPS
Signature-based IPS/IDS threat detection
Access Control
Source/Destination IP Based Access Control
Filtering
Web Group Filtering
URL Filtering
Web Security
ARP Inspection
Sending GARP Packets
ARP Scanning
IP-MAC Binding
Attack Defense
TCP/UDP/ICMP Flood Defense
Block TCP Scan (Stealth FIN/Xmas/Null)
Block Ping from WAN
HARDWARE FEATURES
Interface
1 Gigabit SFP WAN/LAN Port
1 Gigabit WAN Port
4 Gigabit LAN/WAN Ports
Network Media
10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100O STP (Max 100 m)
100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100O STP (Max 100 m)
1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)
Button
Reset Button
Power Supply
12VDC / 2A Power Adapter
Wi-Fi Frequency & Signal Rate
2.4 GHz: 574 Mbps
5 GHz: 2402 Mbps (HE160)
Flash
128 MB NAND
DRAM
512 MB DDR4
LED
SYS, WLAN, SFP, LTE Signal, WAN (1000M Link/Act, 100/10M Link/Act), WAN/LAN (1000M Link/Act, 100/10M Link/Act)
Dimensions ( W x D x H )
8.9 x 5.2 x 1.4 in (226 x 131 x 35 mm) (Antenna dimensions are notincluded)
Antenna
Wi-Fi: Three 5GHz 5.5dBi & 2.4GHz 4.5dBi dual-band detachable antennas
LTE: Two 4.0dBi omnidirectional detachable antennas
Mounting
Desktop/Wall-Mounting
Max Power Consumption
EU: 17.3W
PERFORMANCE
IPS Throughput
TCP: 229 Mbps
UDP: 188 Mbps
DPI Throughput
TCP: 933 Mbps
UDP: 927 Mbps
GRE
Unencrypted: 545.3Mbps
Encrypted: 282.6Mbps
WireGuard VPN
387.7Mbps
Concurrent Session
150,000
New Sessions
/Second5,100
NAY
NAT (Static IP)947.1Mbps / 940.1Mbps
NAT(DHCP)949.2Mbps / 941.1Mbps
NAT(PPPoE)942.6Mbps / 941.1Mbps
NAT (L2TP)875.4Mbps / 892.0Mbps
NAT (PPTP)881.2Mbps / 895.8Mbps
IPsec VPN Throughput
ESP-SHA1-AES256: 652.2Mbps
ESP-SHA256-AES256: 654.4Mbps
ESP-SHA384-AES256: 646.5Mbps
ESP-SHA512-AES256: 670.5 Mbps
OpenVPN
115.5Mbps
L2TP VPN Throughput
Unencrypted: 990.0Mbps
Encrypted: 475.0Mbps
PPTP VPN Throughput
Unencrypted: 1177.9Mbps
Encrypted: 177.4Mbps
SSL VPN Throughput
122.5Mbps
66 Byte Packet forwarding rate1,453,489 pps / 1,453,488 pps
1,518 Byte Packet forwarding rate81274 pps / 91275 pps
WIRELESS FEATURES
Advanced Functions
Seamless Roaming
Mesh (with EAP that supports Mesh)
OFDMA
Beamforming
MU-MIMO
Rate Limit: Based on SSID/Client
Airtime Fairness
Wireless Encryption: WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise
Multiple SSIDs: 16 in total (8 per radio)
Guest Network
Support
BASIC FUNCTIONS
WAN Connection Type
Static IP
Dynamic IP
PPPoE (supports MRU Configuration)
PPTP
L2TP
MAC Clone
Modify WAN Address
DHCP
DHCP Server
DHCPv6 PD Server (only in Standalone Mode)
DHCP Options Customization
DHCP Address Reservation
Multi-IP Interfaces
Multi-Net DHCP
SMS
Receive / Send SMS
IPv6
StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode
VLAN
802.1Q VLAN
IPTV
IGMP v2/v3 Proxy, Custom Mode, Bridge Mode
ADVANCED FUNCTIONS
ACL
IP/Port/Protocol/Domain Name Filtering
Advanced Routing
Static Routing
Policy Routing
RIP
OSPF
Bandwidth Control
IP-Based Bandwidth Control
Load Balance
Intelligent Load Balance
Application Optimized Routing
Link Backup(Timing, Failover)
Online Detection
NAT
One-to-One NAT
Multi-Net NAT
Virtual Server
Port Triggering
NAT-DMZ
FTP/H.323/SIP/IPSec/PPTP ALG
UPnP
Session Limit
IP-Based Session Limit
VPN
GRE
Only in Standalone Mode
SSL VPN
50 Tunnels
IPsec VPN
100 IPSec VPN Tunnels
LAN-to-LAN, Client-to-LAN
Main, Aggressive Negotiation Mode
DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
IPsec Failover
IKE v1/v2
MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm
NAT Traversal (NAT-T)
Dead Peer Detection (DPD)
Perfect Forward Secrecy (PFS)
PPTP VPN
PPTP VPN Server
PPTP VPN Client (10)
50 Tunnels
PPTP with MPPE Encryption
L2TP VPN
L2TP VPN Server
L2TP VPN Client (10)
50 Tunnels
L2TP over IPSec
OpenVPN
OpenVPN Server
OpenVPN Client (5)
55 OpenVPN Tunnels
"Certificate + Account" Mode
Full Mode
WireGuard VPN
20 Tunnels
AUTHENTICATION
Web Authentication
No Authentication
Simple Password
Hotspot (Local User / Voucher / SMS/ Radius)
External Radius Sever
External Portal Sever
LDAP
MANAGEMENT
Omada App
Yes.
Centralized Management
Omada Cloud-Based Controller
Omada Hardware Controller (OC300)
Omada Hardware Controller (OC200)
Omada Software Controller
Cloud Access
Yes.
Service
Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)
Maintenance
Web Management Interface
Remote Management
Export & Import Configuration
SNMP v1/v2c/v3
Diagnostics (Ping & Traceroute)
NTP Synchronize
Port Mirroring
CLI (only in Standalone Mode)
Syslog Support
Zero-Touch Provisioning
Yes. Require the use of Omada Cloud-Based Controller.
Management Features
Automatic Device Discovery
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration
Reboot Schedule
Captive Portal Configuration
OTHERS
Certification
CE, FCC, RoHS
Package Contents
ER706W-4G
Power Adapter
Quick Installation Guide
System Requirements
Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7/8/8.1/10/11
MAC OS, NetWare, UNIX or Linux
Environment
Operating Temperature: 0 C to 40 C(32 F to 104 F)
Storage Temperature: -40 C to 70 C (-40 F to 158 F)
Operating Humidity: 10% to 90% non-condensing
Storage Humidity: 5% to 90% non-condensing
