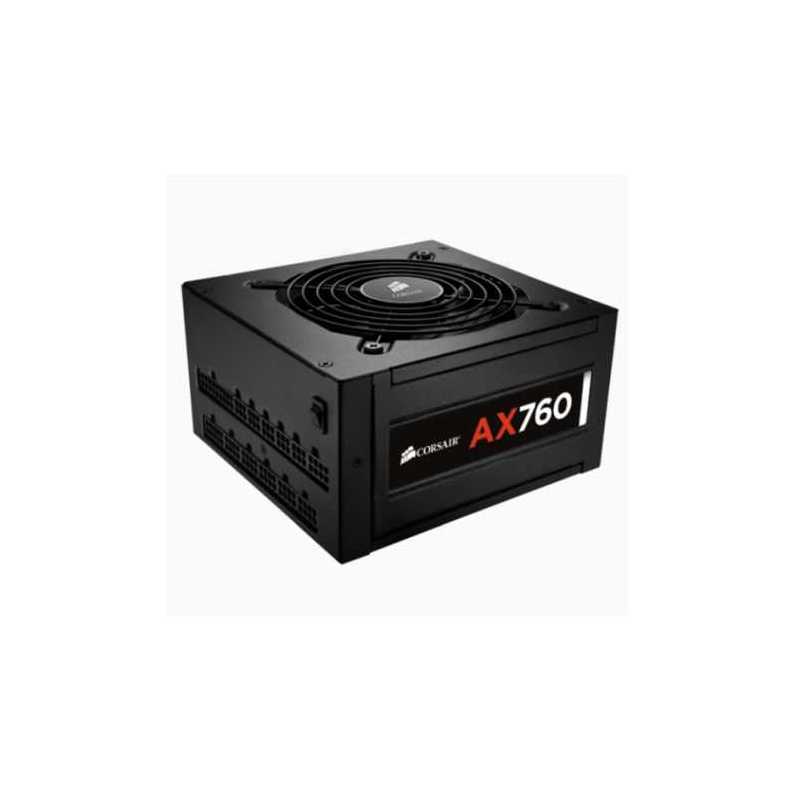

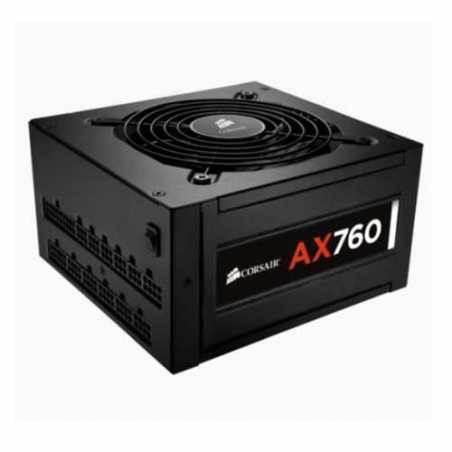

Corsair 760W Professional AX Series AX760 PSU, Dual Ball Bearing Fan, Fully Modular, 80+ Platinum
£228.60
VAT included
AX Series™ PSUs offer world-class performance, with 80 PLUS PLATINUM-certified efficiency, low noise, fully modular cable sets, and high reliability for extreme performance systems.
Less Heat Generation And Lower Operating Costs
Excess heat means wasted energy. 80 PLUS Platinum certified efficiency means less waste.
Zero RPM Mode For Silent Operation At Low Loads
The fan doesn’t even spin when your system is idle or doing basic work like surfing the web or running office applications.
Easy Installation
The fully modular cable set lets you use only the cables you need. You can install the AX Series first and then add cables one-by-one without having to deal with the dreaded “cable octopus."
Stable, Reliable Power Output
High-quality components and careful design help ensure maximum protection for your PC’s components.
Flexible And Compatible
AX Series comes with long cables for large cases, and lots of connectors for just about any hardware configuration.
Fully Modular Connection System With Low-Profile Cables
All of the power cables have connectors on both ends, with nothing hard-wired to the PSU. This makes for easier installs (you don’t need to deal with an octopus of cables while you’re putting in the power supply), and you can add cables one-by-one, using only the cables you need. The result is a cleaner-looking build, with better airflow.
Clean, Stable Power Delivery
High-quality capacitors, a dedicated single +12V rail and a PF value of 0.99 give you reliable power output with extremely low ripple and noise. Over-voltage, under-voltage, over-current, and short circuit protection provide maximum safety for your critical system components. And, AX860 is engineered to meet maximum power output at a server-grade 50° C temperature rating.
Wide Compatibility
The AX Series conforms to ATX12V v2.31 and EPS 2.92 standards, and is backward compatible with the ATX12V 2.2 and ATX12V 2.01 standards. It accepts universal AC input from 90V - 264V. Safety approvals include cTUVus, CE, CB, FCC Class B, TÜV, CCC, and C-tick
AX Series™ PSUs offer world-class performance, with 80 PLUS PLATINUM-certified efficiency, low noise, fully modular cable sets, and high reliability for extreme performance systems.
Less Heat Generation And Lower Operating Costs
Excess heat means wasted energy. 80 PLUS Platinum certified efficiency means less waste.
Zero RPM Mode For Silent Operation At Low Loads
The fan doesn’t even spin when your system is idle or doing basic work like surfing the web or running office applications.
Easy Installation
The fully modular cable set lets you use only the cables you need. You can install the AX Series first and then add cables one-by-one without having to deal with the dreaded “cable octopus."
Stable, Reliable Power Output
High-quality components and careful design help ensure maximum protection for your PC’s components.
Flexible And Compatible
AX Series comes with long cables for large cases, and lots of connectors for just about any hardware configuration.
Fully Modular Connection System With Low-Profile Cables
All of the power cables have connectors on both ends, with nothing hard-wired to the PSU. This makes for easier installs (you don’t need to deal with an octopus of cables while you’re putting in the power supply), and you can add cables one-by-one, using only the cables you need. The result is a cleaner-looking build, with better airflow.
Clean, Stable Power Delivery
High-quality capacitors, a dedicated single +12V rail and a PF value of 0.99 give you reliable power output with extremely low ripple and noise. Over-voltage, under-voltage, over-current, and short circuit protection provide maximum safety for your critical system components. And, AX860 is engineered to meet maximum power output at a server-grade 50° C temperature rating.
Wide Compatibility
The AX Series conforms to ATX12V v2.31 and EPS 2.92 standards, and is backward compatible with the ATX12V 2.2 and ATX12V 2.01 standards. It accepts universal AC input from 90V - 264V. Safety approvals include cTUVus, CE, CB, FCC Class B, TÜV, CCC, and C-tick
CP-9020045-UK
Data sheet
- Warranty
- 7 Years
- Form Factor
- ATX
- Package Weight
- 3.5690 kg
- Series
- Corsair AX
- Weight/Dimensions
- 3.29 kg150mm x 86mm x 160 mm
- Features
- See Overview
- Connectors
- 8 x 4-pin Molex6 x 6-pin PCIe2 x 8-pin CPU +12V (EPS)2 x FDD Power12 x SATA
- Wattage
- 760 W
- Compatability
- ATX12V v2.4 & EPS 2.92
- Efficiency
- up to 92%
- Modular
- Fully Modular
- Rail Design
- Single Rail
- Fan Type
- 120mm Dual Ball Bearing Fan
- Fan Bearing
- Ball Bearing
- MTBF
- 100,000 Hours
- PFC
- Active PFC
- 80+ Certification
- 80+ Platinum
