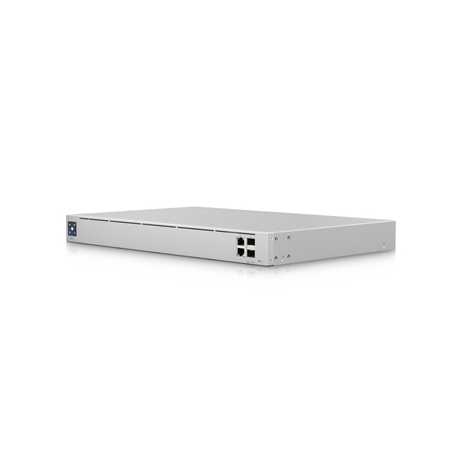

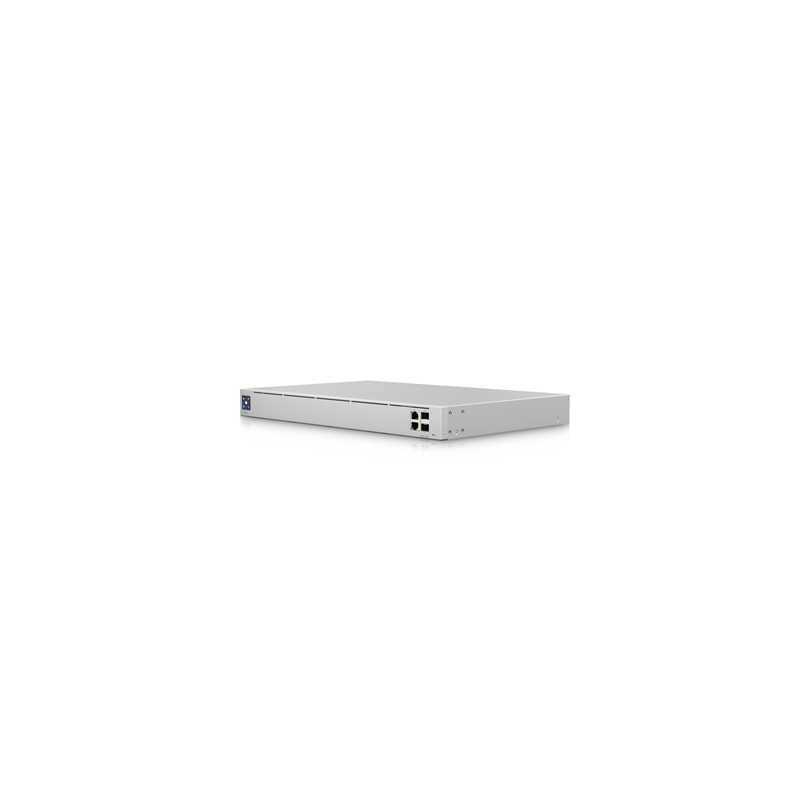

The UniFi Next-generation Gateway Pro (UXG Pro) is a powerful security gateway that delivers a versatile networking interface and enterprise-class threat management functionality to medium to large-sized networks.
The UXG Pro is equipped with (2) WAN ports (GbE RJ45 and 10G SFP+) that provide failover support, as well as (2) LAN ports (GbE RJ45 and 10G SFP+) to provide the high-speed connectivity needed to support the most bandwidth-intensive applications. It also excels as a complete network security solution, offering a full suite of threat mitigation features, including deep packet inspection (DPI), intrusion detection and prevention systems (IDS/IPS), and layered firewall configuration.
The UXG Pro can be paired with a Cloud Key Gen2 Plus to create a highly powerful and secure deployment that can be fully managed with the UniFi Network application (web/mobile).
Key Features 1.7 GHz quad-core processor (2) WAN ports (GbE RJ45 and 10G SFP+) with failover support (2) LAN ports (GbE RJ45 and 10G SFP+) Enterprise-class DPI, IPS/IDS, and layered firewall configuration Power redundancy when connected to the UniFi SmartPower RPS (sold separately) SmartPower outlet (125VAC/2A) for an external modem 1U-sized, rack-mountable device
Specifications
Physical
Dimensions 442.4 x 43.7 x 285.6 mm
Weight 3.42KG
Hardware
Processor Specs Quad-core ARM Cortex-A57 at 1.7 GHz
Memory Information 2Gb DDR4
Management Interface Ethernet
Networking Interface
LAN 1 x GbE RJ45 port 10G SFP+ port
WAN 1 x GbE RJ45 port 10G SFP+ port
Buttons Factory Reset
Power Method AC Input - 200-240VAC 1.7A 50/60Hz RPS DC Input - 11.5VDC 2.87A
Power Supply AC/DC internal 50W
Max Power Consumption 30W
Environmental
ESD/EMP protection Air: ± 15 kV, contact: ± 8 kV
Operating temperature -10 to 40° C (14 to 104° F)
Operating humidity 5 - 95% noncondensing
Certifications CE, FCC, IC
Box Contents UXG-PRO Rackmount Ears Rackmount screws Rack screws and nuts Rubber Feet (desktop use) Power Cord
