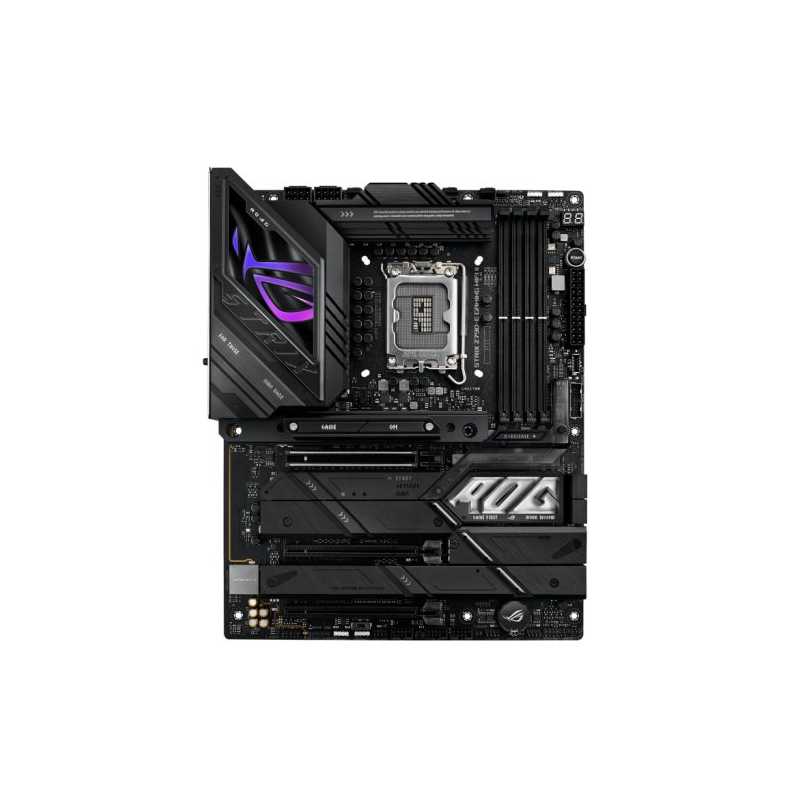

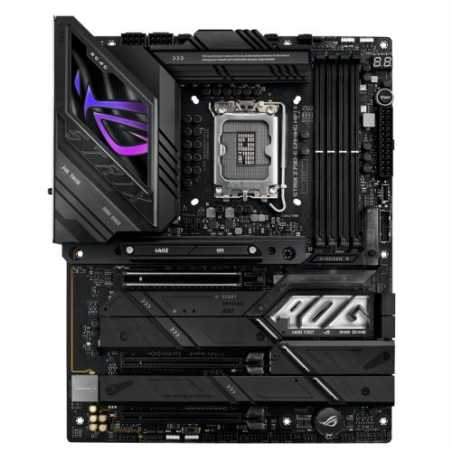

Asus ROG STRIX Z790-E GAMING WIFI II, Intel Z790, 1700, ATX, 4 DDR5, HDMI, DP, Wi-Fi 7, 2.5G LAN, PCIe5, RGB, 5x M.2
£533.98
VAT included
Delivered within 1-2 days.
Style and substance come together like never before in the feature-packed ROG Strix Z790-E II.
From its vibrant multi-layered I/O shroud to its stacks of VRM cooling, it is a conversation piece that also delivers enhanced DDR5 performance, ample PCIe 5.0 slots and the DIY-friendly Q-Design feature set that makes building and upgrading a breeze.
- WiFi 7
- 18+1+2 Power Stages - Robust Power Solution
- PCIe 5.0 - x1 Onboard M.2 Slot
- AI Cooling II - One-click fan tuning
- USB 20Gbps - x1 I/O port, and x1 connector for PD 3.0 at 30W
- DDR5 - 8000+ MT/s, AEMP II, XMP
- DIY-Friendly Design
- AI Overclocking - Effortless performance boost
AI Overclocking
Tuning is now faster and smarter than ever before. ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits. Predicted values can be engaged automatically or used as a launching ground for further experimentation.
DDR5 Domination
ROG has a long legacy of flexing the fastest memory performance, and DDR5 is no outlier. Thanks to improved signal routing, now enthusiast-grade kits have been driven far beyond the 8 GT/s mark on the Strix Z790-E II, and who knows how far future DIMMs can go? Seasoned veterans can test their mettle by tinkering with the extensive array of tuning options in the UEFI.
WiFi 7
With Multi-Link Operation (MLO), WiFi 7 can outperform WiFi 6E to deliver faster speeds, higher reliability and increased data transfer efficiency.
Intel 2.5G Ethernet
Low-latency gaming, speedy file transfers, and high-resolution video streaming are among the many perks of onboard Intel® 2.5 Gbps Ethernet.
USB 20Gbps
The Strix Z790-E II comes loaded with two USB 20Gbps Type-C® connectors for speedy data transfers up to 20Gbps. One is a port on the rear I/O; the other can be attached to the chassis front panel and it also features Power Delivery (PD) 3.0 technology to quickly charge devices up to 30W.
Outshine The Competition
ROG Strix motherboards feature ASUS Aura technology, enabling full lighting control and a variety of presets for both onboard RGB LEDs and third-party accessories. Effects can be easily synced across compatible ROG graphics cards, monitors, keyboards, and mice to give your setup a unified look.
AI Cooling II
Balance the thermals and acoustics of any build with a single click. A proprietary ASUS algorithm slashes unnecessary noise while running a quick stress test, and then monitors CPU temperatures to dynamically adjust fans to optimal speeds.
Game First
GameFirst is now integrated into Armoury Crate for an even better user experience. GameFirst optimizes networking performance by allocating bandwidth in real time, based on intelligent algorithms designed for various application customizable usage scenarios and corresponding learning algorithms. The latest update includes dedicated support for NVIDIA® GeForce NOW to ensure the lowest latency possible during intense game streamingcloud gaming sessions. To provide a better user’s experience, GameFirst is now integrated into Armoury Crate.
90MB1FC0-M0EAY0
3 Items
Data sheet
- .
- 1 x Alternation PCIe Mode Switch1 x AURA RGB1 x CPU over voltage jumper1 x Front panel audio1 x Start button1 x 20-3 pin System Panel1 x Thermal Sensor1 x Thunderbolt (USB4)
- Wireless
- Intel Wi-Fi 72x2 Wi-Fi 7 (802.11be)Supports 2.4/5/6GHz frequency bandSupport Wi-Fi 7 160MHz bandwidth, up to 2.4Gbps transfer rate.Bluetooth v5.4
- RAM Speeds
- Up to 8000+(OC)
- Accessories
- 2 x SATA 6Gb/s cables 1 x Thermal pad for M.21 x ASUS Wi-Fi Q-Antenna 1 x Cable ties package1 x M.2 backplate Q-Latch package1 x M.2 Q-Latch package1 x ROG key chain1 x ROG Strix stickers2 x M.2 Rubber Packages1 x M.2 backplate Rubber Package
- USB Ports Supported
- Rear:1 x USB 20Gbps Type-C11 x USB 10Gbps (10 Type-A, 1 Type-C)Front:1 x USB 20Gbps Type-C with up to 30W PD Fast-charge4 x USB 5Gbps6 x USB 2.0
- Storage
- 4 x SATA III1 x M.2 (2242/2260/2280/22110) - PCIe 5.0 x41 x M.2 (2242/2260/2280) - PCIe 4.0 x41 x M.2 (2280) - PCIe 4.0 x41 x M.2 (2280) - PCIe 4.0 x41 x M.2 (2242/2260/2280) - SATA & PCIe 4.0 x4
- RAID
- Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10
- Warranty
- 3 Years
- Motherboard Type
- Desktop
- Form Factor
- ATX
- Socket
- Intel 1700
- Chipset
- Intel Z790
- DDR Type
- DDR5
- RAM Technology
- DDR5, Dual ChannelSupports Intel Extreme Memory Profile (XMP) memory moduleASUS Enhanced Memory Profile II (AEMP II)Supports DIMM FlexOptiMem II
- RAM Slots
- 4 x DIMM
- Maximum Memory
- 192GB
- LAN
- 2.5GB LAN
- Audio
- ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
- Back Panel I/O Ports
- 1 x USB 20Gbps Type-C11 x USB 10Gbps (10 Type-A, 1 Type-C)1 x DisplayPort1 x HDMI1 x Wi-Fi Module1 x Intel 2.5Gb Ethernet5 x Gold-plated audio jacks1 x Optical S/PDIF out1 x BIOS FlashBack button 1 x Clear CMOS button
- Internal I/O Connectors
- 1 x 4-pin CPU Fan1 x 4-pin CPU OPT Fan1 x 4-pin AIO Pump5 x 4-pin Chassis Fan1 x 24-pin Main2 x 8-pin +12V5 x M.2 (Key M) 4 x SATA 6Gb/s1 x USB 20Gbps Type-C (30W PD Fast-charge)2 x USB 5Gbps3 x USB 2.03 x Addressable Gen2
- CPU Support
- Click here for CPU support
- Package Type
- Retail
- Package Weight
- To be confirmed
- Graphics Ports
- 1 x HDMI1 x DisplayPort
- Additional Features
- See Overview
- Graphics
- Integrated Graphics**Graphics specifications may vary between CPU types
- M.2 Slot(s)
- Yes (M.2)
- No. LAN Ports
- 1 x LAN
- Max LAN Speed
- 2.5GB LAN
- RGB Lighting
- Out of the box RGB lighting
- PCI/PCI Express
- 1 x PCIe 5.0 x16 (support x16 mode)2 x PCIe 4.0 x16 (support x4 mode)
- Wi-Fi
- Yes (Wi-Fi)
Specific References
- EAN13
- 4711387357347
