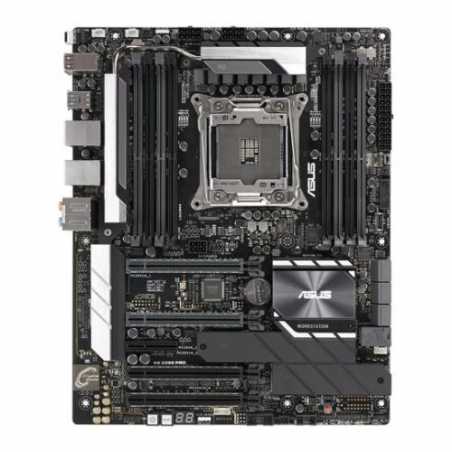

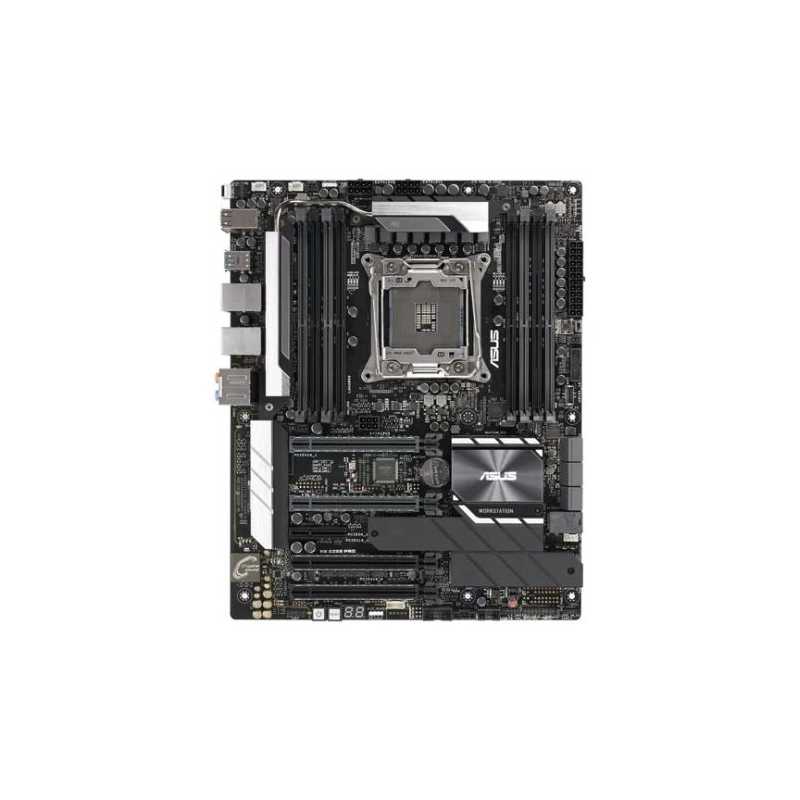

Asus WS X299 PRO, Workstation, Intel X299, 2066, ATX, DDR4, U.2, Dual LAN, SLI/XFire, M.2
£398.83
VAT included
Intel LGA 2066 ATX motherboard with DDR4 4133MHz, dual M.2 and M.2 heatsink, U.2, and USB 3.1 Gen 2 connectors.
- 5-Way Optimization: One-click, system-wide tuning, delivers optimized overclocking and intelligent cooling for a diverse range of workloads.
- Industry-leading cooling options: Comprehensive controls for fans and water pumps, via Fan Xpert 4 software or the acclaimed ASUS UEFI.
- Ultra-efficient VRM heatsink: Metal fin array connected to large surface area via a heatpipe tames X299 thermals to enable unthrottled performance.
- Next-gen transfer speeds: Up to 32Gbps dual M.2 and U.2, plus up to 10Gbps USB 3.1 Type-A and Type-C connections.
Tune it Your Way
______________________________________________________________
______________________________________________________________
One-click overclocking and cooling
ASUS 5-Way Optimization makes your workstation smart. One click takes care of complex tuning, dynamically optimizing essential aspects of the system to provide overclocking and cooling profiles that are tailored for your rig.
An automated tuning utility that optimizes overclocking and cooling profiles for your unique system configuration.
Fans stay whisper-quiet with everyday computing, and deliver optimal airflow when the system is crunching through CPU or GPU-intensive tasks.
Stress test function helps optimize and overclock for CPU- or memory-centric workloads.
Flagship Performance
______________________________________________________________
______________________________________________________________
Make your memory go faster
With optimized trace paths for time-aligned signaling and minimal crosstalk, third-generation ASUS T-Topology offers enhanced memory stability and compatibility, allowing support for memory speeds of DDR4-4133MHz and beyond.
OC Design – ASUS PRO Clock II Technology
WS X299 PRO includes a dedicated base-clock (BCLK) generator that extends CPU and memory overclocking margins. This custom solution works in tandem with the TPU to enhance voltage and BCLK overclocking control, providing the flexibility to extract every ounce of performance from the Intel® Core™ X-series processors.
Multi-GPU support
With support for both NVIDIA® SLI™ and AMD CrossFireX™ 2/3-WAY configurations, WS X299 PRO enables multi-GPU setups so you can harness the full power of the latest graphics technologies to drive games at 4K and beyond.
Cooler By Design
______________________________________________________________
______________________________________________________________
Flexible Cooling Controls
WS X299 PRO features the most comprehensive cooling controls ever, configurable via Fan Xpert 4 or the UEFI BIOS.
Multiple temperature sources
- Water pump+
- AIO pump
- 4-pin PWM/DC fan
- ASUS Fan Extension Card support
- Smart protection
Ultra-efficient VRM Heatsink
Designed for the powerful Intel Core X-series processor with up to 18 cores, WS X299 PRO features a capable thermal design to ensure maximum performance with no CPU throttling. Consisting of an ultra-efficient VRM heatsink with a metal fin array design that maximizes surface area for heat dissipation, plus two additional heatsinks and a connecting heatpipe to further increase cooling performance, this innovative thermal design ensures WS X299 PRO is always ready to handle any task, no matter how demanding.
Connect Everything, Ultra-Fast
______________________________________________________________
______________________________________________________________
Dual Onboard M.2 & M.2 heatsink
Perfected cooling for unleashed performance
WS X299 PRO features dual onboard M.2 slots, each operating at X4 PCI Express 3.0 to provide an abundant 32Gbps of bandwidth. Both slots sit below the X299 chipset and are covered by a heatsink that reduces drive temps by as much as 20°C, ensuring peak performance under all scenarios.
VROC
Upgrade your RAID
Unleash the WS X299 PRO Virtual RAID on CPU (VROC) with the addition of an ASUS Hyper M.2 X16 Card*, which allows you to attach up to four PCIe® 3.0 x16 M.2 drives - for a total bandwidth of up to 128Gbps. PCH-based RAID arrays are bottlenecked by the 32Gbps limit of the DMI bus. VROC obliterates that limit by allowing you to utilise CPU PCIe lanes to configure a bootable RAID array that can transfer data at insane speeds.
USB 3.1 Gen 2 front-panel connector
Future-proof connectivity
WS X299 PRO's front panel USB 3.1 connector is ready for next-gen PC cases and devices.
USB 3.1 Gen 2 Type-A & Type-C
Ultimate-speed 10Gbps with USB 3.1 Gen 2 onboard
With backward-compatible USB 3.1 Gen 2 Type-A™ and reversible USB 3.1 Gen 2 Type-C™ ports, you'll experience ultimate connection flexibility and blazing data-transfer speeds of up to 10Gbps.
Dual Intel® server-class Gigabit LAN
For more reliable networking, WS X299 PRO features the latest server-class dual Intel® Gigabit LAN ensuring lower CPU utilization and temperatures outstanding performance as well as better support for diverse operating systems. The dual Ethernet ports also support teaming which combines the network links to provide higher throughput or redundancy in case of failure.
Intel® Core™ X-series processors for LGA 2066 socket
Intel Core X-series processors (6-core and above): 4-channel (8-DIMM), 44/28 PCI Express 3.0/2.0 lanes.
Intel Core X-series processors (4 core): 2-channel (4-DIMM), 16 PCI Express 3.0/2.0 lanes.
Intel LGA 2066 ATX motherboard with DDR4 4133MHz, dual M.2 and M.2 heatsink, U.2, and USB 3.1 Gen 2 connectors.
- 5-Way Optimization: One-click, system-wide tuning, delivers optimized overclocking and intelligent cooling for a diverse range of workloads.
- Industry-leading cooling options: Comprehensive controls for fans and water pumps, via Fan Xpert 4 software or the acclaimed ASUS UEFI.
- Ultra-efficient VRM heatsink: Metal fin array connected to large surface area via a heatpipe tames X299 thermals to enable unthrottled performance.
- Next-gen transfer speeds: Up to 32Gbps dual M.2 and U.2, plus up to 10Gbps USB 3.1 Type-A and Type-C connections.
Tune it Your Way
One-click overclocking and cooling
ASUS 5-Way Optimization makes your workstation smart. One click takes care of complex tuning, dynamically optimizing essential aspects of the system to provide overclocking and cooling profiles that are tailored for your rig.
An automated tuning utility that optimizes overclocking and cooling profiles for your unique system configuration.
Fans stay whisper-quiet with everyday computing, and deliver optimal airflow when the system is crunching through CPU or GPU-intensive tasks.
Stress test function helps optimize and overclock for CPU- or memory-centric workloads.
Flagship Performance
Make your memory go faster
With optimized trace paths for time-aligned signaling and minimal crosstalk, third-generation ASUS T-Topology offers enhanced memory stability and compatibility, allowing support for memory speeds of DDR4-4133MHz and beyond.
OC Design – ASUS PRO Clock II Technology
WS X299 PRO includes a dedicated base-clock (BCLK) generator that extends CPU and memory overclocking margins. This custom solution works in tandem with the TPU to enhance voltage and BCLK overclocking control, providing the flexibility to extract every ounce of performance from the Intel® Core™ X-series processors.
Multi-GPU support
With support for both NVIDIA® SLI™ and AMD CrossFireX™ 2/3-WAY configurations, WS X299 PRO enables multi-GPU setups so you can harness the full power of the latest graphics technologies to drive games at 4K and beyond.
Cooler By Design
Flexible Cooling Controls
WS X299 PRO features the most comprehensive cooling controls ever, configurable via Fan Xpert 4 or the UEFI BIOS.
Multiple temperature sources
- Water pump+
- AIO pump
- 4-pin PWM/DC fan
- ASUS Fan Extension Card support
- Smart protection
Ultra-efficient VRM Heatsink
Designed for the powerful Intel Core X-series processor with up to 18 cores, WS X299 PRO features a capable thermal design to ensure maximum performance with no CPU throttling. Consisting of an ultra-efficient VRM heatsink with a metal fin array design that maximizes surface area for heat dissipation, plus two additional heatsinks and a connecting heatpipe to further increase cooling performance, this innovative thermal design ensures WS X299 PRO is always ready to handle any task, no matter how demanding.
Connect Everything, Ultra-Fast
Perfected cooling for unleashed performance
WS X299 PRO features dual onboard M.2 slots, each operating at X4 PCI Express 3.0 to provide an abundant 32Gbps of bandwidth. Both slots sit below the X299 chipset and are covered by a heatsink that reduces drive temps by as much as 20°C, ensuring peak performance under all scenarios.
VROC
Upgrade your RAID
Unleash the WS X299 PRO Virtual RAID on CPU (VROC) with the addition of an ASUS Hyper M.2 X16 Card*, which allows you to attach up to four PCIe® 3.0 x16 M.2 drives - for a total bandwidth of up to 128Gbps. PCH-based RAID arrays are bottlenecked by the 32Gbps limit of the DMI bus. VROC obliterates that limit by allowing you to utilise CPU PCIe lanes to configure a bootable RAID array that can transfer data at insane speeds.
USB 3.1 Gen 2 front-panel connector
Future-proof connectivity
WS X299 PRO's front panel USB 3.1 connector is ready for next-gen PC cases and devices.
USB 3.1 Gen 2 Type-A & Type-C
Ultimate-speed 10Gbps with USB 3.1 Gen 2 onboard
With backward-compatible USB 3.1 Gen 2 Type-A™ and reversible USB 3.1 Gen 2 Type-C™ ports, you'll experience ultimate connection flexibility and blazing data-transfer speeds of up to 10Gbps.
Dual Intel® server-class Gigabit LAN
For more reliable networking, WS X299 PRO features the latest server-class dual Intel® Gigabit LAN ensuring lower CPU utilization and temperatures outstanding performance as well as better support for diverse operating systems. The dual Ethernet ports also support teaming which combines the network links to provide higher throughput or redundancy in case of failure.
Intel® Core™ X-series processors for LGA 2066 socket
Intel Core X-series processors (6-core and above): 4-channel (8-DIMM), 44/28 PCI Express 3.0/2.0 lanes.
Intel Core X-series processors (4 core): 2-channel (4-DIMM), 16 PCI Express 3.0/2.0 lanes.
90SW0090-M0EAY0
Data sheet
- .
- 1 x Aura Addressable Strip1 x AAFP1 x Aura RGB Strip1 x USB 3.1 Gen 2 front panel connector1 x PANEL21 x PUMP Fan1 x PANEL1Buttons: Power-on, Clear CMOS
- PCI Express
- 2 x PCIe 3.0 x16, 1 x PCIe 3.0 x16 (x4 Bandwidth), 1 x PCIe 3.0 x16 (x8 Bandwidth), 1 x PCIe 3.0 x4
2 x PCIe 3.0 x161 x PCIe 3.0 x16 (x4 Bandwidth)1 x PCIe 3.0 x16 (x8 Bandwidth)1 x PCIe 3.0 x4 - Wireless
- -
- RAM Speeds
- 4133(O.C.)/3600(O.C.)/2666/2400/2133 MHz
- Accessories
- 1 x Vertical M.2 bracket setI/O Shield1 x COM port cable6 x SATA cables2 x M.2 screws1 x 3-Way SLI bridge1 x SLI bridge1 x Q-Connector1 x 2-port USB module1 x Extension Cable for RGB strips (80 cm)
- USB Ports Supported
- 2 x USB 3.1 Gen 2 (Type-A & C at back)8 x USB 3.1 Gen 1 (4 at back, 2 at mid-board)6 x USB 2.0 (4 at back, 2 at mid-board)1 x USB 3.1 Gen 2 front panel connector
- Storage
- 6 x SATA III1 x M.2 Socket (2242/2260/2280/22110) - PCIe1 x M.2 Socket (2242/2260/2280) - SATA & PCIe1 x U.2
- RAID
- RAID 0, 1, 5, 10
- Warranty
- 3 Years
- Motherboard Type
- Server / Workstation
- Form Factor
- ATX
- Socket
- Intel 2066
- Chipset
- Intel X299
- DDR Type
- DDR4
- RAM Technology
- DDR4 (Quad Channel)
- RAM Slots
- 8 x DIMM
- Maximum Memory
- 256GB
- Multi-GPU Support
- Supports NVIDIA 3-Way SLI Technology Supports AMD 3-Way CrossFireX™ Technology
- PCI
- -
- LAN
- Dual GB LAN
- Audio
- Realtek ALC S1220A 7.1-Channel High Definition Audio CODEC featuring Crystal Sound 3
- Back Panel I/O Ports
- 2 x LAN (RJ45)2 x USB 3.1 Gen 24 x USB 3.1 Gen 1 4 x USB 2.0 1 x Optical S/PDIF out1 x USB BIOS Flashback Button1 x 8-channel Audio I/O
- Internal I/O Connectors
- 1 x USB 3.1 Gen 11 x USB 2.02 x M.2 Socket 3 1 x TPM header6 x SATA 6Gb/s1 x VROC_HW_Key2 x CPU Fan1 x AIO_PUMP1 x Thunderbolt1 x 24-pin EATX2 x 8-pin ATX 12V1 x 6-pin EZ_PLUG
- CPU Support
- Click here for CPU support
- Package Type
- Retail
- Package Weight
- 2.3100 kg
- Graphics Ports
- -
- Additional Features
- See Overview
- Graphics
- -
- M.2 Slot(s)
- Yes (M.2)
- No. LAN Ports
- 2 x LAN
- Max LAN Speed
- GB LAN
- RGB Lighting
- No
- PCI/PCI Express
- 2 x PCIe 3.0 x161 x PCIe 3.0 x16 (x4 Bandwidth)1 x PCIe 3.0 x16 (x8 Bandwidth)1 x PCIe 3.0 x4
Specific References
- EAN13
- 4712900810271
