- Out of stock

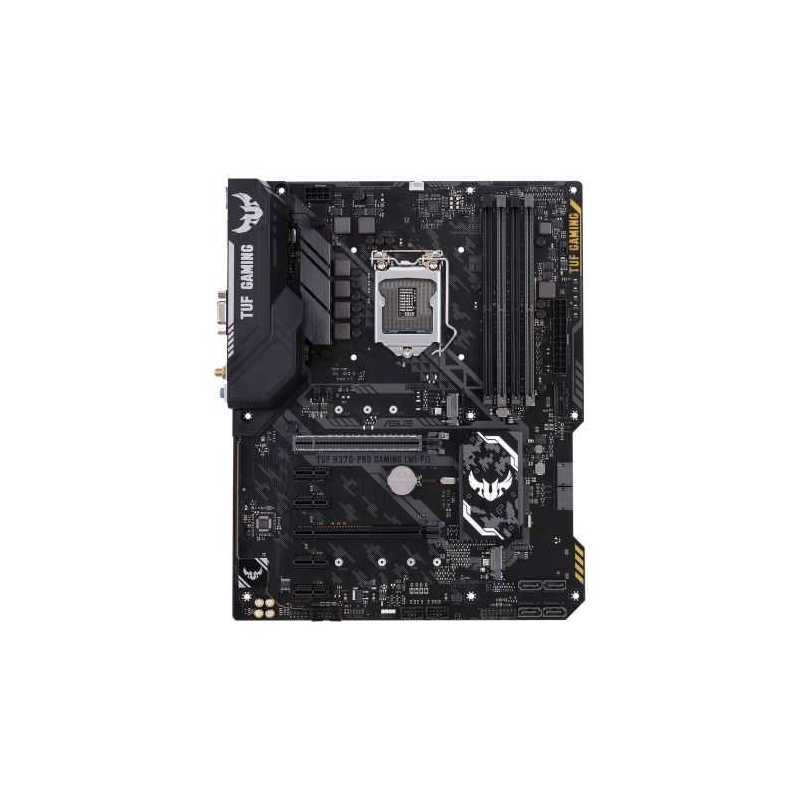

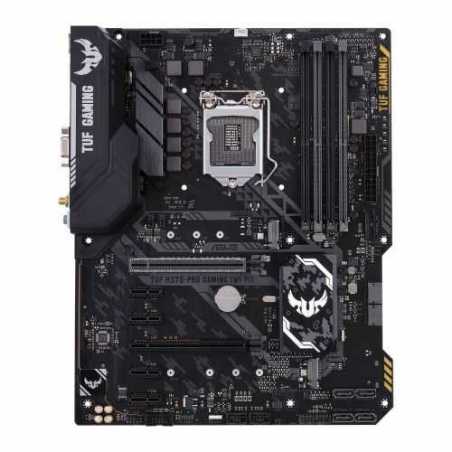

Asus TUF H370-PRO GAMING (WI-FI), Intel H370, 1151, ATX, DDR4, VGA HDMI, DP, XFire, Wi-Fi, Dual M.2, RGB Lighting
£152.47
VAT included
Intel H370 ATX gaming motherboard with Aura Sync RGB LED lighting, DDR4 2666MHz support, 32Gbps M.2, Intel Optane memory ready, and native USB 3.1 Gen 2.
- GPU Temperature Sensing & Fan Xpert 4 Core: Ensures every fan achieves the best balance of cooling performance and acoustics
- TUF Protection: SafeSlot, ESD Guards, DDR4 overvoltage protection, Digi+ VRM, and stainless-steel back I/O for long-term reliability
- Military-grade TUF Components: TUF LANGuard, TUF Chokes, TUF Capacitors, and TUF MOSFETs for maximum durability
- Intel WI-FI: The latest 802.11ac Wireless-AC 9560 integrated adapter, with 2x2 MU-MIMO and wide 160MHz channels for up to 1.73Gbps transfers
- Exclusive DTS® Custom audio: Delivers positional cues to stereo headphones, helping you to pinpoint enemies and action
- Aura Sync RGB: Synchronise LED lighting with a vast portfolio of compatible PC gear
Arm your Battlestation
TUF Gaming motherboards are specially designed and tested to survive and thrive in conditions where other boards would struggle. Engineered with highly durable components, these motherboards deliver unwavering stability for gaming sessions that last as long as you demand.
When you build with a TUF Gaming motherboard, you also benefit from the TUF Gaming Alliance - an ASUS collaboration with trusted industry partners that ensures easier building, the best compatibility, and complementary aesthetics from components to case.
Easy PC DIY Experience
______________________________________________________________
TUF Gaming motherboards offer easy and safe DIY builds by leveraging great design, innovative engineering, and strong partnerships with major component manufacturers. The unrivalled combination of military-grade TUF Components, TUF Protection and the TUF Gaming Alliance means that you can rest assured that your gaming rig will go the distance.
TUF Gaming Alliance
TUF Gaming Alliance is the marque of collaboration between ASUS and major PC-component manufacturers, including trusted brands like Ballistix, Cooler Master, Corsair, G.Skill, In Win and Themaltake. A growing range of compliant parts, from PC chassis and power supplies to CPU coolers and DRAM, guarantee both compatibility and aesthetic harmony. We're also continually increasing our partnerships, making the TUF Gaming Alliance ever stronger.
TUF Protection
______________________________________________________________
Safeslot
Protect your graphics card investment
SafeSlot is the PCIe slot reinvented by ASUS and engineered to provide superior retention and shearing resistance. Manufactured in a single step using a new insert-molding process, SafeSlot integrates fortifying metal for an inherently stronger slot, which is then firmly anchored to the PCB through additional solder points.
ESD Guards
Electrostatic discharge protection
ESD Guards prolong the life of components while preventing damage from electrostatic discharge, providing protection for up to +/- 10kV of air discharge and +/- 6kV of contact discharge - greatly surpassing the respective industry standards of +/- 6kV and +/- 4kKV
TUF Components
TUF Chokes
Certified military-grade TUF chokes deliver rock-steady power to the CPU, helping to improve system stability.
TUF Capacitors
+20% temperature tolerance and 5X-longer lifespan.
TUF Mosfets
Certified military-grade MOSFETs with lower RDS(on)*.
Flexible Cooling Controls
______________________________________________________________
GPU Temperature Sensing
System temperatures are key to a stable gaming rig - especially GPU temperatures. TUF Gaming motherboards include Fan Xpert 4 Core software that's able to intelligently control system fans based upon the input of multiple sensors, including the temperature of ASUS graphics cards*. This ensures that your TUF Gaming system stays perfectly cooled, no matter how long you play.
Fan Xpert 4 Core
TUF H370-PRO Gaming (WI-FI) features the most comprehensive fan controls ever, configurable via Fan Xpert 4 Core and our award-winning UEFI BIOS.
Improved DDR4 Stability
______________________________________________________________
Asus Optimem
ASUS OptiMem preserves memory signal integrity by routing traces and vias to the optimal PCB layer, and our T-Topology trace layout ensures time-aligned signaling by balancing trace lengths between memory slots. These enhancements allow the TUF Gaming motherboards to support a wide range of dual and quad-DIMM memory kits, while providing your rig with the stability it needs to deal with any type of workload - whether you're gaming or running intensive applications.
Game Your Way
______________________________________________________________
Gaming Audio
DTS Custom for Gaming Headsets
Hone your battleskills with exclusive DTS Custom onboard audio. Utilising advanced emulation techniques to create positional cues via stereo headphones, DTS Custom takes onboard audio to a new frontier. With three presets - Aerial, Soundscape, and Tactical - for different genres, you'll have a distinct advantage in every game.
Soundscape Mode
The ideal audio envelope for MMO, RPG, action and horror games - your ears will put you in the centre of the action!
Aerial Mode
Experience audio as though hovering above the game world, with sound coming from ahead - perfect for MOBA, RTA, strategy and sports titles!
Tactical Mode
Shhh - is that an enemy just around the corner? DTS Custom emphasises detail for stealthy play, so you'll detect and locate every footstep!
Outshine the Competition
Aura Sync
A well-tuned system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety
Description
Specification
- Motherboard Type: Desktop
- Form Factor: ATX
- Socket: 1151 - Coffee Lake
- Chipset: Intel H370
- #Hide#DDR Type: DDR4
- RAM Technology: DDR4 (Dual Channel)
- RAM Slots: 4 x DIMM
- RAM Speeds: 2666/2400/2133 MHz
- Maximum Memory: 64GB
- Graphics: Supports Intel HD Graphics
- Graphics Ports: 1 x VGA
1 x HDMI
1 x DisplayPort - Multi-GPU Support: Supports AMD 2-Way CrossFireX Technology
- PCI Express: 1 x PCIe 3.0 x16 (x16 mode)
1 x PCIe 3.0 x16 (max at x4 mode)
4 x PCIe 3.0 x1 - PCI: -
- Storage: 6 x SATA IIII
1 x M.2 Socket (2242/2260/2280) - SATA & PCIe
1 x M.2 Socket (2242/2260/2280/22110) - PCIe - RAID: "RAID 0, 1, 5, 10"
- Wireless: Wi-Fi 802.11 a/b/g/n/ac
Supports MU-MIMO
Supports dual band 2.4/5 GHz+ 60GHz
Bluetooth 5.0 - LAN: GB LAN
- Audio: Realtek ALC887 8-Channel High Definition Audio CODEC
- USB Ports Supported: "2 x USB 3.1 Gen2 Type-A (at back)
1 x USB 3.1 Gen1 Type-C (at back)
4 x USB 3.1 Gen1 (2 at back, 2 at mid-board)
6 x USB 2.0 (2 at back, 4 at mid-board)" - Back Panel I/O Ports: 1 x PS/2 keyboard/mouse
1 x D-Sub
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45)
1 x 5Gb/s USB Type-C
2 x USB 3.1 Gen2
2 x USB 3.1 Gen1
2 x USB 2.0
3 x Audio jacks
2 x Wi-Fi antenna - Internal I/O Connectors: 1 x Aura RGB Strip
1 x USB 3.1 Gen1
2 x USB 2.0
2 x M.2 Socket 3
1 x COM port
6 x SATA 6Gb/s
1 x CPU Fan
2 x Chassis Fan
1 x AIO_PUMP
1 x S/PDIF out
1 x 24-pin EATX
1 x 8-pin ATX 12V - .: 1 x Front audio
1 x System panel
1 x Clear CMOS jumper - CPU Support: Click here for CPU support
- Accessories: I/O Shield
2 x SATA cables
1 x M.2 Screw Package
1 x CPU installation tool
1 x Wi-Fi antennas
1 x TUF Gaming Sticker
1 x TUF Certification card - Additional Features: See Overview
- Package Type: Retail
- Package Weight: 1.2000 kg
- Warranty: 3 Years
90MB0XK0-M0EAY0
Data sheet
- .
- 1 x Front audio, 1 x System panel, 1 x Clear CMOS jumper
- PCI Express
- 1 x PCIe 3.0 x16 (x16 mode) , 1 x PCIe 3.0 x16 (max at x4 mode) , 4 x PCIe 3.0 x1
- Wireless
- Wi-Fi 802.11 a/b/g/n/ac, Supports MU-MIMO, Supports dual band 2.4/5 GHz+ 60GHz, Bluetooth 5.0
- RAM Speeds
- 2666/2400/2133 MHz
- Accessories
- I/O Shield, 2 x SATA cables, 1 x M.2 Screw Package, 1 x CPU installation tool, 1 x Wi-Fi antennas, 1 x TUF Gaming Sticker, 1 x TUF Certification card
- USB Ports Supported
- "2 x USB 3.1 Gen2 Type-A (at back), 1 x USB 3.1 Gen1 Type-C (at back), 4 x USB 3.1 Gen1 (2 at back, 2 at mid-board), 6 x USB 2.0 (2 at back, 4 at mid-board)"
- Storage
- 6 x SATA IIII, 1 x M.2 Socket (2242/2260/2280) - SATA & PCIe, 1 x M.2 Socket (2242/2260/2280/22110) - PCIe
- RAID
- "RAID 0, 1, 5, 10"
- Warranty
- 5 Years
- Motherboard Type
- Desktop
- Form Factor
- ATX
- Socket
- 1151 - Coffee Lake
- Chipset
- Intel H370
- DDR Type
- DDR4
- RAM Technology
- DDR4 (Dual Channel)
- RAM Slots
- 4 x DIMM
- Maximum Memory
- 64GB
- Multi-GPU Support
- Supports AMD 2-Way CrossFireX Technology
- PCI
- -
- LAN
- GB LAN
- Audio
- Realtek ALC887 8-channel high definition audio CODEC
- Back Panel I/O Ports
- 1 x PS/2 keyboard/mouse, 1 x D-Sub, 1 x DisplayPort, 1 x HDMI, 1 x LAN (RJ45), 1 x 5Gb/s USB Type-C, 2 x USB 3.1 Gen2, 2 x USB 3.1 Gen1, 2 x USB 2.0 , 3 x Audio jacks, 2 x Wi-Fi antenna
- Internal I/O Connectors
- 1 x Aura RGB Strip, 1 x USB 3.1 Gen1, 2 x USB 2.0, 2 x M.2 Socket 3, 1 x COM port, 6 x SATA 6Gb/s, 1 x CPU Fan, 2 x Chassis Fan, 1 x AIO_PUMP, 1 x S/PDIF out, 1 x 24-pin EATX, 1 x 8-pin ATX 12V
- CPU Support
- See manufacturers link (next to product images)
- Package Type
- Retail
- Package Weight
- 1.2000 kg
- Graphics Ports
- 1 x VGA, 1 x HDMI, 1 x DisplayPort
- Additional Features
- See Overview
- Graphics
- Supports Intel HD Graphics
