- Out of stock

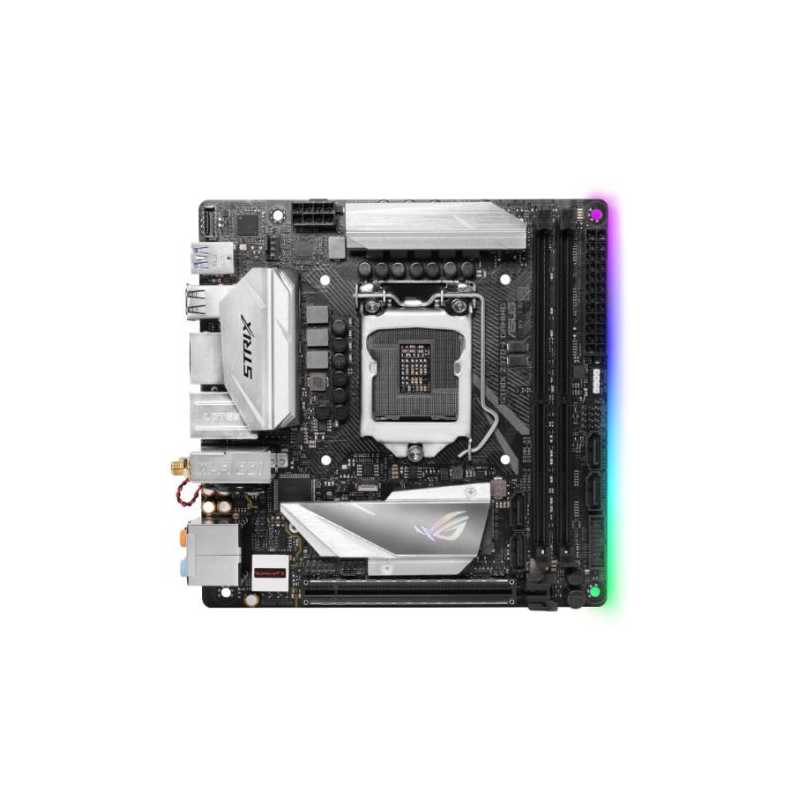

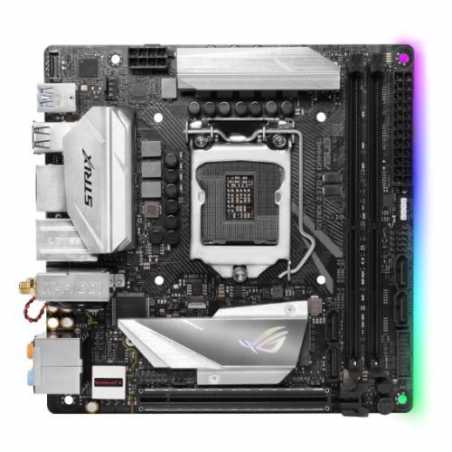

Asus ROG STRIX Z370-I GAMING, Intel Z370, 1151, Mini ITX, 2 DDR4, Wi-Fi, HDMI, DP, RGB Lighting
£218.58
VAT included
Intel Z370 mini-ITX gaming motherboard with Addressable AURA sync RGB LED lighting, 802.11ac Wi-Fi, DDR4 4333MHz support, dual M.2, SATA 6Gbps and a USB 3.1 Gen 2 front-panel connector
- LGA1151 socket for 8th -gen Intel® Core™ desktop processors.
- Aura Sync RGB: Synchronize LED lighting with a vast portfolio of compatible PC gear, including addressable RGB strips.
- Onboard M.2 heatsink: Cools your M.2 drive, delivering consistent storage performance and enhanced reliability.
- 5-Way Optimization: Automated system-wide tuning, providing overclocking and cooling profiles that are tailor-made for your rig.
- Gaming audio: SupremeFX S1220A teams with Sonic Studio III to create an aural landscape that draws you deeper into the action.
- Gaming connectivity: Onboard dual M.2 slots for up to 32 Gbps of PCIe bandwidth and a USB 3.1 Gen 2 front panel connector.
- Gaming networking: Intel Gigabit Ethernet, LANGuard, GameFirst and 2x2 802.11ac Wi-Fi with MU-MIMO support.
- Gamer’s Guardian: ASUS SafeSlot and premium components for maximum endurance.
With aesthetics inspired by the sharpest blades and premium colorways to match any mood, the all-new ROG Strix Z370 motherboards are ready to do battle - and infused with all the essential ROG engineering needed to push performance as far as you dare. Ready for the latest 8th Generation Intel® Core™ processors, ROG Strix Z370-I Gaming is loaded with overclocking and cooling innovations to keep your gaming rig's thermals in check as you turn up the clock. Factor in custom Aura RGB illumination and superior SupremeFX audio and you'll know that ROG Strix Z370-I Gaming looks great and sounds amazing - and outperforms every expectation to dominate your game!
Customisation
______________________________________________________________
______________________________________________________________
Outshine the Competition
Create your own custom LED lighting effects with the intuitive Aura software. Cast a stunning multi-color glow across your build with the powerful RGB LEDs built in to ROG Strix Z370-I Gaming, or attach separate addressable RGB strip using the onboard 3-pin header. You can even use both at the same time and enjoy perfect lighting synchronization. Fire up Aura and enjoy the creative freedom of twelve different lighting themes.
Infinite Lighting Possibilities
ASUS Aura Sync RGB LED technology makes ROG Strix Z370-I Gaming the control hub for your illumination ambitions - so it's easy to synchronize incredible lighting effects between compatible components, including RGB LED strips, graphics cards, keyboards and even mice! Change all LEDs in unison or employ dynamic modes to flow the illumination effects smoothly across all synchronized devices.
Performance
______________________________________________________________
______________________________________________________________
Double Decker Heatsink
ROG Strix Z370-I Gaming has an innovative double-decker heatsink design that allows the M.2 SSD to be stacked atop of the PCH heat sink, which is then topped off with an additional metal heatsink for the M.2 drive. The two heatsinks are thermally isolated to prevent the PCH and M.2 from affecting each other. The double decker design not only cleverly maximizes the board space on miniITX board, but also dramatically improves heat dissipation, cooling the M.2 SSD by up to 20°C for better stability and enhanced gaming performance while featuring a stylish angular design to enhance the look of ROG Strix Z370-I Gaming builds.
5-Way Optimization
One-Click Overclock and Cooling, Done!
- An automated tuning utility that optimizes overclocking and cooling profiles for your unique system configuration.
- Fans stay whisper-quiet for everyday computing, and deliver optimal airflow when the system is crunching through CPU or GPU-intensive tasks.
- All-new stress test that allows users to optimize and overclock for CPU or memory-centric workloads.One click takes care of all that complex tuning. ASUS 5-Way Optimization makes your PC smart. It dynamically optimizes essential aspects of the system, providing overclocking and cooling profiles that are tailored for your rig.
With ROG Strix Z370-I Gaming you have comprehensive control over fans and all-in-one (AIO) coolers, via either Fan Xpert 4 or our media-acclaimed UEFI. Whether you're cooling with air or water, Auto-Tuning mode intelligently configures all parameters with a single click. There's also an Extreme Quiet mode, which reduces all fan speeds to below the default minimum - keeping your system whisper-quiet when performing light tasks.
Cooler by Design
ROG Strix Z370-I Gaming features the most comprehensive cooling controls ever, configurable via Fan Xpert 4 or the UEFI BIOS:
- Multiple temperature sources
- 4-pin PWM/DC fan
- AIO Pump Fan
DDR4 Overclocking Strength in Numbers
ASUS OptiMem preserves memory signal integrity by routing memory traces and vias to the optimal PCB layer, and our T-Topology layout ensures time-aligned signaling by balancing trace lengths between memory slots. These enhancements lead to more headroom for overclocking and improved stability, allowing memory speeds of DDR4-4333 and beyond with all slots populated.
Asus Pro Clock Technology
Improved Overclocking for Faster Gaming Performance
A dedicated base-clock generator designed for 8th Generation Intel® processors allows overclocked base base-clock frequencies up to or beyond 432MHz*. This custom solution works in tandem with the ASUS TurboV processing unit to enhance voltage and base-clock overclocking control, - providing an exciting new way to boost performance to extreme heights.
Connectivity
______________________________________________________________
______________________________________________________________
Intel Ethernet
Lower CPU Workload, Higher TCP & UDP Throughput
Featuring the latest Intel® Ethernet (I219-V) for faster, smoother gaming. Intel Ethernet controllers have a natural synergy with their CPUs and chipsets, reducing processor overhead and offering exceptionally high TCP and UDP throughput, so there's more power for games and other tasks.
2x2 Wi-Fi with Mu-Mimo
Onboard Wi-Fi with Transfer Speeds up to 867MBPS
Next-level 802.11ac Wi-Fi with 2x2 dual-band 2.4/5GHz antennas offer up to 867Mbps* transfer speeds - and the very latest Multi-User MIMO (MU-MIMO) technology ensures that every connected user** experiences the best wireless and online speeds!
Dual PCIe Gen3 M.2.
Let Your SSD Scream at Speeds of up to 32GBPS
Dual PCIe Gen3 x4 M.2 slots (type 2280) provide NVMe SSD RAID support for an incredible performance boost. Create a RAID configuration with up to two PCIe Gen3 storage devices via two M.2 slots and a to enjoy the fastest data
Description
Specification
- Motherboard Type: Desktop
- Form Factor: Mini ITX
- Socket: 1151 - Coffee Lake
- Chipset: Intel Z370
- #Hide#DDR Type: DDR4
- RAM Technology: DDR4 (Dual Channel)
- RAM Slots: 2 x DIMM
- RAM Speeds: 4333(O.C.)/4200(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133(O.C.) MHz
- Maximum Memory: 32GB
- Graphics: Supports Intel HD Graphics
- Graphics Ports: 1 x HDMI
1 x DisplayPort - Multi-GPU Support: -
- PCI Express: 1 x PCIe 3.0 x16
- PCI: -
- Storage: 4 x SATA III
1 x M.2 Socket (2242/2260/2280) - SATA & PCIe
1 x M.2 Socket (2242/2260/2280) - PCIe - RAID: "RAID 0, 1, 5, 10"
- Wireless: Wi-Fi 802.11 a/b/g/n/ac
Supports dual band frequency 2.4/5 GHz
Supports MU-MIMO
Bluetooth V4.2 - LAN: GB LAN
- Audio: SupremeFX 8-Channel High Definition Audio CODEC S1220A
- USB Ports Supported: "1 x USB 3.1 front panel connector port
6 x USB Gen 1 (4 at back, 2 at mid-board)
6 x USB 2.0 (4 at back, 2 at mid-board)" - Back Panel I/O Ports: 1 x DisplayPort
1 x HDMI
1 x LAN (RJ45)
4 x USB 3.1 Gen 1
4 x USB 2.0
1 x Optical S/PDIF out
5 x Audio jack(s)
1 x Wi-Fi/Bluetooth module - Internal I/O Connectors: 1 x Aura Addressable Strip
1 x AAFP connector
2 x M.2 Socket 3
4 x SATA 6Gb/s
1 x CPU Fan
1 x Chassis Fan
1 x AIO_PUMP
1 x 24-pin EATX
1 x 8-pin ATX
1 x System panel
1 x Clear CMOS
1 x T_Sensor - .: 1 x USB 3.1 Gen 2 front
1 x USB 3.1 Gen 1
1 x USB 2.0 - CPU Support: See manufacturers link (next to product images)
- Accessories: M.2 2242 mounting kit
4 x SATA cables
2 x M.2 Screws
1 x CPU installation tool
1 x ROG addressable LED strip
1 x Wi-Fi antennas
1 x SCD
1 x Panel cable
1 x STRIX series sticker - Package Type: Retail
- Additional Features: See Overview
- Package Weight: 1.1500 kg
- Warranty: 3 Years
90MB0VK0-M0EAY0
Data sheet
- .
- 1 x USB 3.1 Gen 2 front, 1 x USB 3.1 Gen 1, 1 x USB 2.0
- PCI Express
- 1 x PCIe 3.0 x16
- Wireless
- Wi-Fi 802.11 a/b/g/n/ac, Supports dual band frequency 2.4/5 GHz, Supports MU-MIMO, Bluetooth V4.2
- RAM Speeds
- 4333(O.C.)/4200(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133(O.C.) MHz
- Accessories
- M.2 2242 mounting kit, 4 x SATA cables, 2 x M.2 Screws, 1 x CPU installation tool, 1 x ROG addressable LED strip, 1 x Wi-Fi antennas, 1 x SCD, 1 x Panel cable, 1 x STRIX series sticker
- USB Ports Supported
- "1 x USB 3.1 front panel connector port, 6 x USB Gen 1 (4 at back, 2 at mid-board), 6 x USB 2.0 (4 at back, 2 at mid-board)"
- Storage
- 4 x SATA III, 1 x M.2 Socket (2242/2260/2280) - SATA & PCIe, 1 x M.2 Socket (2242/2260/2280) - PCIe
- RAID
- "RAID 0, 1, 5, 10"
- Warranty
- 3 Years
- Motherboard Type
- Desktop
- Form Factor
- Mini ITX
- Socket
- 1151 - Coffee Lake
- Chipset
- Intel Z370
- DDR Type
- DDR4
- RAM Technology
- DDR4 (Dual Channel)
- RAM Slots
- 2 x DIMM
- Maximum Memory
- 32GB
- Multi-GPU Support
- -
- PCI
- -
- LAN
- GB LAN
- Audio
- SupremeFX 8-Channel High Definition Audio CODEC S1220A
- Back Panel I/O Ports
- 1 x DisplayPort, 1 x HDMI, 1 x LAN (RJ45), 4 x USB 3.1 Gen 1 , 4 x USB 2.0 , 1 x Optical S/PDIF out, 5 x Audio jack(s), 1 x Wi-Fi/Bluetooth module
- Internal I/O Connectors
- 1 x Aura Addressable Strip, 1 x AAFP connector, 2 x M.2 Socket 3, 4 x SATA 6Gb/s, 1 x CPU Fan, 1 x Chassis Fan, 1 x AIO_PUMP, 1 x 24-pin EATX, 1 x 8-pin ATX, 1 x System panel, 1 x Clear CMOS, 1 x T_Sensor
- CPU Support
- See manufacturers link (next to product images)
- Package Type
- Retail
- Package Weight
- 1.1500 kg
- Graphics Ports
- 1 x HDMI, 1 x DisplayPort
- Additional Features
- See Overview
- Graphics
- Supports Intel HD Graphics
