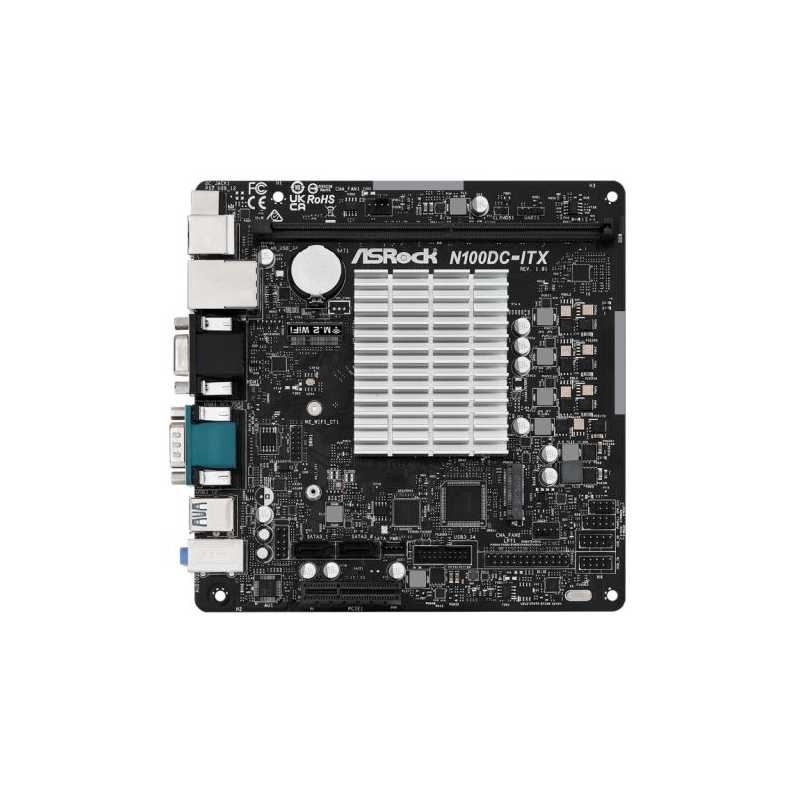

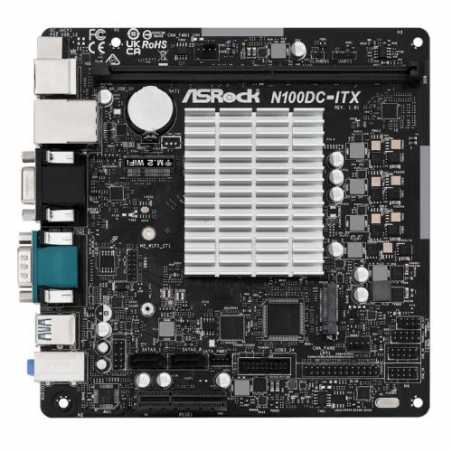

Asrock N100DC-ITX, Integrated Intel Quad-Core N100, Mini ITX, 1 DDR4, VGA, HDMI, DC Jack, Fanless Design, 1x M.2
£137.98
VAT included
Delivered within 1-2 days.
N100DC-ITX
- Intel® Quad-Core Processor N100 (up to 3.4 GHz)
- Supports 1 DDR4 DIMM
- 1 DC Jack (Compatible with the 19V power adapter)
- 1 PCIe 3.0 x4 (x2 mode), 1 M.2 Key E for WiFi
- Graphics Output Options: D-Sub, HDMI
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- 2 SATA3, 1 M.2 (PCIe Gen3x2)
- 4 USB 3.2 Gen1 (2 Rear, 2 Front)
- Realtek Gigabit LAN
- Supports ASRock Auto Driver Installer
Intel® Alder Lake-N N100 Processor
The newest Intel® N100 processor, built on the Gracemont CPU microarchitecture using the Intel® 7 process, features 4 E-cores with a turbo frequency of 3.4GHz and Intel® UHD Graphics with 24 EUs. It is suitable for affordable, entry-level computing.
DC-In Design
The DC-In jack is compatible with 19V power adapters. Without a bulky power supply unit, this unique design allows this motherboard to fit in compact chassis.
*Power adapter is not included.
Fanless Design
The CPU is covered by a specially designed heatsink which allows advanced heat dissipation. Utilizing an ultra quiet fanless design, this ASRock motherboard provides the most silent computing environment.
AV1 Decoding + 4K
Supports 10-bit HEVC & VP9 encoding/decoding, hardware-accelerated AV1 decoding, and a max. resolution of up to 4K x 2K 60Hz.
M.2 (KEY E) For WiFi
Besides the onboard LAN port, users may also choose wireless connections by M.2 (Key E) slot.
*Wi-Fi module is not included.
Auto Driver Installer
No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.
step1: Install Auto Driver Installer
step2: Update drivers needed
step3: Done!
N100DC-ITX
4 Items
Data sheet
- Wireless
- -
- RAM Speeds
- Up to 3200 MHz
- Accessories
- 1 x User Manual1 x I/O Shield2 x SATA Data Cables1 x SATA Power Cable2 x Screws for M.2 Sockets
- USB Ports Supported
- Rear:2 x USB 3.2 Gen1 Type-A4 x USB 2.0Front:2 x USB 3.2 Gen1 Type-A4 x USB 2.0
- Storage
- 2 x SATA III1 x M.2 (2280) - PCIe 3.0 x2
- Warranty
- 3 Year Replacement Warranty
- Motherboard Type
- Desktop
- Form Factor
- Mini ITX
- Socket
- Embedded CPU
- CPU
- Intel Quad-Core Processor N100 (Up to 3.4 GHz)
- DDR Type
- DDR4
- RAM Technology
- Supports DDR4 non-ECC, un-buffered memory
- RAM Slots
- 1 x DIMM
- Maximum Memory
- 16GB
- LAN
- GB LAN
- Audio
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- Back Panel I/O Ports
- 1 x DC Jack (Compatible with 19V power adapters)2 x Antenna Mounting Points1 x PS/2 Mouse/Keyboard1 x Serial Port: COM11 x D-Sub1 x HDMI2 x USB 3.2 Gen14 x USB 2.01 x RJ-45 LANHD Audio Jacks
- Internal I/O Connectors
- 1 x Print Port1 x SPI TPM1 x Chassis Intrusion and Speaker2 x Chassis Fan1 x Front Panel Audio2 x USB 2.0 Headers1 x USB 3.2 Gen1
- CPU Support
- N/A (Integrated CPU)
- Package Type
- Retail
- Graphics Ports
- 1 x VGA1 x HDMI
- Additional Features
- See Overview
- Graphics
- Integrated Intel UHD Graphics24 EUs inside (Up to 750MHz)
- M.2 Slot(s)
- Yes (M.2)
- No. LAN Ports
- 1 x LAN
- Max LAN Speed
- GB LAN
- PCI/PCI Express
- 1 x PCIe 3.0 x4 (supports x2 mode)
Specific References
- EAN13
- 4710483943188
