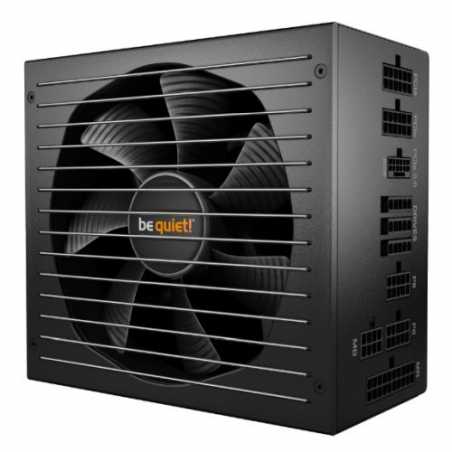

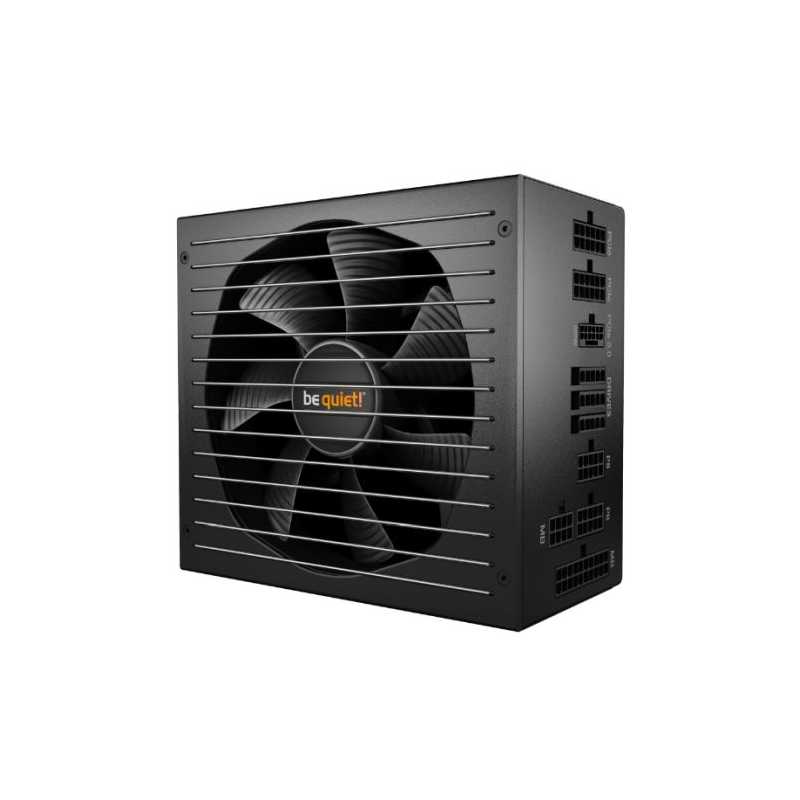

Be Quiet! 850W Straight Power 12 PSU, Fully Modular, 80+ Platinum, Silent Wings Fan, ATX 3.0, PCIe 5.0
search
  • Be Quiet! 850W Straight Power 12 PSU, Fully Modular, 80+ Platinum, Silent Wings Fan, ATX 3.0, PCIe 5.0

Be Quiet! 850W Straight Power 12 PSU, Fully Modular, 80+ Platinum, Silent Wings Fan, ATX 3.0, PCIe 5.0

£158.42
VAT included
Stock status: Very low
Last 12 items
Delivered within 1-2 days.
Quantity

Delivery from %MINIMAL_DATE%




Straight Power 12 is a future-proof ATX 3.0 power supply with 80 PLUS® Platinum certification and virtually inaudible operation.


  • 80 PLUS Platinum efficiency (up to 94%)
  • ATX 3.0 PSU with full support for PCIe 5.0 GPUs and GPUs with 6+2 pin connectors
  • Handles massive power excursions
  • Virtually inaudible Silent Wings 135mm fan
  • Funnel-shaped fan opening on PSU case for high airflow intake
  • Full bridge LLC technology for unmatched signal stability
  • One massive high-performance 12V-rail
  • Japanese 105°C capacitors ensure highest stability and reliability
  • Modular cable management for maximum convenience
  • 10-year manufacturer’s warranty





80 PLUS® Platinum Certified

Highly efficient operation
Straight Power 12 850W is certified with 80 PLUS Platinum and an energy efficiency rating of up to 94%. This provides lots of benefits for your high-end system, including less power consumption and an overall cooler and quieter operation.






Future-Proof Your System

Fulfills all ATX 3.0 specifications
Straight Power 12 850W is an ATX 3.0 PSU and comes with both native integration of the 12VHPWR connector for next-generation PCIe 5.0 graphics cards, and 4 PCIe 6+2-pin connectors for support of current-gen GPUs. This makes the PSU extremely versatile and the perfect choice for powerful systems of today and the ones to come.






The New Standard Of Power

For massive transient loads
Straight Power 12 offers 850W of continuous power with one massive 12V rail. Even if the graphics card demands excessive power for a short time: Straight Power 12 850W handles power excursions up to double its rated power with ease. This ensures reliable operation with the next generation of processors and graphics cards.






Silent Wings Fan

Provides virtually inaudible operation
The high-end Silent Wings fan delivers best-of-class airflow yet produces very little noise. This is thanks to its unique, optimized fan blade design along with an advanced fluid-dynamic bearing and 6-pole fan motor that largely eliminates operational noise, has a super-long life and minimal
power consumption.






Flawless Cooling Concept

For a longer lifespan
The funnel-shaped fan inlet of the Straight Power 12 850W increases airflow while reducing unwanted turbulence for a higher cooling performance. The wire-free design inside allows the cool air to reach all components which ultimately leads to a longer lifespan.






State-Of-The-Art Technologies

Rock-steady signal stability and efficiency
With full bridge LLC Straight Power 12 850W offers advanced technologies, resulting in higher efficiency, better regulation and lower ripple noise for an incomparably stable operation.






Japanese 105° Capacitors

A testament to high quality
Only premium components are used in Straight Power 12 850W. That is why this PSU features exclusively high-quality Japanese capacitors. They are rated at 105°C for stability, reliability, and a long operating life.




BEQUIET
BN337
12 Items

Data sheet

Warranty
10 Years
Form Factor
ATX
Additional Features
See Overview / Videos
Series
Be Quiet! Straight Power 12
Weight/Dimensions
1.81 kg(LxWxH) 160 x 150 x 86 mm
Package Contents
PSUScrewsCable tiesUser manual
Connectors
1 x P4+4 (CPU)1 x P8 (CPU)1 x 12VHPWR cables1 x PCI-e 6+2-pin (GPU)9 x SATA2 x PATA
Wattage
850 W
Compatability
ATX 3.0EPS 12V v2.92PCIe 5.0
Efficiency
230V, 2% load: 61.0%230V, 10% load: 89.2%230V, 20% load: 93.1%230V, 50% load: 94.0%230V, 100% load: 92.3%
Modular
Fully Modular
Rail Design
One massive high-performance 12V-rail
AC Input
AC 100-240 V
Fan Type
135mm Silent Wings fan
Noise
dB(A) at 10% load: 7.5dB(A) at 20% load: 7.5dB(A) at 50% load: 7.7dB(A) at 100% load: 22.1
Fan Bearing
Fluid / Hydraulic Bearing
Protection
OTP (over temperature protection)OCP (over current protection)OPP (over power protection)SCP (short circuit protection)OVP (over Voltage protection)UVP (under Voltage protection)SIP (Surge & Inrush Protection)
80+ Certification
80+ Platinum
Wattage Range
800 - 860W

Specific References

EAN13
4260052189429
