- Out of stock

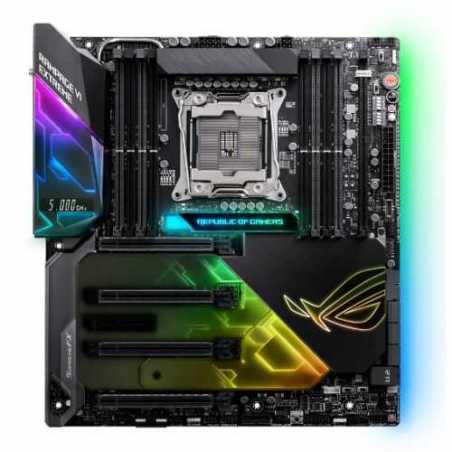

Asus ROG RAMPAGE VI EXTREME, Intel X299, 2066, EATX, 8 DDR4, SLI/XFire, Wi-Fi, 10GB LAN, RGB Lighting
£639.48
VAT included
Intel X299 EATX gaming motherboard with Aura Sync RGB LEDs, triple M.2, DDR4 4200MHz, 10G Lan, 802.11ad Wi-Fi, U.2 and USB 3.1
- Intel® Core™ X Series processor family: Ready for the latest LGA 2066 socket CPUs.
- Quad-channel DDR4 4200 (OC) support
- Superfast 10Gbps networking for up to 10X-faster data-transfer speeds, plus 802.11ad Wi-Fi support
- Synchronise RGB lighting with a vast portfolio of Aura Sync capable PC gear – now with support for addressable light strips
- ROG DIMM.2: Dual M.2 expansion card allows use of fans to prevent throttling
- 5-Way Optimisation: Automated system-wide tuning, providing overclocking and cooling profiles that are tailor made for your rig
- LiveDash OLED : Customisable panel displays vital system stats or your own logo
- Gaming Audio: SupremeFX and Sonic Studio III – High fidelity audio that draws you deeper into the action
- Best gaming protection – SafeSlot, and carefully-selected premium components for maximum durability
Rampage VI Extreme motherboards are now equipped with all-new LiveDash - a built-in OLED panel that displays useful information and customisable graphics. During the power-on, self-test (POST) phase, LiveDash shows key progress stats, in simple language and via traditional POST codes. Then, during normal operation, the vibrant panel shows a choice of CPU frequency, device temperatures, fan speeds or information from the Water Cooling Zone. You're also able to customise the default LiveDash GIF, so it'll display your own image or animation.
Next-Gen Connectivity
______________________________________________________________
______________________________________________________________
802.11AD Wi-Fi
Fastest Onboard Wi-Fi - up to 4.6Gbps
Rampage VI Extreme is engineered with the very latest 802.11ad (WiGig) Wi-Fi* for ultrafast, lag-free wireless connections of up to 4.6Gbps**, delivering smooth streaming of 4K UHD video and faster, slicker online experiences.
10G Onboard LAN
Avoid Bottlenecks with 10x Faster Ethernet
Designed for the demanding requirements of power users and content creators who push the envelope, 10Gbps onboard LAN plugs you into a new era of home networking. With up to 10X the bandwidth of standard gigabit Ethernet, you'll enjoy streaming uncompressed 4K UHD videos, and backups and file transfers that are faster than ever before. And there's also support for intermediate 2.5Gbps and 5Gbps connectivity, allowing you to step up to faster networks for maximum flexibility. Choose the bandwidth that meets your needs and enjoy ultra-low latency at any speed.
Intel Ethernet
Lower CPU Workload, High TCP & UDP Throughput
Featuring the latest Intel® Ethernet (I219-V) for faster, smoother gaming. Intel Ethernet controllers have a natural synergy with their processors and chipsets, reducing CPU overhead and offering exceptionally high TCP and UDP throughput, so there's more power for games and other tasks.
Triple M.2
The Rampage VI Extreme has provision for three M.2 drives to make the most of Intel's IRST and VROC options. Two ride our DIMM.2 module next to the memory slots, while one slots under the ROG Armor. A VROC array can be configured by pairing the DIMM.2 slots, and IRST RAID can be configured by pairing one DIMM.2 slot with the onboard M.2 slot.
VROC
______________________________________________________________
______________________________________________________________
Upgrade your Raid
Unleash the Rampage VI Extreme Virtual RAID on CPU (VROC) with the addition of an ASUS Hyper M.2 X16 Card*, which allows you to attach up to four PCIe® 3.0 x16 M.2 drives - for a total bandwidth of up to 128Gbps. PCH-based RAID arrays are bottlenecked by the 32Gbps limit of the DMI bus. VROC obliterates that limit by allowing you to utilise CPU PCIe lanes to configure a bootable RAID array that can transfer data at insane speeds.
Best Gaming Performance
______________________________________________________________
______________________________________________________________
5-Way Optimisation
One-Click Overclock and Cooling, Done!
One click takes care of all that complex tuning. ASUS 5-Way Optimisation makes your PC smart. It dynamically optimises essential aspects of the system, providing overclocking and cooling profiles that are tailored for your rig.
- An automated tuning utility that optimises overclocking and cooling profiles for your unique system configuration.
- Fans stay whisper-quiet for everyday computing, and deliver optimal airflow when the system is crunching through CPU or GPU-intensive tasks.
- All-new stress test that allows users to optimise and overclock for CPU or memory-centric workloads.
Flexible Cooling Controls for Air or Liquid
With Rampage VI Extreme you have comprehensive control over fans, water pumps and even all-in-one (AIO) coolers, via either Fan Expert 4 or our award-winning UEFI. Whether you're cooling with air or water, Auto-Tuning mode intelligently configures all parameters with a single click. There's also an Extreme Quiet mode, which reduces all fan speeds to below the default minimum - keeping your system whisper-quiet when performing light tasks.
Cooler by Design
Rampage VI Extreme features the most comprehensive cooling controls ever, configurable via Fan Xpert 4 or the UEFI BIOS:
DDR4 Overclocking Strength in Numbers
DDR4 OC 4200MHz+
With optimised trace paths for time-aligned signaling and minimal crosstalk, Third-generation ASUS T-Topology offers enhanced memory stability and compatibility, allowing support for memory speeds of DDR4-4200 MHz and beyond.
OC Design- Asus Pro Clock II Technology
A dedicated base-clock generator that extends CPU and memory overclocking margins. This custom solution works in tandem with the TPU to enhance voltage and base-clock overclocking control, providing the flexibility to extract every ounce of performance from Intel® Core™ X-series processors.
Best Gaming Audio
______________________________________________________________
______________________________________________________________
SupremeFX
ROG has elevated onboard audio once again on the flagship Rampage VI Extreme. The front panel headphone output features a SABRE9018Q2C integrated DAC/AMP capable of reaching -115dB THD+N to provide playback that conveys all the subtlety and nuances of the audio track. The improved resolution derived from the ESS Hyperstream™ DAC architecture expands the soundstage to give a better sense of positionin
Description
Specification
- Motherboard Type: Desktop
- Form Factor: Extended ATX
- Socket: 2066
- Chipset: Intel X299
- #Hide#DDR Type: DDR4
- RAM Technology: DDR4 (Quad Channel)
- RAM Slots: 8 x DIMM
- RAM Speeds: 4200(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)
- /3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133 MHz
- Maximum Memory: 128GB
- Graphics: -
- Graphics Ports: -
- Multi-GPU Support: Supports NVIDIA Quad-GPU SLI Technology
Supports AMD Quad-GPU CrossFireX Technology - PCI Express: 4 x PCIe 3.0 x16
1 x PCIe 3.0 x4 - PCI: -
- Storage: 6 x SATA III
3 x M.2 Socket 3 (2230/2242/2260/2280/22110) - - Refer to manufacturers link for SATA/PCIe support
1 x U.2 port
*2 on DIMM.2 module - RAID: "RAID 0, 1, 5, 10"
- Wireless: Wi-Fi 802.11 a/b/g/n/ac+ WiGig 802.11ad
Supports dual band frequency 2.4/5 GHz
Up to 4600Mbps transfer speed
Bluetooth V4.1 - LAN: 10GB LAN & GB LAN
- Audio: ROG SupremeFX 8-Channel High Definition Audio CODEC S1220
- USB Ports Supported: "2 x USB 3.1 Gen 2 (Type-A & C at back)
12 x USB 3.1 Gen 1 (8 at back, 4 at mid-board)
2 x USB 2.0 (at mid-board)
1 x USB 3.1 Gen 2 front panel connector" - Back Panel I/O Ports: 1 x LAN (RJ45)
2 x USB 3.1 Gen 2
8 x USB 3.1 Gen 1
1 x Optical S/PDIF out
1 x Clear CMOS button
1 x USB BIOS Flashback Button
1 x ASUS Wi-Fi GO! module
5 x LED-illuminated audio jacks - Internal I/O Connectors: 1 x W_PUMP+ 1
1 x W_PUMP+ 2
1 x WB_SENSOR
1 x Aura Addressable Strip
1 x U.2 port
1 x Aura RGB Strip
2 x USB 3.1 Gen 1
1 x USB 2.0
1 x M.2 Socket 3
1 x TPM
6 x SATA 6Gb/s
1 x VROC_HW_Key - .: 1 x CPU Fan
1 x CPU OPT Fan
3 x Chassis Fan
1 x H_AMP fan
1 x Thunderbolt
1 x 8-pin EATX 12V
1 x 4-pin EATX 12V_1
1 x 24-pin EATX
1 x Front audio
1 x 5-pin EXT_FAN
1 x ProbeIt Measurement Points - .: "1 x LN2 Mode
1 x ROG extension
1 x System panel
2 x T_Sensor
1 x W_IN
1 x W_OUT
1 x W_FLOW
1 x USB 3.1 Gen 2 front panel
Switches: Slow, PCIe x16 lane
Buttons: BIOS Switch, Safe Boot, ReTry, Start" - CPU Support: See manufacturers link (next to product images)
- Accessories: 1 x ROG logo plate sticker
6 x SATA cables
3 x M.2 Screws
1 x WiGig moving antenna
1 x dual band moving antennas
1 x MOS fan bracket kit
1 x ROG VGA Holder
1 x ROG DIMM.2 Fan Stand Pack
1 x Fan Extension Card
1 x Fan Extension card screws - .: 1 x Fan Extension card cable
1 x 3-Way SLI bridge
1 x 4-Way SLI bridge
1 x SLI HB BRIDGE
1 x ROG big sticker
1 x Q-Connector
1 x 10-in-1 ROG cable label
3 x Thermistor cables
1 x ROG coaster - Package Type: Retail
- Additional Features: See Overview
- Package Weight: 3.6000 kg
- Warranty: 3 Years
90MB0U30-M0EAY0
Data sheet
- .
- "1 x LN2 Mode, 1 x ROG extension, 1 x System panel, 2 x T_Sensor, 1 x W_IN, 1 x W_OUT, 1 x W_FLOW, 1 x USB 3.1 Gen 2 front panel, Switches
1 x CPU Fan, 1 x CPU OPT Fan, 3 x Chassis Fan, 1 x H_AMP fan, 1 x Thunderbolt, 1 x 8-pin EATX 12V, 1 x 4-pin EATX 12V_1, 1 x 24-pin EATX, 1 x Front audio, 1 x 5-pin EXT_FAN, 1 x ProbeIt Measurement Points
1 x Fan Extension card cable, 1 x 3-Way SLI bridge, 1 x 4-Way SLI bridge, 1 x SLI HB BRIDGE, 1 x ROG big sticker, 1 x Q-Connector, 1 x 10-in-1 ROG cable label, 3 x Thermistor cables, 1 x ROG coaster - PCI Express
- 4 x PCIe 3.0 x16, 1 x PCIe 3.0 x4
- Wireless
- Wi-Fi 802.11 a/b/g/n/ac+ WiGig 802.11ad, Supports dual band frequency 2.4/5 GHz, Up to 4600Mbps transfer speed, Bluetooth V4.1
- RAM Speeds
- 4200(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133 MHz
- Accessories
- 1 x ROG logo plate sticker, 6 x SATA cables, 3 x M.2 Screws, 1 x WiGig moving antenna, 1 x dual band moving antennas, 1 x MOS fan bracket kit, 1 x ROG VGA Holder, 1 x ROG DIMM.2 Fan Stand Pack, 1 x Fan Extension Card, 1 x Fan Extension card screws
- USB Ports Supported
- "2 x USB 3.1 Gen 2 (Type-A & C at back), 12 x USB 3.1 Gen 1 (8 at back, 4 at mid-board), 2 x USB 2.0 (at mid-board), 1 x USB 3.1 Gen 2 front panel connector"
- Storage
- 6 x SATA III, 3 x M.2 Socket 3 (2230/2242/2260/2280/22110) - - Refer to manufacturers link for SATA/PCIe support, 1 x U.2 port, , *2 on DIMM.2 module
- RAID
- "RAID 0, 1, 5, 10"
- Warranty
- 3 Years
- Motherboard Type
- Desktop
- Form Factor
- Extended ATX
- Socket
- 2066
- Chipset
- Intel X299
- DDR Type
- DDR4
- RAM Technology
- DDR4 (Quad Channel)
- RAM Slots
- 8 x DIMM
- Maximum Memory
- 128GB
- Multi-GPU Support
- Supports NVIDIA Quad-GPU SLI Technology , Supports AMD Quad-GPU CrossFireX Technology
- PCI
- -
- LAN
- 10GB LAN & GB LAN
- Audio
- ROG SupremeFX 8-Channel High Definition Audio CODEC S1220
- Back Panel I/O Ports
- 1 x LAN (RJ45), 2 x USB 3.1 Gen 2 , 8 x USB 3.1 Gen 1 , 1 x Optical S/PDIF out, 1 x Clear CMOS button, 1 x USB BIOS Flashback Button, 1 x ASUS Wi-Fi GO! module, 5 x LED-illuminated audio jacks
- Internal I/O Connectors
- 1 x W_PUMP+ 1, 1 x W_PUMP+ 2, 1 x WB_SENSOR, 1 x Aura Addressable Strip, 1 x U.2 port, 1 x Aura RGB Strip, 2 x USB 3.1 Gen 1, 1 x USB 2.0, 1 x M.2 Socket 3, 1 x TPM, 6 x SATA 6Gb/s, 1 x VROC_HW_Key
- CPU Support
- See manufacturers link (next to product images)
- Package Type
- Retail
- Package Weight
- 3.6000 kg
- Graphics Ports
- -
- Additional Features
- See Overview
- Graphics
- -
Specific References
- EAN13
- 4712900805536
