• Out of stock

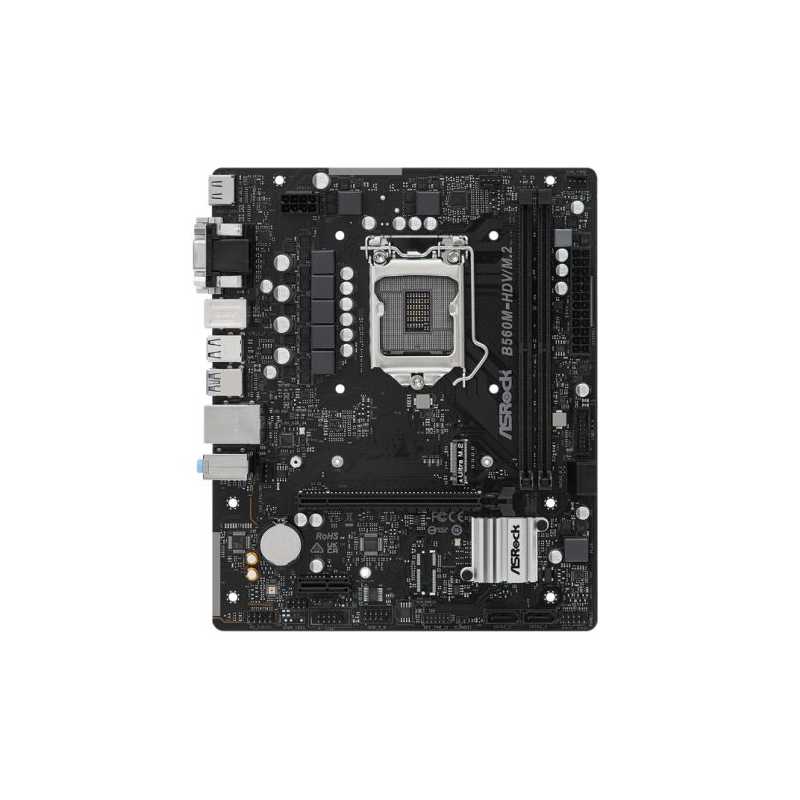

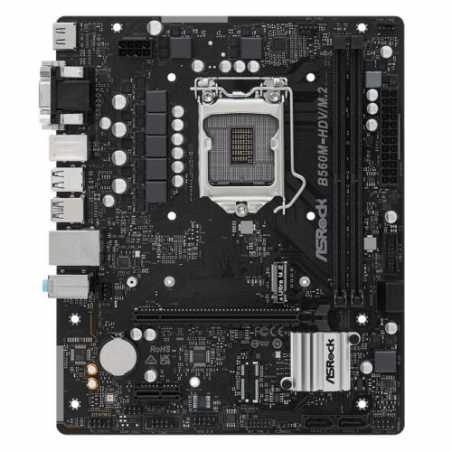

Asrock B560M-HDV/M.2, Intel B560, 1200, Micro ATX, 2 DDR4, VGA, DVI, HDMI, 1x M.2
search
  • Asrock B560M-HDV/M.2, Intel B560, 1200, Micro ATX, 2 DDR4, VGA, DVI, HDMI, 1x M.2

Asrock B560M-HDV/M.2, Intel B560, 1200, Micro ATX, 2 DDR4, VGA, DVI, HDMI, 1x M.2

£70.67
VAT included
Stock status: Out of stock
Out of stock
Quantity
Out of stock




B560M-HDV/M.2


  • Supports 10th Gen Intel® Core™ Processors and 11th Gen Intel® Core™ Processors
  • Supports DDR4 4000+ MHz (OC)*
  • 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x1
  • Graphics Output Options: HDMI, DVI-D, D-Sub
  • 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
  • 4 x SATA3, 1 x Ultra M.2 (PCIe Gen3 x4 & SATA3)
  • 4 x USB 3.2 Gen1 (2 x Rear, 2 x Front),
  • 6 x USB 2.0 (4 x Rear, 2 x Front)
  • Intel® Gigabit LAN






Premium 50A Power Choke

ASRock’s premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.





Clever Access Memory

Conventional PC systems processor can only access a fraction of graphics memory and limits system performance. With Clever Access Memory, the data channel gets expanded to harness the full potential of GPU memory, removes the bottleneck and increase performance.





Base Frequency Boost (BFB) Technology

Who ever said that only K series CPUs and the Z-family platform are capable of being performed with maximum power. Via ASRock BFB (Base Frequency Boost) Technology, users may install their non K series CPUs to ASRock’s selected 500 series motherboards and enjoy the base frequency boost with the hidden power of processors immediately.





Intel® LAN

Intel® LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!





Ultra M.2 32 Gb/s (PCIe Gen3 x4)

The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s, and is compatible with ASRock’s U.2 Kit for installing some of the world’s fastest U.2 PCIe Gen3 x4 SSDs.





3 Graphics Outputs

Complete with all three types of most used connectors! Packed with a D-Sub + DVI-D + HDMI combo. Plus the HDMI port supports 4K resolution.
*Supported only with processors with integrated graphics. Please check CPU support list from each motherboard webpage.





HDMI 4k @60Hz

Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.





Premium 50A Power Choke

Compared to traditional chokes, ASRock’s premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.





Sapphire Black PCB

Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.





High Density Glass Fabric PCB

High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.





Water Pump Header

This is not only a standard CPU fan header, but also supports water pumps! This header provides a maximum of 2A power for supporting the most popular water pumps. User also can adjust the voltage of water pump to get higher cooling performance with lower noise.





Full Spike Protection

Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.





Live Update & APP Shop

ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Sho



ASROCK
B560M-HDV/M.2

Data sheet

Wireless
-
RAM Speeds
11th Gen CPUs: up to 4000+(OC)10th Gen CPUs: up to 3600+(OC)
Accessories
1 x User Manual1 x Support CD1 x I/O Shield2 x SATA Data Cables1 x Screw for M.2 Socket
USB Ports Supported
Rear:2 x USB 3.2 Gen1 Type-A4 x USB 2.0Front:2 x USB 3.2 Gen1 Type-A2 x USB 2.0
Storage
4 x SATA III1 x M.2 (2260/2280) - SATA & PCIe 3.0 x4
Warranty
2 Year Replacement Warranty
Motherboard Type
Desktop
Form Factor
Micro ATX
Socket
Intel 1200 - Rocket Lake
Chipset
Intel B560
DDR Type
DDR4
RAM Technology
DDR4 (Dual Channel)
RAM Slots
2 x DIMM
Maximum Memory
64GB
LAN
GB LAN
Audio
7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Back Panel I/O Ports
1 x PS/2 Keyboard1 x PS/2 Mouse1 x D-Sub1 x DVI-D1 x HDMI4 x USB 2.02 x USB 3.2 Gen11 x RJ-45 LANHD Audio Jacks
Internal I/O Connectors
1 x COM Port1 x SPI TPM1 x Chassis Intrusion and Speaker1 x CPU Fan1 x Chassis Fan1 x Chassis/Water Pump Fan1 x 24 pin ATX1 x 8 pin 12V1 x Front Panel Audio1 x USB 2.01 x USB 3.2 Gen1
CPU Support
Supports 10th Gen Intel Core Processors and 11th Gen Intel Core Processors (LGA1200)
Package Type
Retail
Graphics Ports
1 x VGA1 x DVI-D1 x HDMI
Additional Features
See Overview
Graphics
Integrated Graphics**Graphics specifications may vary between CPU types
M.2 Slot(s)
Yes (M.2)
No. LAN Ports
1 x LAN
Max LAN Speed
GB LAN
PCI/PCI Express
1 x PCIe 4.0 x161 x PCIe 3.0 x1
