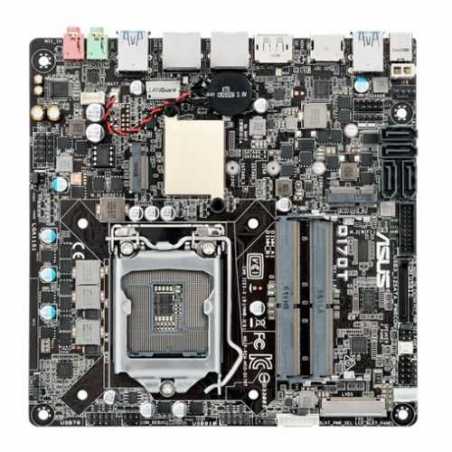

Asus Q170T/CSM - Corporate Stable Model, Intel Q170, 1151, Thin Mini ITX, DDR4 SODIMM, M.2, Dual GB LAN, HDMI, DP, DC Power
£159.80
VAT included
Full-featured, thin-client mini-ITX Q170 choice for DIY AIO PCs or ultra-slim systems, with 5X Protection II for dependable stability, DDR4 SO-DIMM support and EZ Flash 3 quick BIOS updates.
- 5X Protection II – Advanced hardware safeguards for all-round protection
- Support 12V and 19V input via back-panel DC-in jack
- AI Suite 3: One-stop access to innovative ASUS features
- Fan Xpert: Dedicated CPU and case fan controls
About ASUS Corporate Stable Model
ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable, reliable motherboards and mini PCs for businesses of all sizes. ASUS CSM offers up to 36-month product lifecycle support and a six-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Additionally, each purchase of an ASUS CSM product comes with ASUS Control Center Classic Edition, server-grade IT management software — a $60 value.
About ASUS Control Center
Optimize IT endpoint management
ASUS Control Center (ACC) is a centralized platform designed to assist IT staff in monitoring and controlling devices within their corporate networks, and facilitate inventory checking in multiple locations remotely to help safeguard against potential issues. Its detailed dashboard provides real-time data to identify system failures and efficiently improve productivity, as well as perform timely asset management checking.
Automate IT maintenance
ASUS Control Center (ACC) allows IT staff to schedule automatic updates of the latest BIOS, software and utilities to specific or all devices at off-peak times, enhancing system stability and IT operational flexibility. ACC is designed to enhance power management by setting up power caps to optimize energy usage and reduce outage risks. ACC also automatically notifies IT staff in the event of unusual conditions or changes to any device, allowing for faster resolution of potential issues.
Securely manage all of your endpoints
Security is exceptionally vital in any business environment. ASUS Control Center (ACC) helps IT staff securely manage endpoint configuration, portable storage access and PC software applications by enabling them to create grouping rules on individual devices. ACC prevents unauthorized system access by providing remote disablement of the Registry Editor, blocking USB storage for all nodes at once and monitoring client device status, and providing automatic reboots via watchdog programs.
__________________________________________________
Dependable Stability
______________________________________________________________
5X Protection II
Advanced Hardware Safeguards
Industry-leading 5X Protection II employs the finest components, excellent circuit design, and exacting standards to guarantee quality and long-term durability of your motherboard with all-round protection. For you, that means exceptional protection and stability for your build — the result of decades of engineering experience from the world's leading motherboard brand.
LANGuard
Pumped-up throughput. 2.5X higher surge tolerance.
ASUS LANGuard is hardware-level networking protection that employs signal-coupling technology and premium anti-EMI surface-mounted capacitors ensuring a more reliable connection and better throughput, plus electrostatically-guarded and surge-protected components for greater tolerance to static electricity and improved protection against surges.
Overvoltage Protection
World-class circuit-protecting power design
An exclusive circuit design with built-in voltage regulators to protect your chipset, connectivity ports, and audio codecs from damage caused by unexpected high-level voltages from unstable or inferior power supplies.
DRAM Overcurrent Protection
Short-circuit damage prevention
Onboard resettable fuses prevent overcurrent and short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of both your system and connected devices.
DIGI+ VRM
Precision control for stable power
ASUS-exclusive DIGI+ VRM intelligently delivers power to the processor based on real-time demands, reducing energy waste and improving system stability.
Stainless-Steel Back I/O
3X corrosion-resistance for greater durability
Corrosion-resistant stainless steel back I/O panels bonded with chromium oxide have a lifespan that's three times (3X) longer than ordinary panels.
Superb Performance
______________________________________________________________
DDR4 Support
Make your memory go faster
With DDR4, you'll accelerate memory frequencies up to an incredible to 2133MHz! And ASUS works with almost every DDR4 memory vendor, so you're assured the best compatibility.
Media-acclaimed UEFI BIOS
The smoothest, slickest mouse-controlled graphical BIOS has been improved to make it even more appealing. Whether you're a PC novice or a seasoned overclocker, the EZ and Advanced Modes help you find your way, quickly and easily.
EZ Flash 3
Update the latest BIOS via the internet, and from within the BIOS.
S.M.A.R.T
Check up your storages devices' Self-Monitoring, Analysis, and Reporting Technology (S.M.A.R.T) logs to gauge reliability, and even determine if they're about to fail.
Q-Fan Control
You can configure the fan's operating speed manually, or use the easy pre-configured fan profiles to select Standard, Silent, Turbo, or Full Speed modes!
My Favorites
Quickly find tuning options and add preferred tools to the list.
EZ Mode
Intuitive Graphical Fan Control:
Fine-tune individual fans simply by dragging a curve with the mouse.
EZ XMP:
Improve your DRAM performance with a click.
SATA Information:
View SATA port details for easy device recognition.
Description
Specification
- Motherboard Type: Server / Workstation
- Form Factor: Thin Mini ITX
- Socket: 1151 - Sky Lake / Kaby Lake
- Chipset: Intel Q170
- #Hide#DDR Type: DDR4 SO-DIMM
- RAM Technology: DDR4 SO-DIMM (Dual Channel)
- RAM Slots: 2 x SODIMM
- RAM Speeds: 2133 MHz
- Maximum Memory: 32GB
- Graphics: Supports Intel HD Graphics
- Graphics Ports: 1 x HDMI
1 x DisplayPort - Multi-GPU Support: -
- PCI Express: -
- PCI: -
- Storage: 4 x SATA III
1 x M.2 (2242/2260/2280) - SATA & PCIe - RAID: -
- Wireless: -
- LAN: Dual GB LAN
- Audio: Realtek ALC887-VD 8-Channel High Definition Audio CODEC
- USB Ports Supported: 6 x USB 3.1 Gen1 (4 at back)
5 x USB 2.0 (5 at mid-board) - Back Panel I/O Ports: 1 x DisplayPort
1 x HDMI
2 x LAN (RJ45)
4 x USB 3.1 Gen 1
2 x Audio jacks
1 x DC power connector - Internal I/O Connectors: 2 x USB 3.1 Gen 1
3 x USB 2.0
1 x COM port
4 x SATA 6Gb/s
1 x SATA power
1 x CPU Fan
1 x Chassis Fan
1 x Front audio
1 x Internal speaker
1 x Chassis Intrusion
1 x Clear CMOS
1 x eDP/LVDS switch - .: 1 x DIS ME
1 x M.2 Socket 1 with E key
1 x M.2 Socket 3 for M Key
1 x 2-pin internal DC power
1 x Stereo speaker
1 x DMIC
1 x Backlight inverter voltage selection
1 x FPD brightness
1 x Panel voltage selection
1 x Panel off - .: 1 x eDP
1 x LVDS
1 x System panel - CPU Support: Click here for CPU support
- Accessories: Users manual
I/O Shield
Thin Mini ITX I/O Shield
1 x SATA power cable
2 x SATA 6Gb/s cables
2 x M.2 Screw Package
1 x Supporting DVD - Additional Features: See Overview
- Package Type: Retail
- Package Weight: 0.3800 kg
- Warranty: 3 Years
90MB0QS0-M0EAYC
Data sheet
- .
- 1 x DIS ME, 1 x M.2 Socket 1 with E key, 1 x M.2 Socket 3 for M Key, 1 x 2-pin internal DC power, 1 x Stereo speaker, 1 x DMIC, 1 x Backlight inverter voltage selection, 1 x FPD brightness, 1 x Panel voltage selection, 1 x Panel off
1 x eDP, 1 x LVDS, 1 x System panel - PCI Express
- -
- Wireless
- -
- RAM Speeds
- 2133 MHz
- Accessories
- Users manual, I/O Shield, Thin Mini ITX I/O Shield, 1 x SATA power cable, 2 x SATA 6Gb/s cables, 2 x M.2 Screw Package, 1 x Supporting DVD
- USB Ports Supported
- 6 x USB 3.1 Gen1 (4 at back), 5 x USB 2.0 (5 at mid-board)
- Storage
- 4 x SATA III, 1 x M.2 (2242/2260/2280) - SATA & PCIe
- RAID
- -
- Warranty
- 3 Years
- Motherboard Type
- Server / Workstation
- Form Factor
- Thin Mini ITX
- Socket
- 1151 - Sky Lake / Kaby Lake
- Chipset
- Intel Q170
- DDR Type
- DDR4 SO-DIMM
- RAM Technology
- DDR4 SO-DIMM (Dual Channel)
- RAM Slots
- 2 x SODIMM
- Maximum Memory
- 32GB
- Multi-GPU Support
- -
- PCI
- -
- LAN
- Dual GB LAN
- Audio
- Realtek ALC887-VD 8-Channel High Definition Audio CODEC
- Back Panel I/O Ports
- 1 x DisplayPort, 1 x HDMI, 2 x LAN (RJ45), 4 x USB 3.1 Gen 1, 2 x Audio jacks, 1 x DC power connector
- Internal I/O Connectors
- 2 x USB 3.1 Gen 1, 3 x USB 2.0, 1 x COM port, 4 x SATA 6Gb/s, 1 x SATA power, 1 x CPU Fan, 1 x Chassis Fan, 1 x Front audio, 1 x Internal speaker, 1 x Chassis Intrusion, 1 x Clear CMOS, 1 x eDP/LVDS switch
- CPU Support
- See manufacturers link (next to product images)
- Package Type
- Retail
- Package Weight
- 0.3800 kg
- Graphics Ports
- 1 x HDMI, 1 x DisplayPort
- Additional Features
- See Overview
- Graphics
- Supports Intel HD Graphics
