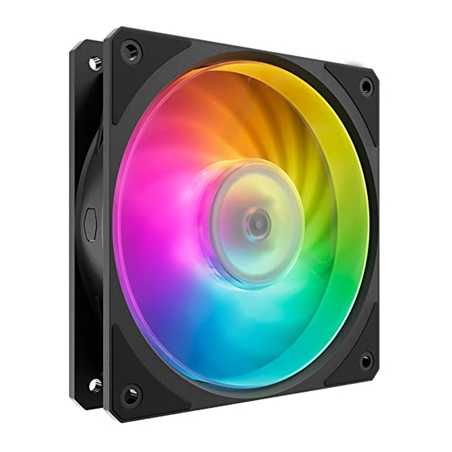

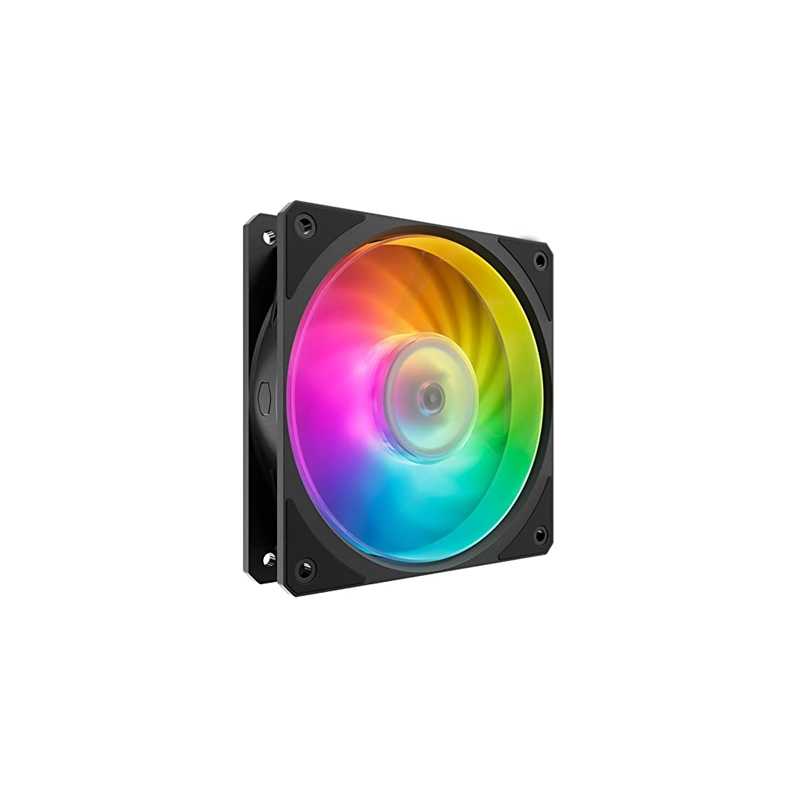

Cooler Master Mobius 140P ARGB High Performance Interconnecting Ring Blade Fan, PWM 2400rpm, Loop Dynamic Bearing, ARGB Customiz

PERFECTING ENGINEERING
Cooler Master’s Mobius140P ARGB is our new series of performance fans. With our enhanced Ring Blade Design, the Mobius Series optimizes both performance and acoustics, catering to a dynamic range of applications from case, liquid or air, to overclocking and intense gaming.

RING BLADE DESIGN (RBD)
Interconnecting fan blades designed for a reinforced and rigid structure, eliminating vibration for stable and fluid fan operation.

OIL REFLOW BEARING SYSTEM
Our newly designed ORBS (Oil Reflow Bearing System)has thick oil film and lubrication formation that can achieve stable running

OIL REFLOW
The oil flows back to the sealed bearing to create constant lubrication against friction and increases the life span of the fan.

DUST PROOFING
The sealed and concave position of the bearing prevents air and dust exposure and ensures a smooth transfer of motion.

ANTI-SWAY SYSTEM
Magnetic ring prevents bearing shaft from tilting, stabilizing the fan to prevent fan blade obstruction under various orientations, as well as oil spray.

PRESSURE AIR ACCELERATION
Angled inner frame rim with chamfered side vents boost airflow draw, maximizing force induced air pressure and diminishing dead air.

ABSOLUTE ACOUSTICS
Sound output fine tuned to the optimal prominence ratio to achieve sub 6dB noise levels without performance sacrifice.

Acoustic Testing
Anechoic Chamber for ISO 3745
• FFT analyzer: AD-3524 O Microphone: B&K 2235
• Sound Pressure: IS0-7779
• Sound Power: ISO-7779
• Sound Quality: 1S0-532B /ISO
• Background noise: below 6dBA

ANTI-VIBRATION DAMPER
Exclusive Cooler Master color accent dampers diminish vibration and rattling to maintain chassis stability for silent performance.

ARGB MOTHERBOARD COMPATIBILITY
Addressable Gen 2 RGB syncs with Cooler Master’s MasterPlus+ software and dedicated controller, allowing customization of individual LED colors, effects, brightness and more – all from an intuitive, convenient interface. (controller sold separately)

Specifications

Exterior Color
Black

Fan Dimensions (L x W x H)
140 x 140 x 25 mm / 5.5 x 5.5 x 1 inch

Fan Profiles
Addressable Gen 2 RGB

Fan Speed
0-1900 RPM ± 10%

Fan Airflow
76.5 CFM

Fan Noise Level
30 dBA

Fan Bearing Type
Loop Dynamic Bearing

Fan Air Pressure
2.3 mmH2O

Fan MTTF
>160,000 Hours

Fan Power Connector
4-Pin (PWM)

Fan Rated Voltage
12 VDC

Fan Rated Current
0.35A

Fan Safety Current
0.4A

Fan Power Consumption
4.2W

RGB Connector
3-Pin ARGB

RGB Rated Voltage
5 VDC

RGB Rated Current
0.48A

Fan Weight
222 g / 0.49 lbs

Warranty5 years

Series
Mobius Series

Cooler Type
Case Fan

Fan Size
140
