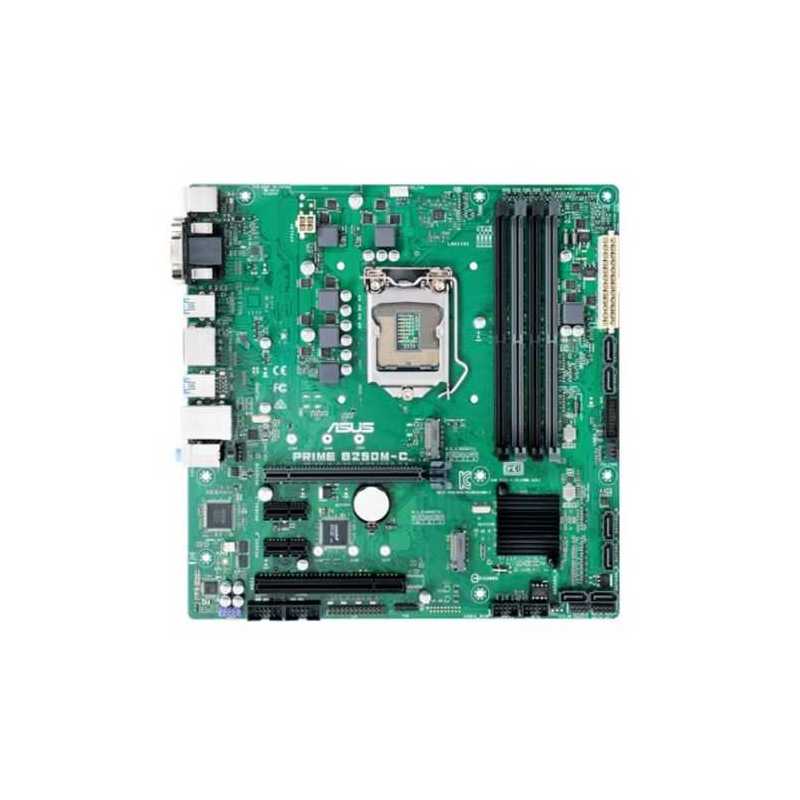

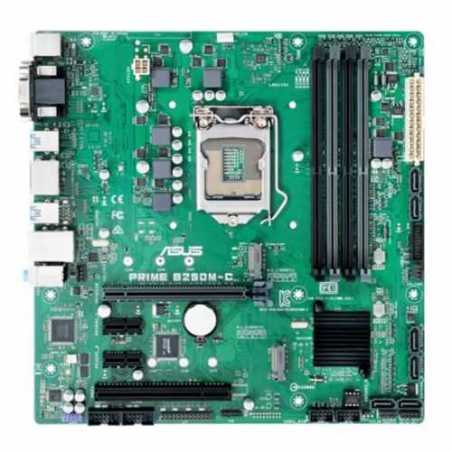

Asus PRIME B250M-C, Intel B250, 1151, Micro ATX, DDR4, VGA, DVI, HDMI, DP, Built for 24/7 Operation
£95.63
VAT included
ASUS B250M-C Commercial Series micro-ATX motherboard, built for 24/7 operation, Total cost of ownership (TCO) reduction, easy assembly and BIOS management
- 5X Protection III: Advanced hardware safeguards for all-round protection
- Efficient management: ASUS Commercial BIOS Kit for easy customization of DMI, BIOS values and boot logos, plus Intel® ME Driver and OEM Activation (OA) tools
- Dependable reliability: Stress-tested 24/7 for 168 hours, plus anti-moisture coating for prolonged system lifespan.
- Easy assembly: Box-style headers and fixed-position, color-coded connectors to speed up the production line.
ASUS Commercial Series
ASUS is the world's biggest and best-known motherboard brand, renowned for our user-focused Design Thinking. We understand the business importance of stability, easy manageability and security. That's why ASUS commercial series boards include, 24/7 stability, smart BIOS tools and guaranteed long-term availability, and our world-class after-sales service effectively reduces many hidden costs of ownership — maximizing your investment over the product lifecycle.
Dependable Reliability
Prime 200 motherboards are engineered with industry-leading 5X Protection III, employing the finest components, excellent circuit design, and exacting standards to guarantee the quality and long-term durability of your motherboard. That means exceptional protection and stability for your build — thanks to decades of engineering experience from the world's leading motherboard brand.
Fortified PCIe slot prevents damage
SafeSlot Core is the ASUS-exclusive PCIe slot. Featuring a fortified design that's anchored to the motherboard by a special hook, Safeslot Core provides 1.6x stronger retention and 1.3x greater shearing resistance than standard expansion slots.
Pumped-up throughput. 2.5X higher surge tolerance.
ASUS LANGuard is hardware-level networking protection that employs signal-coupling technology and premium anti-EMI surface-mounted capacitors ensuring a more reliable connection and better throughput, plus electrostatically guarded and surge-protected components for greater tolerance to static electricity and improved protection against surges.
World-class circuit-protecting power design
An exclusive circuit design with built-in voltage regulators to protect your chipset, connectivity ports, and audio codecs from damage caused by unexpected high-level voltages from unstable or inferior power supplies.
Precision control for stable power!
ASUS-exclusive DIGI+ VRM intelligently delivers power to the processor based on real-time demands, reducing energy waste and improving system stability.
3X corrosion-resistance for greater durability
Corrosion-resistant stainless steel back I/O panels bonded with chromium oxide have a lifespan that's three times longer than ordinary panels.
Electrostatic discharge protection
ASUS ESD Guards prevent damage from electrostatic discharge, up to +/- 10kV for air discharge and +/-15kV for contact discharge, arranged in an active-protective-circuit design that prolongs the life of components.
Against moisture and corrosion
This innovative moisture-resistant coating provides motherboard protection, and combats the higher levels of humidity that build up in densely-populated environments, such as factories, libraries, data centers and internet cafes. It even minimizes internal corrosion by preventing the adhesion and migration of moisture — prolonging the life of your motherboard.
24/7 Reliability Test
Optimized for twenty-four seven operations, the motherboard is tested under temperature up to 45°C and humidity up to 80% to ensure it can handle diverse temperature and humidity range of different location.
Efficient Management
ASUS Remote Management Tool
The ASUS Remote Management Tool provides routine office PC maintenance, including easy BIOS updates and automatic simultaneous syncing across multiple devices.
Commercial BIOS Kit
ASUS understands how important a customized product impacts users' mind share, experience the brand new Commercial BIOS Kit for partial BIOS update solution!
- BIOS Value Edit Tool - Customize the BIOS options.
- BIOS Boot Logo Tool - Brand your builds with a customized boot logo.
- OEM Activation (OA) Tools - Add or remove the OEM Activation key.
- Desktop Management Interface (DMI) - Easily add customer information, such as company name, to the BIOS.
- Intel® Management Engine (Intel® ME) Driver - Update the Management Engine without flashing the whole BIOS.
Easy Assembly
Box Headers
All USB 3.0 and 2.0 headers are box style, enabling fast connector installation and preventing pin damage.
Fixed-position Connectors
Connector positions on ASUS Commercial motherboards remain consistent across product generations, protecting training, manufacturing and investments in supporting hardware.
Color-coded Connectors
Color-coded connectors enable easy identification and cable-matching, speeding up the production line. investments in supporting hardware.
Effortless PCI Express component removal
The large winged clip is easy to reach and easy to operate. Just press the Q-Slot clip lightly, and graphics card just pop out. Installing or removing even the biggest graphics cards is no sweat!
Easy memory removal
Even if you work with a smaller case, just push down on the one-sided clip and push or pull RAM modules in or out – removing memory is that simple!
Intel CPU and chipset features
Intel® B250 Chipset
The Intel® B250 is a single-chipset design that supports 7th & 6th-generation Intel LGA1151 Core™ i7 / Core i5 / Core i3 / Pentium® / Celeron® processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. It natively supports up to six USB 3.0 ports, six SATA 6Gbit/s ports, and PCIe 3.0 lane speed support for faster data retrieval. Intel® B250 chipset also supports iGPU functionality, so you'll enjoy the very latest Intel integrated graphics performance.
Ready for 7th Generation and 6th Generation Intel LGA1151 Core i7/Core i5/Core i3/Pentium/Celeron processors
The ASUS B250M-C motherboard supports 7th Generation and 6th Generation Intel Core™ i7/Core i5/Core i3/Pentium®/Celeron® processors in the LGA1151 package. Integrated graphics, memory and PCI Express controllers support onboard graphics output with dedicated chipsets, two-channel (4-DIMM) DDR4 memory and 16 PCI Express 3.0/2.0 lanes for great performance.
Description
Specification
- Motherboard Type: Desktop
- Form Factor: Micro ATX
- Socket: 1151 - Sky Lake / Kaby Lake
- Chipset: Intel B250
- #Hide#DDR Type: DDR4
- CPU Support: Click here for CPU support
- RAM Technology: DDR4 (Dual Channel)
- RAM Slots: 4 x DIMM
- RAM Speeds: 2400/2133 MHz
- Maximum Memory: 64GB
- Graphics: Supports Intel HD Graphics
- Graphics Ports: 1 x VGA
1 x DVI-D
1 x HDMI
1 x DisplayPort - Multi-GPU Support: -
- PCI Express: 1 x PCIe 3.0 x16
2 x PCIe 3.0 x1 - PCI: 1 x PCI
- Storage: 6 x SATA III
1 x M.2 Socket (2242/2260/2280) - SATA & PCIe
1 x M.2 Socket (2242/2260/2280) - PCIe - RAID: -
- Wireless: -
- LAN: GB LAN
- Audio: Realtek ALC887 8-channel High Definition Audio CODEC
- USB Ports Supported: "6 x USB 3.0 ports (4 at back, 2 at mid-board)
6 x USB 2.0 ports (2 at back, 4 at mid-board)" - Back Panel I/O Ports: 1 x DisplayPort
1 x HDMI
1 x DVI-D
1 x D-Sub
1 x RJ45
2 x USB 2.0 ports
4 x USB 3.0 ports
3 Audio jacks support 8 channel - Internal I/O Connectors: 1 x USB 3.0 connectors
2 x USB 2.0 connectors
6 x SATA 6Gb/s
1 x CPU Fan
2 x Chassis Fan
1 x Front audio
1 x System panel
1 x 24-pin ATX
1 x 4-pin ATX 12V
1 x Speaker
2 x COM port
1 x LPT port - .: 1 x Chassis Intrusion
1 x Clear CMOS
1 x MONO-out
1 x 14-1 pin TPM - Accessories: 2 x Serial ATA 6.0Gb/s cable
1 x Support DVD
1 x I/O Shield
2 x M.2 screw package
Users manual - Additional Features: See Overview
- Package Type: Retail
- Package Weight: 0.8750 kg
- Warranty: 3 Years
90MB0SQ0-M0EAYM
Data sheet
- .
- 1 x Chassis Intrusion, 1 x Clear CMOS, 1 x MONO-out, 1 x 14-1 pin TPM
- PCI Express
- 1 x PCIe 3.0 x16, 2 x PCIe 3.0 x1
- Wireless
- -
- RAM Speeds
- 2400/2133 MHz
- Accessories
- 2 x Serial ATA 6.0Gb/s cable, 1 x Support DVD, 1 x I/O Shield, 2 x M.2 screw package, Users manual
- USB Ports Supported
- "6 x USB 3.0 ports (4 at back, 2 at mid-board), 6 x USB 2.0 ports (2 at back, 4 at mid-board)"
- Storage
- 6 x SATA III, 1 x M.2 Socket (2242/2260/2280) - SATA & PCIe, 1 x M.2 Socket (2242/2260/2280) - PCIe
- RAID
- -
- Warranty
- 3 Years
- Motherboard Type
- Desktop
- Form Factor
- Micro ATX
- Socket
- 1151 - Sky Lake / Kaby Lake
- Chipset
- Intel B250
- DDR Type
- DDR4
- RAM Technology
- DDR4 (Dual Channel)
- RAM Slots
- 4 x DIMM
- Maximum Memory
- 64GB
- Multi-GPU Support
- -
- PCI
- 1 x PCI
- LAN
- GB LAN
- Audio
- Realtek ALC887 8-channel high definition audio CODEC
- Back Panel I/O Ports
- 1 x DisplayPort, 1 x HDMI, 1 x DVI-D, 1 x D-Sub, 1 x RJ45, 2 x USB 2.0 ports, 4 x USB 3.0 ports, 3 Audio jacks support 8 channel
- Internal I/O Connectors
- 1 x USB 3.0 connectors, 2 x USB 2.0 connectors, 6 x SATA 6Gb/s, 1 x CPU Fan, 2 x Chassis Fan, 1 x Front audio, 1 x System panel, 1 x 24-pin ATX, 1 x 4-pin ATX 12V, 1 x Speaker, 2 x COM port, 1 x LPT port
- CPU Support
- See manufacturers link (next to product images)
- Package Type
- Retail
- Package Weight
- 0.8750 kg
- Graphics Ports
- 1 x VGA, 1 x DVI-D, 1 x HDMI, 1 x DisplayPort
- Additional Features
- See Overview
- Graphics
- Supports Intel HD Graphics
