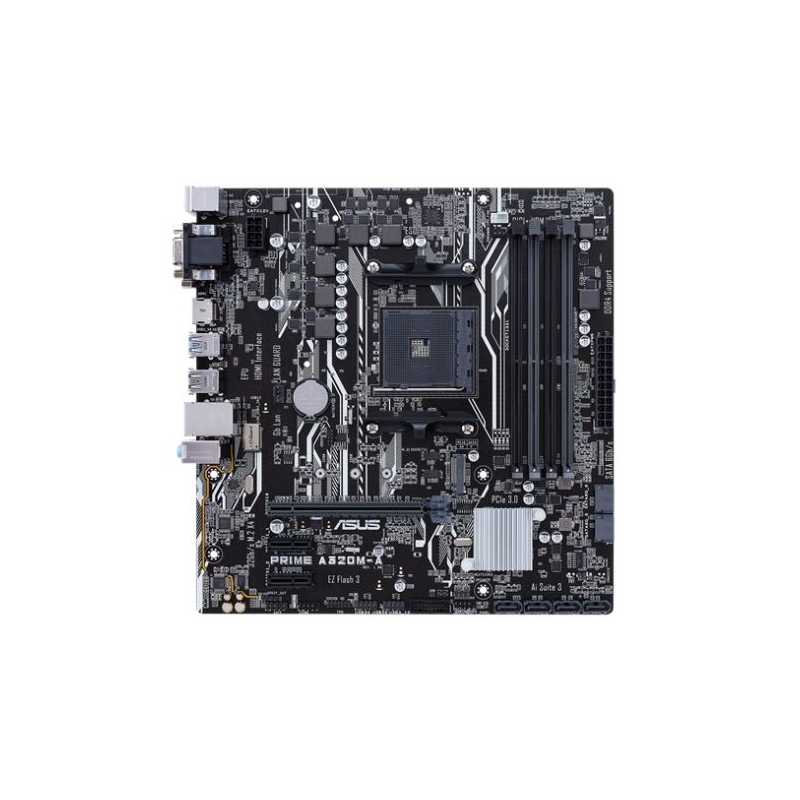

Asus PRIME A320M-A, AMD A320, AM4, Micro ATX, 4 DDR4, VGA, DVI, HDMI, M.2, RAID, LED Lighting
£56.76
VAT included
AMD AM4 uATX motherboard with LED lighting, DDR4 3200 MHz, 32Gb/s M.2, SATA 6Gb/s, HDMI,USB 3.0
- 5X Protection III: Multiple hardware safeguards for all-round protection
- LED illumination: Lighting control for audio trace paths
- Native M.2: Lightning-fast storage speeds
- One-stop controls: Media-acclaimed UEFI BIOS with EZ Flash 3
Prime
ASUS Prime is the next evolution of the ASUS motherboard, born of a pedigree that stretches back to 1989. Our team of world-class engineers are passionate about empowering everyone to enjoy the benefits of customization and tuning, and the driving force behind the development of Prime is to make advanced enthusiast controls easily accessible — maximizing performance, stability and compatibility for the very best DIY PC experiences. Simply stated: it's time for Prime.
Reliable Stability and Compatibility
Built to Last
ASUS is the world's foremost motherboard manufacturer, renowned for our unique Design Thinking approach. Our exhaustive testing exceeds industry standards, supported by high-quality components for exceptional real-world protection. Our motherboards are proven to be compatible with more than 1,000 components and devices, and each new model undergoes a minimum of 8,000 hours of strict validation. ASUS gives you the peace of mind of knowing that your motherboard is fit for all environments and applications. By choosing ASUS, you also gain the freedom to select outstanding component options, for trouble-free DIY experiences.
5X Protection III
Hardware safeguards to ensure long-term durability.
350+ DDR4 Compatibility
Industry-leading DDR4 memory compatibility for best flexibility and reassurance.
1000+ Compatible Devices
Compatibility with a range of CPUs, memory modules, graphics cards and more.
8000+ Validation Hours
Extensive testing with latest components for enhanced reliability, compatibility and safety.
SafeSlot Core
Fortified PCIe slot prevents damage
SafeSlot Core is the ASUS-exclusive PCIe slot. Featuring a fortified design that's anchored to the motherboard by a special hook, Safeslot Core provides 1.6x stronger retention and 1.3x greater shearing resistance than standard expansion slots
Overvoltage Protection
World-class circuit-protecting power design
An exclusive circuit design with built-in voltage regulators to protect your chipset, connectivity ports, and audio codecs from damage caused by unexpected high-level voltages from unstable or inferior power supplies.
DIGI+ VRM
Precision control for stable power
ASUS-exclusive DIGI+ VRM intelligently delivers power to the processor based on real-time demands, reducing energy waste and improving system stability.
DRAM Overcurrent Protection
Short-circuit damage prevention
Onboard resettable fuses prevent overcurrent and short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of your system and connected devices.
Stainless-Steel Back I/O
3x corrosion-resistance for greater durability
Corrosion-resistant stainless-steel back I/O panels bonded with chromium oxide have a lifespan that's three times longer than ordinary panels.
ESD Guards
Electrostatic discharge protection
ASUS ESD Guards prevent damage from electrostatic discharge, up to +/- 10kV for air discharge and +/- 6kV for contact discharge, arranged in an active-protective-circuit design that prolongs the life of components.
Proven Compatibility
Tested to be compatible with 1,000+ CPUs, DDR4 memory modules, graphics cards and more
Having the freedom to pick and choose the parts that go into your machine is at the heart of PC DIY. Our extensive certification program focuses on providing the very best compatibility with the widest range of components and devices, giving you the freedom to build and upgrade without frustration. Compatible today and compatible far into the future - that's the ASUS way.
AMD AM4 uATX motherboard with LED lighting, DDR4 3200 MHz, 32Gb/s M.2, SATA 6Gb/s, HDMI,USB 3.0
- 5X Protection III: Multiple hardware safeguards for all-round protection
- LED illumination: Lighting control for audio trace paths
- Native M.2: Lightning-fast storage speeds
- One-stop controls: Media-acclaimed UEFI BIOS with EZ Flash 3
Prime
ASUS Prime is the next evolution of the ASUS motherboard, born of a pedigree that stretches back to 1989. Our team of world-class engineers are passionate about empowering everyone to enjoy the benefits of customization and tuning, and the driving force behind the development of Prime is to make advanced enthusiast controls easily accessible — maximizing performance, stability and compatibility for the very best DIY PC experiences. Simply stated: it's time for Prime.
Reliable Stability and Compatibility
Built to Last
ASUS is the world's foremost motherboard manufacturer, renowned for our unique Design Thinking approach. Our exhaustive testing exceeds industry standards, supported by high-quality components for exceptional real-world protection. Our motherboards are proven to be compatible with more than 1,000 components and devices, and each new model undergoes a minimum of 8,000 hours of strict validation. ASUS gives you the peace of mind of knowing that your motherboard is fit for all environments and applications. By choosing ASUS, you also gain the freedom to select outstanding component options, for trouble-free DIY experiences.
5X Protection III
Hardware safeguards to ensure long-term durability.
350+ DDR4 Compatibility
Industry-leading DDR4 memory compatibility for best flexibility and reassurance.
1000+ Compatible Devices
Compatibility with a range of CPUs, memory modules, graphics cards and more.
8000+ Validation Hours
Extensive testing with latest components for enhanced reliability, compatibility and safety.
SafeSlot Core
Fortified PCIe slot prevents damage
SafeSlot Core is the ASUS-exclusive PCIe slot. Featuring a fortified design that's anchored to the motherboard by a special hook, Safeslot Core provides 1.6x stronger retention and 1.3x greater shearing resistance than standard expansion slots
Overvoltage Protection
World-class circuit-protecting power design
An exclusive circuit design with built-in voltage regulators to protect your chipset, connectivity ports, and audio codecs from damage caused by unexpected high-level voltages from unstable or inferior power supplies.
DIGI+ VRM
Precision control for stable power
ASUS-exclusive DIGI+ VRM intelligently delivers power to the processor based on real-time demands, reducing energy waste and improving system stability.
DRAM Overcurrent Protection
Short-circuit damage prevention
Onboard resettable fuses prevent overcurrent and short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of your system and connected devices.
Stainless-Steel Back I/O
3x corrosion-resistance for greater durability
Corrosion-resistant stainless-steel back I/O panels bonded with chromium oxide have a lifespan that's three times longer than ordinary panels.
ESD Guards
Electrostatic discharge protection
ASUS ESD Guards prevent damage from electrostatic discharge, up to +/- 10kV for air discharge and +/- 6kV for contact discharge, arranged in an active-protective-circuit design that prolongs the life of components.
Proven Compatibility
Tested to be compatible with 1,000+ CPUs, DDR4 memory modules, graphics cards and more
Having the freedom to pick and choose the parts that go into your machine is at the heart of PC DIY. Our extensive certification program focuses on providing the very best compatibility with the widest range of components and devices, giving you the freedom to build and upgrade without frustration. Compatible today and compatible far into the future - that's the ASUS way.
90MB0VA0-M0EAY0
Data sheet
- .
- 1 x Clear CMOS jumper1 x Speaker
- PCI Express
- AMD Ryzen Processors, 1 x PCIe 3.0/2.0 x16 (x16 mode) , , AMD 7th Gen A-series/Athlon Processors, 1 x PCIe 3.0/2.0 x16 (x8 mode) , , AMD A320 chipset, 2 x PCIe 2.0 x1
AMD Ryzen Processors1 x PCIe 3.0/2.0 x16 (x16 mode) AMD 7th Gen A-series/Athlon Processors1 x PCIe 3.0/2.0 x16 (x8 mode) AMD A320 chipset2 x PCIe 2.0 x1 - Wireless
- -
- RAM Speeds
- AMD Ryzen Processors:3200(O.C.)/2933(O.C.)/2666/2400/2133 MHz7th Gen A-series/Athlon Processors:2400/2133 MHz
- Accessories
- Users manualI/O Shield2 x SATA 6Gb/s cable(s)1 x M.2 Screw Package1 x Supporting DVD
- USB Ports Supported
- 6 x USB 3.1 Gen 1 (4 at back, 2 at mid-board)6 x USB 2.0 (2 at back, 4 at mid-board)
- Storage
- 6 x SATA III1 x M.2 (2242/2260/2280/22110) - SATA & PCIe**PCIe mode not supported with Athlon CPUs
- RAID
- RAID 0, 1, 10
- Warranty
- 3 Years
- Motherboard Type
- Desktop
- Form Factor
- Micro ATX
- Socket
- AMD AM4
- Chipset
- AMD A320
- DDR Type
- DDR4
- RAM Technology
- DDR4 (Dual Channel)
- RAM Slots
- 4 x DIMM
- Maximum Memory
- 64GB
- Multi-GPU Support
- -
- LAN
- GB LAN
- Audio
- Realtek ALC887 8-channel high definition audio CODEC
- Back Panel I/O Ports
- 1 x PS/2 keyboard1 x PS/2 mouse1 x DVI-D1 x D-Sub1 x HDMI1 x LAN (RJ45) port4 x USB 3.1 Gen 12 x USB 2.0 3 x Audio jacks
- Internal I/O Connectors
- 1 x USB 3.1 Gen 1 connector2 x USB 2.0 connectors1 x M.2 Socket 31 x COM port6 x SATA 6Gb/s1 x CPU Fan1 x Chassis Fan1 x S/PDIF out1 x 24-pin EATX1 x 8-pin ATX 12V1 x Front audio1 x System panel
- CPU Support
- Click here for CPU support
- Package Type
- Retail
- Package Weight
- 0.9000 kg
- Graphics Ports
- 1 x VGA1 x DVI-D1 x HDMI
- Additional Features
- See Overview
- Graphics
- Integrated AMD Radeon R Series Graphics in the 7th Generation A-Series APU
- M.2 Slot(s)
- Yes (M.2)
- No. LAN Ports
- 1 x LAN
- Max LAN Speed
- GB LAN
- RGB Lighting
- No
- PCI/PCI Express
- AMD Ryzen Processors1 x PCIe 3.0/2.0 x16 (x16 mode) AMD 7th Gen A-series/Athlon Processors1 x PCIe 3.0/2.0 x16 (x8 mode) AMD A320 chipset2 x PCIe 2.0 x1
