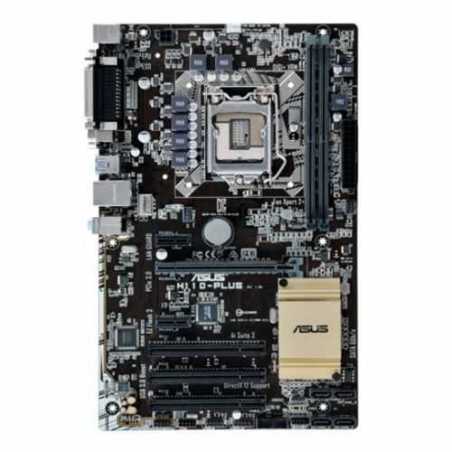

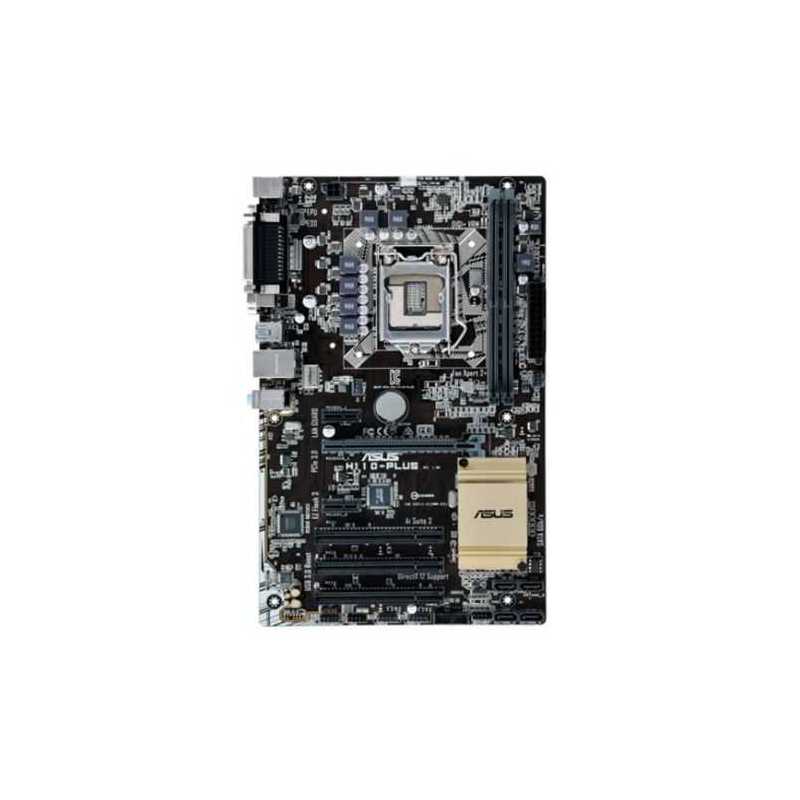

Asus H110-PLUS, Intel H110, 1151, ATX, DDR4, 3 PCI, Parallel Port
£79.59
VAT included
Supreme ATX H110 with 5X Protection II for dependable stability, LED-illuminated audio shielding and DDR4 support.
- 5X Protection II – Advanced hardware safeguards for all-round protection
- DDR4 memory compatibility
- Epic gaming audio with LED-illuminated shielding
- Media-acclaimed UEFI BIOS with EZ Flash 3
- Easy PC DIY with safe motherboard-mounting design
- Fan Xpert 2+ advanced fan controls for ultimate cooling and silent performance
Dependable Stability
Advanced Hardware Safeguards
Industry-leading 5X Protection II employs the finest components, excellent circuit design, and exacting standards to guarantee quality and long-term durability of your motherboard with all-round protection. For you, that means exceptional protection and stability for your build — the result of decades of engineering experience from the world's leading motherboard brand.
LANGuard
Pumped-up throughput. 2.5X higher surge tolerance.
ASUS LANGuard is hardware-level networking protection that employs signal-coupling technology and premium anti-EMI surface-mounted capacitors ensuring a more reliable connection and better throughput, plus electrostatically-guarded and surge-protected components for greater tolerance to static electricity and improved protection against surges.
Overvoltage Protection
World-class circuit-protecting power design
An exclusive circuit design with built-in voltage regulators to protect your chipset, connectivity ports, and audio codecs from damage caused by unexpected high-level voltages from unstable or inferior power supplies.
Short-circuit damage prevention
Onboard resettable fuses prevent overcurrent and short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of both your system and connected devices.
DIGI+ VRM
Precision control for stable power
ASUS-exclusive DIGI+ VRM intelligently delivers power to the processor based on real-time demands, reducing energy waste and improving system stability.
Stainless-Steel Back I/O
3X corrosion-resistance for greater durability
Corrosion-resistant stainless steel back I/O panels bonded with chromium oxide have a lifespan that's three times (3X) longer than ordinary panels.
ESD Guards
Electrostatic discharge (ESD) can happen suddenly, and its damaging effects are easily underestimated. ASUS ESD Guards are tested to very high standards, capable of up to +/- 10kV for air discharge and +/-6kV for contact discharge. We employ an active protective circuit design to guard your system against electrostatic interference and damage, providing greater component longevity.
Superb Performance
Make your memory go faster
With DDR4, you'll accelerate memory frequencies up to an incredible to 2133MHz! And ASUS works with almost every DDR4 memory vendor, so you're assured the best compatibility.
Media-acclaimed UEFI BIOS
The smoothest, slickest mouse-controlled graphical BIOS has been improved to make it even more appealing. Whether you're a PC novice or a seasoned overclocker, the EZ and Advanced Modes help you find your way, quickly and easily.
EZ Flash 3
Update the latest BIOS via the internet, and from within the BIOS.
S.M.A.R.T
Check up your storages devices' Self-Monitoring, Analysis, and Reporting Technology (S.M.A.R.T) logs to gauge reliability, and even determine if they're about to fail.
Q-Fan Control
You can configure the fan's operating speed manually, or use the easy pre-configured fan profiles to select Standard, Silent, Turbo, or Full Speed modes!
My Favorites
Quickly find tuning options and add preferred tools to the list.
EZ Mode
Intuitive Graphical Fan Control:
Fine-tune individual fans simply by dragging a curve with the mouse.
EZ XMP:
Improve your DRAM performance with a click.
SATA Information:
View SATA port details for easy device recognition.
Fast Clock Adjustment:
Use mouse controls to change the time and date.
Advanced Mode
GPU POST:
Automatically detect selected ASUS graphics cards to view detailed information.
Secure Erase:
Restore your SSDs to factory-fresh condition.
Last Modified Log:
Track last change and save preferred profiles onto a USB drive.
SATA Port Renaming:
Rename SATA ports for easy identification.
Ultrafast Transfer Speed
Instant front-panel USB 3.0 Experience
We've put USB 3.0 right where you need it — two super-speed ports on the front panel. Experience data-transfer speeds up to 10X faster than USB 2.0 with instant plug-and-play connectivity, so no more back-breaking contortions in the hunt for hard-to-reach rear ports!
Gaming Audio
Noise Isolation
Audio shielding ensures precision analog/digital separation and greatly reduced multi-lateral interference.
Separate layers for left and right tracks ensures both channels deliver consistent, equal quality.
Audio Enjoyment
Premium Japanese audio capacitors provide warm, natural, and immersive sound with exceptional clarity and fidelity.
Easy PC DIY
Description
Specification
- Motherboard Type: Desktop
- Form Factor: ATX
- Socket: 1151 - Sky Lake / Kaby Lake
- Chipset: Intel H110
- #Hide#DDR Type: DDR4
- CPU Support: Click here for CPU support
- RAM Technology: DDR4 (Dual Channel)
- RAM Slots: 2 x DIMM
- RAM Speeds: 2133 MHz
- Maximum Memory: 32GB
- Graphics: Supports Intel HD Graphics
- Graphics Ports: 1 x VGA
1 x DVI-D - Multi-GPU Support: -
- PCI Express: "1 x PCIe 3.0/2.0 x16 (x16 mode, gray)
2 x PCIe 3.0/2.0 x1 " - PCI: 3 x PCI
- Storage: 4 x SATA III
- RAID: -
- Wireless: -
- LAN: GB LAN
- Audio: Realtek ALC887 8-Channel High Definition Audio CODEC
- USB Ports Supported: "4 x USB 3.0 ports (2 at back, 2 at mid-board)
6 x USB 2.0 ports (2 at back, 4 at mid-board)" - Back Panel I/O Ports: 1 x PS/2 keyboard
1 x PS/2 mouse
1 x DVI-D
1 x D-Sub
1 x LAN (RJ45)
2 x USB 3.0
2 x USB 2.0
1 x Parallel port
3 x Audio jacks - Internal I/O Connectors: 1 x USB 3.0 connector
2 x USB 2.0 connectors
1 x COM port(
4 x SATA 6Gb/s
1 x CPU Fan
2 x Chassis Fan
1 x S/PDIF out
1 x 24-pin EATX
1 x 4-pin ATX 12V
1 x Front audio
1 x System panel
1 x Clear CMOS jumper - Accessories: Users manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x Supporting DVD - Additional Features: See Overview
- Package Type: Retail
- Package Weight: 1.0000 kg
- Warranty: 3 Years
90MB0PQ0-M0EAY0
Data sheet
- PCI Express
- "1 x PCIe 3.0/2.0 x16 (x16 mode, gray) , 2 x PCIe 3.0/2.0 x1 "
- Wireless
- -
- RAM Speeds
- 2133 MHz
- Accessories
- Users manual, I/O Shield, 2 x SATA 6Gb/s cable(s), 1 x Supporting DVD
- USB Ports Supported
- "4 x USB 3.0 ports (2 at back, 2 at mid-board), 6 x USB 2.0 ports (2 at back, 4 at mid-board)"
- Storage
- 4 x SATA III
- RAID
- -
- Warranty
- 3 Years
- Motherboard Type
- Desktop
- Form Factor
- ATX
- Socket
- 1151 - Sky Lake / Kaby Lake
- Chipset
- Intel H110
- DDR Type
- DDR4
- RAM Technology
- DDR4 (Dual Channel)
- RAM Slots
- 2 x DIMM
- Maximum Memory
- 32GB
- Multi-GPU Support
- -
- PCI
- 3 x PCI
- LAN
- GB LAN
- Audio
- Realtek ALC887 8-channel high definition audio CODEC
- Back Panel I/O Ports
- 1 x PS/2 keyboard, 1 x PS/2 mouse, 1 x DVI-D, 1 x D-Sub, 1 x LAN (RJ45), 2 x USB 3.0, 2 x USB 2.0 , 1 x Parallel port, 3 x Audio jacks
- Internal I/O Connectors
- 1 x USB 3.0 connector, 2 x USB 2.0 connectors, 1 x COM port(, 4 x SATA 6Gb/s, 1 x CPU Fan, 2 x Chassis Fan , 1 x S/PDIF out, 1 x 24-pin EATX, 1 x 4-pin ATX 12V, 1 x Front audio, 1 x System panel, 1 x Clear CMOS jumper
- CPU Support
- See manufacturers link (next to product images)
- Package Type
- Retail
- Package Weight
- 1.0000 kg
- Graphics Ports
- 1 x VGA, 1 x DVI-D
- Additional Features
- See Overview
- Graphics
- Supports Intel HD Graphics
