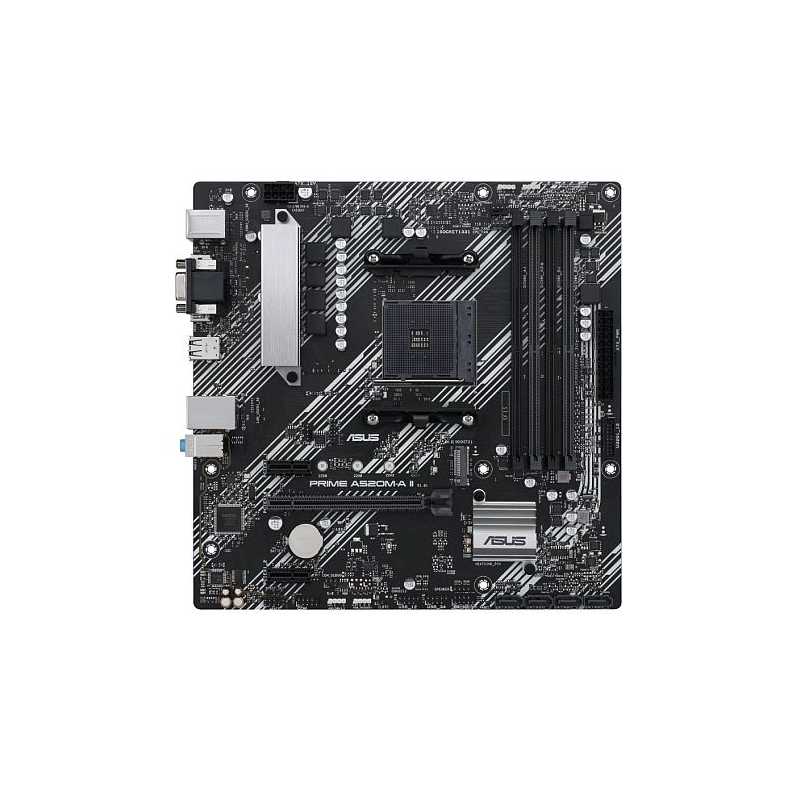

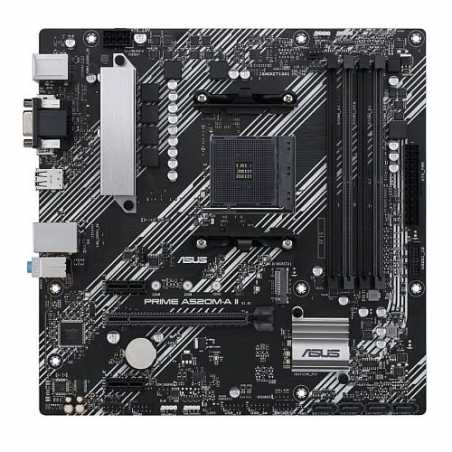

Asus PRIME A520M-A II, AMD A520, AM4, Micro ATX, 4 DDR4, VGA, HDMI, DP, M.2
£91.98
VAT included
AMD A520 (Ryzen AM4) micro ATX motherboard with M.2, DP, HDMI,D-Sub, SATA 6 Gbps, USB 3.2 Gen 1 ports, and Aura Sync RGB lighting support
- AMD AM4 socket: Ready for Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
- Comprehensive cooling: VRM heatsink, PCH heatsink, and Fan Xpert 2+
- Ultrafast connectivity: M.2 support,1 Gb Ethernet, USB 3.2 Gen 1 Type-A
- Aura Sync RGB: Onboard RGB headers and addressable Gen 2 headers for RGB LED strips, easily synced with Aura Sync-capable hardware
Prime
ASUS Prime series is expertly engineered to unleash the full potential of AMD Ryzen platform. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime A520 series motherboards provide daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features.
Tune It Your Way
Comprehensive controls form the foundation of the ASUS Prime series. The Prime A520 motherboard packs flexible tools to tune every aspect of your system, enabling you to tweak performance settings to perfectly match the way you work – maximizing your productivity.
Cool to the Core
PRIME A520M-A II is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.
Build on a Solid Foundation
Prime A520 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options.
Little Things Make a Big Difference
Prime A520 series adds the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive interface that let you customize your system to create a uniquely personal look.
90MB17H0-M0EAY0
Data sheet
- .
- 1 x Front Panel Audio1 x S/PDIF Out1 x Speaker1 x SPI TPM (14-1pin)1 x 10-1 pin System Panel
- Wireless
- -
- RAM Speeds
- Up to 4866(OC)
- Accessories
- 2 x SATA 6Gb/s cables1 x I/O Shield1 x M.2 SSD screw package1 x Support DVD1 x User manual
- USB Ports Supported
- 6 x USB 3.2 Gen1 (4 at back, 2 at mid-board)6 x USB 2.0 (2 at back, 4 at mid-board)
- Storage
- 4 x SATA III1 x M.2 (2242/2260/2280) - SATA & PCIe
- RAID
- RAID 0, 1, 10
- Warranty
- 3 Years
- Motherboard Type
- Desktop
- Form Factor
- Micro ATX
- Socket
- AMD AM4
- Chipset
- AMD A520
- DDR Type
- DDR4
- RAM Technology
- DDR4 (Dual Channel)
- RAM Slots
- 4 x DIMM
- Maximum Memory
- 128GB
- LAN
- GB LAN
- Audio
- Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC
- Back Panel I/O Ports
- 4 x USB 3.2 Gen1 Type-A2 x USB 2.01 x DisplayPort1 x HDMITM1 x D-Sub1 x Realtek 1Gb Ethernet3 x Audio jacks1 x PS/2 Keyboard/Mouse combo
- Internal I/O Connectors
- 1 x 4-pin CPU Fan2 x 4-pin Chassis Fan1 x 24-pin Main1 x 8-pin +12V1 x M.2 (Key M)4 x SATA 6Gb/s1 x USB 3.2 Gen12 x USB 2.02 x AURA Addressable Gen22 x AURA RGB1 x Clear CMOS1 x COM Port
- CPU Support
- Click here for CPU support
- Package Type
- Retail
- Graphics Ports
- 1 x VGA1 x HDMI1 x DisplayPort
- Additional Features
- See Overview
- Graphics
- Integrated Graphics Processor*Graphics specifications may vary between CPU types
- M.2 Slot(s)
- Yes (M.2)
- No. LAN Ports
- 1 x LAN
- Max LAN Speed
- GB LAN
- PCI/PCI Express
- 1 x PCIe 3.0 x16 (supports x16 mode)2 x PCIe 3.0 x1
