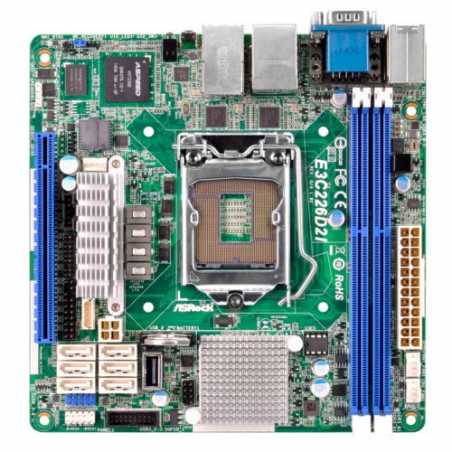

Asrock Rack E3C226D2I Server Board, Intel C226, 1150, Mini ITX, Dual GB LAN, IPMI
£238.77
VAT included
Asrock E3C226D2I Mini ITX Server Board
E3C226D2I
- Mini ITX 6.7" x 6.7"
- Single socket H3 (LGA 1150)
- Supports New 4th and 4th Generation Intel XeonE3-1200 v3/ Core™ i7/i5/i3/Pentium/Celeron Processors (Socket 1150)
- 2x DIMM DDR3 1600/1333, Max. 16GB
- 1 x PCIe 3.0 x16
- 6 x SATA3 by Intel C226 support RAID 0,1,5,10
- 2 x Intel i210, support Dual GLAN with teaming function
- ASPEED 2300 for BMC controller, Realtek RTL8211E for dedicated IPMI GLAN
- 4 x USB 3.0 ports (2 rear + 2 via header )
- 5 x USB 2.0 ports (2 rear + 2 via header + 1 Type A)
Management
BMC Controller - ASPEED AST2300 : IPMI (Intelligent Platform Management Interface) 2.0 with iKVM support
IPMI Dedicated LAN - 1 x Realtek RTL8211E for dedicated management LAN
Watch Dog
NMI
Asrock E3C226D2I Mini ITX Server Board
E3C226D2I
- Mini ITX 6.7" x 6.7"
- Single socket H3 (LGA 1150)
- Supports New 4th and 4th Generation Intel XeonE3-1200 v3/ Core™ i7/i5/i3/Pentium/Celeron Processors (Socket 1150)
- 2x DIMM DDR3 1600/1333, Max. 16GB
- 1 x PCIe 3.0 x16
- 6 x SATA3 by Intel C226 support RAID 0,1,5,10
- 2 x Intel i210, support Dual GLAN with teaming function
- ASPEED 2300 for BMC controller, Realtek RTL8211E for dedicated IPMI GLAN
- 4 x USB 3.0 ports (2 rear + 2 via header )
- 5 x USB 2.0 ports (2 rear + 2 via header + 1 Type A)
Management
BMC Controller - ASPEED AST2300 : IPMI (Intelligent Platform Management Interface) 2.0 with iKVM support
IPMI Dedicated LAN - 1 x Realtek RTL8211E for dedicated management LAN
Watch Dog
NMI
E3C226D2I
Data sheet
- PCI Express
- 1 x PCIe 3.0 x 16
- Wireless
- -
- RAM Speeds
- 1600/1333 MHz
- USB Ports Supported
- 4 x USB 3.0 ports (2 at back, 2 at mid-board)5 x USB 2.0 ports (2 at back, 2 at mid-board + 1 Type A)
- Storage
- 6 x SATA III
- RAID
- RAID 0, 1, 5, 10 and Intel Rapid Storage
- Warranty
- 3 Years
- Motherboard Type
- Server / Workstation
- Form Factor
- Mini ITX
- Socket
- Intel 1150
- Chipset
- Intel C226
- DDR Type
- DDR3
- RAM Technology
- DDR3 ECC (Dual Channel)
- RAM Slots
- 2 x DIMM
- Maximum Memory
- 16GB
- Multi-GPU Support
- -
- PCI
- -
- LAN
- Dual GB LAN & Dedicated IPMI LAN port
- Audio
- -
- Back Panel I/O Ports
- 2 x USB 2.02 x USB 3.02 x GB LAN1 x D-Sub1 x PS/2 Keyboard/Mouse Combo1 x Serial (COM)
- Internal I/O Connectors
- 1 x 24pin3 x 4pin Fan1 x 4pin PCIe1 x Chassis Intrusion connector1 x Serial (COM) Header1 x USB 2.0 Header1 x USB 3.0 Header
- CPU Support
- Click here for CPU support
- Package Type
- Retail
- Package Weight
- 0.8360 kg
- Graphics Ports
- 1 x VGA
- Additional Features
- IPMI (Intelligent Platform Management Interface) 2.0 with iKVM support(See Overview for full details)
- Graphics
- Onboard ASPEED AST2300 Graphics(Does not support Intel HD Graphics)
- No. LAN Ports
- 2 x LAN
- Max LAN Speed
- GB LAN
- RGB Lighting
- No
- PCI/PCI Express
- 1 x PCIe 3.0 x 16
Specific References
- EAN13
- 4717677323009
