- Out of stock

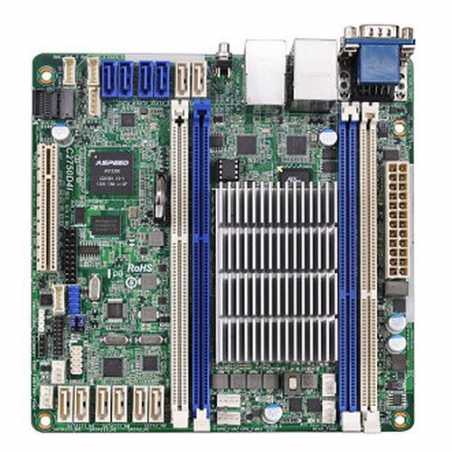

Asrock Rack C2750D4I Server Board, Integrated CPU, Mini ITX, Dual GB LAN, Serial Port, IPMI LAN
£474.47
VAT included
C2750D4I
Mini ITX Server Motherboard
- Intel Avoton C2750 Octa-Core Processor
- DDR3 1600/1333 Dual-channel Max. 64GB UDIMM
- 2 SATA3 6.0Gbps, 4 SATA2 3.0Gbps by C2750
- 4 x SATA3 6.0 Gb/s by Marvell SE9230, 2 x SATA3 6.0 Gb/s by Marvell SE9172 (To update Marvell SE 9230 FW, please click here)
- Dual Intel i210 Gigabit LAN ports (with Teaming function)
- 3 x USB 2.0 ports (2 rear ports + 1 via headers or 1 rear ports + 2 via headers controlled by USB_SEL1 and USB_SEL2 jumper)
- 1 x PCI-E x8 slot
C2750D4I
Mini ITX Server Motherboard
- Intel Avoton C2750 Octa-Core Processor
- DDR3 1600/1333 Dual-channel Max. 64GB UDIMM
- 2 SATA3 6.0Gbps, 4 SATA2 3.0Gbps by C2750
- 4 x SATA3 6.0 Gb/s by Marvell SE9230, 2 x SATA3 6.0 Gb/s by Marvell SE9172 (To update Marvell SE 9230 FW, please click here)
- Dual Intel i210 Gigabit LAN ports (with Teaming function)
- 3 x USB 2.0 ports (2 rear ports + 1 via headers or 1 rear ports + 2 via headers controlled by USB_SEL1 and USB_SEL2 jumper)
- 1 x PCI-E x8 slot
C2750D4I
Data sheet
- PCI Express
- 1 x PCIe 2.0 x 8
- Wireless
- -
- RAM Speeds
- 1600/1333 MHz
- USB Ports Supported
- 4 x USB 2.0 ports (2 at back, 2 at mid-board)
- Storage
- 8 x SATA III
- RAID
- RAID 0, 1, 10
- Warranty
- 3 Years
- Motherboard Type
- Server / Workstation
- Form Factor
- Mini ITX
- Socket
- Embedded CPU
- CPU
- Integrated Intel Octa Core Avoton C2750
- DDR Type
- DDR3
- RAM Technology
- DDR3 (Dual Channel)
- RAM Slots
- 4 x DIMM
- Maximum Memory
- 64GB
- Multi-GPU Support
- -
- PCI
- -
- LAN
- Dual GB LAN & Dedicated IPMI LAN port
- Audio
- -
- Back Panel I/O Ports
- 1x D-sub2 x USB 2.02 x GB Lan1 x RJ45 Dedicated IPMI LAN port1 x Serial Port1 x UID Button/UID LED
- Internal I/O Connectors
- 1 x Auxiliary Panel1 x IPMB6 x Fan1 x ATX Power1 x USB 2.0 Connector1 x Front Panel
- CPU Support
- See manufacturers link (next to product images)
- Package Type
- Retail
- Package Weight
- 0.9490 kg
- Graphics Ports
- 1 x VGA
- Additional Features
- See Overview
- Graphics
- ASPEED AST2300
- No. LAN Ports
- 2 x LAN
- Max LAN Speed
- GB LAN
- RGB Lighting
- No
- PCI/PCI Express
- 1 x PCIe 2.0 x 8
Specific References
- EAN13
- 471767732224
Comments (0)
No customer reviews for the moment.
C2750D4I
Mini ITX Server Motherboard
- Intel Avoton C2750 Octa-Core Processor
- DDR3 1600/1333 Dual-channel Max. 64GB UDIMM
- 2 SATA3 6.0Gbps, 4 SATA2 3.0Gbps by C2750
- 4 x SATA3 6.0 Gb/s by Marvell SE9230, 2 x SATA3 6.0 Gb/s by Marvell SE9172 (To update Marvell SE 9230 FW, please click here)
- Dual Intel i210 Gigabit LAN ports (with Teaming function)
- 3 x USB 2.0 ports (2 rear ports + 1 via headers or 1 rear ports + 2 via headers controlled by USB_SEL1 and USB_SEL2 jumper)
- 1 x PCI-E x8 slot
