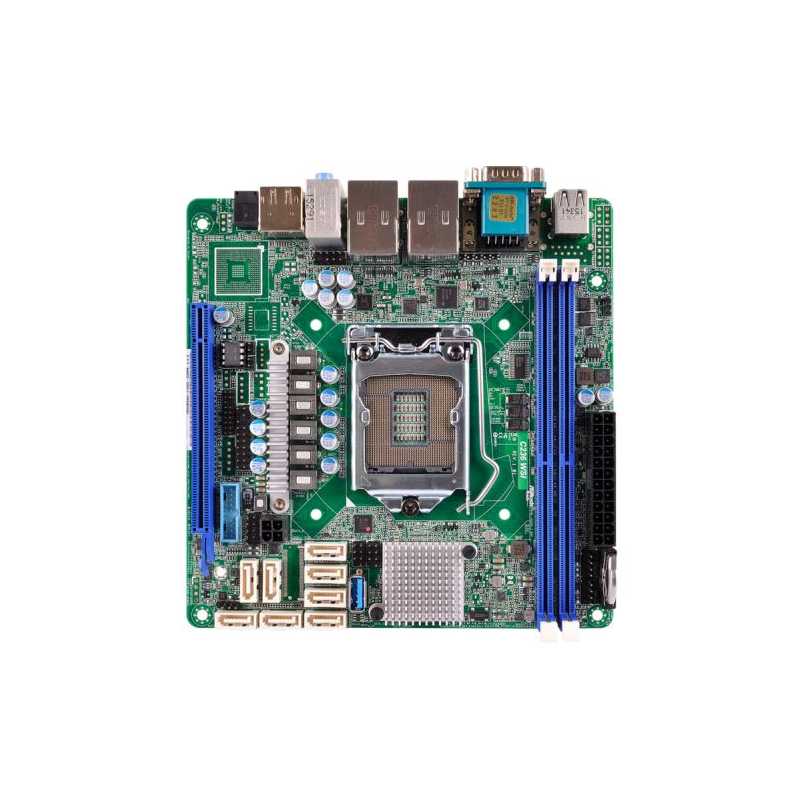

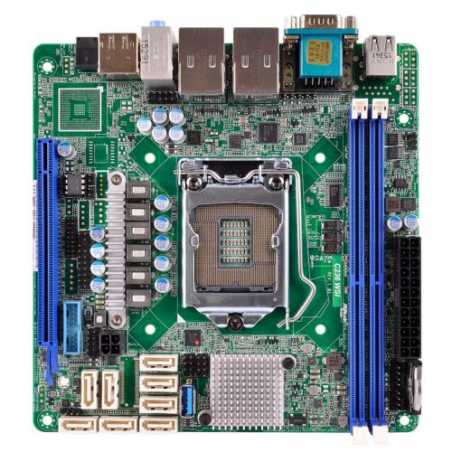

Asrock Rack C236 WSI Server Board, Intel C236, 1151, Mini ITX, DDR4, Dual GB LAN, Serial Port

Data sheet

.

1 x Speaker2 x SGPIO1 x ME/SPS Recovery1 x Clear CMOS

PCI Express

1 x PCIe 3.0 x 16

Wireless

-

RAM Speeds

2133 MHz

USB Ports Supported

6 x USB 3.0 ports (4 at back, 2 at mid-board)1 x Type A USB 3.0 Port (mid-board)2 x USB 2.0 ports (2 at back)

Storage

8 x SATA III

RAID

-

Warranty

3 Years

Motherboard Type

Server / Workstation

Form Factor

Mini ITX

Socket

Intel 1151 - Sky/Kaby Lake

Chipset

Intel C236

DDR Type

DDR4

RAM Technology

DDR4 (Dual Channel)

RAM Slots

2 x DIMM

Maximum Memory

32GB

Multi-GPU Support

-

PCI

-

LAN

Dual GB LAN

Audio

Realtek ALC1150

Back Panel I/O Ports

1 x HDMI1 x VGA Port2 x USB 2.0 Port4 x USB 3.0 Por2 x GB LAN(by Intel i210+ Intel i219)1 x Serial Port1 x Display Port3 x Audio Jacks1 x SPDIF

Internal I/O Connectors

1 x HDMI_SPDIF1 x Auxiliary Panel1 x TR11 x TPM2 x Fan Header(1 x 24-pin ATX1 x 4-pin ATX1 x USB 3.0 Header1 x Type A USB 3.0 Port1 x NMI Button1 x Front Panel1 x HD Audio

CPU Support

Click here for CPU support

Package Type

Retail

Package Weight

0.9020 kg

Graphics Ports

1 x VGA1 x HDMI1 x DisplayPort

Additional Features

See Overview

Graphics

Supports Intel HD Graphics

No. LAN Ports

1 x LAN

Max LAN Speed

GB LAN

RGB Lighting

No

PCI/PCI Express

1 x PCIe 3.0 x 16

Specific References

EAN13

4717677328837
