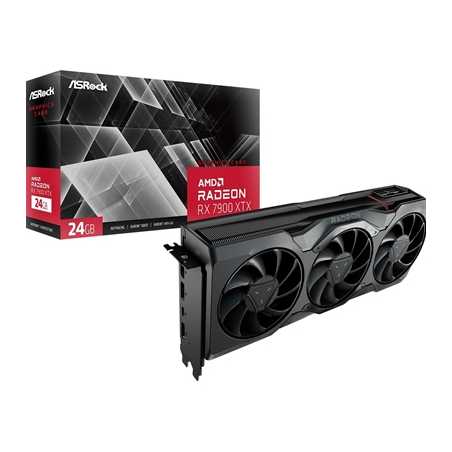

ASRock AMD Radeon RX 7900 XTX 24GB Graphics Card

Clock: GPU / Memory
Boost Clock*: Up to 2500 MHz/20 Gbps
Game Clock**: 2300 MHz/20 Gbps

Key Specifications
AMD Radeon RX 7900 XTX Graphics
2 x DisplayPort, 1 x HDMI, 1 x USB-C
287 mm (Lenght), 2.5 slot
2 x 8-pin Power Connectors

Key Features
AMD RDNA™ 3 Architecture
5nm GPU
AMD FidelityFX™ Super Resolution
AMD FreeSync™ Technology
Radeon™ Image Sharpening
Radeon™ Anti-Lag
AMD Software: Adrenalin Edition

BREAKTHROUGH PERFORMANCE

AMD Radeon™ RX 7000 Series graphics cards set a new standard for ultra-enthusiast class gaming performance. Featuring advanced AMD RDNA™ 3 compute units, blazing fast clock speeds, and chiplet technology to enable fluid, high-refresh rate gaming experiences. Breakthrough new levels of performance with up to 24GB of GDDR6 memory and 2nd generation AMD Infinity Cache™ to deliver an incredible experience at 4K and beyond.

BREATHTAKING VISUALS

Discover new levels of fidelity and ultra-fast gameplay with High-Performance Rendering, a combination of compute-based AMD FideltyFX™ features and upscaling technologies, to deliver world-class visuals with remarkable performance. Further immerse yourself with the AMD Radiance Display™ Engine and DisplayPort™ 2.1 to experience up to 68 billion colors at up to 8K 165Hz.

BETTER TOGETHER

Combine AMD Radeon™ RX 7000 Series graphics cards and AMD Ryzen™ processors to activate AMD smart technologies3. You can unleash outstanding performance to give you an edge in the game. Advance your AMD Radeon™ RX 7000 Series GPU with the AMD Software: Adrenalin Edition™ application, featuring bulletproof drivers, for the best PC gaming experiences.

UPSIZE PERFORMANCE. MAXIMIZE FIDELITY

AMD FidelityFX™ Super Resolution technology1 takes upscaling technology to the next level. Providing incredible image quality while boosting framerates in supported games.
AMD Radeon™ Super Resolution (RSR)2 leverages FSR technology on the driver level, giving you upscaled performance benefits across thousands of games.

Specification

Graphics Engine
AMD Radeon™ RX 7900 XTX

Bus Standard
PCI® Express 4.0 x16

DirectX
12 Ultimate

OpenGL
4.6

Memory
24GB GDDR6

Engine Clock
Boost Clock: Up to Up to 2500 MHz
Game Clock: Up to 2300 MHz

Stream Processors
6144

Compute Units
96

Memory Clock
20 Gbps

Memory Interface
384-bit

Resolution
Digital Max Resolution: 8K HDR 60Hz

Interface
1 x USB-C
1 x HDMI™ 2.1 VRR
2 x DisplayPort 2.1™ with DSC

HDCP
Yes

Multi-View
4

Recommended PSU
800 W

Power Connector
2 x 8-pin

Accessories
1 x Quick Installation Guide

Dimensions
287mm (length), 2.5 slot
