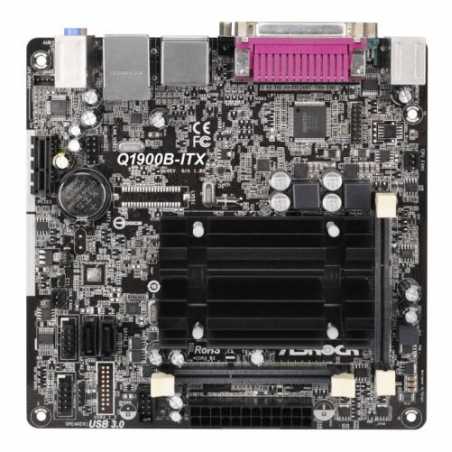

Asrock Q1900B-ITX, Integrated Intel Quad J1900, Mini ITX, DDR3 SODIMM, Serial & Parallel Port
£70.17
VAT included
- Intel® Quad-Core Processor J1900 + Mini-ITX Motherboard
- Solid Capacitor for CPU power
- Supports DDR3/DDR3L 1333 memory, 2 x SO-DIMM slots
- 1 x PCIe 2.0 x1
- Graphics Output Options : D-Sub, HDMI
- Built-in Intel® 7th generation (Gen 7) graphics, DirectX 11.0, Pixel Shader 5.0
- 1 x Printer Port, 1 x COM Port, 1 x COM Port Header
- 1 x USB 3.0, 5 x USB 2.0 (2 Front, 3 Rear), 2 x SATA2
- Realtek Gigabit LAN
- 5.1 CH HD Audio (Realtek ALC662 Audio Codec)
- Supports ASRock Full Spike Protection, A-Tuning, XFast LAN, XFast RAM, USB Key
Intel® Quad-Core Processor J1900
Intel® Processor J1900 brings whole new computing experiences to life with improved performance, lower power consumption and new multimedia capabilities.
The Best Motherboard for building a Mini PC
Built with an Intel® Quad-Core J1900 Processor and a Mini-ITX motherboard, this motherboard packs plenty of expandability, superb integrated performance, and abundant graphics outputs. With its excellent hardware configuration and software support, it is your ideal solution to do business work, play games, or enjoy video and music entertainment. ASRock presents you the best motherboard to build your own Mini PC!
Fanless Design
The CPU is covered by a specially designed heatsink which allows advanced heat dissipation. Utilizing an ultra quiet fanless design, this ASRock motherboard provides the most silent computing environment.
Supports Standard & Low Voltage SO-DIMM
Compared with other counterparts that support DDR3 low-voltage SO-DIMM only, this motherboard is capable of supporting both standard and low-voltage SO-DIMM, therefore provides more DRAM compatibilities.
All Solid Capacitor Design
ASRock applied solid capacitors on this motherboard. With these solid caps, this motherboard is allowed to perform more stably and ensure longer lifetime.
Gigabit LAN
This ASRock motherboard uses a Realtek gigabit LAN chip to support extremely fast internet connections.
High Density Glass Fabric PCB
What you’ve never understood about your computer is that it is scared to death of water, H2O, humidity or whatever you’d like to name it. And even though you do not see the water, actually there may be lots of excessive moist in the air killing your motherboard silently and slowly. No, your motherboard doesn’t melt when in contact with water like the wicked witch of the west, but it dies of short circuit. Luckily, ASRock has a new High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.
High Expandability
Four USB 3.0 5 Gb/s ports plus two SATA3 6Gb/s ports for supporting all of your peripherals with fast data transfer speed.
ASRock XFast RAM
ASRock XFast RAM fully utilizes the memory space that cannot be used under Windows® 32-bit operating systems. It shortens the loading time of previously visited websites, making web surfing faster than ever. And it also boosts the speed of Adobe Photoshop 5 times faster. Another advantage of ASRock XFast RAM is that it reduces the frequency of accessing your SSDs or HDDs in order to extend their lifespan.
XFast LAN
When Internet Explorer loads very slowly for no clear reason, it's usually due to inefficient management. ASRock is rolling out super efficient web management in the motherboard industry. XFast LAN is a convenient tool that controls internet related applications easily and efficiently. Creating a perfect Internet environment, all you need is a smart manager. ASRock XFast LAN allows you to enjoy more speed, easier multitasking, enhanced multimedia experience, and more – all without weighing you down.
A-Tuning
A-Tuning is ASRock's multi purpose software suite with a new interface, more new features and improved utilities, including EZ OC, Auto Tuning, XFast LAN, XFast RAM, OC Tweaker, Live Update, Tech Service and a whole lot more!
ASRock APP Shop
ASRock APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can easily optimize your system and keep your motherboard up to date with ASRock APP Shop.
Restart to UEFI
Fast Boot is so fast that it is impossible for users to enter the UEFI setup utility during POST. Therefore, ASRock Restart to UEFI technology allows users to easily enter the UEFI setup utility automatically when turning on the PC next time. It is designed for those who constantly need to enter the UEFI setup utility.
Fast Boot
With ASRock’s exclusive Fast Boot technology, it takes less than 1.5 seconds* to logon to Windows® 8 from a cold boot. No more waiting! The speedy boot will completely change your user experience and behavior.
*The boot time may vary with a different configuration.
USB Key
In a world where time is money, why waste precious time everyday typing usernames to log in to Windows? Why should we even bother memorizing those foot long passwords? Nobody has time for that! Just plug in the USB Key and let your computer log in to windows automatically!
HDMI
This motherboard supports HDMI™ (High-Definition Multimedia Interface) which is an interface standard for transferring uncompressed video data and delivering multi-channel audio through a single cable. Both video and audio data signals transferred through the HDMI™ interface are digital without being converted into analog, therefore it delivers the richest pictures and the most realistic sounds.
ASRock Cloud
YourPC. Anytime. Anywhere
Orbweb ME
Your Personal Cloud, Easy and Always Connects
ASRock Cloud* technology makes your mobile devices connect to your PC seamlessly and supports multi devices for accessing File Explorer cloud service simultaneously! We offer a one-year subscription to Orbweb.ME Professional version, a personal cloud service which is $49.99 per year. It allows you to get connected with your PC's files, music, photos, and video clips remotely with tablets anytime, anywhere. Plus an additional one-month upgrade to Orbweb.ME Ultimate package with Remote Desktop function.
Personal Cloud for Everyone
Cloud service should be simple and personal. Don't take time to upload the files to the public cloud again. Stop spending money on setting up another NAS device you don't know. Orbweb ME's file browser is your solution to zero adaption, managing your folders and files in the cloud. Accessing and exchanging files instantly among all of your PC and storages. All your folders and files are sitting just where you know they are.
Media Library and Streaming
Orbweb Personal's media library takes care of your media content. Organize all your photos, videos and music across your PCs and online storages. Diverse, intuitive and smart sorting help finding desired movies in few clicks. Progressive streaming lets you enjoy your music collection almost no download time. Web browser based and mobile app portal keep you connected in any device any time.
Access File Explorer From Multiple Devices
Orbweb ME allows you to access your own personal File Explorer from multiple devices, brining your tablets, laptops and PC together. Forgot an important file in your computer at hom
Description
Specification
- Motherboard Type: Desktop
- Form Factor: Mini ITX
- Socket: Embedded CPU
- CPU: Intel Quad-Core Processor J1900 (2 GHz)
- #Hide#DDR Type: DDR3 SO-DIMM
- RAM Technology: DDR3/DDR3L SO-DIMM (Dual Channel)
- RAM Slots: 2 x DIMM
- RAM Speeds: 1333/1066 MHz
- Maximum Memory: 16GB
- Graphics: "Intel 7th generation (Gen 7) graphics
DirectX 11.0, Pixel Shader 5.0" - Graphics Ports: 1 x VGA
1 x HDMI - Multi-GPU Support: -
- PCI Express: 1 x PCIe 2.0 x1
- PCI: -
- Storage: 2 x SATA II
- RAID: -
- Wireless: -
- LAN: GB LAN
- Audio: 5.1 CH HD Audio (Realtek ALC662 Audio Codec)
- USB Ports Supported: "1 x USB 3.0 port (at back)
5 x USB 2.0 ports (3 at back , 2 at mid-board)" - Back Panel I/O Ports: 1 x PS/2 Mouse
1 x PS/2 Keyboard
1 x Parallel Port
1 x Serial Port
1 x D-Sub
1 x HDMI
3 x USB 2.0 Ports
1 x USB 3.0 Port
1 x RJ-45
HD Audio Jacks - Internal I/O Connectors: 1 x USB 2.0 Connector
1 x 3W Audio AMP Output Wafer
1 x COM Port
1 x TPM
1 x Chassis Intrusion
1 x CPU Fan
1 x Chassis Fan
1 x 24 pin ATX
1 x Front Audio - CPU Support: N/A (Integrated CPU)
- Accessories: "Quick Installation Guide, Support CD, I/O Shield
2 x SATA Data Cables" - Additional Features: See Overview
- Package Type: Retail
- Package Weight: 0.6920 kg
- Warranty: 3 Year Replacement Warranty
Q1900B-ITX
Data sheet
- PCI Express
- 1 x PCIe 2.0 x1
- Wireless
- -
- RAM Speeds
- 1333/1066 MHz
- Accessories
- Quick Installation Guide, Support CD, I/O Shield2 x SATA Data Cables
- USB Ports Supported
- 1 x USB 3.0 port (at back)5 x USB 2.0 ports (3 at back , 2 at mid-board)
- Storage
- 2 x SATA II
- RAID
- -
- Warranty
- 3 Year Replacement Warranty
- Motherboard Type
- Desktop
- Form Factor
- Mini ITX
- Socket
- Embedded CPU
- CPU
- Intel Quad-Core Processor J1900 (2 GHz)
- DDR Type
- DDR3 SO-DIMM
- RAM Technology
- DDR3/DDR3L SO-DIMM (Dual Channel)
- RAM Slots
- 2 x DIMM
- Maximum Memory
- 16GB
- Multi-GPU Support
- -
- PCI
- -
- LAN
- GB LAN
- Audio
- 5.1 CH HD Audio (Realtek ALC662 Audio Codec)
- Back Panel I/O Ports
- 1 x PS/2 Mouse1 x PS/2 Keyboard1 x Parallel Port1 x Serial Port1 x D-Sub1 x HDMI3 x USB 2.0 Ports1 x USB 3.0 Port1 x RJ-45HD Audio Jacks
- Internal I/O Connectors
- 1 x USB 2.0 Connector1 x 3W Audio AMP Output Wafer1 x COM Port1 x TPM1 x Chassis Intrusion1 x CPU Fan1 x Chassis Fan1 x 24 pin ATX1 x Front Audio
- CPU Support
- N/A (Integrated CPU)
- Package Type
- Retail
- Package Weight
- 0.6920 kg
- Graphics Ports
- 1 x VGA1 x HDMI
- Additional Features
- See Overview
- Graphics
- Intel 7th generation (Gen 7) graphicsDirectX 11.0, Pixel Shader 5.0
- PCI/PCI Express
- 1 x PCIe 2.0 x1
Specific References
- EAN13
- 4717677322835
