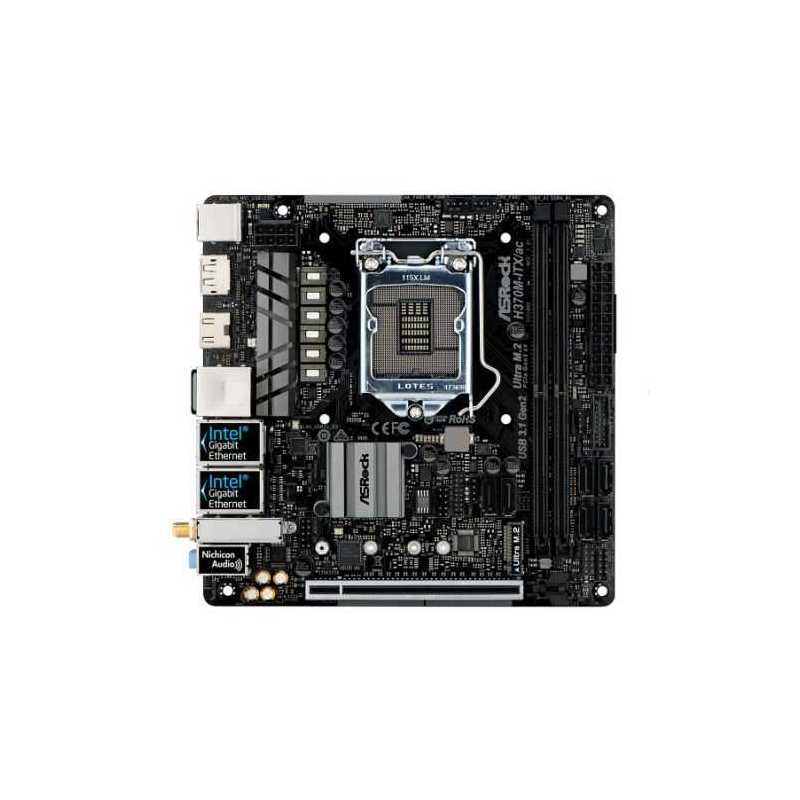

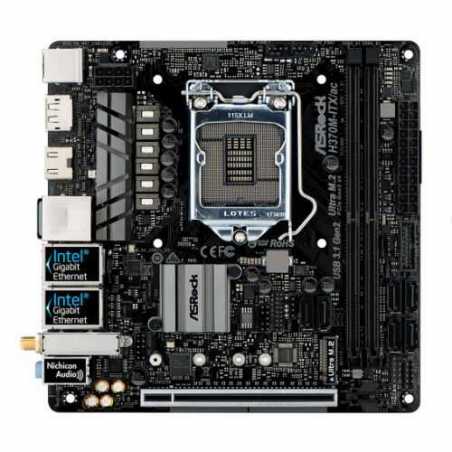

Asrock H370M-ITX/AC, Intel H370, 1151, Mini ITX, DDR4, 2 HDMI, DP, XFire, Wi-Fi, Dual LAN, M.2

£124.88
VAT included
Stock status: Out of stock
Out of stock
  • Supports 8th Generation Intel® Core™ Processors (Socket 1151)
  • Supports DDR4 2666
  • 1 PCIe 3.0 x16
  • Graphics Output Options: 2 x HDMI, DisplayPort
  • 7.1 CH HD Audio (Realtek ALC892 Audio Codec), Nichicon Fine Gold Series Audio Caps
  • 6 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3)
  • 4 USB 3.1 Gen2 10Gb/s (Rear)
  • 4 USB 3.1 Gen1 (2 Front, 2 Rear)
  • Dual Intel® Gigabit LAN
  • Intel® 802.11ac WiFi + BT 4.2



Ultra M.2 32 Gb/s (PCIe Gen3 x4 & SATA3)

The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules, and is compatible with ASRock’s U.2 Kit for installing some of the world’s fastest U.2 PCIe Gen3 x4 SSDs.




4 x USB 3.1 Gen2 Ports

Packed with luxurious 4 USB 3.1 Gen2 ports to give ultimate expansion capability for high speed devices.




Supports HEVC 10-bit playback

HEVC 10-bit provide substantially improved video quality and higher bit depth video experience.




Intel® Optane™ Memory Ready

Supports Intel® Optane™ memory technology and Intel® Optane™ storage technology that redefines a new standard of high performance and responsiveness.




Super Alloy Motherboard

Premium 60A Power Choke
Compared to traditional chokes, ASRock’s premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

Dual-Stack MOSFET (DSM)
Dual-Stack MOSFET (DSM) is another innovative MOSFETs design by ASRock. The silicon die area is increased by stacking two dies into one MOSFET. The larger the die area, the lower Rds(on). Compared to traditional discrete MOSFET, DSM with larger die area provides extreme lower Rds(on) 1.2 mΩ, so the power supply for the CPU Vcore is more efficient.

Nichicon 12K Black Caps
Supreme 12K black capacitors with lifespans of at least 12,000 hours. Compared to other counterparts on high-end motherboards that merely have lifespans of around 10,000 hours, ASRock applied Nichicon 12K Black Caps that offer 20% longer lifespans and provide more stability and reliability.

Sapphire Black PCB
Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.

High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.




PCI-E STEEL SLOTS

The advanced PCI-E Steel Slots packed with solid cover that prevent any signal interference with graphics cards. It also ensures the heavy graphics cards to be well-installed in the PCI-E slots safely.




Dual Band 802.11ac WiFi

No one has time for weak WiFi signals and sluggish internet! That's why this motherboard comes with a 802.11ac WiFi (2.4G / 5G WiFi) module which supports wireless networks and Bluetooth v4.2.




Dual Intel® LAN

Users are able to connect two LAN cables to this motherboard's rear I/O. Dual LAN with Teaming function enabled on this motherboard allows two single connections to act as one single connection for twice the transmission bandwidth, making data transmission more effective.




Triple Monitor

Graphics, graphics and even more graphics! You've demanded for more eye candy, so this motherboard supports Triple Monitor. You may choose up to three display interfaces from the rear i/o to connect monitors and use them simultaneously without installing another graphics card.




A-Tuning

A-Tuning is ASRock's multi purpose software suite with a new interface, more new features and improved utilities.




Live Update & APP Shop

ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
Quantity
Out of stock

  • Supports 8th Generation Intel® Core™ Processors (Socket 1151)
  • Supports DDR4 2666
  • 1 PCIe 3.0 x16
  • Graphics Output Options: 2 x HDMI, DisplayPort
  • 7.1 CH HD Audio (Realtek ALC892 Audio Codec), Nichicon Fine Gold Series Audio Caps
  • 6 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3)
  • 4 USB 3.1 Gen2 10Gb/s (Rear)
  • 4 USB 3.1 Gen1 (2 Front, 2 Rear)
  • Dual Intel® Gigabit LAN
  • Intel® 802.11ac WiFi + BT 4.2



Ultra M.2 32 Gb/s (PCIe Gen3 x4 & SATA3)
The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules, and is compatible with ASRock’s U.2 Kit for installing some of the world’s fastest U.2 PCIe Gen3 x4 SSDs.




4 x USB 3.1 Gen2 Ports
Packed with luxurious 4 USB 3.1 Gen2 ports to give ultimate expansion capability for high speed devices.




Supports HEVC 10-bit playback
HEVC 10-bit provide substantially improved video quality and higher bit depth video experience.




Intel® Optane™ Memory Ready
Supports Intel® Optane™ memory technology and Intel® Optane™ storage technology that redefines a new standard of high performance and responsiveness.






Super Alloy Motherboard

Premium 60A Power Choke
Compared to traditional chokes, ASRock’s premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

Dual-Stack MOSFET (DSM)
Dual-Stack MOSFET (DSM) is another innovative MOSFETs design by ASRock. The silicon die area is increased by stacking two dies into one MOSFET. The larger the die area, the lower Rds(on). Compared to traditional discrete MOSFET, DSM with larger die area provides extreme lower Rds(on) 1.2 mΩ, so the power supply for the CPU Vcore is more efficient.

Nichicon 12K Black Caps
Supreme 12K black capacitors with lifespans of at least 12,000 hours. Compared to other counterparts on high-end motherboards that merely have lifespans of around 10,000 hours, ASRock applied Nichicon 12K Black Caps that offer 20% longer lifespans and provide more stability and reliability.

Sapphire Black PCB
Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.

High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.




PCIe Steel Slots
The advanced PCI-E Steel Slots packed with solid cover that prevent any signal interference with graphics cards. It also ensures the heavy graphics cards to be well-installed in the PCI-E slots safely.




Dual Band 802.11ac WiFi
No one has time for weak WiFi signals and sluggish internet! That's why this motherboard comes with a 802.11ac WiFi (2.4G / 5G WiFi) module which supports wireless networks and Bluetooth v4.2.




Dual Intel® LAN
Users are able to connect two LAN cables to this motherboard's rear I/O. Dual LAN with Teaming function enabled on this motherboard allows two single connections to act as one single connection for twice the transmission bandwidth, making data transmission more effective.




Triple Monitor
Graphics, graphics and even more graphics! You've demanded for more eye candy, so this motherboard supports Triple Monitor. You may choose up to three display interfaces from the rear i/o to connect monitors and use them simultaneously without installing another graphics card.




A-Tuning
A-Tuning is ASRock's multi purpose software suite with a new interface, more new features and improved utilities.




Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
ASROCK
H370M-ITX/AC

Data sheet

PCI Express
1 x PCe 3.0 x16
Wireless
Intel 802.11ac WiFi Module, Supports IEEE 802.11a/b/g/n/ac, Supports Dual-Band (2.4/5 GHz), Supports wireless connections up to 433Mbps, Supports Bluetooth 4.2
Intel 802.11ac WiFi ModuleSupports IEEE 802.11a/b/g/n/acSupports Dual-Band (2.4/5 GHz)Supports wireless connections up to 433MbpsSupports Bluetooth 4.2
RAM Speeds
2666 / 2400 / 2133 MHz
Accessories
Quick Installation Guide, Support CD, I/O Shield, 2 x SATA Data Cables, 2 x ASRock WiFi 2.4/5 GHz Antennas, 1 x Screw for M.2 Socket
Quick Installation GuideSupport CDI/O Shield2 x SATA Data Cables2 x ASRock WiFi 2.4/5 GHz Antennas1 x Screw for M.2 Socket
USB Ports Supported
"4 x USB 3.1 Gen2 Type-A (at back), 4 x USB 3.1 Gen1 (2 at back, 2 at mid-board), 4 x USB 2.0 (2 at back, 2 at mid-board)"
4 x USB 3.1 Gen2 Type-A (at back)4 x USB 3.1 Gen1 (2 at back, 2 at mid-board)4 x USB 2.0 (2 at back, 2 at mid-board)
Storage
6 x SATA III, 1 x M.2 Socket (2230/2242/2260/2280) - SATA & PCIe
6 x SATA III1 x M.2 Socket (2230/2242/2260/2280) - SATA & PCIe
RAID
"RAID 0, 1, 5, 10"
RAID 0, 1, 5, 10
Warranty
3 Year Replacement Warranty
Motherboard Type
Desktop
Form Factor
Mini ITX
Socket
1151 - Coffee Lake
Intel 1151 - Coffee Lake
Chipset
Intel H370
DDR Type
DDR4
RAM Technology
DDR4 (Dual Channel)
RAM Slots
2 x DIMM
Maximum Memory
32GB
Multi-GPU Support
-
PCI
-
LAN
Dual GB LAN
Audio
7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)
Back Panel I/O Ports
2 x Antenna, 1 x PS/2 Mouse/Keyboard, 2 x HDMI, 1 x DisplayPort 1.2, 2 x USB 2.0, 4 x USB 3.1 Gen2, 2 x USB 3.1 Gen1, 2 x RJ-45 LAN, HD Audio Jacks
2 x Antenna1 x PS/2 Mouse/Keyboard2 x HDMI1 x DisplayPort 1.22 x USB 2.04 x USB 3.1 Gen22 x USB 3.1 Gen12 x RJ-45 LANHD Audio Jacks
Internal I/O Connectors
1 x TPM, 1 x Chassis Intrusion, 1 x CPU Fan, 1 x Chassis Fan, 1 x Chassis/Water Pump Fan, 1 x 24 pin ATX, 1 x 8 pin 12V, 1 x Front Audio, 1 x USB 2.0, 1 x USB 3.1 Gen1
1 x TPM1 x Chassis Intrusion1 x CPU Fan1 x Chassis Fan1 x Chassis/Water Pump Fan1 x 24 pin ATX1 x 8 pin 12V1 x Front Audio1 x USB 2.01 x USB 3.1 Gen1
CPU Support
Click here for CPU support
See manufacturers link (next to product images)
Package Type
Retail
Package Weight
0.8500 kg
Graphics Ports
2 x HDMI, 1 x DisplayPort 1.2
2 x HDMI1 x DisplayPort 1.2
Additional Features
See Overview
Graphics
Supports Intel HD Graphics
M.2 Slot(s)
Yes
Yes (M.2)
No. LAN Ports
2 x LAN
Max LAN Speed
GB LAN
RGB Lighting
No

Specific References

EAN13
4717677335125
