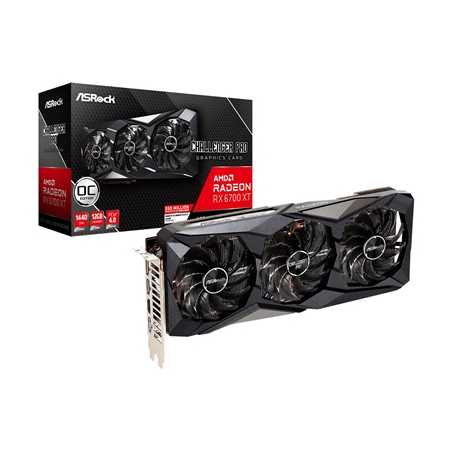

ASRock AMD Radeon RX 6700 XT Challenger Pro 12GB OC Triple Fan Graphics Card

Clock: GPU / Memory
Boost Clock: Up to 2620 MHz / 16 Gbps
Game Clock: Up to 2474 MHz / 16 Gbps
Base Clock: 2375 MHz / 16 Gbps

Key Specification
7nm AMD Radeon RX 6700 XT Graphics
12GB 192-bit GDDR6
AMD RDNA 2 Architecture
DirectX 12 Ultimate
PCI Express 4.0 Support
2 x 8-pin Power Connectors
3 x DisplayPort 1.4 with DSC / 1 x HDMI 2.1 VRR

Key Features
Triple Fan Design
Striped Axial Fan
Ultra-fit Heatpipe
Stylish Metal Backplate
0dB Silent Cooling
Super Alloy Graphics Card

OC Edition
Great Performance.
Delivers great performance which is more higher than reference cards based on the solid hardware design.

Triple Fan Design
Triple fan design helps to optimize system cooling to reduce the operating temperature.

Stylish Metal Backplate
Solid, Fancy, Cool.
Designed to avoid PCB bending. The fancy outlook makes the graphic card more legendary in visual. It also helps to enhance cooling with the premium thermal pads equipped backside.

Striped Axial Fan
Designed For Enhanced Airflow.
ASRock’s custom Striped Axial Fan delivers enhanced airflow to optimize cooling from not only the stripe structure on each fan blade but also the polishing surface on the bottom side.

0dB Silent Cooling
Spin For Cooling, Stop For Silence.
The fan spins when the temperature goes high for the optimal cooling, and stops when the temperature goes low for the complete silence.

Ultra-fit Heatpipe
Consolidated to Maximize the Contact.
The heatpipes are consolidated to maximize the contact among each others and also the GPU baseplate for the optimized heat dissipation.

High-density Metal Welding
Improve Heat Dissipation.
Effectively isolate all coverage of the gap between pipe and stacked fins, hence improve heat dissipation effectively.

Nano Thermal Paste
Perfect Thermal Teamwork.
Eliminate the gaps in the contact area to maximize heat transfer and thermal efficiency.

Premium Thermal Pad
Better Heat Transfer.
The premium thermal pad helps to transfer the heat of the components to the heatsink, improving heat dissipation.

Precise Screw Torque
Optimized Mounting Pressure.
ASRock adopts precise screw torque when assembling its graphics cards to optimize the cooler mounting pressure to improve thermal efficiency while avoiding damage to GPU die.

Specifications

Graphics Engine
AMD Radeon RX 6700 XT

Bus Standard
PCI Express 4.0 x16

DirectX
12 Ultimate

OpenGL
4.6

Memory
12GB GDDR6

Engine Clock
Boost Clock: Up to 2620 MHz
Game Clock: Up to 2474 MHz
Base Clock: 2375 MHz

Stream Processors
2560

Memory Clock
16 Gbps

Memory Interface
192-bit

Resolution
Digital Max Resolution
7680 x 4320

Interface
1 x HDMI 2.1 VRR
3 x DisplayPort 1.4 with DSC

HDCP
Yes

Multi-View
4

Recommended PSU
700W

Power Connector
2 x 8-pin

Accessories
Quick Installation Guide

Dimensions
303 x 131 x 45mm
2.3 slot

Net Weight
890g
