- Out of stock

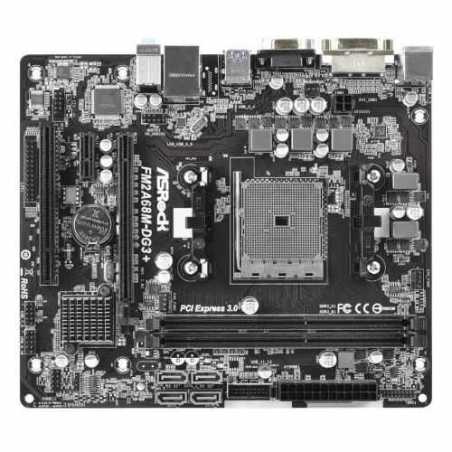

Asrock FM2A68M-DG3, AMD A68H, FM2, Micro ATX, VGA, DVI, USB3, RAID, 95W CPU Support
£42.18
VAT included
- Support for Socket FM2+ 95W / FM2 100W processors
- All Solid Capacitor Design
- Supports Dual Channel DDR3 2400+(OC)
- 1 x PCIe 3.0 x16, 1 x PCIe 2.0 x1, 1 x PCI, Supports AMD Dual Graphics
- Integrated AMD Radeon™ R7/R5 Series Graphics in A-series APU
- Graphics Output Options : D-Sub, DVI-D
- 5.1 CH HD Audio (Realtek ALC662 Audio Codec)
- 1 x Print Port Header, 1 x COM Port Header
- 4 x SATA3, 2 x USB 3.0, 10 x USB 2.0 (6 Front, 4 Rear)
- Supports ASRock Cloud, APP Shop, Full Spike Protection, X-Boost
Flexible USB 2.0
Besides two front USB 2.0 headers, there’s also an additional 19-pin Flexible USB 2.0 header on the motherboard to support a front USB 3.0 panel with USB 2.0 data rate. Since most computer cases nowadays only have built-in front USB 3.0 panels for 19-pin headers, ASRock has decided to add this Flexible USB 2.0 header so that the two front USB ports will not be wasted.
High Expandability
Two USB 3.0 5Gb/s ports plus 4 SATA3 6Gb/s ports for supporting all of your peripherals with fast data transfer speed.
FM2/FM2+ APU Support
This motherboard is compatible with both AMD FM2 and FM2+ APUs. Please note that some new features may be only supported by FM2+ APUs.
Next-Gen PCIe 3.0
This motherboard supports the next-gen PCIe 3.0! Compared to PCIe 2.0, PCIe 3.0 offers up to 2X data transferring bandwidth for VGA cards, thus providing ultimate graphics performance. (Available only with AMD FM2+ CPUs)
Get PCIe 3.0 Benefits
• Higher bit rate - 8.0GT/s
• Higher bandwidth per lane - 1GB/s
• Higher efficiency - 98.5% encoding efficiency
• 100% backward compatible with previous PCIe 2.0 / 1.0 standard
High Density Glass Fabric PCB
All Solid Capacitor Design
ASRock is determined to use high quality materials to build the best motherboards, that's why all the capacitors on this motherboard are built with 100% solid capacitors. These solid capacitors bring long lasting durability and ultra stable performance.
High Density Glass Fabric PCB
What you’ve never understood about your computer is that it is scared to death of water, H2O, humidity or whatever you’d like to name it. And even though you do not see the water, actually there may be lots of excessive moist in the air killing your motherboard silently and slowly. No, your motherboard doesn’t melt when in contact with water like the wicked witch of the west, but it dies of short circuit. Luckily, ASRock has a new High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.
ASRock APP Shop
ASRock APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can easily optimize your system and keep your motherboard up to date with ASRock APP Shop.
Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.
Surge Protection
Protects the motherboard from excessive surges from the power supply unit.
Lightning Protection
The onboard LAN chip is protected against sudden and violent voltage spikes caused by lightning.
ESD Protection
USB : Added ICs to protect the onboard USB ports from electrostatic discharges.
LAN : Prevents the onboard LAN from being damaged by electrostatic discharges.
MOSFETs : MOSFETs in critical areas use a special design for protecting them from electrostatic discharge during the installation process.
Gigabit LAN
This ASRock motherboard uses a Realtek gigabit LAN chip to support extremely fast internet connections.
X-Boost
Brilliantly designed for smart overclocking, ASRock X-Boost Technology is able to unleash the hidden power of your CPUs. Simply press “X” when turning on the PC, X-Boost will automatically overclock the relative components to get up to 15.77% performance boost! With the smart X-Boost, overclocking CPU can become a near one-button process.
A-Tuning
A-Tuning is ASRock's multi purpose software suite with a new interface, more new features and improved utilities, including XFast RAM and a whole lot more.
USB Key
In a world where time is money, why waste precious time everyday typing usernames to log in to Windows? Why should we even bother memorizing those foot long passwords? Nobody has time for that! Just plug in the USB Key and let your computer log in to windows automatically!
Restart to UEFI
Fast Boot is so fast that it is impossible for users to enter the UEFI setup utility during POST. Therefore, ASRock Restart to UEFI technology allows users to easily enter the UEFI setup utility automatically when turning on the PC next time. It is designed for those who constantly need to enter the UEFI setup utility.
ASRock OMG (Online Management Guard)
Limit and control your children's time spent on the internet. ASRock OMG (Online Management Guard) technology allows you to establish an internet curfew or restrict internet access at specified times. Administrators are able to schedule the starting and ending hours of internet access granted to other users.
UEFI Tech Service
Contact ASRock Tech Service by sending a support request from the UEFI setup utility if you are having trouble with your personal computer. Users may try to choose the category of the issue they have encountered, describe the problem in detail, and then attach an optional picture or log file for our technical support team.
Dehumidifier
Dampness kills most electronics, so it's a better idea to keep your personal computer dry. Now users may prevent motherboard damages due to dampness by enabling Dehumidifier. When it is enabled, the computer will power on automatically to dehumidify the system after entering S4/S5 state.
Easy Driver Installer
For users that don’t have an optical disk drive to install the drivers from our support CD, Easy Driver Installer is a handy tool in the UEFI that installs the LAN driver to your system via an USB storage device, then downloads and installs the other required drivers automatically through the internet. Completely no CD or optical disk drive required!
ASRock XFast RAM
ASRock XFast RAM fully utilizes the memory space that cannot be used under Windows® 32-bit operating systems. It shortens the loading time of previously visited websites, making web surfing faster than ever. And it also boosts the speed of Adobe Photoshop 5 times faster. Another advantage of ASRock XFast RAM is that it reduces the frequency of accessing your SSDs or HDDs in order to extend their lifespan.
HDMI
HDMI
This motherboard supports HDMI™ (High-Definition Multimedia Interface) which is an interface standard for transferring uncompressed video data and delivering multi-channel audio through a single cable. Both video and audio data signals transferred through the HDMI™ interface are digital without being converted into analog, therefore it delivers the richest pictures and the most realistic sounds.
Gigabit LAN
This ASRock motherboard uses a Realtek gigabit LAN chip to support extremely fast internet connections.
Description
Specification
- Motherboard Type: Desktop
- Form Factor: Micro ATX
- Socket: FM2+
- Chipset: AMD A68H (Bolton-D2H)
- #Hide#DDR Type: DDR3
- RAM Technology: DDR3 (Dual Channel)
- RAM Slots: 2 x DIMM
- RAM Speeds: 2400+(OC)/2133(OC)/1866(OC)/1600/1333/1066 MHz
- Maximum Memory: 32GB
- Graphics: Integrated AMD Radeon R7/R5 Series Graphics in A-series APU
- Graphics Ports: 1 x VGA
1 x DVI-D - Multi-GPU Support: Supports AMD Dual Graphics
- PCI Express: 1 x PCIe 3.0 x16
1 x PCIe 2.0 x1 - PCI: 1 x PCI
- Storage: 4 x SATA III
- RAID: "RAID 0, 1, 10"
- Wireless: -
- LAN: GB LAN
- Audio: 5.1 CH HD Audio (Realtek ALC662 Audio Codec)
- USB Ports Supported: "2 x USB 3.0 ports (at back)
8 x USB 2.0 ports (4 at back, 4 at mid-board)
1 x Flexible USB 2.0 (at mid-board)" - Back Panel I/O Ports: 1 x PS/2 Mouse/Keyboard
1 x D-Sub
1 x DVI-D
4 x USB 2.0 Ports
2 x USB 3.0 Ports
1 x RJ-45 LAN
HD Audio Jacks - Internal I/O Connectors: 2 x USB 2.0 Connectors
1 x Flexible USB 2.0 Connector
1 x Print Port
1 x COM Port
1 x Chassis Intrusion
1 x TPM
1 x CPU Fan
1 x Chassis Fan
1 x Power Fan
1 x 24 pin ATX
1 x 4 pin 12V
1 x Front Audio - CPU Support: Click here for CPU support
- Accessories: "Quick Installation Guide, Support CD, I/O Shield
2 x SATA Data Cables" - Additional Features: See Overview
- Package Type: Retail
- Package Weight: 0.7200 kg
- Warranty: 3 Year Replacement Warranty
FM2A68M-DG3+
Data sheet
- PCI Express
- 1 x PCIe 3.0 x16, 1 x PCIe 2.0 x1
- Wireless
- -
- RAM Speeds
- 2400+(OC)/2133(OC)/1866(OC)/1600/1333/1066 MHz
- Accessories
- "Quick Installation Guide, Support CD, I/O Shield, 2 x SATA Data Cables"
- USB Ports Supported
- "2 x USB 3.0 ports (at back), 8 x USB 2.0 ports (4 at back, 4 at mid-board), 1 x Flexible USB 2.0 (at mid-board)"
- Storage
- 4 x SATA III
- RAID
- "RAID 0, 1, 10"
- Warranty
- 3 Year Replacement Warranty
- Motherboard Type
- Desktop
- Form Factor
- Micro ATX
- Socket
- FM2+
- Chipset
- AMD A68H (Bolton-D2H)
- DDR Type
- DDR3
- RAM Technology
- DDR3 (Dual Channel)
- RAM Slots
- 2 x DIMM
- Maximum Memory
- 32GB
- Multi-GPU Support
- Supports AMD Dual Graphics
- PCI
- 1 x PCI
- LAN
- GB LAN
- Audio
- 5.1 CH HD Audio (Realtek ALC662 Audio Codec)
- Back Panel I/O Ports
- 1 x PS/2 Mouse/Keyboard, 1 x D-Sub, 1 x DVI-D, 4 x USB 2.0 Ports, 2 x USB 3.0 Ports, 1 x RJ-45 LAN, HD Audio Jacks
- Internal I/O Connectors
- 2 x USB 2.0 Connectors, 1 x Flexible USB 2.0 Connector, 1 x Print Port, 1 x COM Port, 1 x Chassis Intrusion, 1 x TPM, 1 x CPU Fan, 1 x Chassis Fan, 1 x Power Fan, 1 x 24 pin ATX, 1 x 4 pin 12V, 1 x Front Audio
- CPU Support
- See manufacturers link (next to product images)
- Package Type
- Retail
- Package Weight
- 0.7200 kg
- Graphics Ports
- 1 x VGA, 1 x DVI-D
- Additional Features
- See Overview
- Graphics
- Integrated AMD Radeon R7/R5 Series Graphics in A-series APU
Specific References
- EAN13
- 4717677325065
Comments (0)
No customer reviews for the moment.
