- Out of stock

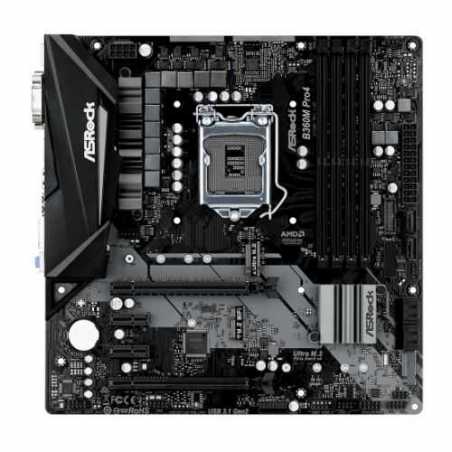

Asrock B360M PRO4, Intel B360, 1151, Micro ATX, DDR4, VGA, DVI, HDMI, XFire, Dual M.2
£89.12
VAT included
- Supports 8th Generation Intel® Core™ Processors (Socket 1151)
- 10 Power Phase Design
- Supports DDR4 2666
- 2 PCIe 3.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key E for WiFi
- AMD Quad CrossFireX™
- Graphics Output Options: HDMI, DVI-D, D-Sub
- 7.1 CH HD Audio (Realtek ALC892 Audio Codec), ELNA Audio Caps
- 6 SATA3, 1 Ultra M.2 (PCIe Gen3 x4), 1 M.2 (PCIe Gen3 x1 & SATA3)
- 2 USB 3.1 Gen2 10Gb/s (1 Type-A + 1 Type-C)
- 4 USB 3.1 Gen1 (2 Front, 2 Rear)
- Intel® Gigabit LAN
Armor Your VR Machine
Prepare yourself well to enjoy the impressive world of Virtual Reality. Before that, you have to make sure everything is qualified, including hardware, software and drivers. Motherboard is the key to connect every critical components and ASRock’s VR Ready products are definitely the one you’re looking for. The premium quality is assured by rigorous testing during development. The sturdy components and rock-solid performance makes you completely immersive in the VR scenario. Users can be assured to experience VR enjoyments without any compatibility problems.
Dual M.2 For SSD
Equipped with M.2 slot that supports both SATA3 6Gb/s and PCIe Gen3 x4 Ultra M.2 interface that pushes data transfer speeds up to 32Gb/s, and is compatible with ASRock’s U.2 Kit for installing some of the world’s fastest U.2 PCIe Gen3 x4 SSD.
Intel® LAN
Intel® LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!
Dual USB 3.1 Gen2 (Type-A + Type-C)
This motherboard has a pair of onboard Type-A and Type-C USB 3.1 Gen2 ports built on the rear i/o for supporting next generation USB 3.1 Gen2 devices and to deliver up to 10 Gbps data transfer rates.
Intel® Optane™ Memory Ready
Supports Intel® Optane™ memory technology and Intel® Optane™ storage technology that redefines a new standard of high performance and responsiveness.
Supports HEVC 10-bit playback
HEVC 10-bit provide substantially improved video quality and higher bit depth video experience.
ASRock Intel® 4-Layer Memory POOL Technology
POOL (Planes On Outer Layers) technology allows 4-layer boards to utilize stripline routing instead of micro-strip routing, making motherboard having better electrical properties and performance.
Super Alloy Motherboard
Premium 45A Power Choke
Compared to traditional chokes, ASRock’s premium 45A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.
Sapphire Black PCB
Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.
High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.
10 Power Phase
Designed with an 10 Power Phase Design, this motherboard provides completely smooth power delivery to the CPU and offers unmatched overclocking capabilities and enhanced performance with the lowest temperature.
M.2 (KEY E) For WiFi
Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot.
Triple Monitor
Graphics, graphics and even more graphics! You've demanded for more eye candy, so this motherboard supports Triple Monitor. You may choose up to three display interfaces from the rear i/o to connect monitors and use them simultaneously without installing another graphics card.
3 Graphics Outputs
Complete with all three types of most used connectors! Packed with a D-Sub + DVI-D + HDMI combo. Plus the HDMI port supports 4K resolution.
ELNA Audio Caps
Who says high quality audio is only available on high-end motherboards? ASRock applied ELNA audio capacitors on mainstream and entry-level motherboards! Compared with traditional solid caps, the leakage current of ELNA audio caps is merely 3uA. This is the key to reduce noise level significantly and satisfy even the pickiest audiophiles.
A-Tuning
A-Tuning is ASRock's multi purpose software suite with a new interface, more new features and improved utilities.
Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
- Supports 8th Generation Intel® Core™ Processors (Socket 1151)
- 10 Power Phase Design
- Supports DDR4 2666
- 2 PCIe 3.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key E for WiFi
- AMD Quad CrossFireX™
- Graphics Output Options: HDMI, DVI-D, D-Sub
- 7.1 CH HD Audio (Realtek ALC892 Audio Codec), ELNA Audio Caps
- 6 SATA3, 1 Ultra M.2 (PCIe Gen3 x4), 1 M.2 (PCIe Gen3 x1 & SATA3)
- 2 USB 3.1 Gen2 10Gb/s (1 Type-A + 1 Type-C)
- 4 USB 3.1 Gen1 (2 Front, 2 Rear)
- Intel® Gigabit LAN
Armor Your VR Machine
Prepare yourself well to enjoy the impressive world of Virtual Reality. Before that, you have to make sure everything is qualified, including hardware, software and drivers. Motherboard is the key to connect every critical components and ASRock’s VR Ready products are definitely the one you’re looking for. The premium quality is assured by rigorous testing during development. The sturdy components and rock-solid performance makes you completely immersive in the VR scenario. Users can be assured to experience VR enjoyments without any compatibility problems.
Dual M.2 For SSD
Equipped with M.2 slot that supports both SATA3 6Gb/s and PCIe Gen3 x4 Ultra M.2 interface that pushes data transfer speeds up to 32Gb/s, and is compatible with ASRock’s U.2 Kit for installing some of the world’s fastest U.2 PCIe Gen3 x4 SSD.
Intel® LAN
Intel® LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!
Dual USB 3.1 Gen2 (Type-A + Type-C)
This motherboard has a pair of onboard Type-A and Type-C USB 3.1 Gen2 ports built on the rear i/o for supporting next generation USB 3.1 Gen2 devices and to deliver up to 10 Gbps data transfer rates.
Intel® Optane™ Memory Ready
Supports Intel® Optane™ memory technology and Intel® Optane™ storage technology that redefines a new standard of high performance and responsiveness.
Supports HEVC 10-bit playback
HEVC 10-bit provide substantially improved video quality and higher bit depth video experience.
ASRock Intel® 4-Layer Memory POOL Technology
POOL (Planes On Outer Layers) technology allows 4-layer boards to utilize stripline routing instead of micro-strip routing, making motherboard having better electrical properties and performance.
Super Alloy Motherboard
Premium 45A Power Choke
Compared to traditional chokes, ASRock’s premium 45A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.
Sapphire Black PCB
Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.
High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.
10 Power Phase
Designed with an 10 Power Phase Design, this motherboard provides completely smooth power delivery to the CPU and offers unmatched overclocking capabilities and enhanced performance with the lowest temperature.
M.2 (KEY E) For WiFi
Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot.
Triple Monitor
Graphics, graphics and even more graphics! You've demanded for more eye candy, so this motherboard supports Triple Monitor. You may choose up to three display interfaces from the rear i/o to connect monitors and use them simultaneously without installing another graphics card.
3 Graphics Outputs
Complete with all three types of most used connectors! Packed with a D-Sub + DVI-D + HDMI combo. Plus the HDMI port supports 4K resolution.
ELNA Audio Caps
Who says high quality audio is only available on high-end motherboards? ASRock applied ELNA audio capacitors on mainstream and entry-level motherboards! Compared with traditional solid caps, the leakage current of ELNA audio caps is merely 3uA. This is the key to reduce noise level significantly and satisfy even the pickiest audiophiles.
A-Tuning
A-Tuning is ASRock's multi purpose software suite with a new interface, more new features and improved utilities.
Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
B360M PRO4
Data sheet
- PCI Express
- 2 x PCIe 3.0 x16, 2 x PCIe 3.0 x1
2 x PCIe 3.0 x162 x PCIe 3.0 x1 - Wireless
- -
- RAM Speeds
- 2666 / 2400 / 2133 MHz
- Accessories
- Quick Installation Guide, Support CD, I/O Shield, 2 x SATA Data Cables, 3 x Screws for M.2 Sockets
Quick Installation GuideSupport CDI/O Shield2 x SATA Data Cables3 x Screws for M.2 Sockets - USB Ports Supported
- "2 x USB 3.1 Gen2 Type-A & C (at back), 4 x USB 3.1 Gen1 (2 at back, 2 at mid-board), 5 x USB 2.0 (2 at back, 3 at mid-board)"
2 x USB 3.1 Gen2 Type-A & C (at back)4 x USB 3.1 Gen1 (2 at back, 2 at mid-board)5 x USB 2.0 (2 at back, 3 at mid-board) - Storage
- 6 x SATA III, 1 x M.2 (2230/2242/2260/2280) - PCIe, 1 x M.2 (2230/2242/2260/2280) - SATA
6 x SATA III1 x M.2 (2230/2242/2260/2280) - PCIe1 x M.2 (2230/2242/2260/2280) - SATA - RAID
- -
- Warranty
- 3 Year Replacement Warranty
- Motherboard Type
- Desktop
- Form Factor
- Micro ATX
- Socket
- 1151 - Coffee Lake
Intel 1151 - Coffee Lake - Chipset
- Intel B360
- DDR Type
- DDR4
- RAM Technology
- DDR4 (Dual Channel)
- RAM Slots
- 4 x DIMM
- Maximum Memory
- 64GB
- Multi-GPU Support
- Supports AMD Quad CrossFireX
- PCI
- -
- LAN
- GB LAN
- Audio
- 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)
- Back Panel I/O Ports
- 1 x PS/2 Mouse, 1 x PS/2 Keyboard, 1 x D-Sub, 1 x DVI-D, 1 x HDMI, 2 x USB 2.0, 2 x USB 3.1 Gen2 (A & C), 2 x USB 3.1 Gen1, 1 x RJ-45 LAN, HD Audio Jacks
1 x PS/2 Mouse1 x PS/2 Keyboard1 x D-Sub1 x DVI-D1 x HDMI2 x USB 2.02 x USB 3.1 Gen2 (A & C)2 x USB 3.1 Gen11 x RJ-45 LANHD Audio Jacks - Internal I/O Connectors
- 1 x COM Port, 1 x TPM, 1 x Chassis Intrusion and Speaker, 1 x CPU Fan, 1 x CPU/Water Pump Fan, 2 x Chassis/Water Pump Fan, 1 x 24 pin ATX, 1 x 8 pin 12V, 1 x Front Audio, 2 x USB 2.0, 1 x USB 3.1 Gen1
1 x COM Port1 x TPM1 x Chassis Intrusion and Speaker1 x CPU Fan1 x CPU/Water Pump Fan2 x Chassis/Water Pump Fan1 x 24 pin ATX1 x 8 pin 12V1 x Front Audio2 x USB 2.01 x USB 3.1 Gen1 - CPU Support
- Click here for CPU support
See manufacturers link (next to product images) - Package Type
- Retail
- Package Weight
- 1.1000 kg
- Graphics Ports
- 1 x VGA, 1 x DVI-D, 1 x HDMI
1 x VGA1 x DVI-D1 x HDMI - Additional Features
- See Overview
- Graphics
- Supports Intel HD Graphics
- M.2 Slot(s)
- Yes
Yes (M.2) - No. LAN Ports
- 1 x LAN
- Max LAN Speed
- GB LAN
- RGB Lighting
- No
Specific References
- EAN13
- 4717677335149
