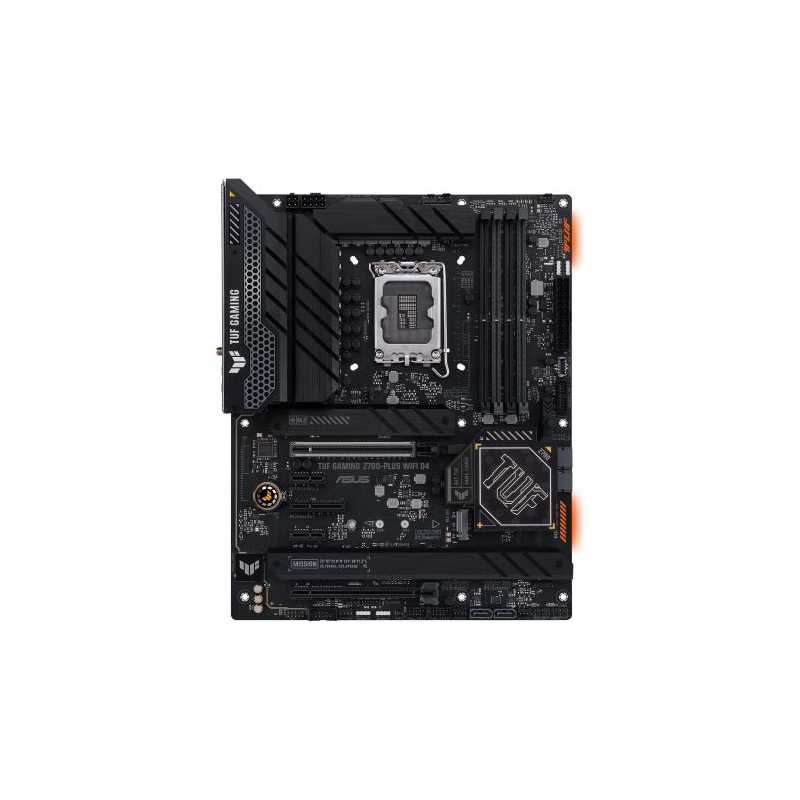

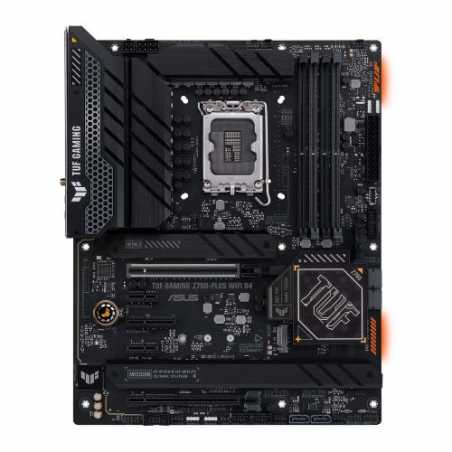

Asus TUF GAMING Z790-PLUS WIFI D4, Intel Z790, 1700, ATX, 4 DDR4, HDMI, DP, Wi-Fi 6, 2.5G LAN, PCIe5, RGB, 4x M.2
search
  • Asus TUF GAMING Z790-PLUS WIFI D4, Intel Z790, 1700, ATX, 4 DDR4, HDMI, DP, Wi-Fi 6, 2.5G LAN, PCIe5, RGB, 4x M.2

Asus TUF GAMING Z790-PLUS WIFI D4, Intel Z790, 1700, ATX, 4 DDR4, HDMI, DP, Wi-Fi 6, 2.5G LAN, PCIe5, RGB, 4x M.2

£300.40
VAT included
Stock status: Very low
Last 4 items
Delivered within 1-2 days.
Quantity

Delivery from %MINIMAL_DATE%



TUF GAMING Z790-PLUS WIFI D4 takes all the essential elements of the latest Intel® processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid performance for marathon gaming.



TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates an embossed nameplate and honeycomb design elements to reflect the dependability and stability that defines the TUF GAMING series.



  • Power stages - 16+1 DrMOS power stages (rated 60A) with enlarged VRM heatsinks
  • PCIe - PCIe® 5.0 for graphics cards
  • Memory module support - DDR4 memory module support
  • Connectivity - USB 3.2 Gen 2x2 Type-C® and a front-panel USB 3.2 Gen 2 Type-C® header
  • PC DIY friendly - PCIe Q-Release
  • Ethernet - 2.5 Gb Ethernet
  • WiFi 6
  • AI Cooling II
  • Two-Way AI Noise Cancelation
ASUS
90MB1CR0-M0EAY0
4 Items

Data sheet

.
3 x Addressable Gen21 x Aura RGB1 x Clear CMOS1 x COM Port1 x Front Panel Audio1 x 20-3 pin System Panel1 x Thunderbolt (USB4)
Wireless
Wi-Fi 62x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)Supports 2.4/5GHz frequency bandBluetooth v5.2
RAM Speeds
up to 5333(OC)
Accessories
2 x SATA 6Gb/s cables1 x ASUS Wi-Fi moving antenna1 x TUF GAMING sticker2 x M.2 Rubber Packages1 x Screw package for M.2 SSD1 x TUF Certification card1 x User guide
USB Ports Supported
1 x USB 3.2 Gen2x2 Type-C (at back)1 x USB 3.2 Gen2 Type-C (at back)2 x USB 3.2 Gen2 Type-A (at back)6 x USB 3.2 Gen1 (4 at back, 2 at mid-board)4 x USB 2.0 (at mid-board)1 x Front Panel Type-C USB 3.2 Gen2 Header
Storage
4 x SATA III1 x M.2 (2242/2260/2280/22110) - PCIe1 x M.2 (2242/2260/2280) - PCIe1 x M.2 (2242/2260/2280/22110) - PCIe1 x M.2 (2242/2260/2280) - SATA & PCIe
RAID
Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10
Warranty
3 Years
Motherboard Type
Desktop
Form Factor
ATX
Socket
Intel 1700
Chipset
Intel Z790
DDR Type
DDR4
RAM Technology
DDR4 (Dual Channel)
RAM Slots
4 x DIMM
Maximum Memory
128GB
LAN
2.5GB LAN
Audio
Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC
Back Panel I/O Ports
1 x USB 3.2 Gen2x2 Type-C3 x USB 3.2 Gen2 ports (2 Type-A, 1 Type-C)4 x USB 3.2 Gen1 Type-A1 x DisplayPort1 x HDMI1 x Wi-Fi Module1 x Intel 2.5Gb Ethernet5 x Audio jacks1 x Optical S/PDIF out
Internal I/O Connectors
1 x 4-pin CPU Fan1 x 4-pin CPU OPT Fan1 x 4-pin AIO Pump 4 x 4-pin Chassis Fan1 x 24-pin Main 1 x 8-pin +12V 1 x 4-pin +12V 4 x M.2 (Key M)4 x SATA 6Gb/s1 x USB 3.2 Gen2 Type-C1 x USB 3.2 Gen12 x USB 2.0
CPU Support
Click here for CPU support
Package Type
Retail
Graphics Ports
1 x HDMI1 x DisplayPort
Additional Features
See Overview
Graphics
Integrated Graphics**Graphics specifications may vary between CPU types
M.2 Slot(s)
Yes (M.2)
No. LAN Ports
1 x LAN
Max LAN Speed
2.5GB LAN
RGB Lighting
Out of the box RGB lighting
PCI/PCI Express
1 x PCIe 5.0 x161 x PCIe 4.0 x16 (supports x4 mode)1 x PCIe 4.0 x42 x PCIe 3.0 x1
Wi-Fi
Yes (Wi-Fi)

Specific References

EAN13
4711081941088
