- Out of stock

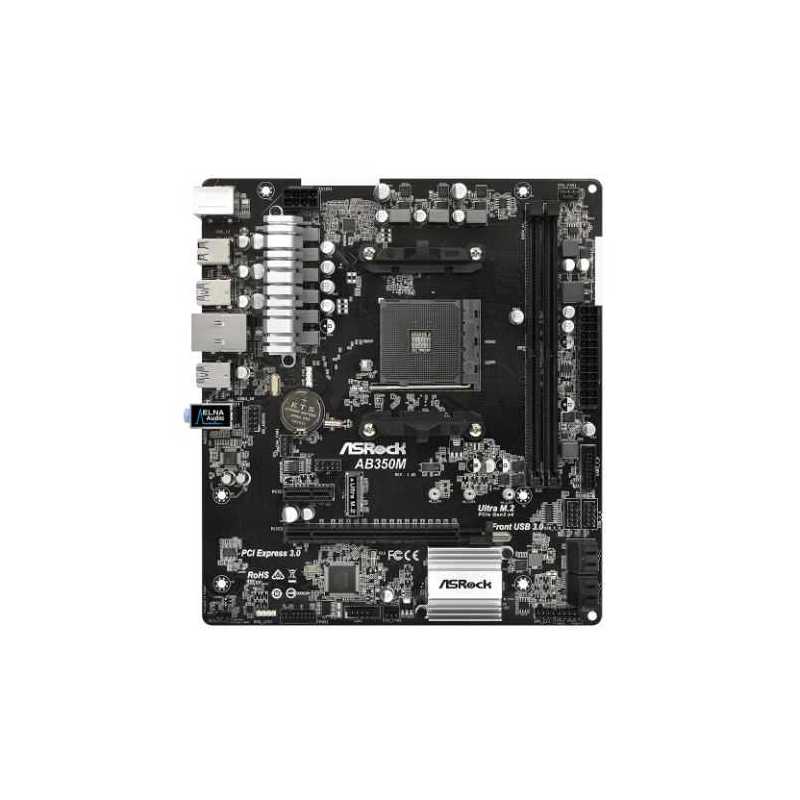

Asrock AB350M, AMD B350, AM4, Micro ATX, 2 DDR4, Ultra M.2, RAID
£71.28
VAT included
- ASRock Super Alloy
- Supports AMD Socket AM4 A-Series APUs (Bristol Ridge) and Ryzen Series CPUs (Summit Ridge)
- Supports DDR4 2667
- 1 PCIe 3.0 x16, 1 PCIe 2.0 x1
- 7.1 CH HD Audio (Realtek ALC887 Audio Codec), ELNA Audio Caps
- 4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3)
- 8 USB 3.0 (2 Front, 6 Rear)
- Realtek Gigabit LAN
Ultra M.2 32 Gb/s (PCIe Gen3 x4 & SATA3)
The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules, and is compatible with ASRock’s U.2 Kit for installing some of the world’s fastest U.2 PCIe Gen3 x4 SSDs.
Super Alloy Motherboard
Premium Power Choke
Compared to traditional chokes, ASRock’s premium power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.
Sapphire Black PCB
Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.
High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.
__________________________________________________
Digi Power
Unlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced.
ELNA Audio Caps
Who says high quality audio is only available on high-end motherboards? ASRock applied ELNA audio capacitors on mainstream and entry-level motherboards! Compared with traditional solid caps, the leakage current of ELNA audio caps is merely 3uA. This is the key to reduce noise level significantly and satisfy even the pickiest audiophiles.
Solid Capacitor Design
ASRock applied solid capacitors on this motherboard. With these solid caps, this motherboard is allowed to perform more stably and ensure longer lifetime.
Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.
Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
Description
Specification
- Motherboard Type: Desktop
- Form Factor: Micro ATX
- Socket: AM4
- Chipset: AMD B350
- #Hide#DDR Type: DDR4
- RAM Technology: DDR4 (Dual Channel)
- RAM Slots: 2 x DIMM
- RAM Speeds: Ryzen CPUs: 2667/2400/2133 MHz
7th Gen A-Series APUs: 2133 MHz - Maximum Memory: 32GB
- Graphics: -
- Graphics Ports: -
- Multi-GPU Support: -
- PCI Express: AMD Ryzen series CPUs:
1 x PCIe 3.0 x16 Slot (PCIE2: x16 mode)
AMD 7th A-Series APUs:
1 x PCIe 3.0 x16 Slot (PCIE2: x8 mode)
1 x PCIe 2.0 x1 Slot - PCI: -
- Storage: 4 x SATA III
1 x M.2 Socket (2242/2260/2280) - SATA & PCIe - RAID: "RAID 0, 1, 10 "
- Wireless: -
- LAN: GB LAN
- Audio: 7.1 CH HD Audio (Realtek ALC887 Audio Codec)
- USB Ports Supported: "8 x USB 3.0 ports (6 at back, 2 at mid-board)
6 x USB 3.0 ports (2 at back, 4 at mid-board)" - Back Panel I/O Ports: 1 x PS/2 Mouse
1 x PS/2 Keyboard
2 x USB 2.0 Ports
6 x USB 3.0 Ports
1 x RJ-45 LAN
HD Audio Jacks - Internal I/O Connectors: 2 x USB 2.0 Connectors
1 x USB 3.0 Connector
1 x COM Port
1 x TPM
1 x RGB LED
1 x AMD Fan LED
1 x CPU Fan
2 x Chassis Fan
1 x 24 pin ATX
1 x 8 pin 12V
1 x Front Audio
1 x Chassis Intrusion and Speaker - CPU Support: Click here for CPU support
- Accessories: "Quick Installation Guide, Support CD, I/O Shield
2 x SATA Data Cables
1 x Screw for M.2 Socket" - Package Type: Retail
- Additional Features: See Overview
- Package Weight: 0.8700 kg
- Warranty: 3 Year Replacement Warranty
AB350M
Data sheet
- PCI Express
- AMD Ryzen series CPUs
- Wireless
- -
- RAM Speeds
- Ryzen CPUs
- Accessories
- "Quick Installation Guide, Support CD, I/O Shield, 2 x SATA Data Cables, 1 x Screw for M.2 Socket"
- USB Ports Supported
- "8 x USB 3.0 ports (6 at back, 2 at mid-board), 6 x USB 3.0 ports (2 at back, 4 at mid-board)"
- Storage
- 4 x SATA III, 1 x M.2 Socket (2242/2260/2280) - SATA & PCIe
- RAID
- "RAID 0, 1, 10 "
- Warranty
- 3 Year Replacement Warranty
- Motherboard Type
- Desktop
- Form Factor
- Micro ATX
- Socket
- AM4
- Chipset
- AMD B350
- DDR Type
- DDR4
- RAM Technology
- DDR4 (Dual Channel)
- RAM Slots
- 2 x DIMM
- Maximum Memory
- 32GB
- Multi-GPU Support
- -
- PCI
- -
- LAN
- GB LAN
- Audio
- 7.1 CH HD Audio (Realtek ALC887 Audio Codec)
- Back Panel I/O Ports
- 1 x PS/2 Mouse, 1 x PS/2 Keyboard , 2 x USB 2.0 Ports, 6 x USB 3.0 Ports, 1 x RJ-45 LAN, HD Audio Jacks
- Internal I/O Connectors
- 2 x USB 2.0 Connectors, 1 x USB 3.0 Connector, 1 x COM Port, 1 x TPM, 1 x RGB LED, 1 x AMD Fan LED, 1 x CPU Fan, 2 x Chassis Fan, 1 x 24 pin ATX, 1 x 8 pin 12V, 1 x Front Audio, 1 x Chassis Intrusion and Speaker
- CPU Support
- See manufacturers link (next to product images)
- Package Type
- Retail
- Package Weight
- 0.8700 kg
- Graphics Ports
- -
- Additional Features
- See Overview
- Graphics
- -
Specific References
- EAN13
- 4717677333190
