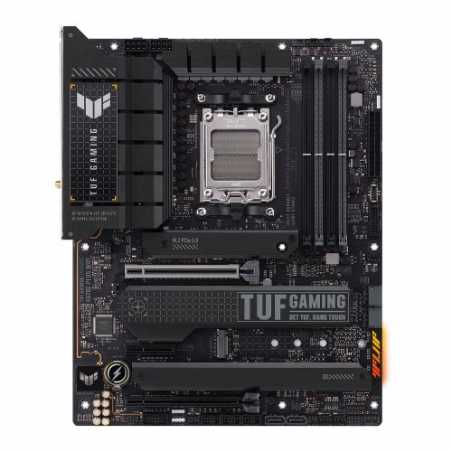

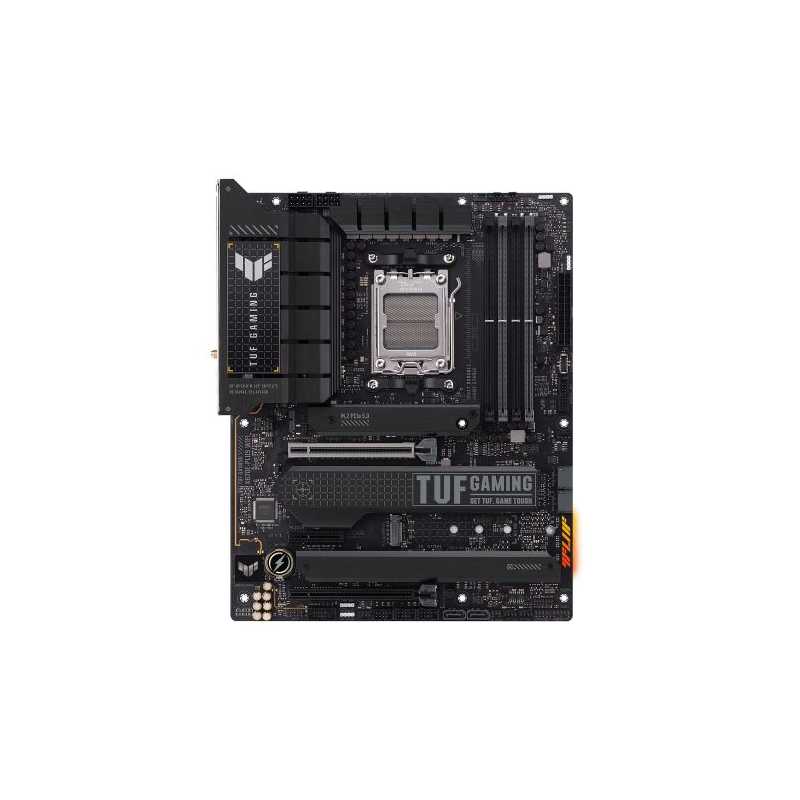

Asus TUF GAMING X670E-PLUS, AMD X670, AM5, ATX, 4 DDR5, HDMI, DP, 2.5G LAN, PCIe5, RGB, 4x M.2
search
  • Asus TUF GAMING X670E-PLUS, AMD X670, AM5, ATX, 4 DDR5, HDMI, DP, 2.5G LAN, PCIe5, RGB, 4x M.2

Asus TUF GAMING X670E-PLUS, AMD X670, AM5, ATX, 4 DDR5, HDMI, DP, 2.5G LAN, PCIe5, RGB, 4x M.2

£314.58
VAT included
Stock status: Out of stock
Out of stock
Quantity
Out of stock



ASUS TUF GAMING X670E-PLUS takes all the essential elements of the latest AMD Ryzen 7000-series processors and combines them with game-ready features and proven durability


Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates rugged off-black and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series.



  • Power stages - 14+2 teamed power stages (rated 70A) with enlarged VRM heatsinks
  • PCIe - PCIe® 5.0 for graphics cards and M.2 storage
  • b- DDR5 memory module support
  • Connectivity - USB 3.2 Gen 2x2 Type-C® and a front-panel USB 3.2 Gen 2 Type-C® header
  • Ethernet - 2.5 Gb Ethernet
  • Core Flex and Dynamic OC Switcher - AI Overclocking, Core Flex and Dynamic OC Switcher
  • AI Cooling II
  • Two-Way AI Noise Cancelation



ASUS
90MB1BJ0-M0EAY0

Data sheet

.
3 x Addressable Gen21 x AURA RGB1 x Clear CMOS1 x COM Port1 x Front Panel Audio1 x 20-3 pin System Panel1 x Thermal Sensor1 x Thunderbolt
Wireless
-
RAM Speeds
Up to 6400+(OC)
Accessories
2 x SATA 6Gb/s cables2 x Rubber packages for M.22 x Screw packages for M.2 SSD1 x TUF certification card1 x User guide
USB Ports Supported
1 x USB 3.2 Gen2x2 Type-C (at back)1 x USB 3.2 Gen2 Type-C (at back)3 x USB 3.2 Gen2 Type-A (at back)7 x USB 3.2 Gen1 Type-A (5 at back, 2 at mid-board)6 x USB 2.0 (at mid-board)1 x Front USB 3.2 Gen2 Type-C connector
Storage
4 x SATA III1 x M.2 (2242/2260/2280) - PCIe1 x M.2 (2242/2260/2280) - PCIe1 x M.2 (2242/2260/2280/22110) - PCIe1 x M.2 (2242/2260/2280) - PCIe
RAID
AMD RAID Xpert Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10
Warranty
3 Years
Motherboard Type
Desktop
Form Factor
ATX
Socket
AMD AM5
Chipset
AMD X670
DDR Type
DDR5
RAM Technology
DDR5 (Dual Channel)
RAM Slots
4 x DIMM
Maximum Memory
128GB
LAN
2.5GB LAN
Audio
Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC
Back Panel I/O Ports
1 x USB 3.2 Gen2x2 Type-C4 x USB 3.2 Gen2 (3 Type-A, 1 Type-C)5 x USB 3.2 Gen1 Type-A1 x DisplayPort1 x HDMI1 x Realtek 2.5Gb Ethernet5 x Audio jacks1 x BIOS FlashBack button
Internal I/O Connectors
1 x 4-pin CPU Fan1 x 4-pin CPU OPT Fan1 x 4-pin AIO Pump4 x 4-pin Chassis Fan1 x W_PUMP+1 x 24-pin Main2 x 8-pin +12V4 x M.2 (Key M)4 x SATA 6Gb/s1 x USB 3.2 Gen2 Type-C1 x USB 3.2 Gen13 x USB 2.0
CPU Support
Click here for CPU support
Package Type
Retail
Graphics Ports
1 x HDMI1 x DisplayPort
Additional Features
See Overview
Graphics
Integrated Graphics**Graphics specifications may vary between CPU types
M.2 Slot(s)
Yes (M.2)
No. LAN Ports
1 x LAN
Max LAN Speed
2.5GB LAN
RGB Lighting
Out of the box RGB lighting
PCI/PCI Express
1 x PCIe 5.0 x161 x PCIe 4.0 x16 (supports x4 mode)1 x PCIe 4.0 x4

Specific References

EAN13
4711081905608
