Asus ROG STRIX X670E-I GAMING WIFI, AMD X670, AM5, Mini ITX, 2 DDR5, HDMI, 2 USB4, Wi-Fi 6E, 2.5G LAN, PCIe5, RGB, 2x M.2, ROG S
search
  • Asus ROG STRIX X670E-I GAMING WIFI, AMD X670, AM5, Mini ITX, 2 DDR5, HDMI, 2 USB4, Wi-Fi 6E, 2.5G LAN, PCIe5, RGB, 2x M.2, ROG S

Asus ROG STRIX X670E-I GAMING WIFI, AMD X670, AM5, Mini ITX, 2 DDR5, HDMI, 2 USB4, Wi-Fi 6E, 2.5G LAN, PCIe5, RGB, 2x M.2, ROG S

£448.23
VAT included
Stock status: Out of stock
Out of stock
Quantity
Out of stock

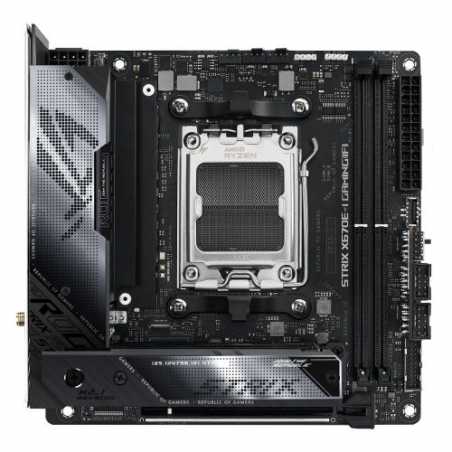

The ROG Strix X670E-I Gaming WiFi crams the latest tech into the diminutive mini-ITX footprint and then branches out with the ROG Hive to put vital controls and I/O at your fingertips.


At motherboard level, PCIe 5.0 slots for graphics and storage ride alongside dual-channel DDR5 to bring large-scale bandwidth to games and CPU-intensive workloads. Heavyweight power delivery and vertically-stacked heatsinks crush thermals and lay a potent foundation for exclusive ROG overclocking tools to push performance boundaries. With all this and more, this tiny titan dishes up a space-saving AM5 build that allows you to comfortably host larger displays and a spread of ROG gaming peripherals on your desktop.




  • Power Stages - 10 + 2 power solution rated for 110A per stage
  • Overclocking - Dynamic clocking to simultaneously maximize Ryzen gaming and compute performance
  • M.2 and Chipset Heatsinks - Stacked heatsink design cools M.2 drives and motherboard chipset
  • ROG Hive - High-quality audio, system control, and I/O at your fingertips
  • PCIe 5.0 - An x16 and on-board M.2 slot are PCIe Gen 5-ready
  • DDR5 Memory - 6400 MT/s+, AMD EXPO, DRAM IC profiles, and AEMP
  • USB 4.0 Ports - Dual USB4 Type-C ports for up to 40 Gbps bi-directional bandwidth
  • ROG FPS-II Card - Innovative extension card aids cable management, adds right-angle I/O



All-Round Performance

Robust power delivery, innovative overclocking tools, and comprehensive cooling controls make the ROG Strix X670E-I more than a match for larger rivals. Load up and freely customize your AMD Ryzen 7000 Series processor to shred through everything.





Leading connectivity

The ATX experience thoughtfully scaled into mini-ITX: build easier the ROG FPS-II card, and grace your desktop with the ROG Hive, dual USB4 ports, and support for the latest WiFi 6E standard.





Play In Style

The dark ROG Strix colorway pairs perfectly with other products from the diverse ROG ecosystem, allowing you to create a fully customized gaming setup that reflects your personal style.





Software Utilities

ROG-exclusive software delivers intuitive audio tuning and gaming enhancements so you can configure your gaming build the way you want.





For full details click here



ASUS
90MB1B70-M0EAY0

Data sheet

.
2 x USB Type-C to install ROG FPS-II cardROG FPS-II card:2 x SATA 6Gb/s1 x CPU Over Voltage jumper1 x Clear CMOS1 x Front Panel1 x Alteration mode switch2 x USB 2.0 headers
Wireless
Wi-Fi 6E2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)Supports 2.4/5/6GHz frequency bandBluetooth v5.2
RAM Speeds
Up to 6400+(OC)
Accessories
x SATA 6Gb/s cables 1 x ROG USB2.0 splitter cable1 x Panel Cable1 x ROG FPS-II Card1 x ROG STRIX HIVE + power connection cable1 x Thermal pad for M.21 x ASUS Wi-Fi moving antennas 1 x Cable ties pack1 x Rubber Package for M.21 x Q-Latch package for M.21 x
USB Ports Supported
2 x USB4 Type-C (at back)5 x USB 3.2 Gen2 Type-A (at back)2 x USB 3.2 Gen1 Type-A (at mid-board)3 x USB 2.0 (at back)1 x front panel USB 3.2 Gen2 Type-C connectorROG STRIX HIVE:1 x USB 3.2 Gen2 Type-C1 x USB 2.0 port ROG FPS-II C:2 x USB 2.0 header(s) ad
Storage
2 x SATA III1 x M.2 (2280) - PCIe1 x M.2 (2242/2260/2280) - PCIe
RAID
AMD RAIDXpert2 Technology supports both NVMe RAID 0/1 and SATA RAID 0/1
Warranty
3 Years
Motherboard Type
Desktop
Form Factor
Mini ITX
Socket
AMD AM5
Chipset
AMD X670
DDR Type
DDR5
RAM Technology
DDR5 (Dual Channel)
RAM Slots
2 x DIMM
Maximum Memory
64GB
LAN
2.5GB LAN
Audio
ROG High Definition Audio CODEC ALC4050
Back Panel I/O Ports
2 x USB4 Type-C w/ Intel JHL8540 USB4 controller5 x USB 3.2 Gen2 Type-A (1 supports ROG STRIX HIVE)3 x USB 2.01 x HDMI1 x Wi-Fi Module1 x Intel I225-V 2.5Gb Ethernet
Internal I/O Connectors
1 x 4-pin CPU Fan1 x 4-pin AIO Pump1 x 4-pin Chassis Fan1 x 24-pin Main1 x 8-pin +12V2 x M.2 (Key M) 1 x USB 3.2 Gen2 Type-C 1 x Addressable Gen21 x AURA RGB1 x RTC Battery1 x Thermal Sensor1 x 2 pin Power_BTN
CPU Support
Click here for CPU support
Package Type
Retail
Graphics Ports
1 x HDMI2 x USB4 ports support USB Type-C display outputs
Additional Features
See Overview
Graphics
Integrated Graphics**Graphics specifications may vary between CPU types
M.2 Slot(s)
Yes (M.2)
No. LAN Ports
1 x LAN
Max LAN Speed
2.5GB LAN
RGB Lighting
Out of the box RGB lighting
PCI/PCI Express
1 x PCIe 5.0 x16
Wi-Fi
Yes (Wi-Fi)

Specific References

EAN13
4711081905578
