- Out of stock

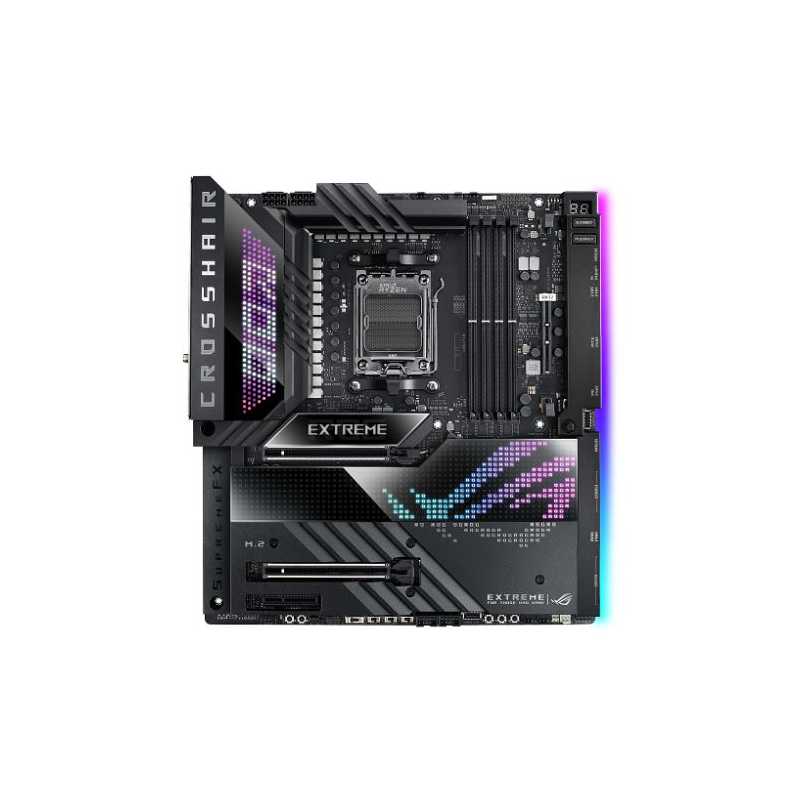

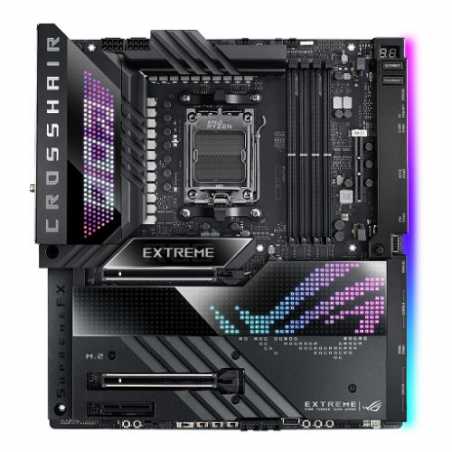

Asus ROG CROSSHAIR X670E EXTREME, AMD X670, AM5, EATX, 4 DDR5, 2 USB4, Wi-Fi 6E, 2.5G & 10G LAN, PD 3.0 60W, PCIe5, RGB, 5x M.2
£948.00
VAT included
Bringing a legacy of ROG greatness along with a flurry of the latest tech for fully loaded builds, the ROG Crosshair X670E comfortably eases AMD Ryzen™ 7000 Series processors through the toughest workloads. Embrace the AM5 era with the indomitable kingpin of the ROG stack.
- Power Stages - Gargantuan 20 + 2 teamed power solution rated for 110A per stage
- Overclocking Technologies - Dynamic clocking to simultaneously maximize Ryzen gaming and compute performance
- AI Cooling II - AI Cooling II uniquely balances noise and thermals for your system with a single click
- DDR5 Memory - MT/s+, AMD EXPO, DRAM IC profiles, and AEMP
- PCIe. 5.0 - Two on-board M.2 slots and both x16 slots are PCIe Gen 5-ready
- PCIe 5.0 M.2 Card - Provides an extra mount and cooling for a full-size PCIe 5.0 M.2 SSD
- ROG GEN-Z.2 - ROG GEN-Z.2 adds a Gen 5 and Gen 4 M.2 slot inside a DIY-friendly heatsink shell
- WiFi 6E - Faster-than-Gigabit WiFi that unlocks access to the low-interference 6 GHz band
- 10G Ethernet - 10 Gbps Ethernet port for hyperspeed file transfers and lag-free gaming
- USB4 - Dual USB4 Type-C® ports for up to 40 Gbps bi-directional bandwidth
- Polymo Lighting - AniMe Matrix™ is a micro-LED array that adds stunning designs to the I/O shroud
90MB1B10-M0EAY0
Data sheet
- .
- 1 x Rubber Package for M.2 backplate1 x Q-connector2 x M.2 Q-Latch packages for M.2 backplate1 x ROG Graphics card holder1 x ROG key chain1 x ROG logo plate sticker1 x ROG screwdriver1 x ROG stickers1 x ROG thank you card
- Wireless
- Wi-Fi 6E2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency bandBluetooth v5.2
- RAM Speeds
- 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 MHz
- Accessories
- 1 x 1-to-3 ARGB splitter cable1 x 1-to-2 ARGB splitter cable2 x 1-to-4 fan splitter cable1 x RGB extension cable3 x ROG weave SATA 6G cables pack1 x 3-in-1 Thermistor cables packROG Fan ControllerROG GEN.2 Card with HeatsinkPCIe 5.0 M.2 Card with Heatsink
- USB Ports Supported
- 2 x USB4 Type-C (at back)1 x USB 3.2 Gen2x2 Type-C (at back)1 x USB 3.2 Gen2x2 Type-C (60W PD/QC4+) (at mid-board)2 x USB 3.2 Gen2 Type-C (1 at back, 1 at mid-board)8 x USB 3.2 Gen2 Type-A (at back)4 x USB 3.2 Gen1 (at mid-board)4 x USB 2.0 (at mid-board)
- Storage
- 6 x SATA III1 x M.2 (2242/2260/2280) - PCIe1 x M.2 (2242/2260/2280) - PCIeVia PCIe 5.0 M.2 Card:1 x M.2 (2242/2260/2280/22110) - PCIeVia ROG GEN.2 Card:2 x GEN-Z.2 (2242/2260/2280/22110) - PCIe
- RAID
- AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10
- Warranty
- 3 Years
- Motherboard Type
- Desktop
- Form Factor
- Extended ATX
- Socket
- AMD AM5
- Chipset
- AMD X670
- DDR Type
- DDR5
- RAM Technology
- DDR5 (Dual Channel)
- RAM Slots
- 4 x DIMM
- Maximum Memory
- 128GB
- LAN
- 10GB LAN & 2.5GB LAN
- Audio
- ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082
- Back Panel I/O Ports
- 2 x USB4 Type-C w/ Intel JHL8540 USB4 controller1 x USB 3.2 Gen2x2 Type-C9 x USB 3.2 Gen2 (8 Type-A, 1 Type-C)1 x Wi-Fi Module1 x Intel 2.5Gb Ethernet1 x Marvell AQtion 10Gb Ethernet5 x LED-illuminated audio jacks1 x Optical S/PDIF out1 x BIOS FlashBack
- Internal I/O Connectors
- 1 x 4-pin CPU Fan1 x 4-pin CPU OPT Fan2 x 4-pin Chassis Fan2 x 4-pin Radiator Fan2 x W_PUMP+1 x WB_SENSOR1 x 2-pin Water In1 x 2-pin Water Out1 x 3-pin Water Flow1 x 24-pin Main Power2 x 8-pin +12V Power1 x 6-pin PCIe Graphics Card
- CPU Support
- Click here for CPU support
- Package Type
- Retail
- Graphics Ports
- 2 x USB4 ports support USB Type-C display outputs
- Additional Features
- See Overview
- M.2 Slot(s)
- Yes (M.2)
- No. LAN Ports
- 2 x LAN
- Max LAN Speed
- 10GB LAN
- RGB Lighting
- Out of the box RGB lighting
- PCI/PCI Express
- 2 x PCIe 5.0 x16 (supports x16 or x8/x8 modes)1 x PCIe 4.0 x4
- Wi-Fi
- Yes (Wi-Fi)
