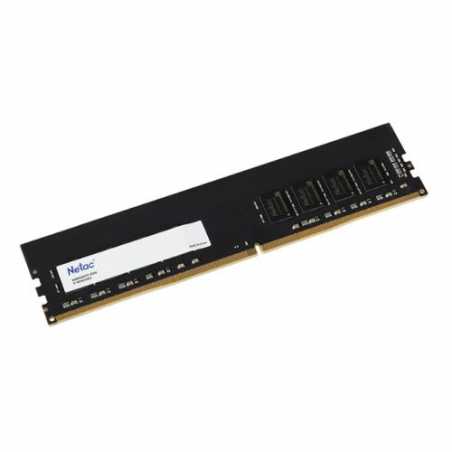

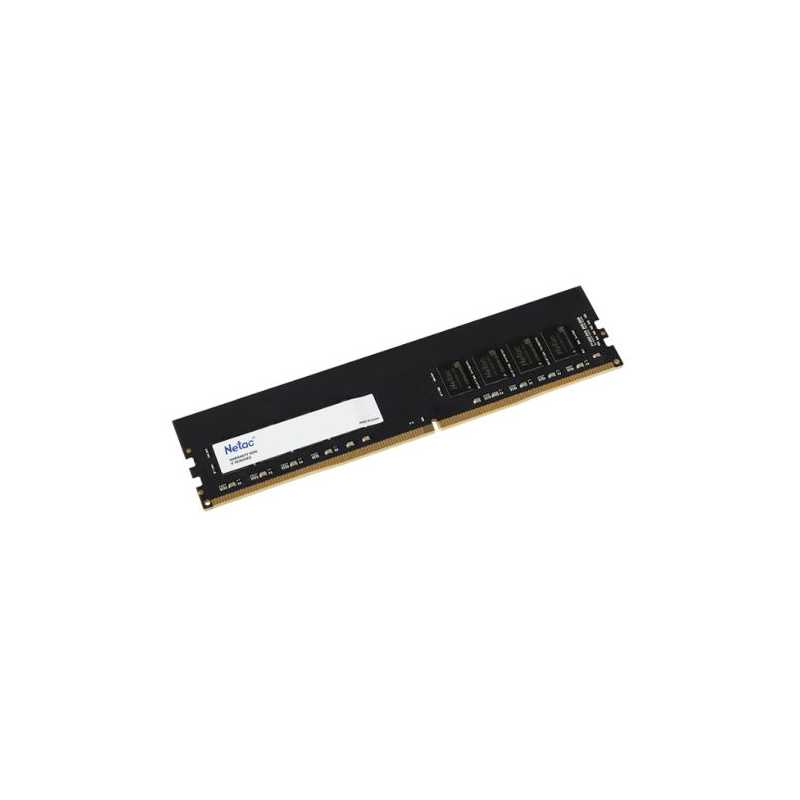

Netac Basic NTBSD4P26SP-16 16GB (1x 16GB) DIMM System Memory, 2666MHz, DDR4, CL19
£110.81
VAT included
Delivered within 1-2 days.
Netac Unbuffered DDR4 SDRAM DIMMs (Unbuffered Double Data Rate Synchronous DRAM Dual In-Line Memory Modules) are low power, high-speed operation memory modules that use DDR4 SDRAM devices. Each 288- pin DIMM uses gold contact fingers. The SDRAM Unbuffered DIMM is intended for use as main memory when installed in systems such as PC's
Features
Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
- Low-power auto self refresh (LPASR)
- Data bus inversion (DBI) for data bus
- On-die VREFDQ generation and calibration
- On-board I2C serial presence-detect (SPD) EEPROM
- Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
- Selectable BC4 or BL8 on-the-fly (OTF)
- Databus write cyclic redundancy check (CRC)
- Temperature controlled refresh (TCR)
- Command/Address (CA) parity
- Per DRAM Addressability is supported
- 8 bit pre-fetch
- Fly-by topology
- Command/Address latency (CAL)
- Terminated control command and address bus
- PCB: Height 1.23 (31.25mm)
- Gold edge contacts
- RoHS Compliant and Halogen-Free
Specifications
Internal memory
16 GB
Internal memory type
DDR4
Memory clock speed
2666 MHz
Suitable For
Notebook
Memory voltage
1.2 V
Colour
Black
Backlight
No
Features
Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
- Low-power auto self refresh (LPASR)
- Data bus inversion (DBI) for data bus
- On-die VREFDQ generation and calibration
- On-board I2C serial presence-detect (SPD) EEPROM
- Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
- Selectable BC4 or BL8 on-the-fly (OTF)
- Databus write cyclic redundancy check (CRC)
- Temperature controlled refresh (TCR)
- Command/Address (CA) parity
- Per DRAM Addressability is supported
- 8 bit pre-fetch
- Fly-by topology
- Command/Address latency (CAL)
- Terminated control command and address bus
- PCB: Height 1.23 (31.25mm)
- Gold edge contacts
- RoHS Compliant and Halogen-Free
Specifications
Internal memory
16 GB
Internal memory type
DDR4
Memory clock speed
2666 MHz
Suitable For
Notebook
Memory voltage
1.2 V
Colour
Black
Backlight
No
NTBSD4P26SP-16
20 Items
Data sheet
- Warranty
- Lifetime
- Form Factor
- DIMM
- DDR Type
- DDR4
- Package Type
- Retail
- Package Weight
- 0.0000 kg
- Series
- Netac Basic
- Size
- 1 x 16GB
- Speed
- 2666MHz
- Compliance
- PC4-21300
- Pins
- 288-pin
- CAS Latency
- CL19
- Data Integrity Check
- Non-ECC
- Voltage
- 1.2V
- Additional Information
- See Overview
- Timings
- 19-19-19-43
- Capacity
- 16GB
- LED Lighting
- -
- Individual Module Size
- 16GB
- Total Capacity
- 16GB Total
- RGB
- No
- Heatspreader
- No
