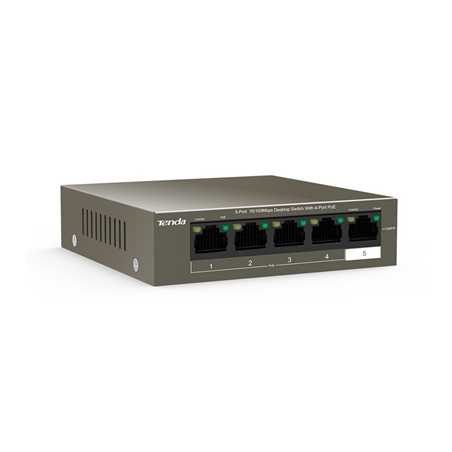

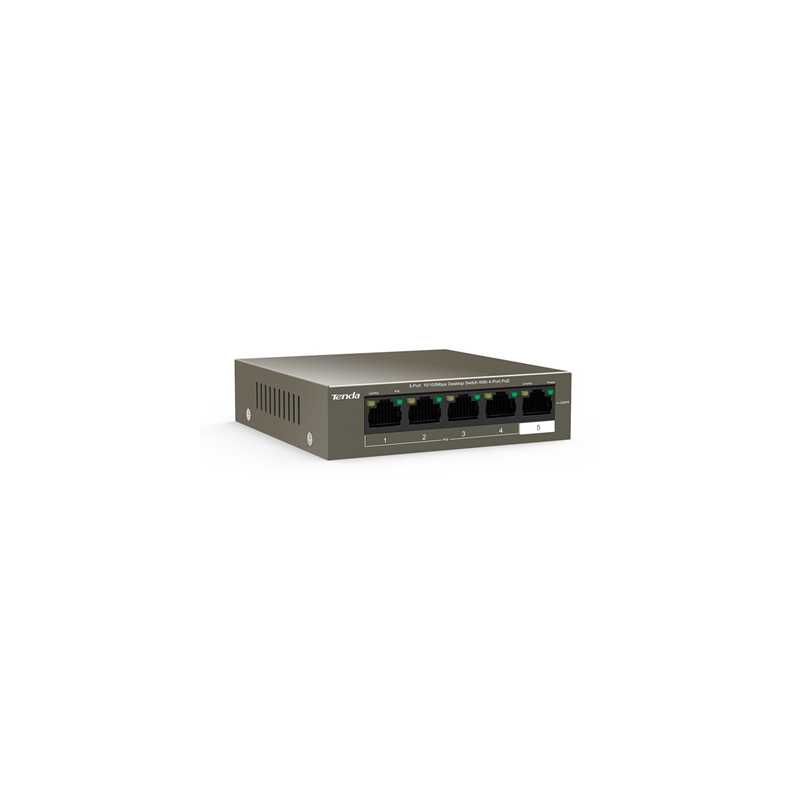

Tenda TEF1105P-4-38W 5 Port Desktop Switch (4 Port PoE)

TEF1105P-4-38W is a Tenda PoE switch that offers 5 10/100 Mbps Base-TX RJ45 ports. Up to 250 meters long distance transmission, beyond hundred meters transfer limit. 6KV lighting protection PoE switch is the real monitoring private switch. Ports 1-4 support IEEE 802.3af PoE standard. It provides 15W maximum PoE output a single port and 35W the whole device.

Born for WLAN And IP Surveillance
5-Port 10/100Mbps Desktop Switch with 4-Port PoE {35W}

Specifications

Network standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af

LED Indicator
5* Link/Ack LED indicators
1 * Power LED indicator

Interfaces
4*10/100 Base-TX Ethernet Ports(Data/Power)
1*10/100 Base-TX Ethernet Port(Data)

Transmission media
Recommended: CAT5/5e UTP or better

Fan quantity
N/A

Dimension
100.0mmx100.0mmx26.0mm

Level of protection
Lightning protection for ports: 6kV
Lightning protection for power: 6kV
ESD:
Air discharge: ±10kV
Contact discharge: ±8kV

Forwarding mode
Store-and-forward

Switch capacity
1Gbps

Packet forwarding rate
0.74Mpps

Buffer
448K

MAC address table
1K

PoE budget
Single port: AF: 15.4W, AT: 30W
Whole device: 35W

Input voltage
100-240V AC 50/60Hz
48V /0.8A DC(Power Adapter Output)

Mounting
Desktop mounting: support
Wall mounting: support

Environment
Operating Temperature: 0%~45%
Storage Temperature: -40%~70%
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

Certification
FCC, CE, RoHS
