Asrock DeskMeet X300 Barebone PC, Mini ITX, AM4 (X300), DDR4 DIMM, 2x SATA, 1x M.2, VGA, HDMI, DP, USB-C, 500W PSU  - No CPU, RA
  • Asrock DeskMeet X300 Barebone PC, Mini ITX, AM4 (X300), DDR4 DIMM, 2x SATA, 1x M.2, VGA, HDMI, DP, USB-C, 500W PSU  - No CPU, RA
  • Asrock DeskMeet X300 Barebone PC, Mini ITX, AM4 (X300), DDR4 DIMM, 2x SATA, 1x M.2, VGA, HDMI, DP, USB-C, 500W PSU  - No CPU, RA

Asrock DeskMeet X300 Barebone PC, Mini ITX, AM4 (X300), DDR4 DIMM, 2x SATA, 1x M.2, VGA, HDMI, DP, USB-C, 500W PSU - No CPU, RA

VAT included
Stock status: Very low
Last 15 items
Delivered within 1-2 days.

Delivery from %MINIMAL_DATE%

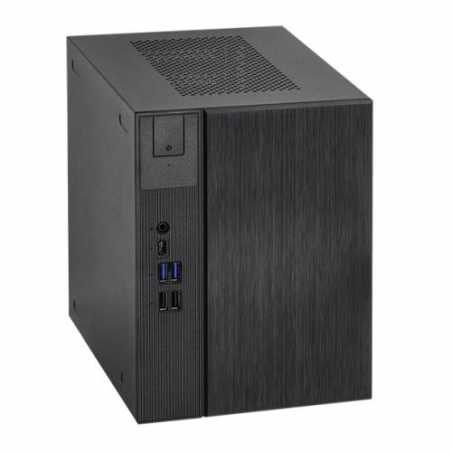

With just 8 liters of volume, DeskMeet is a powerful and compact desktop PC designed to deliver the best experience for daily computing, gaming, home entertainment, content creation and business. It supports the desktop processor and the graphics card under 20 cm long. This chassis can stand either vertically or horizontally to fit into any workspace and give users a neat and tidy desk space.


  • Supports AMD AM4 Socket Ryzen™ 2000, 3000, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors, up to 65W
  • Supports MAX Height < 54mm CPU Cooler
  • Supports 4 x DDR4-3200MHz DIMMs, up to 128GB
  • 1 x PCIe 3.0 x16
  • Graphics Output Options: DisplayPort, HDMI & D-Sub
  • 2 x SATA3, 1 x Ultra M.2 (PCIe Gen3 x4)
  • 1 x USB 3.2 Gen1 Type-C Port
  • 4 x USB 3.2 Gen1 Type-A port (2 Front, 2 Rear)
  • 4 x USB 2.0 Type-A port (2 Front, 2 Rear)
  • 1 x M.2 Key-E for Wi-Fi
  • 500W power supply (80+ Bronze)
  • 8 Liter compact size

Processing Power
DeskMeet X300 supports the latest AMD Ryzen™ 5000 Series desktop processor (up to 65W) that delivers ultimate performance for efficient work and demanding applications.

Incredible Memory Performance
Up to 128GB of four DIMM memory clocked at 3200MHz, DeskMeet provides a faster multitasking experience and a responsive system.
Get the server-grade performance and rock-solid durability with support of ECC un-buffered memory modules for high-end computing systems, such as scientific or financial computers.

DeskMeet features a dedicated MOSFET heatsink that allows it to dissipate excess heat and operate at the optimum temperature for reliable performance.

Ready for Dual slot Graphics Card

DeskMeet can fit a dual slot graphics card (up to 20cm or 7.87 inches) which is an option for those requiring advanced graphics performance for heavy visual tasks, such as gaming, 3D rendering and video editing.

Efficient Airflow Design
DeskMeet features air vents at the top, left side and bottom of the chassis, allowing for maximum heat removal and constant airflow.
In addition, the custom intake fan inside the power supply can pull in cool air to dissipate heat from the CPU and VRM. Such optimized thermal design enables the system to run cool and quiet without compromising performance.

Expand the Configurations Potential

With a flexible and expandable design, DeskMeet can be easily configured to meet users now and future needs. The mounting holes on top of the frame provide four options, 1 x 3.5” HDD, 2 x 2.5” SSD/HDD, 1 x 120mm fan or 1 x single radiator liquid cooler.

Up to Three Storages
DeskMeet X300 supports up to 3 storages including 1 x Ultra M.2 to speed up the system and reduce loading time, 2 x SATA 6Gb ports (supports RAID 0/1 function) for 3.5” HDD or 2.5” SSD/HDD enable users to build a mini data center.

Easy to set up and upgrade
DeskMeet adopts a drawer chassis design so users can pull out the motherboard tray after removing one screw at the bottom. To keep up the system in the latest status, all the components can also be installed or upgraded with ease. DeskMeet provides a simple setup experience to save time and effort.

Keep Your 3.5” HDD

DeskMeet can be equipped with 2 x 3.5” HDD at most. When users replace the aged tower PC with DeskMeet, they can install their old 3.5” HDD to preserve personal data.

ATX Power Supply
DeskMeet includes an internal 500W 80 Plus Bronze power supply with custom length cables to save space and make cable management easier. The fan in the power supply will draw in the cool air to CPU cooler which is the best way to increase airflow and ensure DeskMeet operates at its utmost efficiency of heat dissipation.


Up to three displays can be used simultaneously without adding an extra graphics card. With multi-screen, you can have high productivity and immersive gaming experience.

Front USB Type-C

DeskMeet features one reversible USB Type-C port in the front of the case for fast charging and data transfer.

Although DeskMeet’s compact size, it doesn’t compromise on I/O ports. It has eight Type-A USB ports to connect to all of your peripheral devices.

Portable PC for Various Applications

With only 8 liters and 168mm in width, DeskMeet is a portable PC that you can place it in dormitory or hand baggage when taking a trip to play video game at the hotel room. DeskMeet offers a wide range of uses for any scenario.

Auto Driver Installer

No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.
  1. Step 1: Install Auto Driver Installer
  2. Step 2: Update drivers needed
  3. Step 3: Done!


15 Items

Data sheet

1 x Chassis Intrusion Header1 x CPU Fan Connector (4-pin)1 x Chassis/Water Pump Fan Connectors (4-pin)1 x 24 pin ATX Power Connector1 x 8 pin 12V Power Connector1 x Front Panel Header1 x USB 2.0 Headers (Support 2 USB 2.0 ports)
Quick Installation Guide2 x SATA Data Cables1 x Screws Package
Optical Drive
3 Years
AMD X300
Gigabit LAN (RealtekRTL8111H)
Package Type
Additional Features
See Overview
168 (W) x 219.3 (D) x 218.3(H) mm (excl. Protrusions)168 (W) x 236.1 (D) x 221.6(H) mm (incl. Protrusions)
Operating System
No O/S
Memory Details
4 x DDR4 DIMM (Dual Channel) Max. 128GBAMD Ryzen 5000/4000 series – 3200MHzAMD Ryzen 3000/2000 series – 2933MHzSupports ECC & non-ECC, un-buffered memory
Asrock DeskMeet
Hard Drive
Realtek ALC897 Audio Codec
Keyboard and Mouse
Supports a discrete Dual slot Graphics card up to 20cm
Tower / Small Form Factor
Small Form Factor
Supported Drives
2 x SATA3 for 3.5” HDD or 2.5” SSD/HDD (RAID 0/1)1 x Ultra M.2 (2280) - PCIe
Front I/O
1 x USB 3.2 Gen1 Type-C2 x USB 3.2 Gen1 Type-A2 x USB 2.0 Type-A1 x Headphone/Headset Jack
Back I/O
1 x D-Sub1 x HDMI1 x DisplayPort2 x USB 2.02 x USB 3.2 Gen1 Type-A1 x RJ-45 LAN Port1 x Audio Jack (Line out)
Power Unit
500W 80+ Bronze
