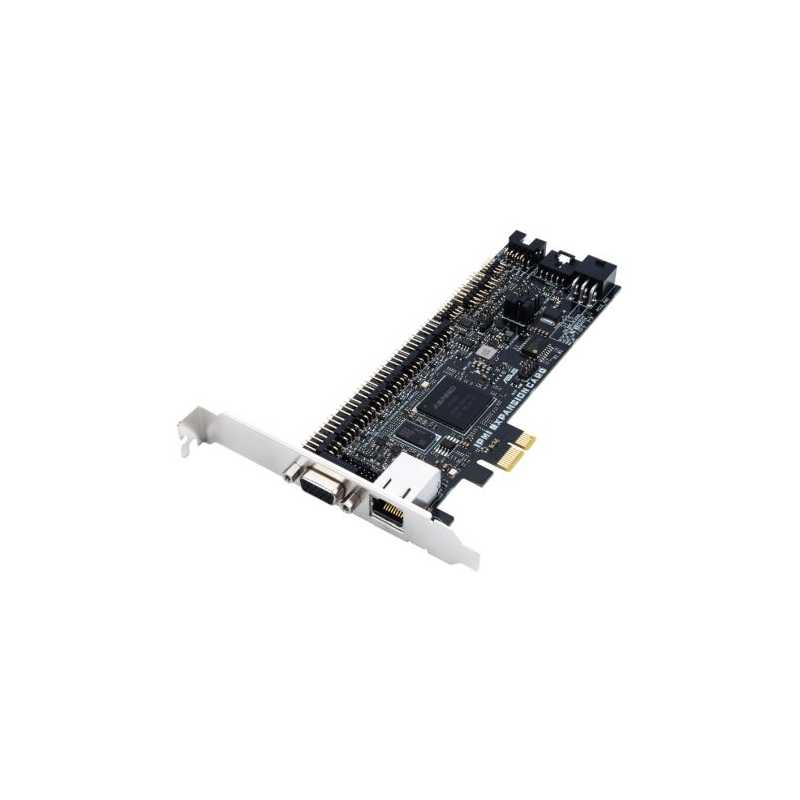

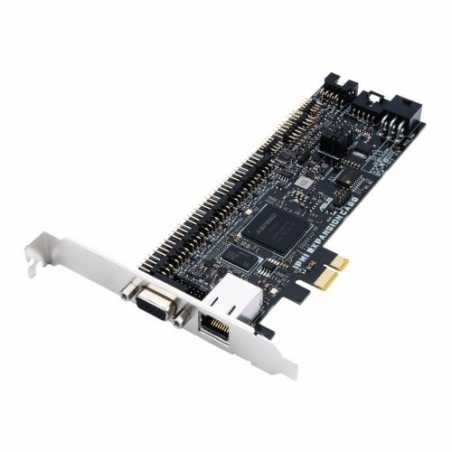

Asus IPMI Expansion Card w/ Dedicated Ethernet Controller, VGA Port, PCIe 3.0 x1 & ASPEED AST2600A3
£129.87
VAT included
ASUS IPMI expansion card with dedicated Ethernet controller, VGA port, PCIe 3.0 x1 interface and ASPEED AST2600A3 chipset to provide the intelligence for IPMI architectures
- IPMI 2.0 compliant
- Out-of-band and in-band remote management with ASPEED AST2600A3 chipset
- Sensor monitoring with notifications of potentially dangerous readings or failure
- Control and monitoring of up to 8 chassis fans
- BIOS and BMC firmware update via web console or Linux tool
- Monitoring of power supply unit voltage and temperature
Remote Management
This ASUS IPMI expansion card delivers a breakthrough remote management solution for motherboards that have overclocking capabilities but not an onboard baseboard management controller (BMC). It benefits applications ranging from financial market trading for high-performance systems, to remote monitoring and real-time troubleshooting.
Accurate Fan Control
To provide real-time system temperature and dynamic fan-curve adjustments for lower fan power consumption, customizable settings for a given temperature source deliver more accurate results to control the rotational speeds of up to eight chassis fans.
* It requires the BMC header on the expansion card to connect the motherboard to be able to set one of motherboard sensors as a temperature source.
Multiple embedded sensors detect the real-time status of devices across an internal network, including temperatures, fan speeds and voltages, empowering system administrators to identify failures and reduce outage risks through efficient troubleshooting delivery.
Real-time Hardware Monitoring
Multiple embedded sensors detect the real-time status of devices across an internal network, including temperatures, fan speeds and voltages, empowering system administrators to identify failures and reduce outage risks through efficient troubleshooting delivery.
* It requires the BMC header on the expansion card to connect the motherboard to be able to read real-time sensor data. Otherwise, it only captures data from the power-on self-test.
System administrators can remotely monitor the power status of multiple devices at once to quickly turn them on or off, cycle power, or initiate hard resets. This can both reduce friction in the IT workflow and deliver energy cost savings.
Multiple management interfaces are available to give IT admins flexible options to manage devices remotely. The web console is straightforward, with a user-friendly interface to quickly access common features. Meanwhile, admins who prefer a text-based interface can also interact with IPMI-enabled devices via the command prompt.
Remote Power Control
System administrators can remotely monitor the power status of multiple devices at once to quickly turn them on or off, cycle power, or initiate hard resets. This can both reduce friction in the IT workflow and deliver energy cost savings.
Multiple Management Interfaces
Multiple management interfaces are available to give IT admins flexible options to manage devices remotely. The web console is straightforward, with a user-friendly interface to quickly access common features. Meanwhile, admins who prefer a text-based interface can also interact with IPMI-enabled devices via the command prompt.
90MC0AH0-MVUBY0
Data sheet
- Accessories
- 1 x BMC cable1 x SPI cable1 x Power On/Off cable1 x Reset cable1 x USB 2.0 cable1 x IPMI TPM ADAPTER1 x User manual
- Warranty
- 1 Year
- Chipset
- ASPEED AST2600A3
- Operating System
- Windows 10 - 64 bit, Linux OS including Cent OS, Redhat, and Ubuntu
- Graphics
- 1 x D-sub supports max. resolution 1920 x 1200 @ 60 Hz
- Interface
- PCIe 3.0 x1
- Features
- Sensor monitoring & reporting when exceeding thresholds/failureFan and PSU monitoring and faillure alertingIPMI 2.0 compliantCold bootHTML5 Virtual Console (no Java)SOL SupportSSH (SMASH 2.0) supportSNMP V3 AlertingUpdate BIOS, BMC firmware via Web consol
- Internal RAM
- System: 384MBVideo: 64MB
- Internal ROM
- 64MB
- Timers
- 32-bit Watchdog Timer
- External Connectors
- 1 x D-Sub1 x LAN (RJ45) port
- Internal Connectors
- 8 x fan headers1 x 6-pin PSU connector1 x BMC header1 x SPI header1 x PM_BUS header1 x USB 2.0 connector1 x VGA header1 x Panel header(links to PWR/RST header)3 x Tr sensor headers1 x BMC switch jumper1 x VGA switch jumper1 x LOC switch jumper1 x BMC Indi
Specific References
- EAN13
- 4711081525592
